Week - 4

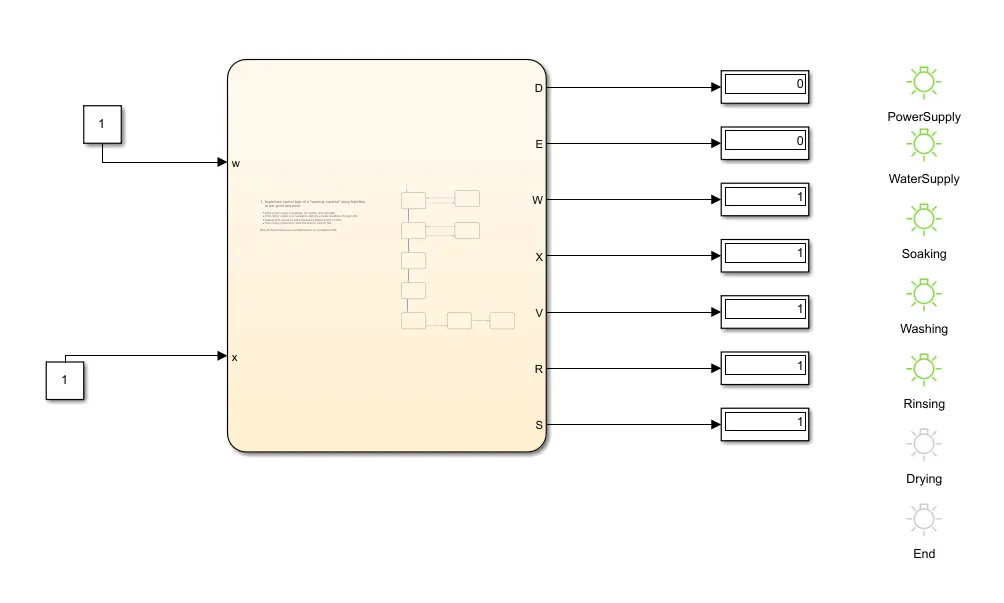

Sol.1: The above image shows the state flow mechanism of washing machine working process.

In this model we consider the power supply X as conatant value 1 which means power supply is on & water supply w=1 means water supply on. & based on that we continue our flow to final outcome.

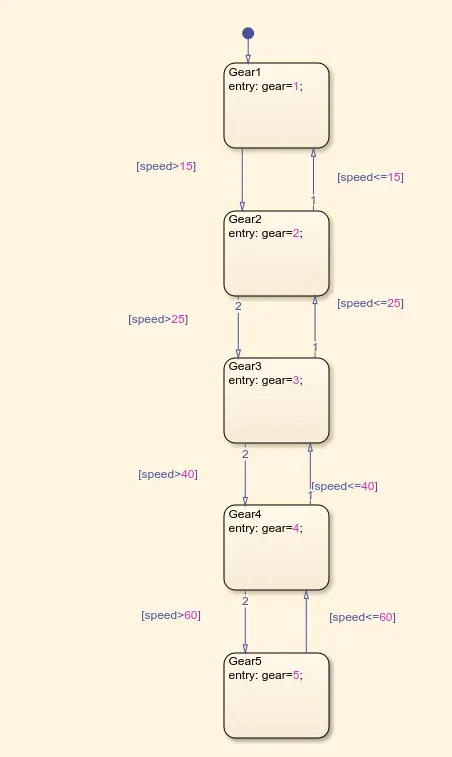

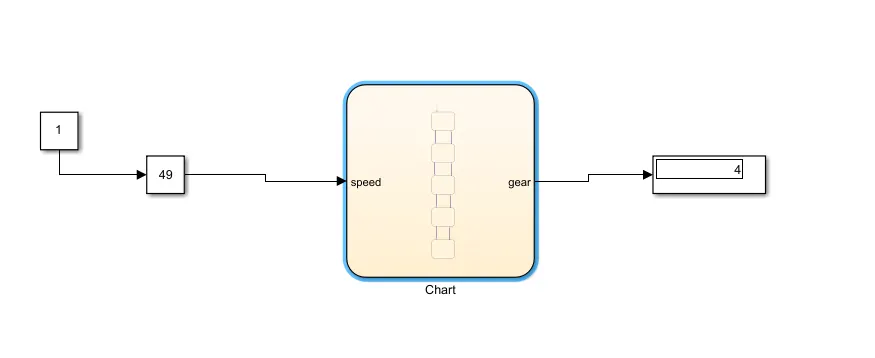

Sol.2: Made a state flow by considering two variable one is gear that shows gear value & other one speed which is varibale during opeation so use slide gain block between 0 to 100 speed values & output seen in display block.
