Week - 4

Objective:

1. Execute control great judgment of a "clothes washer" utilizing Stateflow

2. Make a Simulink diagram for the "Stuff shift" rationale.

Hypothesis: Case 1-Implement control rationale of a "clothes washer" the utilization of Stateflow

The functioning rule for the washing work area is "Centrifugation". Centrifugation is a detachment procedure that utilizes the movement of outward strain to advance the sped-up settling of particles in a strong fluid combination. The washing PC comprises an axis for this reason. A rotator is a piece of stuff that places an item in the revolution cycle at a steady hub, utilizing a power opposite to the pivot of twist that can be a major area of strength for exceptionally.

Inside the Washing machine, there are not many cycles that are completed in a progressive period of time, for example,

a) Soaking

b) Washing

c) Rinsing

d) Drying

Simulink Model: Case-1

Stateflow Chart-A limited state figuring gadget is an outline of an occasion-driven framework. In an occasion-driven framework, the gadget answers a competition with the guide of making a progress starting with one country and then onto the next. This progress happens on the off chance that the situation given is valid. A nation stream outline is a graphical representation of a limited state machine.

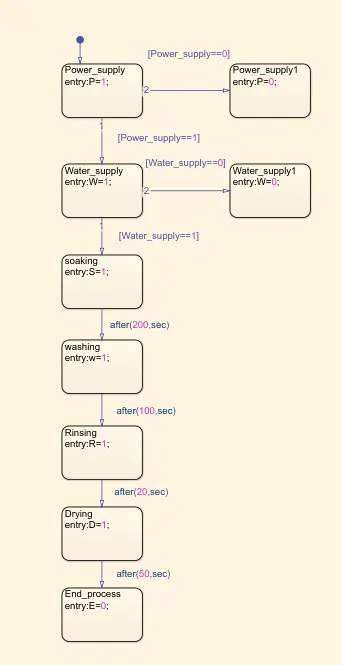

State float graph of the Washing Machine Model:

Clarification: Since the inquiry totally alludes to that exclusively when the Power is overall framework will start. This is followed by means of the accessibility of the water supply. In the event that both of these 2 expectations aren't happy the washing registering gadget interaction won't start.

Consequently, the main decent condition is connected with the method while the negative condition is associated with a different intersection. Again according to the inquiry, the primary framework dousing is conveyed for 200 seconds which is addressed as "after(200, sec)", the heading for this square can be doled out according to the square prerequisite. I have given the passage cost as "0" and the leave expense as "1". A similar interaction is conveyed until the "Dryer" framework than in the end block with a passage expense of "1".

The will be the last Simulink life-sized model for the Washing Machine

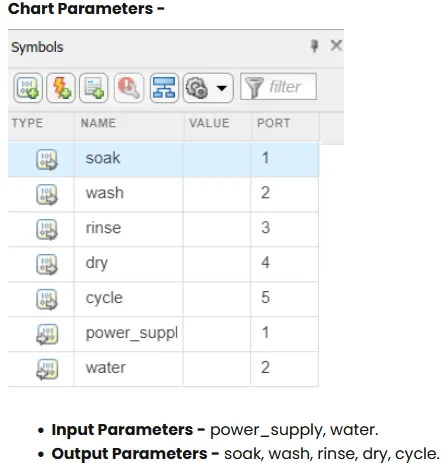

2 steady square has been connected with the realm float graph as information sources. These two steady squares are in flip overseen by means of a "Slider switch" (which on sliding toward 'on' presents the value 1 and when towards 'off' offers the expense 0). 5 results are connected from the nation take the path of least resistance outline to the presentation. These 5 results show the four unique strategies that are going on inside the washing figuring gadget (Soaking, Washing, Rinsing, and Dryer) and the last one is the completion.

Both the sources of info and results are associated with a Lamp, which is characterized such that it radiates green light when the result is 1 and emanates pink light when the result is 0.

Results: Case 1

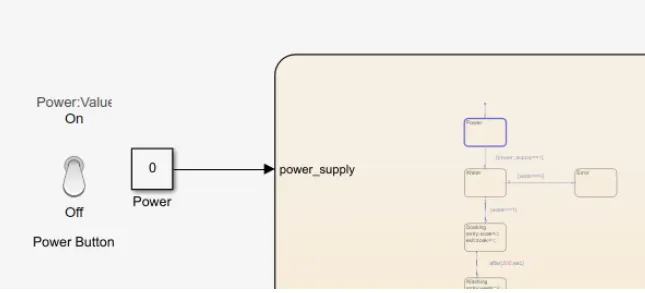

1. Here I turned on the slider trade for the power, however, according to the inquiry in the event that the water gives isn't turned on then the total way can't start. Subsequently in the beneath shown Simulink block, other than the strength button unwinding everything is in purple tone.

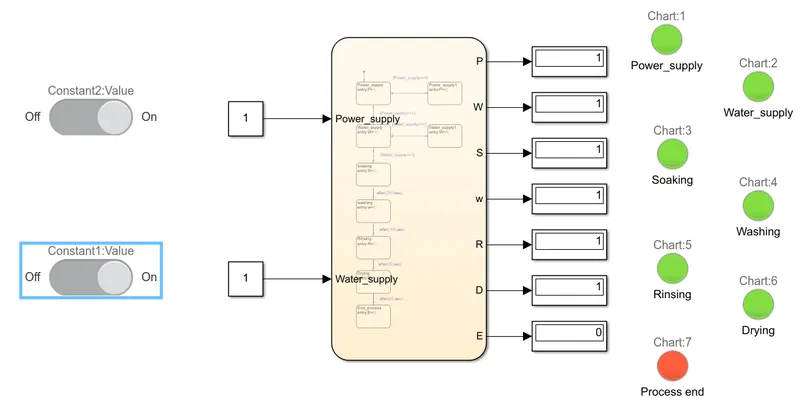

2. Here I have turned on each power and the water supply. The recreation is made to run for 250 seconds. The final product shows that the washing technique has begun with the splashing framework been executed (As in the inquiry the dousing method is accomplished for 200 seconds). Comparably founded absolutely on the time portion the reenactment is made to rush to accomplish the unwinding of the interaction.

3. This is the end-product, demonstrating that every one of the cycles inside the clothes washer has been completed underneath the given starter conditions.

Hypothesis: Case 2-Make a Simulink outline for the "Gear shift" rationale.

The stuff moving component is saved inside the Transmission to allow the uniform force towards the drive shaft. This is on the grounds that the IC motor creates the prevalent force solely after a definite speed and it drops once more. So to accomplish the first in class forces on a nonstop basis Transmission is utilized, with this, we can control the Torque with the help of "Stuff proportion" (by utilizing different hardware sizes inside)

Manual Transmission Gear:

As displayed in the above figure, Manual transmission has coordinated gears, or generally coincided gears are kept. (In Automatic Transmission Planetary cogwheels are utilized) Based on the speed prerequisite the stuff is changed utilizing the Gear handle, which thusly makes the collar devices to get coincided with the dynamite gears. The resulting shaft is associated with the collar gear, thus whichever device gets coincided with the collar stuff will be the result shaft.

During the gear moving interaction, it is required that the info shaft is separated from the motor. This is executed with the assistance of the grab plate (Torque convertor if there should arise an occurrence of the Automatic Transmission).

State Flow Chart: Case - 2

Here according to the inquiry, the pinion wheels are organized with the situation in the speed range. For instance, Speed over zero-till 15 will fall beneath the first instruments and the diagram is furthermore particular in such a manner to satisfy the condition.

Simulink Model: Case-1

Here two enter blocks are kept, one is reliable and the other is the "Slider Gain" Block. The Slider Gain block plays out a scalar accomplish that you can adjust sooner or later of the reenactment. The square aide's fixed-point data types. The expense given in the predictable square gets extended with the Slider accomplish cost over the reenactment.

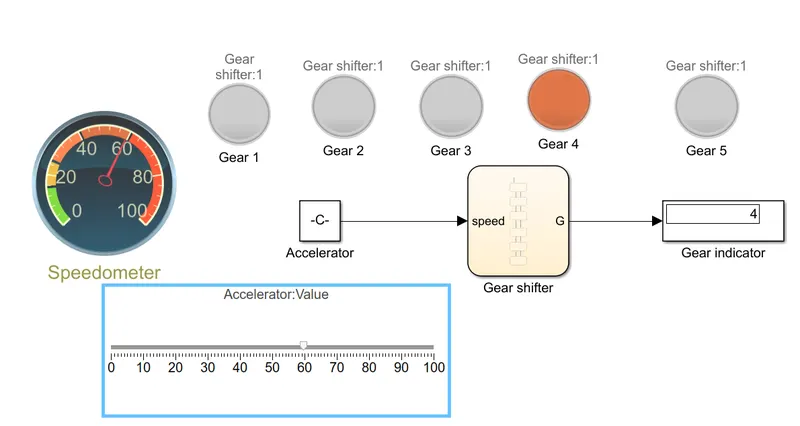

To conclude the device's esteem expected for the specific speed, a "Show" block is put. The light is additionally situated whose boundaries are set in a manner that for every hardware it will create individual tones. The variety of inputs is demonstrated beneath,

Results: Case 2

a) for the main stuff, the Speed is 10 kmph

b) for the 2d stuff, the Speed is 20kmph

c) for the third stuff, the Speed is 30kmph

d) for the fourth stuff, the Speed is 50kmph

e) for the fifth stuff, the Speed is 70kmph
