Week - 4 - 2D meshing for Plastic components

AIM:-

carry out mid surfacing and 2d meshing for the given plastic component .

OBJECTIVE-

For the given Plastic Bottle Cap model, check for the geometrical errors and take the mid surface by suitable mid surfacing techniques. PID and Thickness assignment has to be done for all the mid surfaces. Mesh the same with given element Quality criteria. (Refer the table Below for the Quality criteria).

S.No	Quality Criteria	Value
1	Target/Average length	1
2	Minimum Length	0.5
3	Maximum Length	3
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum  Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

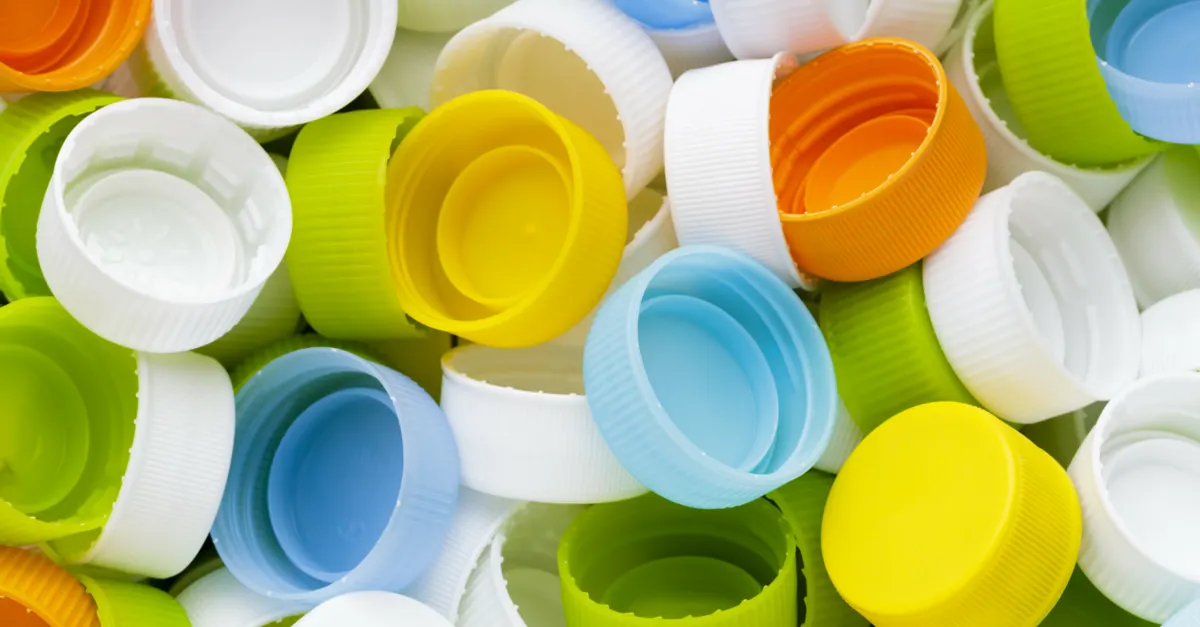

BOTTLE CAP :-

A bottle cap or bottle top is a closure for the top opening of a bottle. A cap is sometimes colourfully decorated with the logo of the brand of contents. Plastic caps are used for plastic bottles, while metal with plastic backing is used for glass; plastic caps are commonly made from PE or PP, whilst metal caps are usually either steel or aluminum.

PROCEEDURE :-

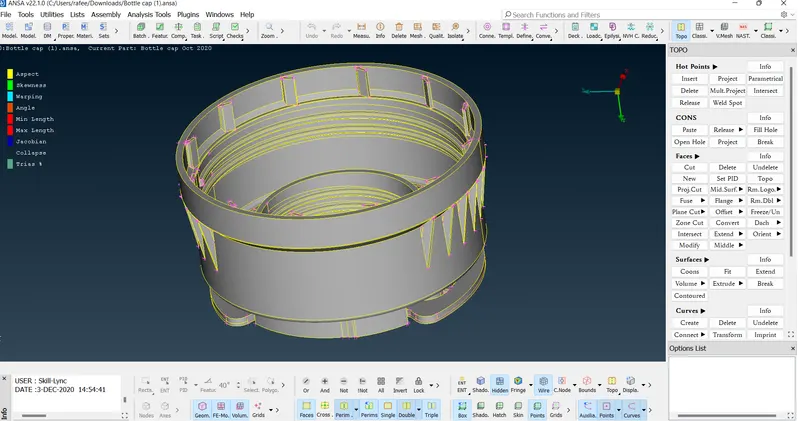

1.Import the model

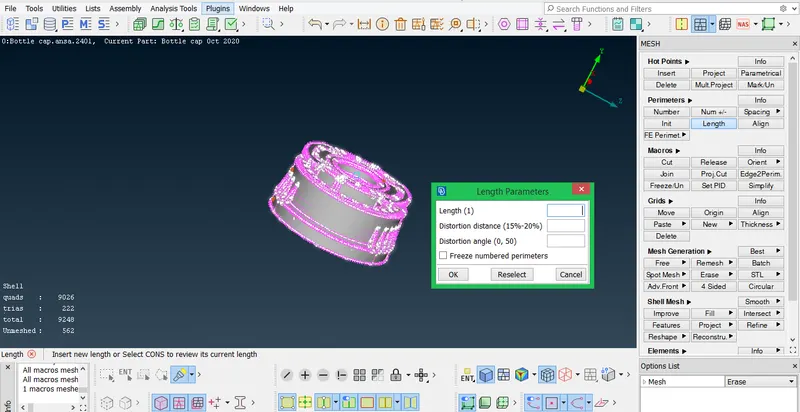

2.Cons resolution by Length option in Mesh module.

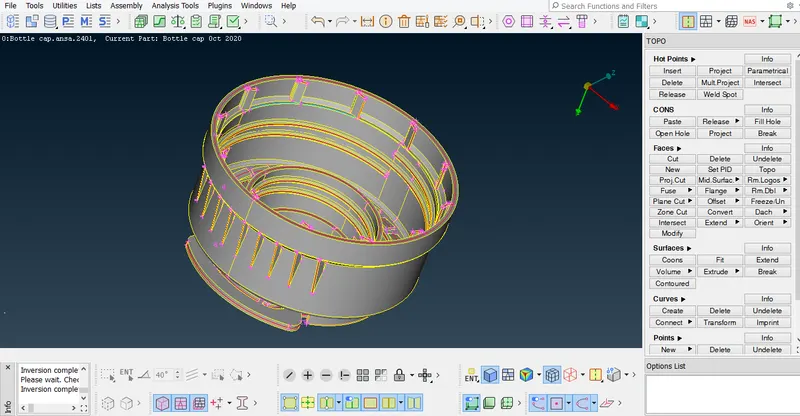

3. We have to Orient the Surfaces to make sure all the surfaces are in one normal direction.

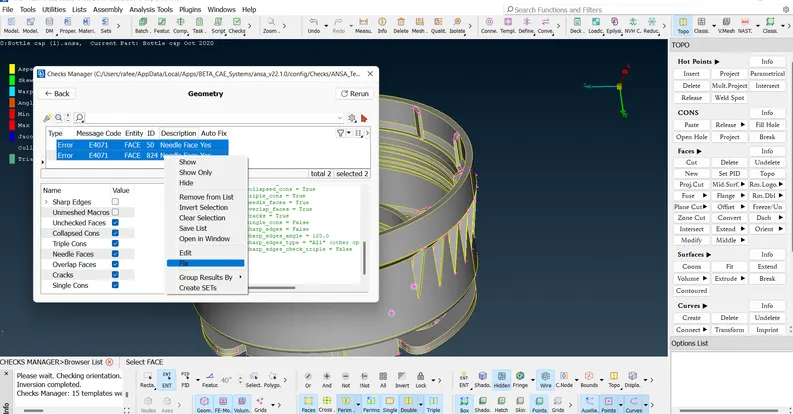

4.Checking the geometrical errors and Clearing the geometry errors.

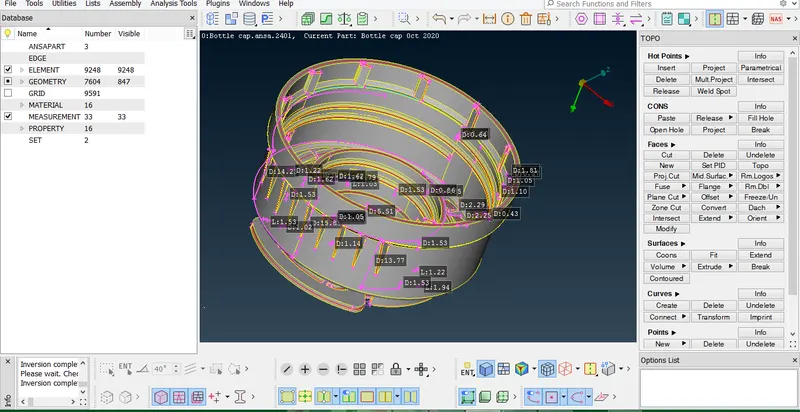

5.Check the thickness of the components.

1. the thickness is less than 6mm .then we have to extract the midsurface.
2. it is a plastic component as the thickness is varying .

6. Creating the Midsurface for a Plastic component.

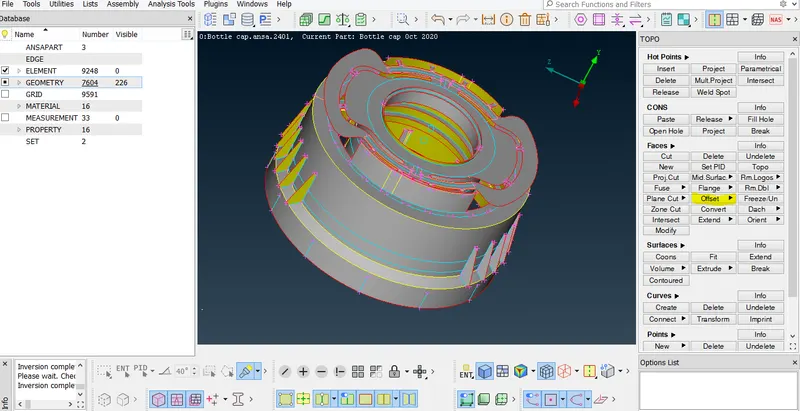

1. Creating the midsuface for the different thickness of plastic component using Offset tool in Face module.

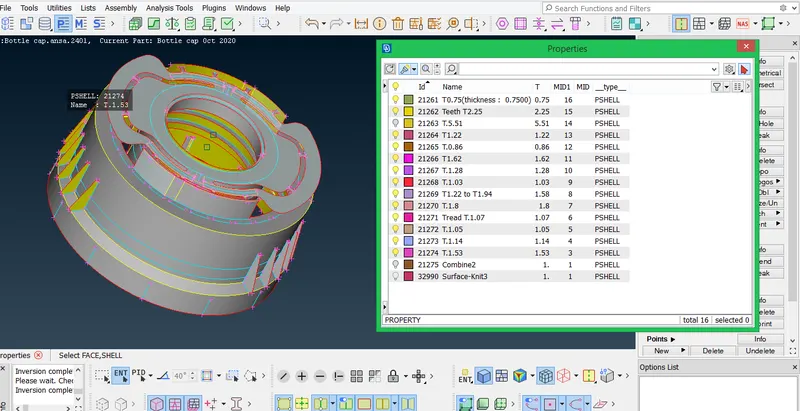

2. Setting the PID of different thickess.

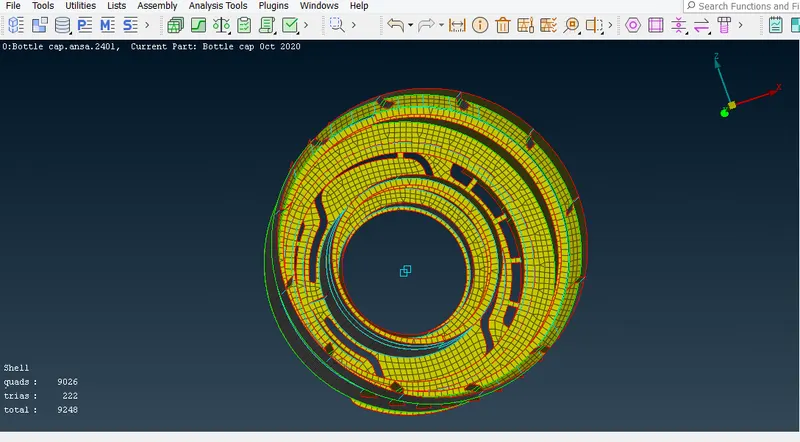

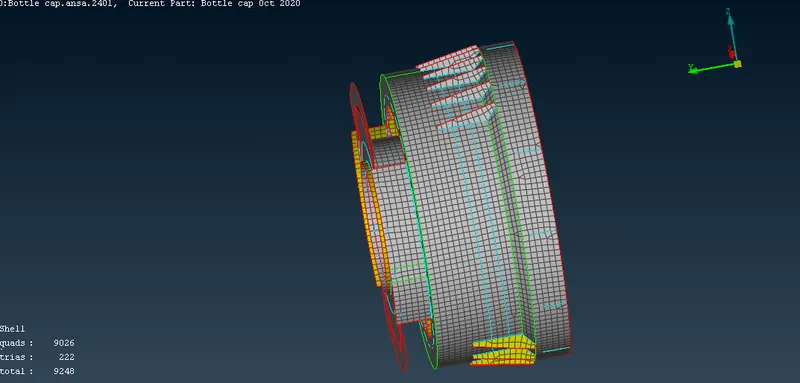

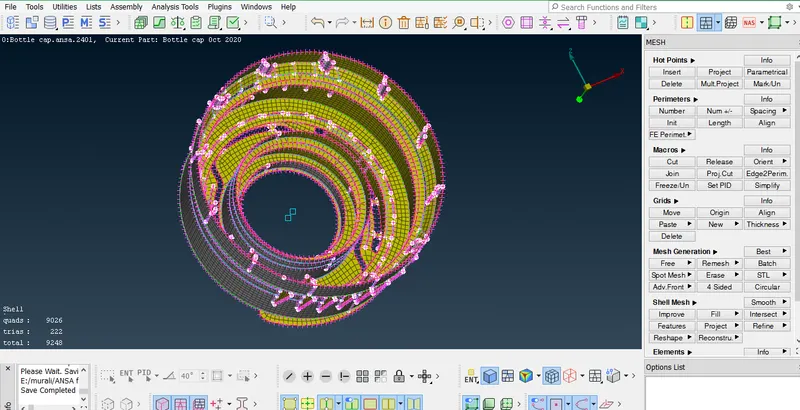

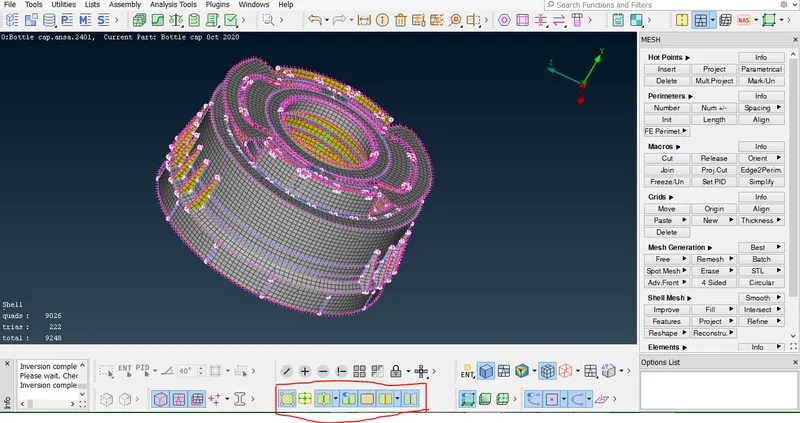

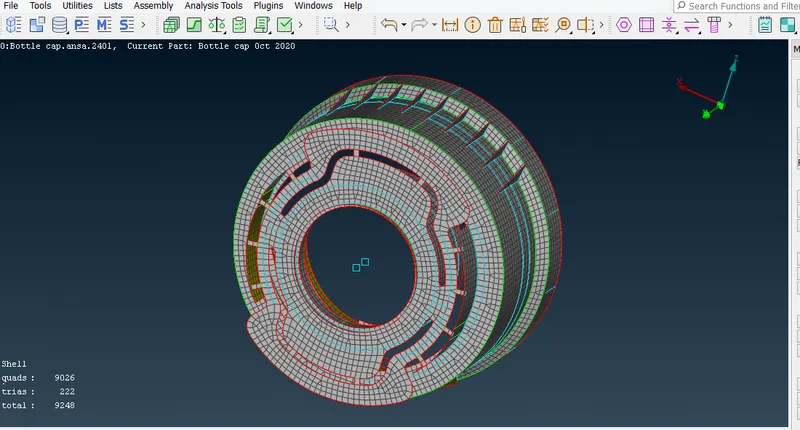

7. create midsurface and mesh at the same time . we can see the midsurface generated and FE by turning on and off faces .

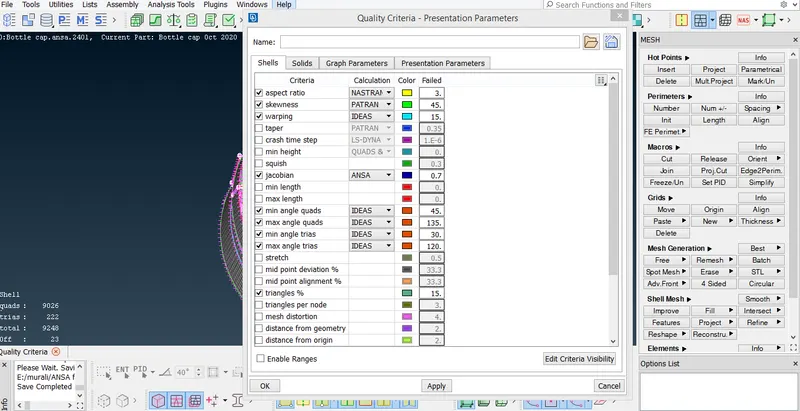

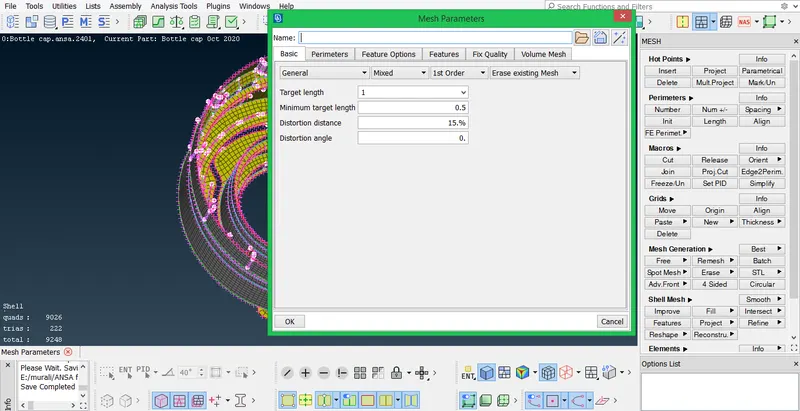

8.Providing the Mesh Parameters and Quality criteria to the model.

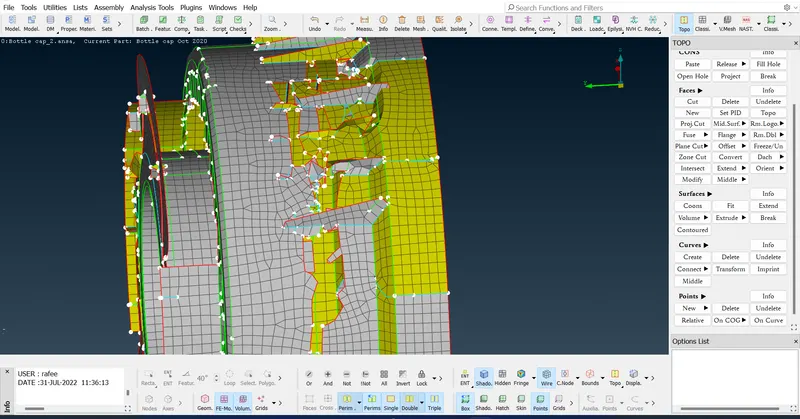

9.Cleaning the Midsurface.

1. the casting didnt capture the feature correctly in some parts . so we need to correct them .
2. we can use help of align manager to correct them .
3. using tools like paste , delete ,align , fill , middle in curves ,.... helps to correct them .

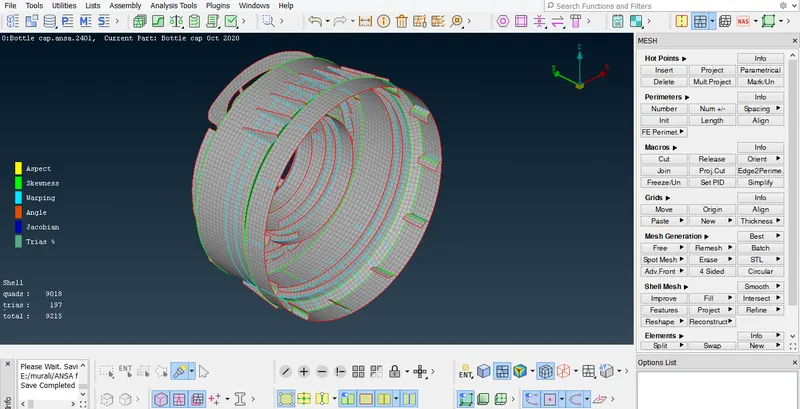

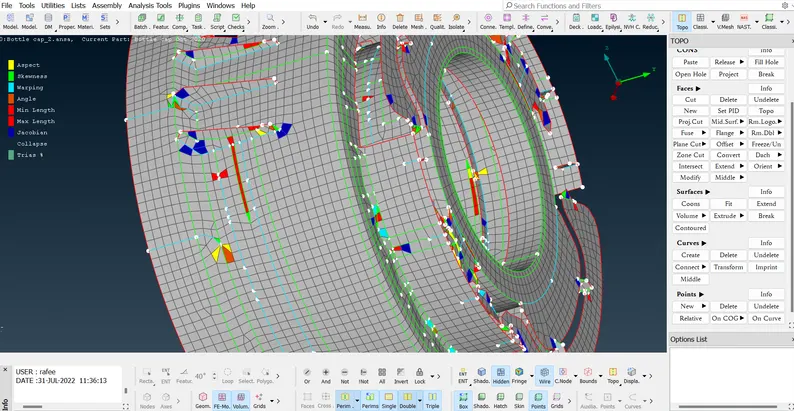

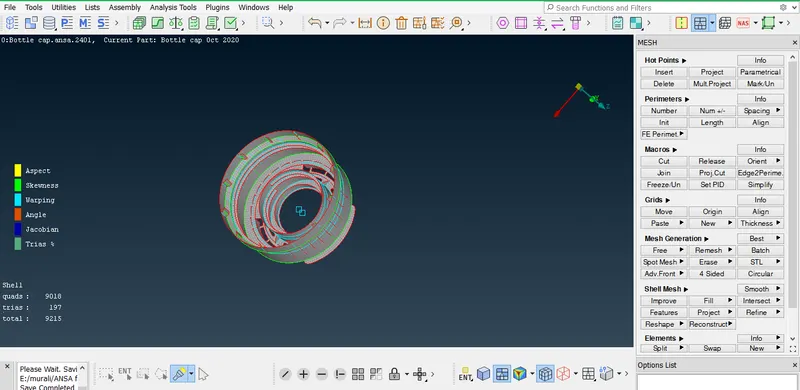

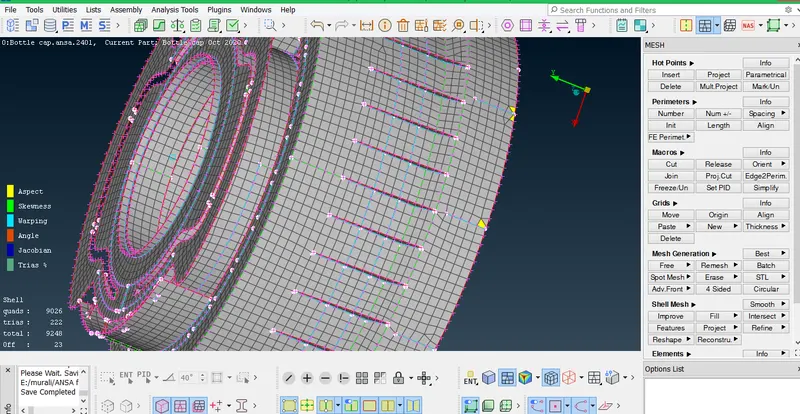

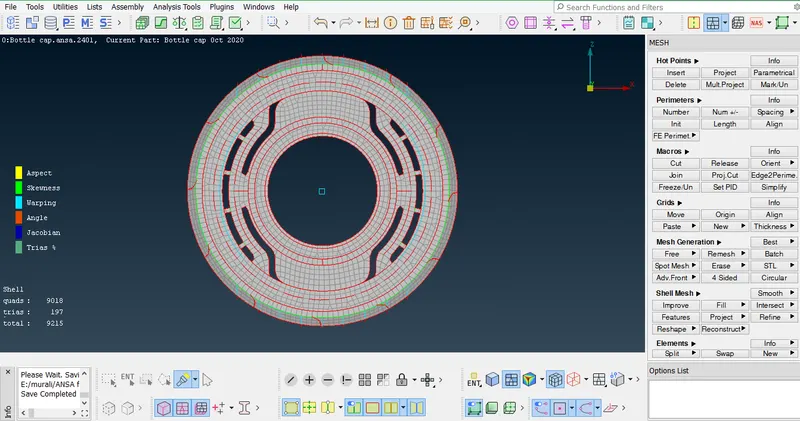

10.Clear the elements which are failing for the quality criteria.

CONCLUSION :-

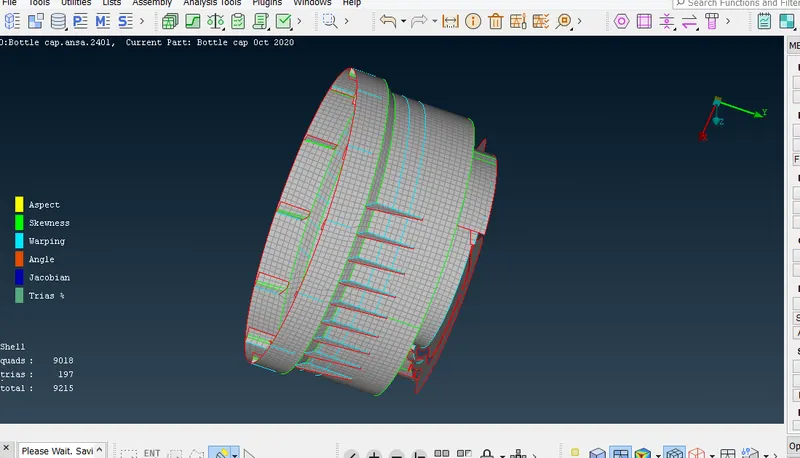

we have successfully created mid surface and 2d mesh for the given plastic component .
