Week 4-1D Element Creation Challenge

OBJECTIVE:- Meshing the given componenet with 5 units and also Creating 1D elements on the following component with given cross-section and DOF.

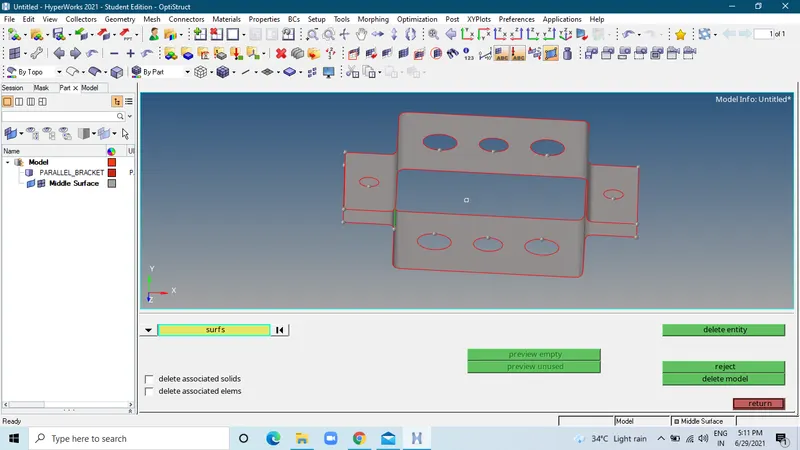

1:- i have done the midsurface of the component.

2:- After that i deleted the solid part .

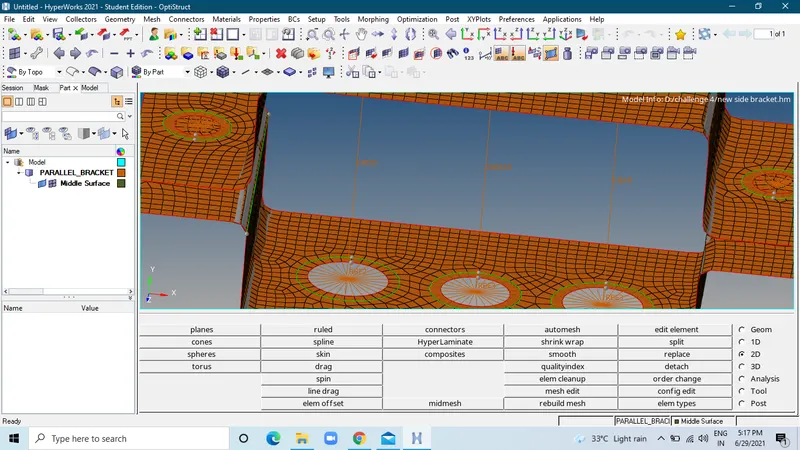

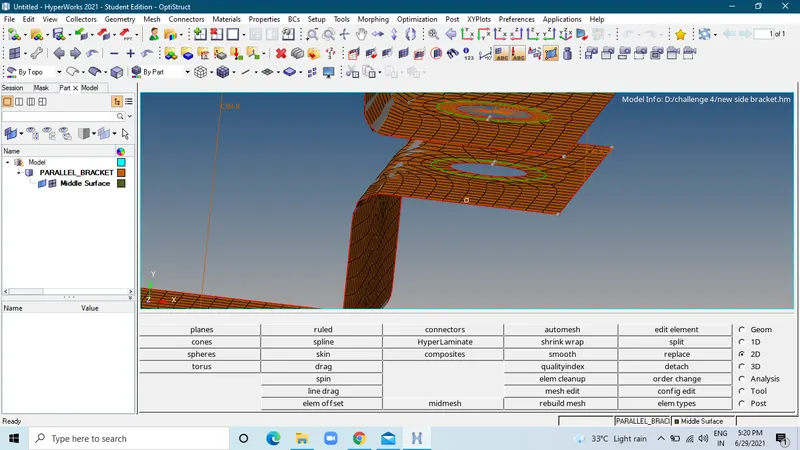

3:- And mesh the midsurface with 5 units (quad elements)

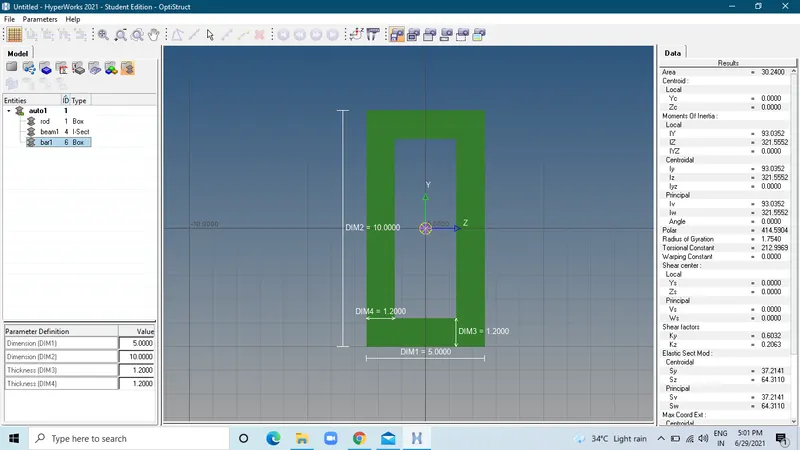

BAR ELEMENT WITH X CROSS SECTION

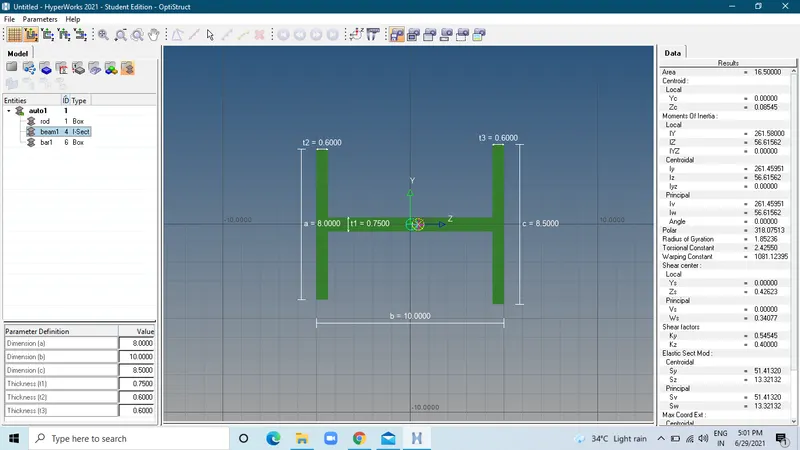

BEAM ELEMENT WITH I CROSS SECTION

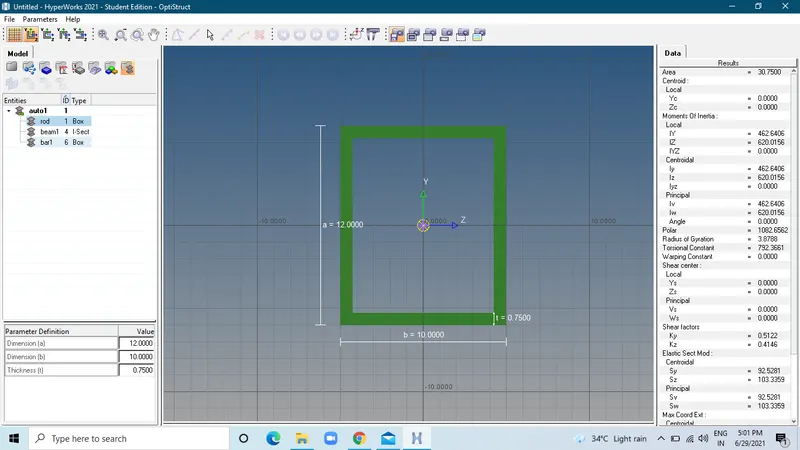

ROD ELEMENT WITH BOX CROSS SECTION

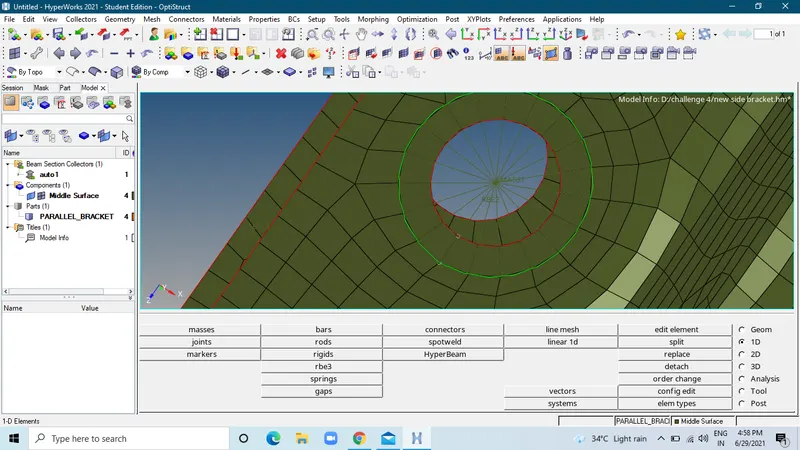

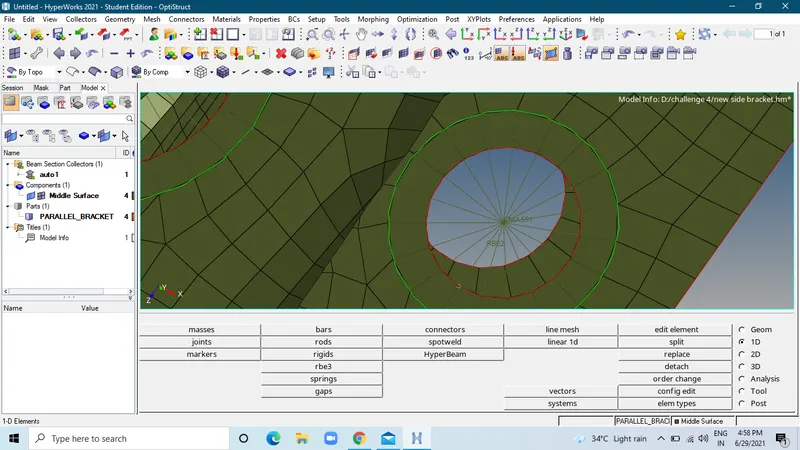

POINT A : ROD ELEMENT HAS RBE2 LINK

POINT B AND C: BEAM AND BAR HAS RBE3 LINK

POINT D MASS OF 10 AND RBE2 LINK:

POINT E MASS OF 10 AND RBE2 LINK:

SPRING ELEMENT AT F POINT

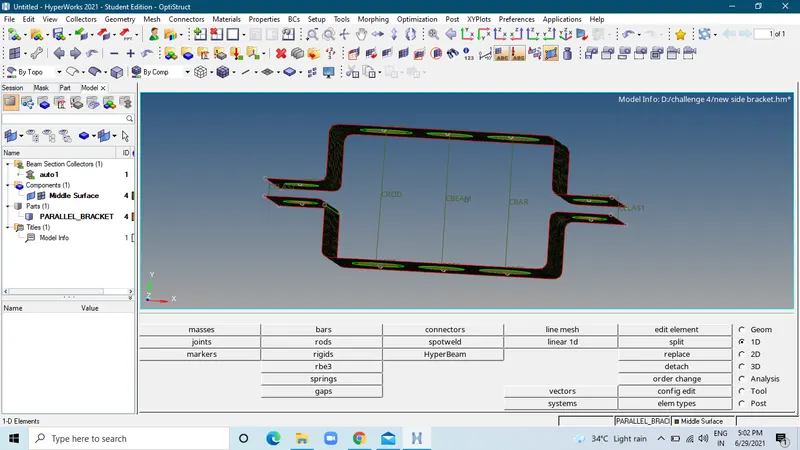

FINAL IMAGE

KINDLY FIND THE FINAL RESULT OF HYPERMESH MODEL IN ATTACHEMENTS.
