Week 3 - 2D meshing for Sheet metal

its very hard to mesh becouse this is my first ansa mesig challange but it was very intresting

The next step is to prepare the mid surfaces for meshing. For that, switch to the Mesh module. First, the shell element length is altered by going to Perimeters>Length and all the CONS are selected and target element length 5 is fed as length value. The same is done for all the Macros (surfaces).

• No back to back trias touching each other
• No opposite trias
• No trias touching the edges
• No trias on a feature

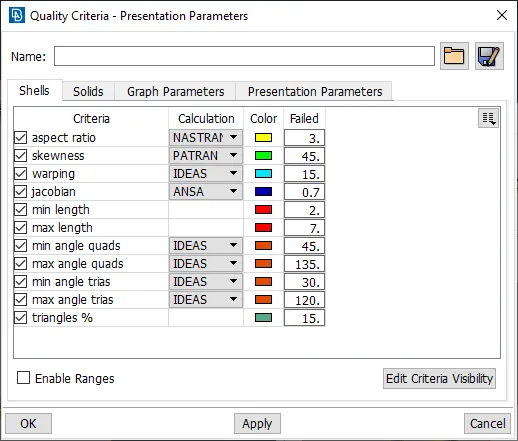

• Low concentration of trias in a region

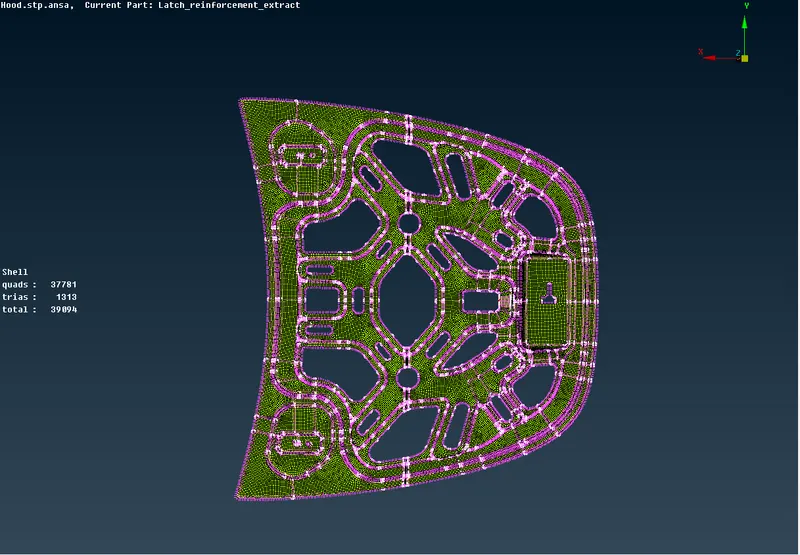

After modifying the mesh, Shell Mesh>Smooth tool is used to smoothen the flow of the mesh. Any elements failing for quality criteria are also fixed by either remeshing or smoothing the elements. The created mesh is shown below,
