Week 2 Challenge : Surface meshing on a Pressure valve

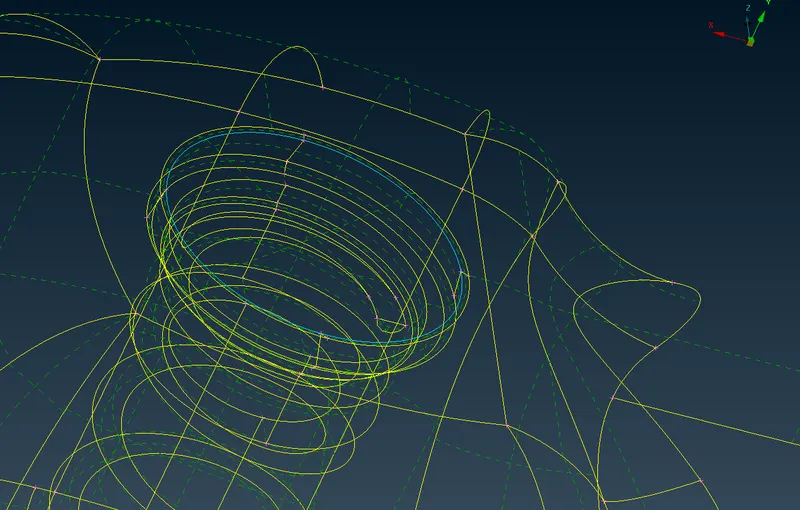

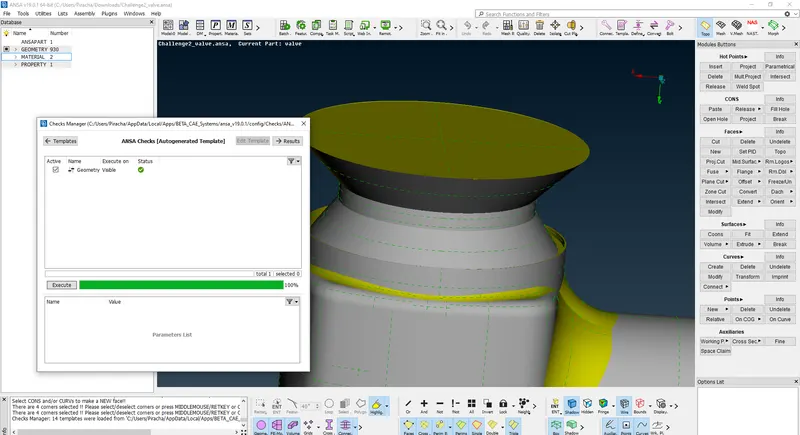

Geometrical Cleanup:

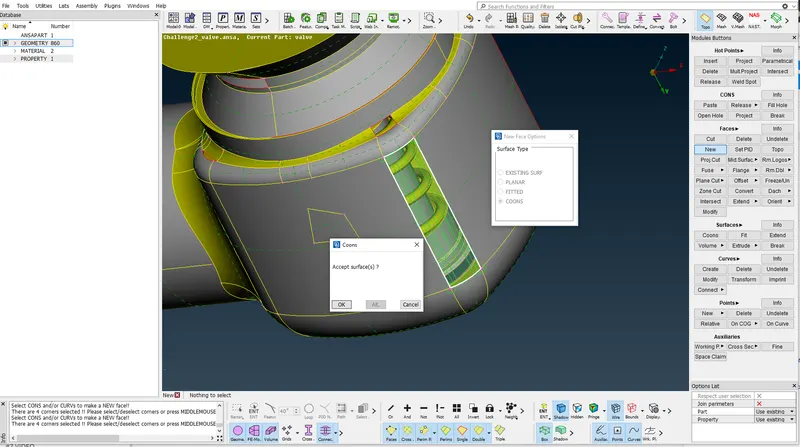

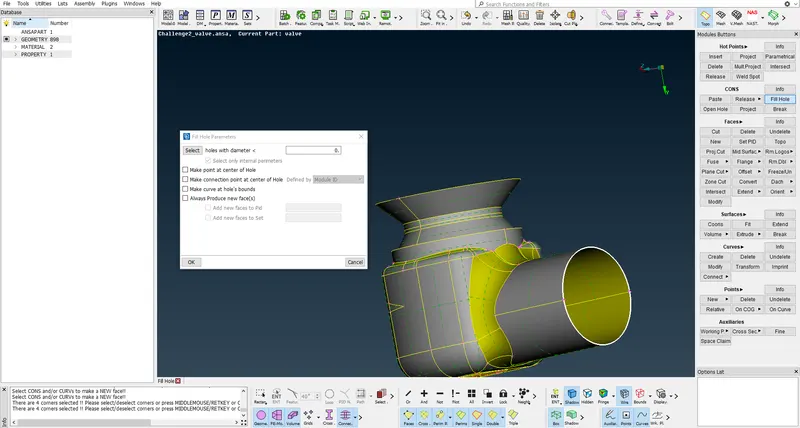

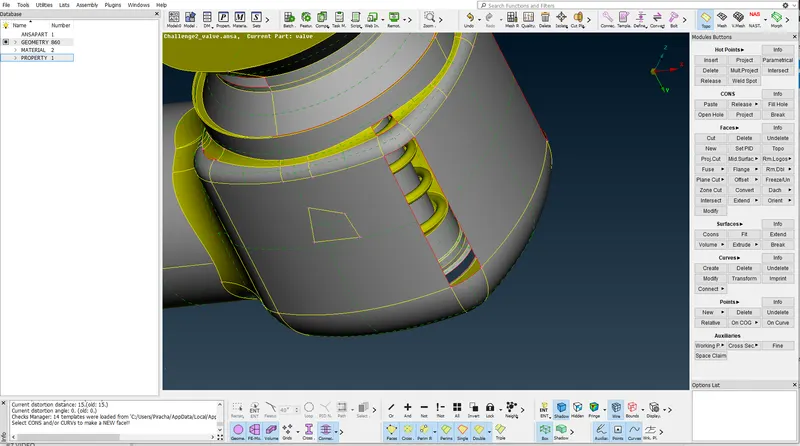

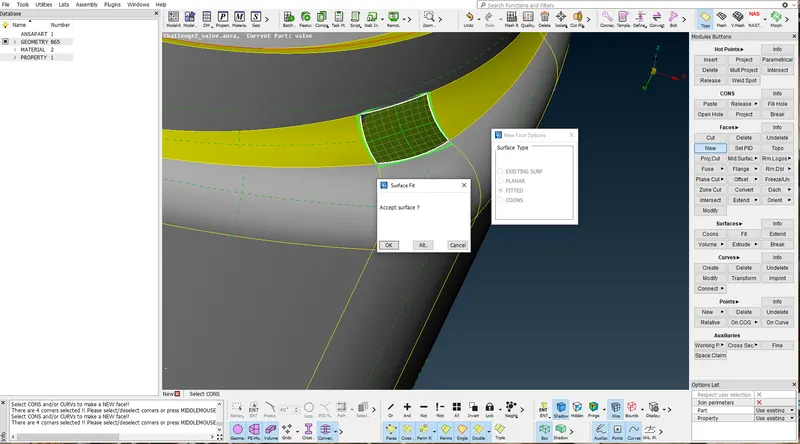

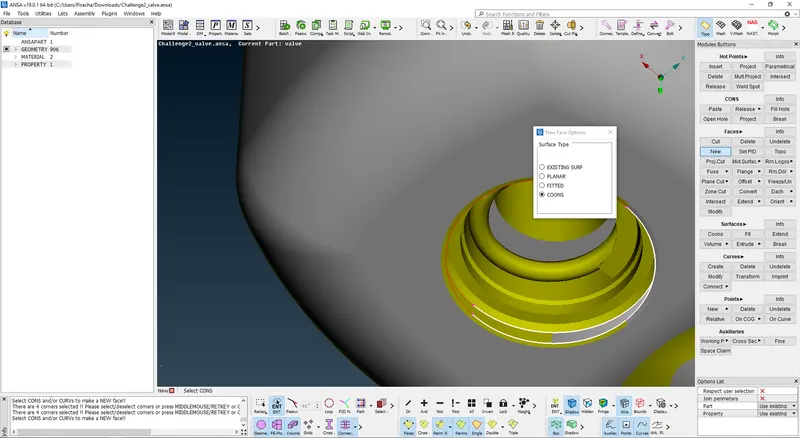

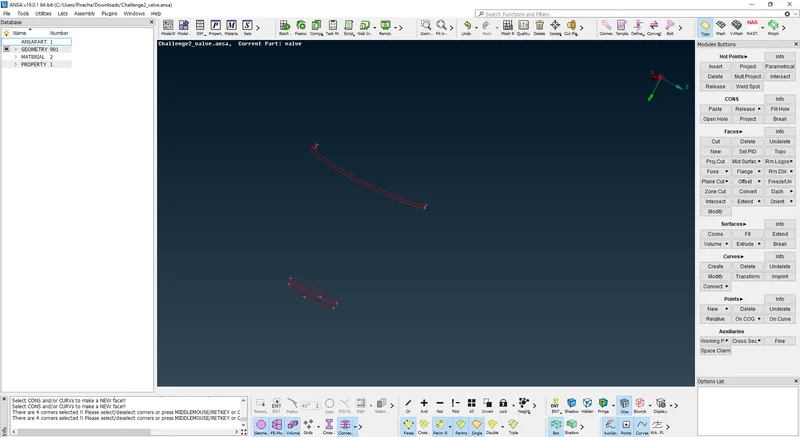

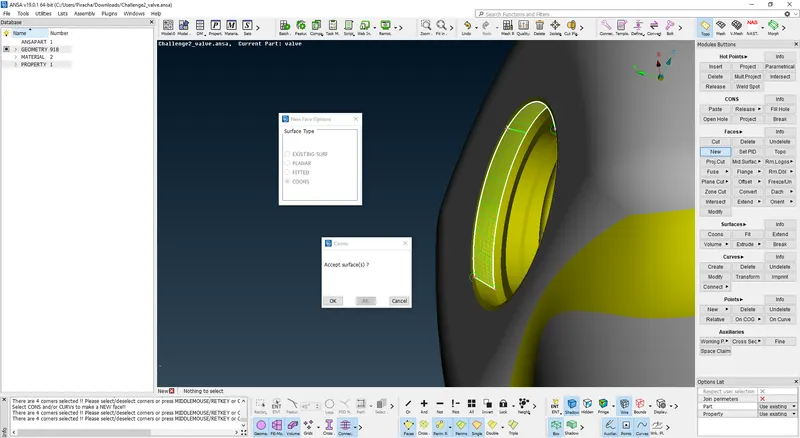

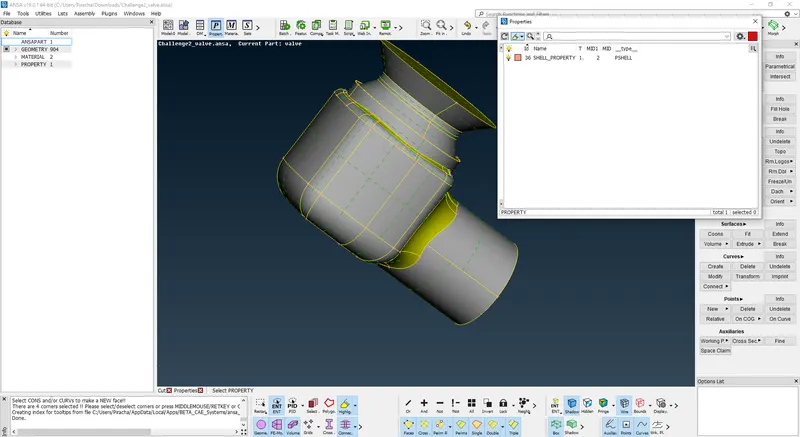

Several Single Cons were present in the geometry, which were solved using New in Faces in Topo tab and Fill Holes commands.

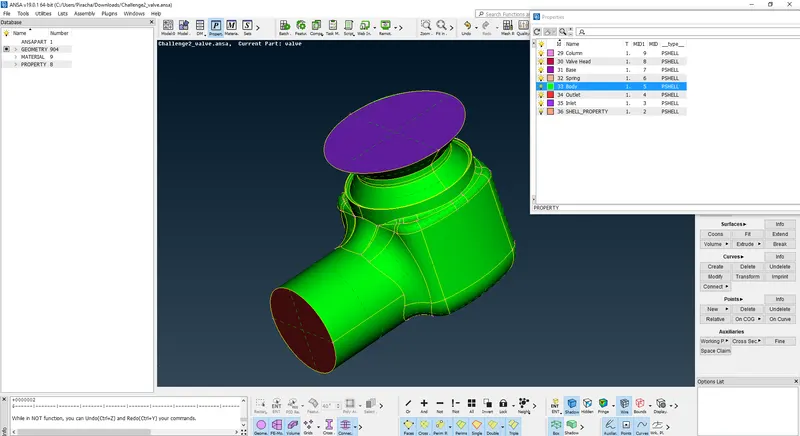

As the CFD Analysis requires that the Body under observation must be fully closed , therefore inlet , outlet and valve base are closed.

Though the closing Base of the valve makes a Triple Con , but it isn't considered an error because it is a requirement.

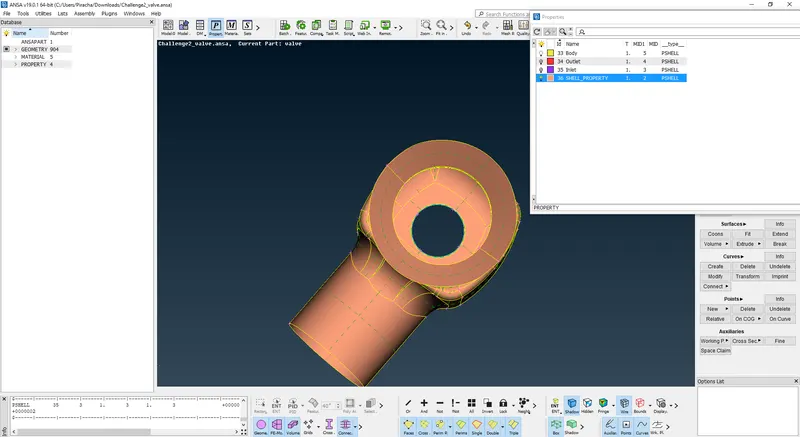

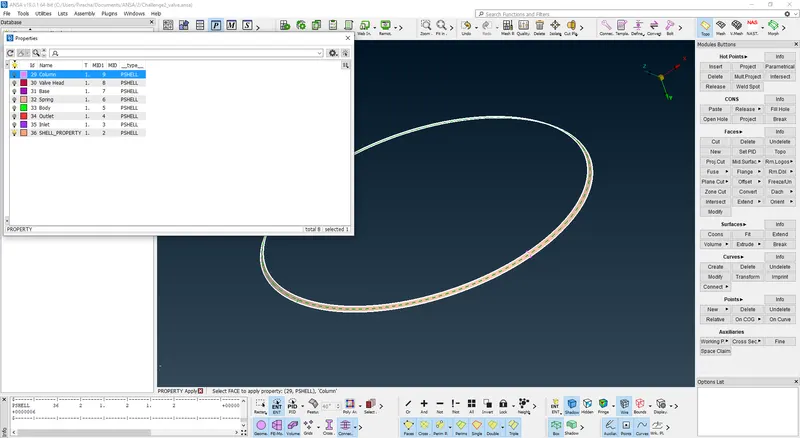

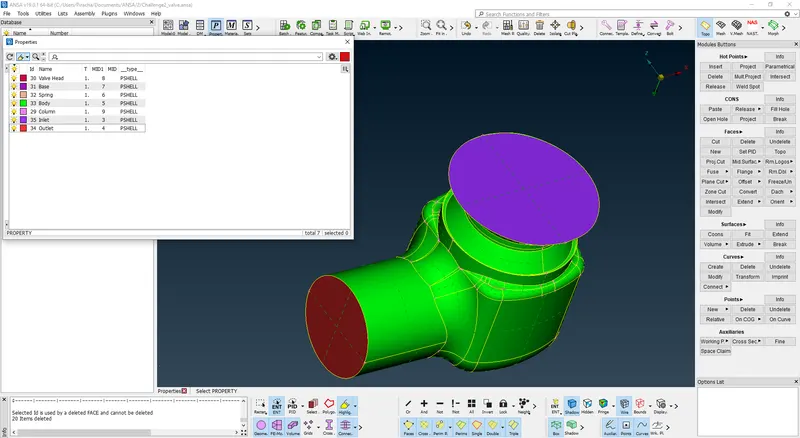

After the Geometrical Cleanup, comes the separate PID's assignment for different surfaces.

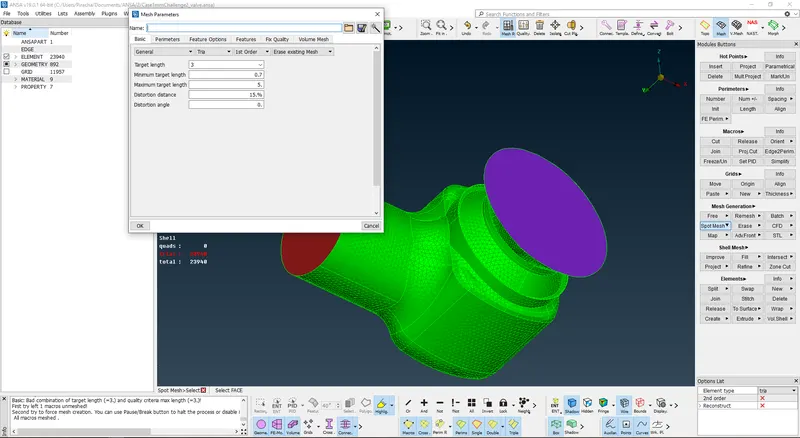

After PID's assignment comes the Meshing Part:

• Element type = Tria

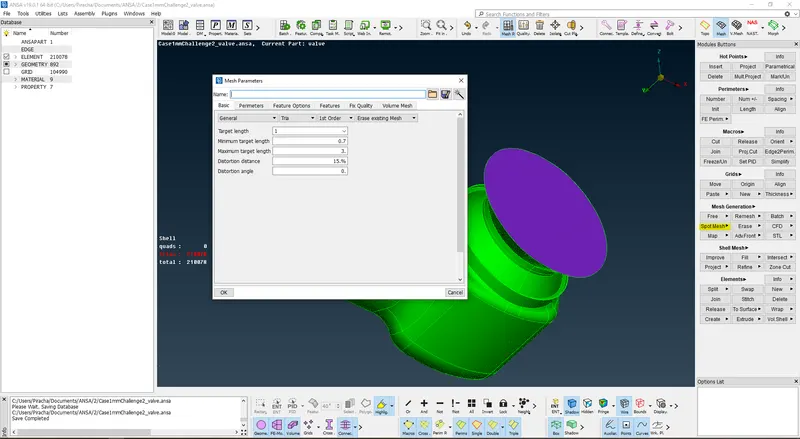

• For 1mm Mesh:

• For 3mm Mesh:

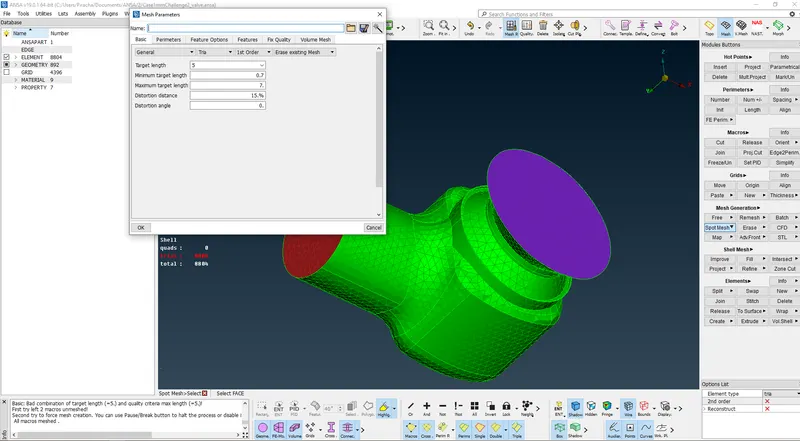

• For 5mm Mesh:
