Week 2 Challenge

Conditions:

Width of Carriage way: 7m

Span of bridge: 24m

Main Grider sections: 0.5 x 1.7 m

Cross Grider sections: 0.3 x 1.5 m

Deck slab thickness: 0.2m

Aim:

Apply IRC loads for the bridge span in STAAD & perform structural analysis.

Solution:

Model generation in STAAD.

Properties assignment in STAAD:

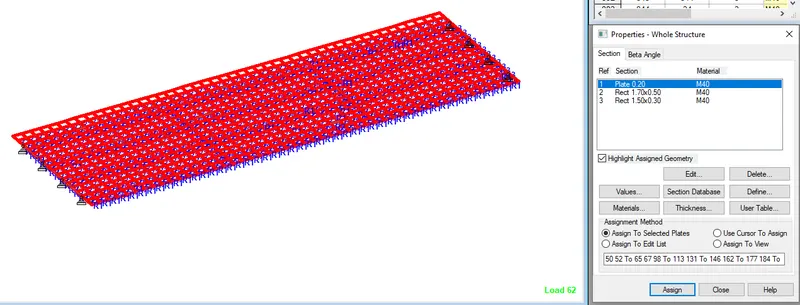

deck slab properties

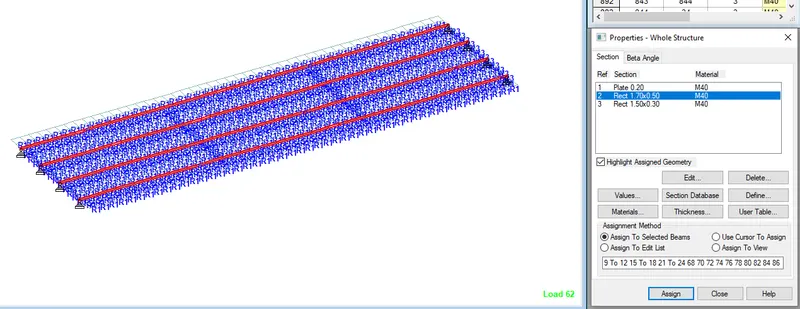

Main girder properties

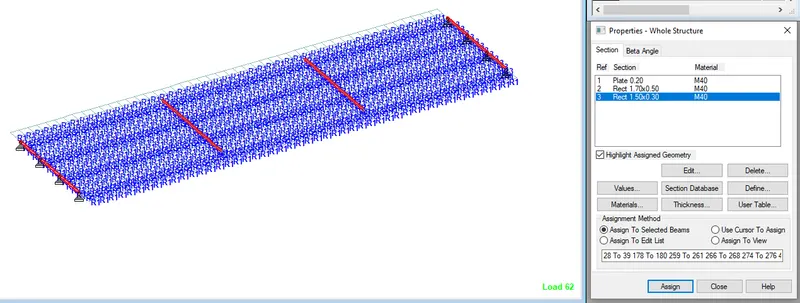

Cross girder properties

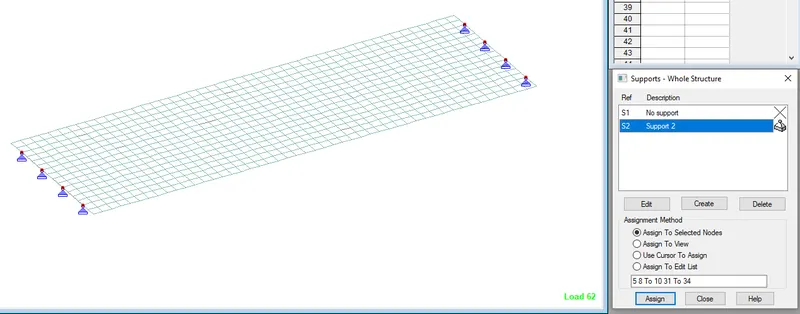

Support assignment in STAAD:

Concept:

As per the given conditions of bridge structure, carriage width available is 7m. As pe IRC 6-2016 table 6 for live load combinations, maximum number of lanes that could be accommodated in this carriage way is 2.

For the given number of lanes, loading shall be of two combinations as below:

• One lane of Class 70R
• Two lanes of Class A

Hence both the types of vehicles need to be run in STAAD model each time. Further, analysis depends upon the type of requirement. Such as, if reactions are required at beam ends for design of Pier caps, loads could be placed anywhere on the span conforming to requirements mentioned in IRC 6 (table 2 & table 3) and corresponding maximum reaction of each case could be used.

If bending moment is required for design of main beams, Loads shall be placed such that, wheel of the axle comes directly over the girder to be designed. Corresponding maximum bending moment could be used for girder design.

For design of deck slab, wheel loads are moved in transverse direction on an element of unit width and given deck slab thickness. Governing load generation is then found by running analysis for the requirement. In our case, let us assume we need reactions at end of girder for computation of loads for Pier cap which is a portal structure supported on two Piers at ends of pier cap. Hence loads are placed at centre of carriage way. Class 70R & two lanes of Class A loads are placed at centre of the carriage way in our case.

Live load combinations given in table 6a of IRC 6 shall be referred, in order to conform with minimum spacing guidelines between vehicles and minimum gap between parapets and vehicle.

Load assignment in STAAD:

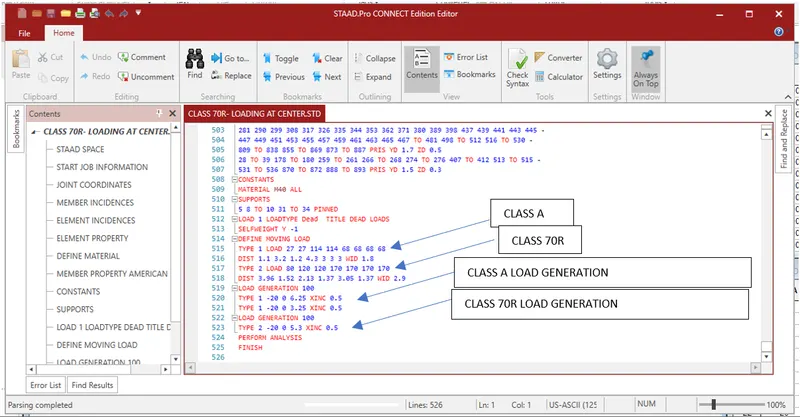

From Command file in utilities ribbon of STAAD, moving loads is displayed as below.

Analysis in STAAD:

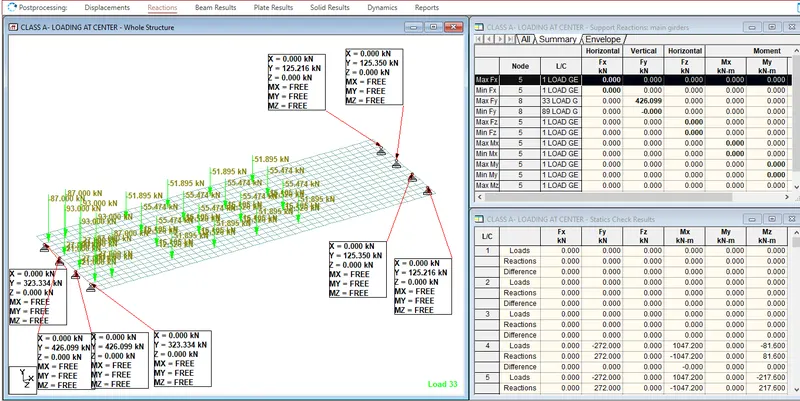

CLASS A LOADING AT CENTER- GOVERNING LOAD GENERATION No. 33- Support reaction

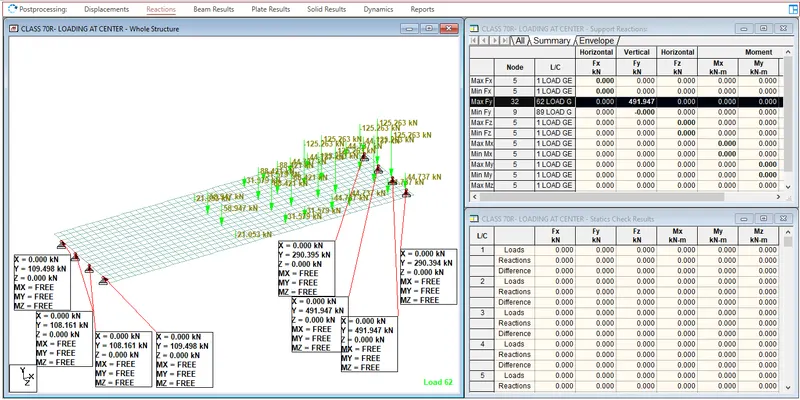

CLASS 70R LOADING AT CENTER- GOVERNING LOAD GENERATION No. 62- Support reaction

Output:

STAAD analyses the structure using influence line. Using these many wheel loads to analyse the structure becomes time consuming. For each load type, structure could be analysed and results could be used for design.

STAAD FILE

STAAD SPACE
START JOB INFORMATION
ENGINEER DATE 10-Oct-21
END JOB INFORMATION
INPUT WIDTH 79
UNIT METER KN
JOINT COORDINATES
1 0 0 0; 5 0 0 1; 8 0 0 2.9; 9 0 0 4.8; 10 0 0 6.7; 11 0 0 7.7; 18 8 0 0;
19 8 0 1; 20 8 0 2.9; 21 8 0 4.8; 22 8 0 6.7; 23 8 0 7.7; 24 16 0 0; 25 16 0 1;
26 16 0 2.9; 27 16 0 4.8; 28 16 0 6.7; 29 16 0 7.7; 30 24 0 0; 31 24 0 1;
32 24 0 2.9; 33 24 0 4.8; 34 24 0 6.7; 35 24 0 7.7; 36 0.5 0 0; 37 0 0 0.5;
38 0.5 0 0.5; 39 1 0 0; 40 1 0 0.5; 41 1.5 0 0; 42 1.5 0 0.5; 43 2 0 0;
44 2 0 0.5; 45 2.5 0 0; 46 2.5 0 0.5; 47 3 0 0; 48 3 0 0.5; 49 3.5 0 0;
50 3.5 0 0.5; 51 4 0 0; 52 4 0 0.5; 53 4.5 0 0; 54 4.5 0 0.5; 55 5 0 0;
56 5 0 0.5; 57 5.5 0 0; 58 5.5 0 0.5; 59 6 0 0; 60 6 0 0.5; 61 6.5 0 0;
62 6.5 0 0.5; 63 7 0 0; 64 7 0 0.5; 65 7.5 0 0; 66 7.5 0 0.5; 67 8 0 0.5;
68 0.5 0 1; 69 1 0 1; 70 1.5 0 1; 71 2 0 1; 72 2.5 0 1; 73 3 0 1; 74 3.5 0 1;
75 4 0 1; 76 4.5 0 1; 77 5 0 1; 78 5.5 0 1; 79 6 0 1; 80 6.5 0 1; 81 7 0 1;
82 7.5 0 1; 83 0.5 0 6.7; 84 0 0 7.2; 85 0.5 0 7.2; 86 1 0 6.7; 87 1 0 7.2;
88 1.5 0 6.7; 89 1.5 0 7.2; 90 2 0 6.7; 91 2 0 7.2; 92 2.5 0 6.7; 93 2.5 0 7.2;
94 3 0 6.7; 95 3 0 7.2; 96 3.5 0 6.7; 97 3.5 0 7.2; 98 4 0 6.7; 99 4 0 7.2;
100 4.5 0 6.7; 101 4.5 0 7.2; 102 5 0 6.7; 103 5 0 7.2; 104 5.5 0 6.7;
105 5.5 0 7.2; 106 6 0 6.7; 107 6 0 7.2; 108 6.5 0 6.7; 109 6.5 0 7.2;
110 7 0 6.7; 111 7 0 7.2; 112 7.5 0 6.7; 113 7.5 0 7.2; 114 8 0 7.2;
115 0.5 0 7.7; 116 1 0 7.7; 117 1.5 0 7.7; 118 2 0 7.7; 119 2.5 0 7.7;
120 3 0 7.7; 121 3.5 0 7.7; 122 4 0 7.7; 123 4.5 0 7.7; 124 5 0 7.7;
125 5.5 0 7.7; 126 6 0 7.7; 127 6.5 0 7.7; 128 7 0 7.7; 129 7.5 0 7.7;
130 0 0 1.475; 131 0 0 1.95; 132 0 0 2.425; 133 0.5 0 1.475; 134 0.5 0 1.95;
135 0.5 0 2.425; 136 0.5 0 2.9; 137 1 0 1.475; 138 1 0 1.95; 139 1 0 2.425;
140 1 0 2.9; 141 1.5 0 1.475; 142 1.5 0 1.95; 143 1.5 0 2.425; 144 1.5 0 2.9;
145 2 0 1.475; 146 2 0 1.95; 147 2 0 2.425; 148 2 0 2.9; 149 2.5 0 1.475;
150 2.5 0 1.95; 151 2.5 0 2.425; 152 2.5 0 2.9; 153 3 0 1.475; 154 3 0 1.95;
155 3 0 2.425; 156 3 0 2.9; 157 3.5 0 1.475; 158 3.5 0 1.95; 159 3.5 0 2.425;
160 3.5 0 2.9; 161 4 0 1.475; 162 4 0 1.95; 163 4 0 2.425; 164 4 0 2.9;
165 4.5 0 1.475; 166 4.5 0 1.95; 167 4.5 0 2.425; 168 4.5 0 2.9; 169 5 0 1.475;
170 5 0 1.95; 171 5 0 2.425; 172 5 0 2.9; 173 5.5 0 1.475; 174 5.5 0 1.95;
175 5.5 0 2.425; 176 5.5 0 2.9; 177 6 0 1.475; 178 6 0 1.95; 179 6 0 2.425;
180 6 0 2.9; 181 6.5 0 1.475; 182 6.5 0 1.95; 183 6.5 0 2.425; 184 6.5 0 2.9;
185 7 0 1.475; 186 7 0 1.95; 187 7 0 2.425; 188 7 0 2.9; 189 7.5 0 1.475;
190 7.5 0 1.95; 191 7.5 0 2.425; 192 7.5 0 2.9; 193 8 0 1.475; 194 8 0 1.95;
195 8 0 2.425; 196 0 0 3.375; 197 0 0 3.85; 198 0 0 4.325; 199 0.5 0 3.375;
200 0.5 0 3.85; 201 0.5 0 4.325; 202 0.5 0 4.8; 203 0 0 5.275; 204 0 0 5.75;
205 0 0 6.225; 206 0.5 0 5.275; 207 0.5 0 5.75; 208 0.5 0 6.225; 209 1 0 3.375;
210 1 0 3.85; 211 1 0 4.325; 212 1 0 4.8; 213 1 0 5.275; 214 1 0 5.75;
215 1 0 6.225; 216 1.5 0 3.375; 217 1.5 0 3.85; 218 1.5 0 4.325; 219 1.5 0 4.8;
220 1.5 0 5.275; 221 1.5 0 5.75; 222 1.5 0 6.225; 223 2 0 3.375; 224 2 0 3.85;
225 2 0 4.325; 226 2 0 4.8; 227 2 0 5.275; 228 2 0 5.75; 229 2 0 6.225;
230 2.5 0 3.375; 231 2.5 0 3.85; 232 2.5 0 4.325; 233 2.5 0 4.8;
234 2.5 0 5.275; 235 2.5 0 5.75; 236 2.5 0 6.225; 237 3 0 3.375; 238 3 0 3.85;
239 3 0 4.325; 240 3 0 4.8; 241 3 0 5.275; 242 3 0 5.75; 243 3 0 6.225;
244 3.5 0 3.375; 245 3.5 0 3.85; 246 3.5 0 4.325; 247 3.5 0 4.8;
248 3.5 0 5.275; 249 3.5 0 5.75; 250 3.5 0 6.225; 251 4 0 3.375; 252 4 0 3.85;
253 4 0 4.325; 254 4 0 4.8; 255 4 0 5.275; 256 4 0 5.75; 257 4 0 6.225;
258 4.5 0 3.375; 259 4.5 0 3.85; 260 4.5 0 4.325; 261 4.5 0 4.8;
262 4.5 0 5.275; 263 4.5 0 5.75; 264 4.5 0 6.225; 265 5 0 3.375; 266 5 0 3.85;
267 5 0 4.325; 268 5 0 4.8; 269 5 0 5.275; 270 5 0 5.75; 271 5 0 6.225;
272 5.5 0 3.375; 273 5.5 0 3.85; 274 5.5 0 4.325; 275 5.5 0 4.8;
276 5.5 0 5.275; 277 5.5 0 5.75; 278 5.5 0 6.225; 279 6 0 3.375; 280 6 0 3.85;
281 6 0 4.325; 282 6 0 4.8; 283 6 0 5.275; 284 6 0 5.75; 285 6 0 6.225;
286 6.5 0 3.375; 287 6.5 0 3.85; 288 6.5 0 4.325; 289 6.5 0 4.8;
290 6.5 0 5.275; 291 6.5 0 5.75; 292 6.5 0 6.225; 293 7 0 3.375; 294 7 0 3.85;
295 7 0 4.325; 296 7 0 4.8; 297 7 0 5.275; 298 7 0 5.75; 299 7 0 6.225;
300 7.5 0 3.375; 301 7.5 0 3.85; 302 7.5 0 4.325; 303 7.5 0 4.8;
304 7.5 0 5.275; 305 7.5 0 5.75; 306 7.5 0 6.225; 307 8 0 3.375; 308 8 0 3.85;
309 8 0 4.325; 310 8 0 5.275; 311 8 0 5.75; 312 8 0 6.225; 313 8.5 0 0;
314 8.5 0 0.5; 315 9 0 0; 316 9 0 0.5; 317 9.5 0 0; 318 9.5 0 0.5; 319 10 0 0;
320 10 0 0.5; 321 10.5 0 0; 322 10.5 0 0.5; 323 11 0 0; 324 11 0 0.5;
325 11.5 0 0; 326 11.5 0 0.5; 327 12 0 0; 328 12 0 0.5; 329 12.5 0 0;
330 12.5 0 0.5; 331 13 0 0; 332 13 0 0.5; 333 13.5 0 0; 334 13.5 0 0.5;
335 14 0 0; 336 14 0 0.5; 337 14.5 0 0; 338 14.5 0 0.5; 339 15 0 0;
340 15 0 0.5; 341 15.5 0 0; 342 15.5 0 0.5; 343 16 0 0.5; 344 8.5 0 1;
345 9 0 1; 346 9.5 0 1; 347 10 0 1; 348 10.5 0 1; 349 11 0 1; 350 11.5 0 1;
351 12 0 1; 352 12.5 0 1; 353 13 0 1; 354 13.5 0 1; 355 14 0 1; 356 14.5 0 1;
357 15 0 1; 358 15.5 0 1; 359 8.5 0 6.7; 360 8.5 0 7.2; 361 9 0 6.7;
362 9 0 7.2; 363 9.5 0 6.7; 364 9.5 0 7.2; 365 10 0 6.7; 366 10 0 7.2;
367 10.5 0 6.7; 368 10.5 0 7.2; 369 11 0 6.7; 370 11 0 7.2; 371 11.5 0 6.7;
372 11.5 0 7.2; 373 12 0 6.7; 374 12 0 7.2; 375 12.5 0 6.7; 376 12.5 0 7.2;
377 13 0 6.7; 378 13 0 7.2; 379 13.5 0 6.7; 380 13.5 0 7.2; 381 14 0 6.7;
382 14 0 7.2; 383 14.5 0 6.7; 384 14.5 0 7.2; 385 15 0 6.7; 386 15 0 7.2;
387 15.5 0 6.7; 388 15.5 0 7.2; 389 16 0 7.2; 390 8.5 0 7.7; 391 9 0 7.7;
392 9.5 0 7.7; 393 10 0 7.7; 394 10.5 0 7.7; 395 11 0 7.7; 396 11.5 0 7.7;
397 12 0 7.7; 398 12.5 0 7.7; 399 13 0 7.7; 400 13.5 0 7.7; 401 14 0 7.7;
402 14.5 0 7.7; 403 15 0 7.7; 404 15.5 0 7.7; 405 8.5 0 1.475; 406 8.5 0 1.95;
407 8.5 0 2.425; 408 8.5 0 2.9; 409 9 0 1.475; 410 9 0 1.95; 411 9 0 2.425;
412 9 0 2.9; 413 9.5 0 1.475; 414 9.5 0 1.95; 415 9.5 0 2.425; 416 9.5 0 2.9;
417 10 0 1.475; 418 10 0 1.95; 419 10 0 2.425; 420 10 0 2.9; 421 10.5 0 1.475;
422 10.5 0 1.95; 423 10.5 0 2.425; 424 10.5 0 2.9; 425 11 0 1.475;
426 11 0 1.95; 427 11 0 2.425; 428 11 0 2.9; 429 11.5 0 1.475; 430 11.5 0 1.95;
431 11.5 0 2.425; 432 11.5 0 2.9; 433 12 0 1.475; 434 12 0 1.95;
435 12 0 2.425; 436 12 0 2.9; 437 12.5 0 1.475; 438 12.5 0 1.95;
439 12.5 0 2.425; 440 12.5 0 2.9; 441 13 0 1.475; 442 13 0 1.95;
443 13 0 2.425; 444 13 0 2.9; 445 13.5 0 1.475; 446 13.5 0 1.95;
447 13.5 0 2.425; 448 13.5 0 2.9; 449 14 0 1.475; 450 14 0 1.95;
451 14 0 2.425; 452 14 0 2.9; 453 14.5 0 1.475; 454 14.5 0 1.95;
455 14.5 0 2.425; 456 14.5 0 2.9; 457 15 0 1.475; 458 15 0 1.95;
459 15 0 2.425; 460 15 0 2.9; 461 15.5 0 1.475; 462 15.5 0 1.95;
463 15.5 0 2.425; 464 15.5 0 2.9; 465 16 0 1.475; 466 16 0 1.95;
467 16 0 2.425; 468 8.5 0 3.375; 469 8.5 0 3.85; 470 8.5 0 4.325;
471 8.5 0 4.8; 472 8.5 0 5.275; 473 8.5 0 5.75; 474 8.5 0 6.225; 475 9 0 3.375;
476 9 0 3.85; 477 9 0 4.325; 478 9 0 4.8; 479 9 0 5.275; 480 9 0 5.75;
481 9 0 6.225; 482 9.5 0 3.375; 483 9.5 0 3.85; 484 9.5 0 4.325; 485 9.5 0 4.8;
486 9.5 0 5.275; 487 9.5 0 5.75; 488 9.5 0 6.225; 489 10 0 3.375;
490 10 0 3.85; 491 10 0 4.325; 492 10 0 4.8; 493 10 0 5.275; 494 10 0 5.75;
495 10 0 6.225; 496 10.5 0 3.375; 497 10.5 0 3.85; 498 10.5 0 4.325;
499 10.5 0 4.8; 500 10.5 0 5.275; 501 10.5 0 5.75; 502 10.5 0 6.225;
503 11 0 3.375; 504 11 0 3.85; 505 11 0 4.325; 506 11 0 4.8; 507 11 0 5.275;
508 11 0 5.75; 509 11 0 6.225; 510 11.5 0 3.375; 511 11.5 0 3.85;
512 11.5 0 4.325; 513 11.5 0 4.8; 514 11.5 0 5.275; 515 11.5 0 5.75;
516 11.5 0 6.225; 517 12 0 3.375; 518 12 0 3.85; 519 12 0 4.325; 520 12 0 4.8;
521 12 0 5.275; 522 12 0 5.75; 523 12 0 6.225; 524 12.5 0 3.375;
525 12.5 0 3.85; 526 12.5 0 4.325; 527 12.5 0 4.8; 528 12.5 0 5.275;
529 12.5 0 5.75; 530 12.5 0 6.225; 531 13 0 3.375; 532 13 0 3.85;
533 13 0 4.325; 534 13 0 4.8; 535 13 0 5.275; 536 13 0 5.75; 537 13 0 6.225;
538 13.5 0 3.375; 539 13.5 0 3.85; 540 13.5 0 4.325; 541 13.5 0 4.8;
542 13.5 0 5.275; 543 13.5 0 5.75; 544 13.5 0 6.225; 545 14 0 3.375;
546 14 0 3.85; 547 14 0 4.325; 548 14 0 4.8; 549 14 0 5.275; 550 14 0 5.75;
551 14 0 6.225; 552 14.5 0 3.375; 553 14.5 0 3.85; 554 14.5 0 4.325;
555 14.5 0 4.8; 556 14.5 0 5.275; 557 14.5 0 5.75; 558 14.5 0 6.225;
559 15 0 3.375; 560 15 0 3.85; 561 15 0 4.325; 562 15 0 4.8; 563 15 0 5.275;
564 15 0 5.75; 565 15 0 6.225; 566 15.5 0 3.375; 567 15.5 0 3.85;
568 15.5 0 4.325; 569 15.5 0 4.8; 570 15.5 0 5.275; 571 15.5 0 5.75;
572 15.5 0 6.225; 573 16 0 3.375; 574 16 0 3.85; 575 16 0 4.325;
576 16 0 5.275; 577 16 0 5.75; 578 16 0 6.225; 579 16.5 0 0; 580 16.5 0 0.5;
581 17 0 0; 582 17 0 0.5; 583 17.5 0 0; 584 17.5 0 0.5; 585 18 0 0;
586 18 0 0.5; 587 18.5 0 0; 588 18.5 0 0.5; 589 19 0 0; 590 19 0 0.5;
591 19.5 0 0; 592 19.5 0 0.5; 593 20 0 0; 594 20 0 0.5; 595 20.5 0 0;
596 20.5 0 0.5; 597 21 0 0; 598 21 0 0.5; 599 21.5 0 0; 600 21.5 0 0.5;
601 22 0 0; 602 22 0 0.5; 603 22.5 0 0; 604 22.5 0 0.5; 605 23 0 0;
606 23 0 0.5; 607 23.5 0 0; 608 23.5 0 0.5; 609 24 0 0.5; 610 16.5 0 1;
611 17 0 1; 612 17.5 0 1; 613 18 0 1; 614 18.5 0 1; 615 19 0 1; 616 19.5 0 1;
617 20 0 1; 618 20.5 0 1; 619 21 0 1; 620 21.5 0 1; 621 22 0 1; 622 22.5 0 1;
623 23 0 1; 624 23.5 0 1; 625 16.5 0 6.7; 626 16.5 0 7.2; 627 17 0 6.7;
628 17 0 7.2; 629 17.5 0 6.7; 630 17.5 0 7.2; 631 18 0 6.7; 632 18 0 7.2;
633 18.5 0 6.7; 634 18.5 0 7.2; 635 19 0 6.7; 636 19 0 7.2; 637 19.5 0 6.7;
638 19.5 0 7.2; 639 20 0 6.7; 640 20 0 7.2; 641 20.5 0 6.7; 642 20.5 0 7.2;
643 21 0 6.7; 644 21 0 7.2; 645 21.5 0 6.7; 646 21.5 0 7.2; 647 22 0 6.7;
648 22 0 7.2; 649 22.5 0 6.7; 650 22.5 0 7.2; 651 23 0 6.7; 652 23 0 7.2;
653 23.5 0 6.7; 654 23.5 0 7.2; 655 24 0 7.2; 656 16.5 0 7.7; 657 17 0 7.7;
658 17.5 0 7.7; 659 18 0 7.7; 660 18.5 0 7.7; 661 19 0 7.7; 662 19.5 0 7.7;
663 20 0 7.7; 664 20.5 0 7.7; 665 21 0 7.7; 666 21.5 0 7.7; 667 22 0 7.7;
668 22.5 0 7.7; 669 23 0 7.7; 670 23.5 0 7.7; 671 16.5 0 1.475;
672 16.5 0 1.95; 673 16.5 0 2.425; 674 16.5 0 2.9; 675 17 0 1.475;
676 17 0 1.95; 677 17 0 2.425; 678 17 0 2.9; 679 17.5 0 1.475; 680 17.5 0 1.95;
681 17.5 0 2.425; 682 17.5 0 2.9; 683 18 0 1.475; 684 18 0 1.95;
685 18 0 2.425; 686 18 0 2.9; 687 18.5 0 1.475; 688 18.5 0 1.95;
689 18.5 0 2.425; 690 18.5 0 2.9; 691 19 0 1.475; 692 19 0 1.95;
693 19 0 2.425; 694 19 0 2.9; 695 19.5 0 1.475; 696 19.5 0 1.95;
697 19.5 0 2.425; 698 19.5 0 2.9; 699 20 0 1.475; 700 20 0 1.95;
701 20 0 2.425; 702 20 0 2.9; 703 20.5 0 1.475; 704 20.5 0 1.95;
705 20.5 0 2.425; 706 20.5 0 2.9; 707 21 0 1.475; 708 21 0 1.95;
709 21 0 2.425; 710 21 0 2.9; 711 21.5 0 1.475; 712 21.5 0 1.95;
713 21.5 0 2.425; 714 21.5 0 2.9; 715 22 0 1.475; 716 22 0 1.95;
717 22 0 2.425; 718 22 0 2.9; 719 22.5 0 1.475; 720 22.5 0 1.95;
721 22.5 0 2.425; 722 22.5 0 2.9; 723 23 0 1.475; 724 23 0 1.95;
725 23 0 2.425; 726 23 0 2.9; 727 23.5 0 1.475; 728 23.5 0 1.95;
729 23.5 0 2.425; 730 23.5 0 2.9; 731 24 0 1.475; 732 24 0 1.95;
733 24 0 2.425; 734 16.5 0 3.375; 735 16.5 0 3.85; 736 16.5 0 4.325;
737 16.5 0 4.8; 738 16.5 0 5.275; 739 16.5 0 5.75; 740 16.5 0 6.225;
741 17 0 3.375; 742 17 0 3.85; 743 17 0 4.325; 744 17 0 4.8; 745 17 0 5.275;
746 17 0 5.75; 747 17 0 6.225; 748 17.5 0 3.375; 749 17.5 0 3.85;
750 17.5 0 4.325; 751 17.5 0 4.8; 752 17.5 0 5.275; 753 17.5 0 5.75;
754 17.5 0 6.225; 755 18 0 3.375; 756 18 0 3.85; 757 18 0 4.325; 758 18 0 4.8;
759 18 0 5.275; 760 18 0 5.75; 761 18 0 6.225; 762 18.5 0 3.375;
763 18.5 0 3.85; 764 18.5 0 4.325; 765 18.5 0 4.8; 766 18.5 0 5.275;
767 18.5 0 5.75; 768 18.5 0 6.225; 769 19 0 3.375; 770 19 0 3.85;
771 19 0 4.325; 772 19 0 4.8; 773 19 0 5.275; 774 19 0 5.75; 775 19 0 6.225;
776 19.5 0 3.375; 777 19.5 0 3.85; 778 19.5 0 4.325; 779 19.5 0 4.8;
780 19.5 0 5.275; 781 19.5 0 5.75; 782 19.5 0 6.225; 783 20 0 3.375;
784 20 0 3.85; 785 20 0 4.325; 786 20 0 4.8; 787 20 0 5.275; 788 20 0 5.75;
789 20 0 6.225; 790 20.5 0 3.375; 791 20.5 0 3.85; 792 20.5 0 4.325;
793 20.5 0 4.8; 794 20.5 0 5.275; 795 20.5 0 5.75; 796 20.5 0 6.225;
797 21 0 3.375; 798 21 0 3.85; 799 21 0 4.325; 800 21 0 4.8; 801 21 0 5.275;
802 21 0 5.75; 803 21 0 6.225; 804 21.5 0 3.375; 805 21.5 0 3.85;
806 21.5 0 4.325; 807 21.5 0 4.8; 808 21.5 0 5.275; 809 21.5 0 5.75;
810 21.5 0 6.225; 811 22 0 3.375; 812 22 0 3.85; 813 22 0 4.325; 814 22 0 4.8;
815 22 0 5.275; 816 22 0 5.75; 817 22 0 6.225; 818 22.5 0 3.375;
819 22.5 0 3.85; 820 22.5 0 4.325; 821 22.5 0 4.8; 822 22.5 0 5.275;
823 22.5 0 5.75; 824 22.5 0 6.225; 825 23 0 3.375; 826 23 0 3.85;
827 23 0 4.325; 828 23 0 4.8; 829 23 0 5.275; 830 23 0 5.75; 831 23 0 6.225;
832 23.5 0 3.375; 833 23.5 0 3.85; 834 23.5 0 4.325; 835 23.5 0 4.8;
836 23.5 0 5.275; 837 23.5 0 5.75; 838 23.5 0 6.225; 839 24 0 3.375;
840 24 0 3.85; 841 24 0 4.325; 842 24 0 5.275; 843 24 0 5.75; 844 24 0 6.225;
MEMBER INCIDENCES
9 5 68; 10 8 136; 11 9 202; 12 10 83; 15 19 344; 16 20 408; 17 21 471;
18 22 359; 21 25 610; 22 26 674; 23 27 737; 24 28 625; 28 5 130; 29 8 196;
30 9 203; 31 19 193; 32 20 307; 33 21 310; 34 25 465; 35 26 573; 36 27 576;
37 31 731; 38 32 839; 39 33 842; 68 68 69; 70 69 70; 72 70 71; 74 71 72;
76 72 73; 78 73 74; 80 74 75; 82 75 76; 84 76 77; 86 77 78; 88 78 79; 90 79 80;
92 80 81; 94 81 82; 96 82 19; 114 83 86; 116 86 88; 117 88 90; 118 90 92;
119 92 94; 120 94 96; 121 96 98; 122 98 100; 123 100 102; 124 102 104;
125 104 106; 126 106 108; 127 108 110; 128 110 112; 129 112 22; 178 130 131;
179 131 132; 180 132 8; 187 136 140; 189 140 144; 194 144 148; 199 148 152;
204 152 156; 209 156 160; 214 160 164; 219 164 168; 224 168 172; 229 172 176;
234 176 180; 239 180 184; 244 184 188; 249 188 192; 254 192 20; 259 193 194;
260 194 195; 261 195 20; 266 196 197; 267 197 198; 268 198 9; 269 202 212;
274 203 204; 275 204 205; 276 205 10; 281 212 219; 290 219 226; 299 226 233;
308 233 240; 317 240 247; 326 247 254; 335 254 261; 344 261 268; 353 268 275;
362 275 282; 371 282 289; 380 289 296; 389 296 303; 398 303 21; 407 307 308;
408 308 309; 409 309 21; 410 310 311; 411 311 312; 412 312 22; 437 344 345;
439 345 346; 441 346 347; 443 347 348; 445 348 349; 447 349 350; 449 350 351;
451 351 352; 453 352 353; 455 353 354; 457 354 355; 459 355 356; 461 356 357;
463 357 358; 465 358 25; 467 359 361; 468 361 363; 469 363 365; 470 365 367;
471 367 369; 472 369 371; 473 371 373; 474 373 375; 475 375 377; 476 377 379;
477 379 381; 478 381 383; 479 383 385; 480 385 387; 481 387 28; 498 408 412;
499 412 416; 500 416 420; 501 420 424; 502 424 428; 503 428 432; 504 432 436;
505 436 440; 506 440 444; 507 444 448; 508 448 452; 509 452 456; 510 456 460;
511 460 464; 512 464 26; 513 465 466; 514 466 467; 515 467 26; 516 471 478;
517 478 485; 518 485 492; 519 492 499; 520 499 506; 521 506 513; 522 513 520;
523 520 527; 524 527 534; 525 534 541; 526 541 548; 527 548 555; 528 555 562;
529 562 569; 530 569 27; 531 573 574; 532 574 575; 533 575 27; 534 576 577;
535 577 578; 536 578 28; 809 610 611; 810 611 612; 811 612 613; 812 613 614;
813 614 615; 814 615 616; 815 616 617; 816 617 618; 817 618 619; 818 619 620;
819 620 621; 820 621 622; 821 622 623; 822 623 624; 823 624 31; 824 625 627;
825 627 629; 826 629 631; 827 631 633; 828 633 635; 829 635 637; 830 637 639;
831 639 641; 832 641 643; 833 643 645; 834 645 647; 835 647 649; 836 649 651;
837 651 653; 838 653 34; 855 674 678; 856 678 682; 857 682 686; 858 686 690;
859 690 694; 860 694 698; 861 698 702; 862 702 706; 863 706 710; 864 710 714;
865 714 718; 866 718 722; 867 722 726; 868 726 730; 869 730 32; 870 731 732;
871 732 733; 872 733 32; 873 737 744; 874 744 751; 875 751 758; 876 758 765;
877 765 772; 878 772 779; 879 779 786; 880 786 793; 881 793 800; 882 800 807;
883 807 814; 884 814 821; 885 821 828; 886 828 835; 887 835 33; 888 839 840;
889 840 841; 890 841 33; 891 842 843; 892 843 844; 893 844 34;
ELEMENT INCIDENCES SHELL
50 1 36 38 37; 52 36 39 40 38; 53 39 41 42 40; 54 41 43 44 42; 55 43 45 46 44;
56 45 47 48 46; 57 47 49 50 48; 58 49 51 52 50; 59 51 53 54 52; 60 53 55 56 54;
61 55 57 58 56; 62 57 59 60 58; 63 59 61 62 60; 64 61 63 64 62; 65 63 65 66 64;
67 65 18 67 66; 98 37 38 68 5; 99 38 40 69 68; 100 40 42 70 69;
101 42 44 71 70; 102 44 46 72 71; 103 46 48 73 72; 104 48 50 74 73;
105 50 52 75 74; 106 52 54 76 75; 107 54 56 77 76; 108 56 58 78 77;
109 58 60 79 78; 110 60 62 80 79; 111 62 64 81 80; 112 64 66 82 81;
113 66 67 19 82; 131 10 83 85 84; 132 83 86 87 85; 133 86 88 89 87;
134 88 90 91 89; 135 90 92 93 91; 136 92 94 95 93; 137 94 96 97 95;
138 96 98 99 97; 139 98 100 101 99; 140 100 102 103 101; 141 102 104 105 103;
142 104 106 107 105; 143 106 108 109 107; 144 108 110 111 109;
145 110 112 113 111; 146 112 22 114 113; 162 84 85 115 11; 163 85 87 116 115;
164 87 89 117 116; 165 89 91 118 117; 166 91 93 119 118; 167 93 95 120 119;
168 95 97 121 120; 169 97 99 122 121; 170 99 101 123 122; 171 101 103 124 123;
172 103 105 125 124; 173 105 107 126 125; 174 107 109 127 126;
175 109 111 128 127; 176 111 113 129 128; 177 113 114 23 129; 184 5 68 133 130;
185 130 133 134 131; 186 131 134 135 132; 188 132 135 136 8; 190 68 69 137 133;
191 133 137 138 134; 192 134 138 139 135; 193 135 139 140 136;
195 69 70 141 137; 196 137 141 142 138; 197 138 142 143 139;
198 139 143 144 140; 200 70 71 145 141; 201 141 145 146 142;
202 142 146 147 143; 203 143 147 148 144; 205 71 72 149 145;
206 145 149 150 146; 207 146 150 151 147; 208 147 151 152 148;
210 72 73 153 149; 211 149 153 154 150; 212 150 154 155 151;
213 151 155 156 152; 215 73 74 157 153; 216 153 157 158 154;
217 154 158 159 155; 218 155 159 160 156; 220 74 75 161 157;
221 157 161 162 158; 222 158 162 163 159; 223 159 163 164 160;
225 75 76 165 161; 226 161 165 166 162; 227 162 166 167 163;
228 163 167 168 164; 230 76 77 169 165; 231 165 169 170 166;
232 166 170 171 167; 233 167 171 172 168; 235 77 78 173 169;
236 169 173 174 170; 237 170 174 175 171; 238 171 175 176 172;
240 78 79 177 173; 241 173 177 178 174; 242 174 178 179 175;
243 175 179 180 176; 245 79 80 181 177; 246 177 181 182 178;
247 178 182 183 179; 248 179 183 184 180; 250 80 81 185 181;
251 181 185 186 182; 252 182 186 187 183; 253 183 187 188 184;
255 81 82 189 185; 256 185 189 190 186; 257 186 190 191 187;
258 187 191 192 188; 262 82 19 193 189; 263 189 193 194 190;
264 190 194 195 191; 265 191 195 20 192; 270 8 136 199 196;
271 196 199 200 197; 272 197 200 201 198; 273 198 201 202 9; 277 9 202 206 203;
278 203 206 207 204; 279 204 207 208 205; 280 205 208 83 10;
282 136 140 209 199; 283 199 209 210 200; 284 200 210 211 201;
285 201 211 212 202; 286 202 212 213 206; 287 206 213 214 207;
288 207 214 215 208; 289 208 215 86 83; 291 140 144 216 209;
292 209 216 217 210; 293 210 217 218 211; 294 211 218 219 212;
295 212 219 220 213; 296 213 220 221 214; 297 214 221 222 215;
298 215 222 88 86; 300 144 148 223 216; 301 216 223 224 217;
302 217 224 225 218; 303 218 225 226 219; 304 219 226 227 220;
305 220 227 228 221; 306 221 228 229 222; 307 222 229 90 88;
309 148 152 230 223; 310 223 230 231 224; 311 224 231 232 225;
312 225 232 233 226; 313 226 233 234 227; 314 227 234 235 228;
315 228 235 236 229; 316 229 236 92 90; 318 152 156 237 230;
319 230 237 238 231; 320 231 238 239 232; 321 232 239 240 233;
322 233 240 241 234; 323 234 241 242 235; 324 235 242 243 236;
325 236 243 94 92; 327 156 160 244 237; 328 237 244 245 238;
329 238 245 246 239; 330 239 246 247 240; 331 240 247 248 241;
332 241 248 249 242; 333 242 249 250 243; 334 243 250 96 94;
336 160 164 251 244; 337 244 251 252 245; 338 245 252 253 246;
339 246 253 254 247; 340 247 254 255 248; 341 248 255 256 249;
342 249 256 257 250; 343 250 257 98 96; 345 164 168 258 251;
346 251 258 259 252; 347 252 259 260 253; 348 253 260 261 254;
349 254 261 262 255; 350 255 262 263 256; 351 256 263 264 257;
352 257 264 100 98; 354 168 172 265 258; 355 258 265 266 259;
356 259 266 267 260; 357 260 267 268 261; 358 261 268 269 262;
359 262 269 270 263; 360 263 270 271 264; 361 264 271 102 100;
363 172 176 272 265; 364 265 272 273 266; 365 266 273 274 267;
366 267 274 275 268; 367 268 275 276 269; 368 269 276 277 270;
369 270 277 278 271; 370 271 278 104 102; 372 176 180 279 272;
373 272 279 280 273; 374 273 280 281 274; 375 274 281 282 275;
376 275 282 283 276; 377 276 283 284 277; 378 277 284 285 278;
379 278 285 106 104; 381 180 184 286 279; 382 279 286 287 280;
383 280 287 288 281; 384 281 288 289 282; 385 282 289 290 283;
386 283 290 291 284; 387 284 291 292 285; 388 285 292 108 106;
390 184 188 293 286; 391 286 293 294 287; 392 287 294 295 288;
393 288 295 296 289; 394 289 296 297 290; 395 290 297 298 291;
396 291 298 299 292; 397 292 299 110 108; 399 188 192 300 293;
400 293 300 301 294; 401 294 301 302 295; 402 295 302 303 296;
403 296 303 304 297; 404 297 304 305 298; 405 298 305 306 299;
406 299 306 112 110; 413 192 20 307 300; 414 300 307 308 301;
415 301 308 309 302; 416 302 309 21 303; 417 303 21 310 304;
418 304 310 311 305; 419 305 311 312 306; 420 306 312 22 112;
537 18 313 314 67; 538 313 315 316 314; 539 315 317 318 316;
540 317 319 320 318; 541 319 321 322 320; 542 321 323 324 322;
543 323 325 326 324; 544 325 327 328 326; 545 327 329 330 328;
546 329 331 332 330; 547 331 333 334 332; 548 333 335 336 334;
549 335 337 338 336; 550 337 339 340 338; 551 339 341 342 340;
552 341 24 343 342; 553 67 314 344 19; 554 314 316 345 344;
555 316 318 346 345; 556 318 320 347 346; 557 320 322 348 347;
558 322 324 349 348; 559 324 326 350 349; 560 326 328 351 350;
561 328 330 352 351; 562 330 332 353 352; 563 332 334 354 353;
564 334 336 355 354; 565 336 338 356 355; 566 338 340 357 356;
567 340 342 358 357; 568 342 343 25 358; 569 22 359 360 114;
570 359 361 362 360; 571 361 363 364 362; 572 363 365 366 364;
573 365 367 368 366; 574 367 369 370 368; 575 369 371 372 370;
576 371 373 374 372; 577 373 375 376 374; 578 375 377 378 376;
579 377 379 380 378; 580 379 381 382 380; 581 381 383 384 382;
582 383 385 386 384; 583 385 387 388 386; 584 387 28 389 388;
585 114 360 390 23; 586 360 362 391 390; 587 362 364 392 391;
588 364 366 393 392; 589 366 368 394 393; 590 368 370 395 394;
591 370 372 396 395; 592 372 374 397 396; 593 374 376 398 397;
594 376 378 399 398; 595 378 380 400 399; 596 380 382 401 400;
597 382 384 402 401; 598 384 386 403 402; 599 386 388 404 403;
600 388 389 29 404; 601 19 344 405 193; 602 193 405 406 194;
603 194 406 407 195; 604 195 407 408 20; 605 344 345 409 405;
606 405 409 410 406; 607 406 410 411 407; 608 407 411 412 408;
609 345 346 413 409; 610 409 413 414 410; 611 410 414 415 411;
612 411 415 416 412; 613 346 347 417 413; 614 413 417 418 414;
615 414 418 419 415; 616 415 419 420 416; 617 347 348 421 417;
618 417 421 422 418; 619 418 422 423 419; 620 419 423 424 420;
621 348 349 425 421; 622 421 425 426 422; 623 422 426 427 423;
624 423 427 428 424; 625 349 350 429 425; 626 425 429 430 426;
627 426 430 431 427; 628 427 431 432 428; 629 350 351 433 429;
630 429 433 434 430; 631 430 434 435 431; 632 431 435 436 432;
633 351 352 437 433; 634 433 437 438 434; 635 434 438 439 435;
636 435 439 440 436; 637 352 353 441 437; 638 437 441 442 438;
639 438 442 443 439; 640 439 443 444 440; 641 353 354 445 441;
642 441 445 446 442; 643 442 446 447 443; 644 443 447 448 444;
645 354 355 449 445; 646 445 449 450 446; 647 446 450 451 447;
648 447 451 452 448; 649 355 356 453 449; 650 449 453 454 450;
651 450 454 455 451; 652 451 455 456 452; 653 356 357 457 453;
654 453 457 458 454; 655 454 458 459 455; 656 455 459 460 456;
657 357 358 461 457; 658 457 461 462 458; 659 458 462 463 459;
660 459 463 464 460; 661 358 25 465 461; 662 461 465 466 462;
663 462 466 467 463; 664 463 467 26 464; 665 20 408 468 307;
666 307 468 469 308; 667 308 469 470 309; 668 309 470 471 21;
669 21 471 472 310; 670 310 472 473 311; 671 311 473 474 312;
672 312 474 359 22; 673 408 412 475 468; 674 468 475 476 469;
675 469 476 477 470; 676 470 477 478 471; 677 471 478 479 472;
678 472 479 480 473; 679 473 480 481 474; 680 474 481 361 359;
681 412 416 482 475; 682 475 482 483 476; 683 476 483 484 477;
684 477 484 485 478; 685 478 485 486 479; 686 479 486 487 480;
687 480 487 488 481; 688 481 488 363 361; 689 416 420 489 482;
690 482 489 490 483; 691 483 490 491 484; 692 484 491 492 485;
693 485 492 493 486; 694 486 493 494 487; 695 487 494 495 488;
696 488 495 365 363; 697 420 424 496 489; 698 489 496 497 490;
699 490 497 498 491; 700 491 498 499 492; 701 492 499 500 493;
702 493 500 501 494; 703 494 501 502 495; 704 495 502 367 365;
705 424 428 503 496; 706 496 503 504 497; 707 497 504 505 498;
708 498 505 506 499; 709 499 506 507 500; 710 500 507 508 501;
711 501 508 509 502; 712 502 509 369 367; 713 428 432 510 503;
714 503 510 511 504; 715 504 511 512 505; 716 505 512 513 506;
717 506 513 514 507; 718 507 514 515 508; 719 508 515 516 509;
720 509 516 371 369; 721 432 436 517 510; 722 510 517 518 511;
723 511 518 519 512; 724 512 519 520 513; 725 513 520 521 514;
726 514 521 522 515; 727 515 522 523 516; 728 516 523 373 371;
729 436 440 524 517; 730 517 524 525 518; 731 518 525 526 519;
732 519 526 527 520; 733 520 527 528 521; 734 521 528 529 522;
735 522 529 530 523; 736 523 530 375 373; 737 440 444 531 524;
738 524 531 532 525; 739 525 532 533 526; 740 526 533 534 527;
741 527 534 535 528; 742 528 535 536 529; 743 529 536 537 530;
744 530 537 377 375; 745 444 448 538 531; 746 531 538 539 532;
747 532 539 540 533; 748 533 540 541 534; 749 534 541 542 535;
750 535 542 543 536; 751 536 543 544 537; 752 537 544 379 377;
753 448 452 545 538; 754 538 545 546 539; 755 539 546 547 540;
756 540 547 548 541; 757 541 548 549 542; 758 542 549 550 543;
759 543 550 551 544; 760 544 551 381 379; 761 452 456 552 545;
762 545 552 553 546; 763 546 553 554 547; 764 547 554 555 548;
765 548 555 556 549; 766 549 556 557 550; 767 550 557 558 551;
768 551 558 383 381; 769 456 460 559 552; 770 552 559 560 553;
771 553 560 561 554; 772 554 561 562 555; 773 555 562 563 556;
774 556 563 564 557; 775 557 564 565 558; 776 558 565 385 383;
777 460 464 566 559; 778 559 566 567 560; 779 560 567 568 561;
780 561 568 569 562; 781 562 569 570 563; 782 563 570 571 564;
783 564 571 572 565; 784 565 572 387 385; 785 464 26 573 566;
786 566 573 574 567; 787 567 574 575 568; 788 568 575 27 569;
789 569 27 576 570; 790 570 576 577 571; 791 571 577 578 572;
792 572 578 28 387; 894 24 579 580 343; 895 579 581 582 580;
896 581 583 584 582; 897 583 585 586 584; 898 585 587 588 586;
899 587 589 590 588; 900 589 591 592 590; 901 591 593 594 592;
902 593 595 596 594; 903 595 597 598 596; 904 597 599 600 598;
905 599 601 602 600; 906 601 603 604 602; 907 603 605 606 604;
908 605 607 608 606; 909 607 30 609 608; 910 343 580 610 25;
911 580 582 611 610; 912 582 584 612 611; 913 584 586 613 612;
914 586 588 614 613; 915 588 590 615 614; 916 590 592 616 615;
917 592 594 617 616; 918 594 596 618 617; 919 596 598 619 618;
920 598 600 620 619; 921 600 602 621 620; 922 602 604 622 621;
923 604 606 623 622; 924 606 608 624 623; 925 608 609 31 624;
926 28 625 626 389; 927 625 627 628 626; 928 627 629 630 628;
929 629 631 632 630; 930 631 633 634 632; 931 633 635 636 634;
932 635 637 638 636; 933 637 639 640 638; 934 639 641 642 640;
935 641 643 644 642; 936 643 645 646 644; 937 645 647 648 646;
938 647 649 650 648; 939 649 651 652 650; 940 651 653 654 652;
941 653 34 655 654; 942 389 626 656 29; 943 626 628 657 656;
944 628 630 658 657; 945 630 632 659 658; 946 632 634 660 659;
947 634 636 661 660; 948 636 638 662 661; 949 638 640 663 662;
950 640 642 664 663; 951 642 644 665 664; 952 644 646 666 665;
953 646 648 667 666; 954 648 650 668 667; 955 650 652 669 668;
956 652 654 670 669; 957 654 655 35 670; 958 25 610 671 465;
959 465 671 672 466; 960 466 672 673 467; 961 467 673 674 26;
962 610 611 675 671; 963 671 675 676 672; 964 672 676 677 673;
965 673 677 678 674; 966 611 612 679 675; 967 675 679 680 676;
968 676 680 681 677; 969 677 681 682 678; 970 612 613 683 679;
971 679 683 684 680; 972 680 684 685 681; 973 681 685 686 682;
974 613 614 687 683; 975 683 687 688 684; 976 684 688 689 685;
977 685 689 690 686; 978 614 615 691 687; 979 687 691 692 688;
980 688 692 693 689; 981 689 693 694 690; 982 615 616 695 691;
983 691 695 696 692; 984 692 696 697 693; 985 693 697 698 694;
986 616 617 699 695; 987 695 699 700 696; 988 696 700 701 697;
989 697 701 702 698; 990 617 618 703 699; 991 699 703 704 700;
992 700 704 705 701; 993 701 705 706 702; 994 618 619 707 703;
995 703 707 708 704; 996 704 708 709 705; 997 705 709 710 706;
998 619 620 711 707; 999 707 711 712 708; 1000 708 712 713 709;
1001 709 713 714 710; 1002 620 621 715 711; 1003 711 715 716 712;
1004 712 716 717 713; 1005 713 717 718 714; 1006 621 622 719 715;
1007 715 719 720 716; 1008 716 720 721 717; 1009 717 721 722 718;
1010 622 623 723 719; 1011 719 723 724 720; 1012 720 724 725 721;
1013 721 725 726 722; 1014 623 624 727 723; 1015 723 727 728 724;
1016 724 728 729 725; 1017 725 729 730 726; 1018 624 31 731 727;
1019 727 731 732 728; 1020 728 732 733 729; 1021 729 733 32 730;
1022 26 674 734 573; 1023 573 734 735 574; 1024 574 735 736 575;
1025 575 736 737 27; 1026 27 737 738 576; 1027 576 738 739 577;
1028 577 739 740 578; 1029 578 740 625 28; 1030 674 678 741 734;
1031 734 741 742 735; 1032 735 742 743 736; 1033 736 743 744 737;
1034 737 744 745 738; 1035 738 745 746 739; 1036 739 746 747 740;
1037 740 747 627 625; 1038 678 682 748 741; 1039 741 748 749 742;
1040 742 749 750 743; 1041 743 750 751 744; 1042 744 751 752 745;
1043 745 752 753 746; 1044 746 753 754 747; 1045 747 754 629 627;
1046 682 686 755 748; 1047 748 755 756 749; 1048 749 756 757 750;
1049 750 757 758 751; 1050 751 758 759 752; 1051 752 759 760 753;
1052 753 760 761 754; 1053 754 761 631 629; 1054 686 690 762 755;
1055 755 762 763 756; 1056 756 763 764 757; 1057 757 764 765 758;
1058 758 765 766 759; 1059 759 766 767 760; 1060 760 767 768 761;
1061 761 768 633 631; 1062 690 694 769 762; 1063 762 769 770 763;
1064 763 770 771 764; 1065 764 771 772 765; 1066 765 772 773 766;
1067 766 773 774 767; 1068 767 774 775 768; 1069 768 775 635 633;
1070 694 698 776 769; 1071 769 776 777 770; 1072 770 777 778 771;
1073 771 778 779 772; 1074 772 779 780 773; 1075 773 780 781 774;
1076 774 781 782 775; 1077 775 782 637 635; 1078 698 702 783 776;
1079 776 783 784 777; 1080 777 784 785 778; 1081 778 785 786 779;
1082 779 786 787 780; 1083 780 787 788 781; 1084 781 788 789 782;
1085 782 789 639 637; 1086 702 706 790 783; 1087 783 790 791 784;
1088 784 791 792 785; 1089 785 792 793 786; 1090 786 793 794 787;
1091 787 794 795 788; 1092 788 795 796 789; 1093 789 796 641 639;
1094 706 710 797 790; 1095 790 797 798 791; 1096 791 798 799 792;
1097 792 799 800 793; 1098 793 800 801 794; 1099 794 801 802 795;
1100 795 802 803 796; 1101 796 803 643 641; 1102 710 714 804 797;
1103 797 804 805 798; 1104 798 805 806 799; 1105 799 806 807 800;
1106 800 807 808 801; 1107 801 808 809 802; 1108 802 809 810 803;
1109 803 810 645 643; 1110 714 718 811 804; 1111 804 811 812 805;
1112 805 812 813 806; 1113 806 813 814 807; 1114 807 814 815 808;
1115 808 815 816 809; 1116 809 816 817 810; 1117 810 817 647 645;
1118 718 722 818 811; 1119 811 818 819 812; 1120 812 819 820 813;
1121 813 820 821 814; 1122 814 821 822 815; 1123 815 822 823 816;
1124 816 823 824 817; 1125 817 824 649 647; 1126 722 726 825 818;
1127 818 825 826 819; 1128 819 826 827 820; 1129 820 827 828 821;
1130 821 828 829 822; 1131 822 829 830 823; 1132 823 830 831 824;
1133 824 831 651 649; 1134 726 730 832 825; 1135 825 832 833 826;
1136 826 833 834 827; 1137 827 834 835 828; 1138 828 835 836 829;
1139 829 836 837 830; 1140 830 837 838 831; 1141 831 838 653 651;
1142 730 32 839 832; 1143 832 839 840 833; 1144 833 840 841 834;
1145 834 841 33 835; 1146 835 33 842 836; 1147 836 842 843 837;
1148 837 843 844 838; 1149 838 844 34 653;
ELEMENT PROPERTY
50 52 TO 65 67 98 TO 113 131 TO 146 162 TO 177 184 TO 186 188 190 TO 193 195 -
196 TO 198 200 TO 203 205 TO 208 210 TO 213 215 TO 218 220 TO 223 225 TO 228 -
230 TO 233 235 TO 238 240 TO 243 245 TO 248 250 TO 253 255 TO 258 -
262 TO 265 270 TO 273 277 TO 280 282 TO 289 291 TO 298 300 TO 307 -
309 TO 316 318 TO 325 327 TO 334 336 TO 343 345 TO 352 354 TO 361 -
363 TO 370 372 TO 379 381 TO 388 390 TO 397 399 TO 406 413 TO 420 -
537 TO 792 894 TO 1149 THICKNESS 0.2
DEFINE MATERIAL START
ISOTROPIC CONCRETE
E 2.17185e+07
POISSON 0.17
DENSITY 23.5616
ALPHA 1e-05
DAMP 0.05
TYPE CONCRETE
STRENGTH FCU 27579
ISOTROPIC M40
E 31622.8
DENSITY 25
TYPE CONCRETE
STRENGTH FCU 40000
POISSON 0.15
DAMP 0.05
ALPHA 5e-05
END DEFINE MATERIAL
MEMBER PROPERTY AMERICAN
9 TO 12 15 TO 18 21 TO 24 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96 114 -
116 TO 129 187 189 194 199 204 209 214 219 224 229 234 239 244 249 254 269 -
281 290 299 308 317 326 335 344 353 362 371 380 389 398 437 439 441 443 445 -
447 449 451 453 455 457 459 461 463 465 467 TO 481 498 TO 512 516 TO 530 -
809 TO 838 855 TO 869 873 TO 887 PRIS YD 1.7 ZD 0.5
28 TO 39 178 TO 180 259 TO 261 266 TO 268 274 TO 276 407 TO 412 513 TO 515 -
531 TO 536 870 TO 872 888 TO 893 PRIS YD 1.5 ZD 0.3
CONSTANTS
MATERIAL M40 ALL
SUPPORTS
5 8 TO 10 31 TO 34 PINNED
LOAD 1 LOADTYPE Dead TITLE DEAD LOADS
SELFWEIGHT Y -1
DEFINE MOVING LOAD
TYPE 1 LOAD 27 27 114 114 68 68 68 68
DIST 1.1 3.2 1.2 4.3 3 3 3 WID 1.8
TYPE 2 LOAD 80 120 120 170 170 170 170
DIST 3.96 1.52 2.13 1.37 3.05 1.37 WID 2.9
LOAD GENERATION 100
TYPE 1 -20 0 6.25 XINC 0.5
TYPE 1 -20 0 3.25 XINC 0.5
LOAD GENERATION 100
TYPE 2 -20 0 5.3 XINC 0.5
PERFORM ANALYSIS
FINISH
