Week 2- 2R Robotic Arm Challenge

Question :

Write a program in Matlab to simulate the forward kinematics of a 2R Robotic Arm, as shown in the video.

Create an animation file of the plot.

Answer :

Program:

clear all
close all
clc

%Inputs

%lENGTH OF ARM 1 & ARM 2 IN METER
L1=1;
L2=0.5;

%ANGLE OF ARM 1 & ARM 2 WITH RESPECT TO X-AXIS
Theta1=linspace(0,90,10);
Theta2=linspace(0,90,10);

ct=1;
for i=1:length(Theta1)
    THETA1=Theta1(i);
    for j=1:length(Theta2)
        THETA2=Theta2(j);

        %CO-ORDINATE CALCULATION

        %STARTING POINT OF ARM1
        x0=0;
        y0=0;

        %END POINT AND STARTING POIN T OF ARM 2
        x1= L1*cosd(THETA1);
        y1= L1*sind(THETA1);

        %END POINT OF ARM 2
        x2= x1+L2*cosd(THETA2);
        y2= y1+L2*sind(THETA2);

        plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'LineWidth',3);
        axis([-0.1 1.5 0 1.5]);
        xlabel('x-axis');
        ylabel('y-axis');
        pause(0.1)
        M(ct)= getframe(gcf);
        ct=ct+1;



    end
end

movie(M)
videofile=VideoWriter('forward_kinematics2R_avi','Uncompressed AVI');
open(videofile)
writeVideo(videofile,M)
close(videofile)

Code explaination :

1. linspace- used to define angles of arm at diffrent position.

2. for - used to repeat set of actions again & again.

3. plot- used to plot co ordinates of arms at different positions .

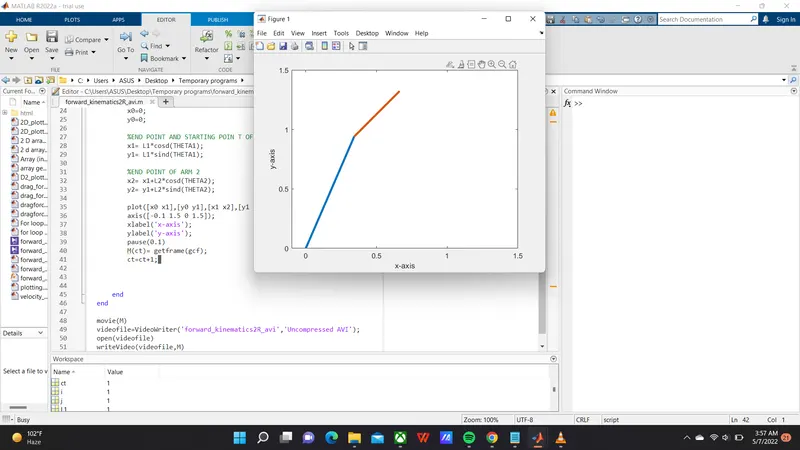

Output Screenshots:

Error faced while programing:

Error 1:
Unrecognized function or variable 'L1'.

Error in forward_kinematics2R_avi (line 21)
x1= L1*cosd(THETA1);

Reason: Variable L1 & L2 were not defined.

Solution : Defined L1- Length of arm 1=1
Defined L2- Length of arm 2=0.5

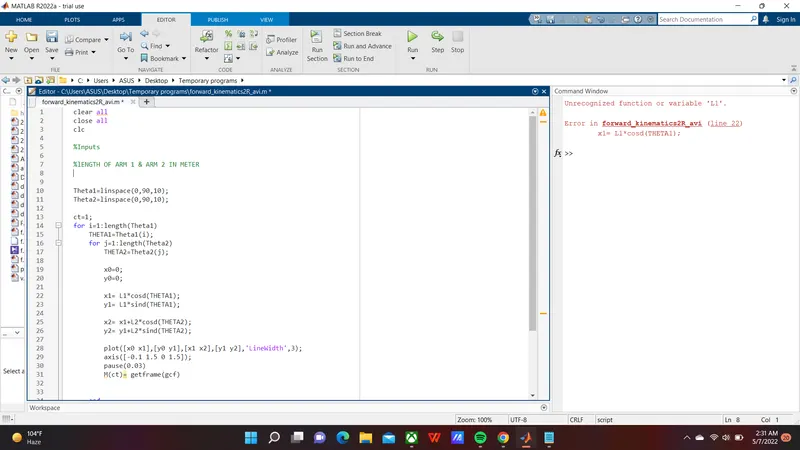

Screen shot of error :

Link for animation file :

https://drive.google.com/file/d/1nRk76QqKRCnMjjvuZizipV5ci1-QDxbB/view?usp=sharing
