Week 2- 2R Robotic Arm Challenge

https://drive.google.com/file/d/1xUwjWpyIOnCMsBAhclsrFl0-g5jBiGoS/view?usp=sharing

Inputs for kinematics for 2 arm robotics
l1 = 1;
l2 = 0.5;
theta1 = linspace(0,90,10);
theta2 = linspace(0,90,10);

code for animation
ct=1;
for i = 1:length(theta1)
    THETA1 = theta1(i);
    for j = 1:length(theta2)
        THETA2 = theta2(j);
        x0 = 0;
        y0 = 0;

        x1 = l1*cosd(THETA1);
        y1 = l1*sind(THETA1);

        x2 = x1 + l2*cosd(THETA2);
        y2 = y1 + l2*sind(THETA2);

        %plotting
        plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',3)
        axis([-0.1 1.5 0 1.5])
        pause(0.03)
        M(ct) = getframe(gcf);
        ct=ct+1;
    end

end

for making movie and for creating file

movie(M)
videofile = VideoWriter('forward_kinematics.avi','Uncompressed AVI')
open(videofile)
writeVideo(videofile,M)
close(videofile)


when i run this it get error in plotting

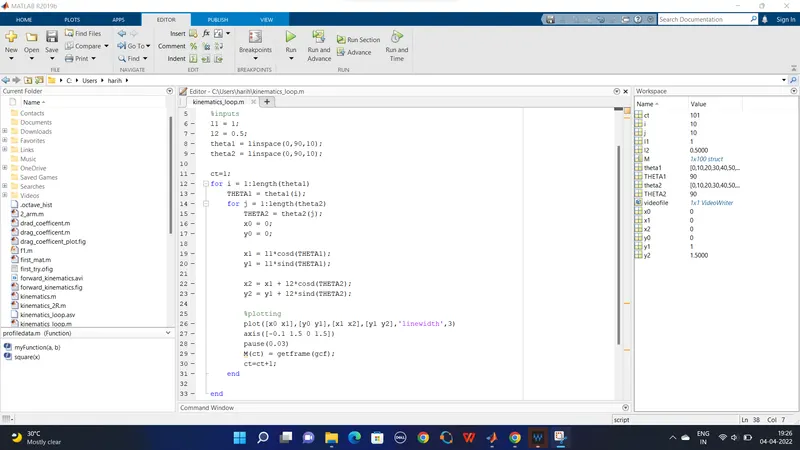

then i create one-one session that my support engineer said that previous plot file is saved as plot.so he delete the file and run the program . i get the result

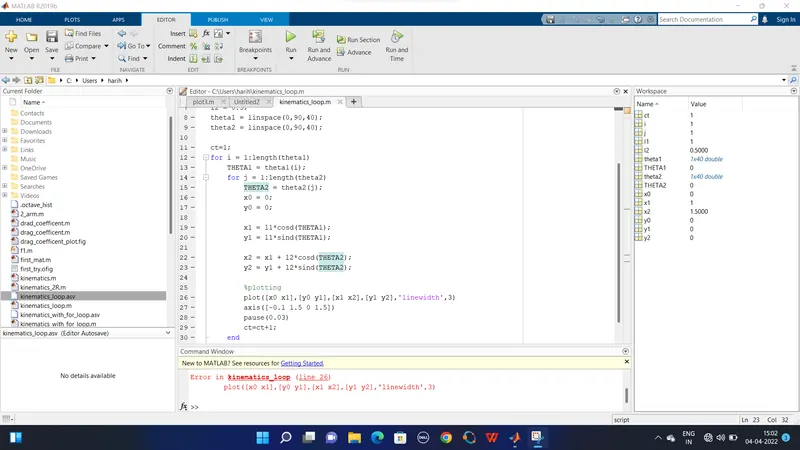

i attached the error screenshot
