Week 2- 2R Robotic Arm Challenge

Objective: Create animation of the plot of 2R robotic arm

code:

clear all
close all
clc

l1=1;
l2=0.5;

theta1=linspace(0,90,10);
theta2=linspace(0,90,10);
ct=1;

for i=1:length(theta1)
    THETA1=theta1(i)
    for j=1:length(theta2)
        THETA2=theta2(j)
        x0=0;
        y0=0;
        x1=l1*cosd(THETA1);
        y1=l1*sind(THETA1);
        x2=x1+l2*cosd(THETA2);
        y2=y1+l2*sind(THETA2);

        plot([x0 x1],[y0 y1],[x1 x2],[y1 y2],'linewidth',4)
        pause(0.2)
        m(ct)=getframe(gcf);
        ct=ct+1;
    end
end
movie(m)
videofile = VideoWriter('arm.avi','uncompressed AVI')
open(videofile)
writeVideo(videofile,m)
close(videofile)

Explanation of code:

• clear all to clear variables in workspace
• close all to close all plots
• clc to clear command window
• enter the lengths of two arms
• theta1 and theta2 arrays are created by using linspace command with 10 divisions from 0 to 90degree.
• then counter is created
• for two arms robot , second arm's all position need to be plot for one position of first arm.
• therefore we have to use for loop inside for loop.
• In first for loop i variable is used to index each time running for loop
• again new THETA1 variable is defind which will take i index value of array theta1
• THETA2 variable is defind which will take j index value of array theta2
• In second for loop all position for respective angles is calculated by defining x0,x1,x2,y0,y1 and y2.
• plot command is used to plot respective positions for respective angles
• pause function is used
• m array is created of current figures by using getframe function of respective counter
• counter is indexed to store further figures in array
• both the loops are closed
• movie of m array is created
• videofile is created using VideoWriter function
• Videofile is opend
• videofile is being written by array of figures
• videofile is closed

Errors:

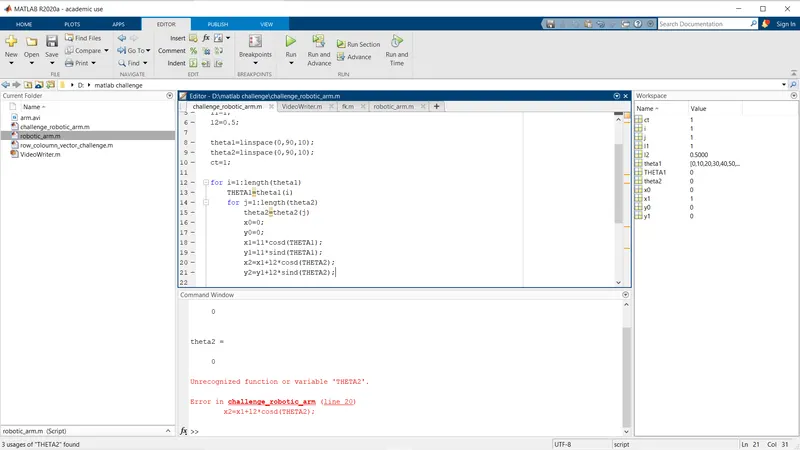

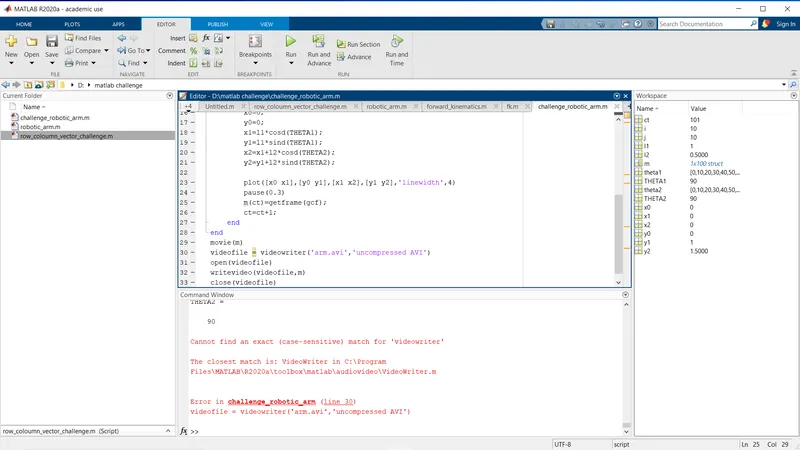

• Cannot find a exact case sensitive match for VideoWriter.m
• mistakes like not using the variables as they are defined

Solution for errors:

• For first error VideoWriter function is typed accordingto to the function saved in program files.
• For second error array theta2 is replaced by variable THETA2 .https://drive.google.com/file/d/1gbDqPkJ1TtCov7LGfyuMJbO1cvjqsAWE/view?usp=sharing
