Week 14 challenge

Assemble and apply GD&T to the butterfly valve assembly drawing

First we creat assembily file and add all aur component and give proper constrain.

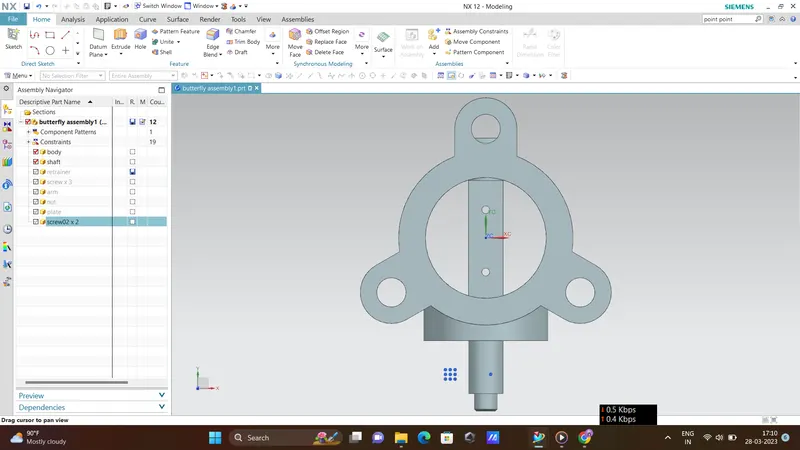

1. First we add main body and give fix constrain afer that we add shaft and give align and touch constrain.

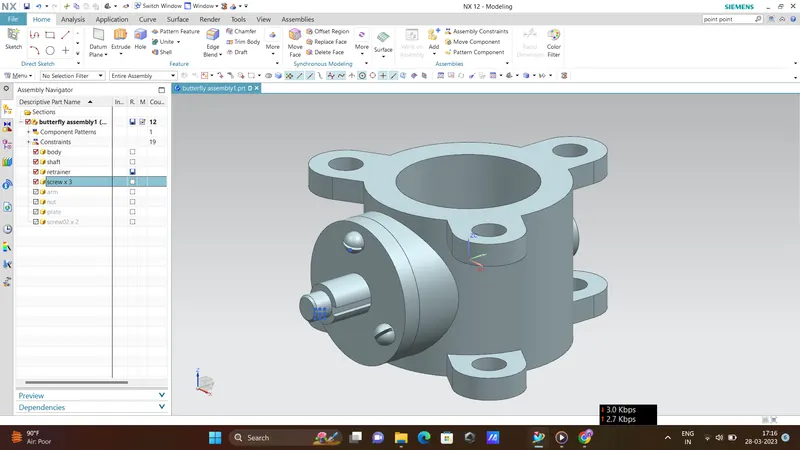

2. Then we add retrainer and screw and give align and touch constrain.

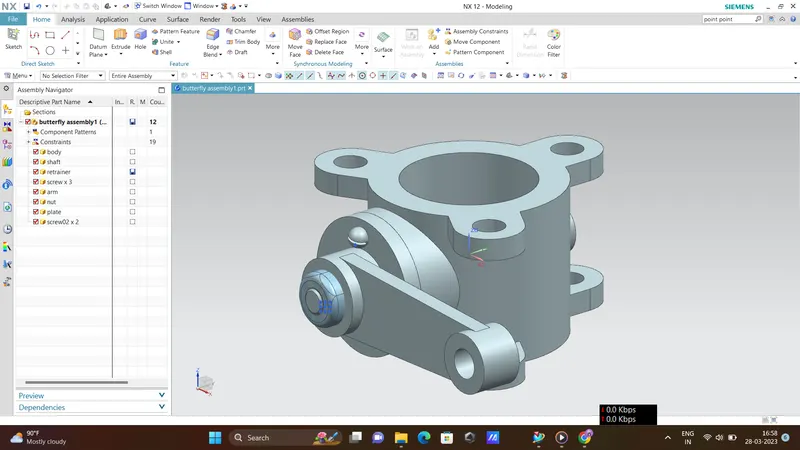

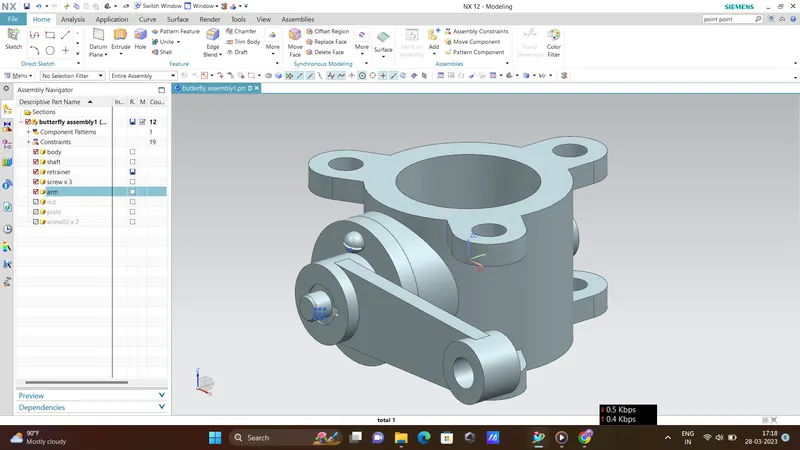

3. Then we add arm and give align and touch constrain with retrainer.

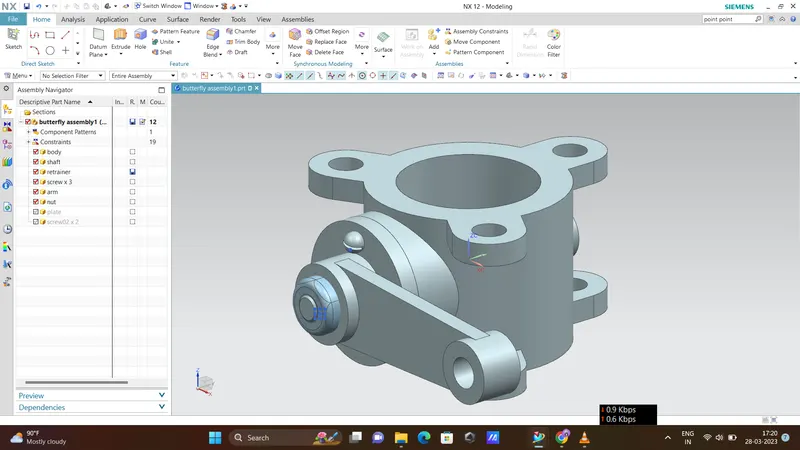

4. Then we add nut and constrain win arm.

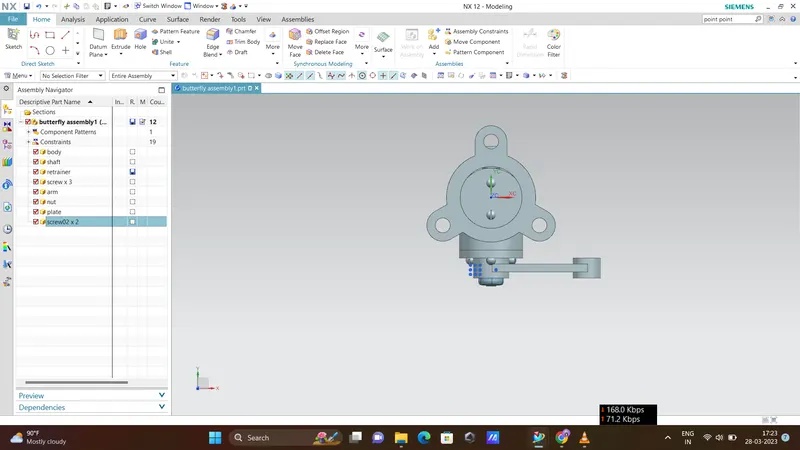

5. Then we add mid plate and screw and constrain it with shaft.

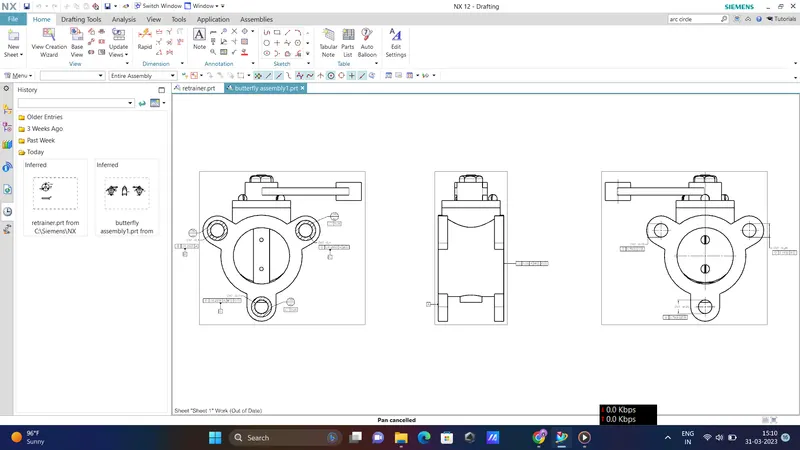

Then we creat drawing sheet and project the part in diffrent angle and apply GD&T on it.
