Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Aim:

In this study, I have done the meshing of the component which is a Rear Wheel Holder challenge. This meshed element full fill all the given quality parameters. This all study is done in Hypermesh.

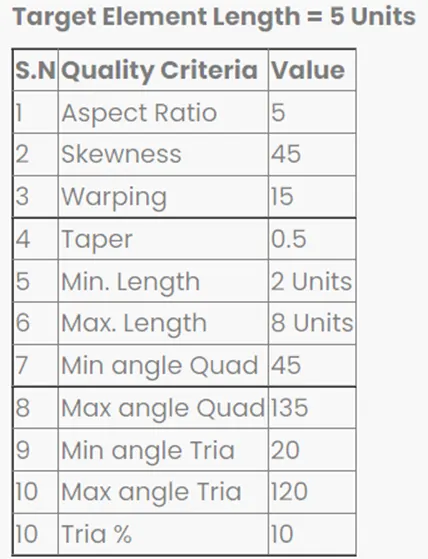

Given quality parameter

Introduction:

Meshing is the discretization of model into finite element. Meshing element contain the Quad and Trai element. Whole component is meshed with these two types of elements and proper mesh flow will be consider.

Procedure:

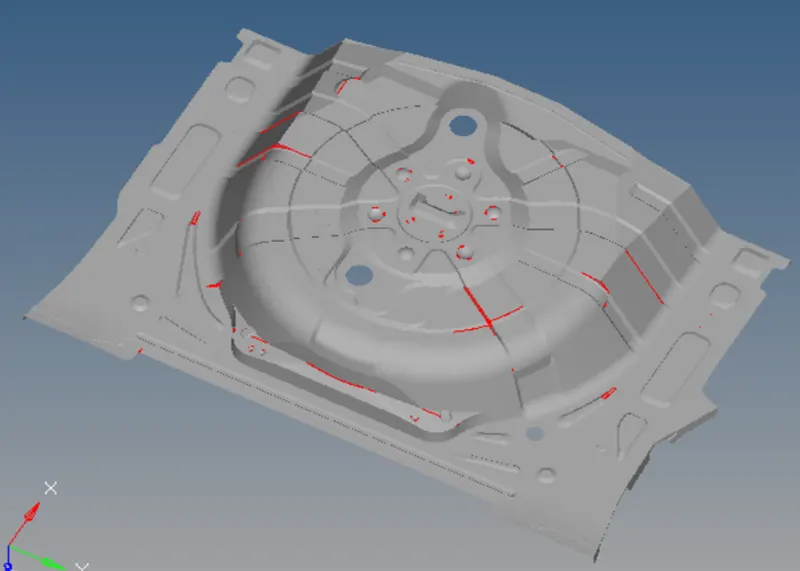

1. Input the model

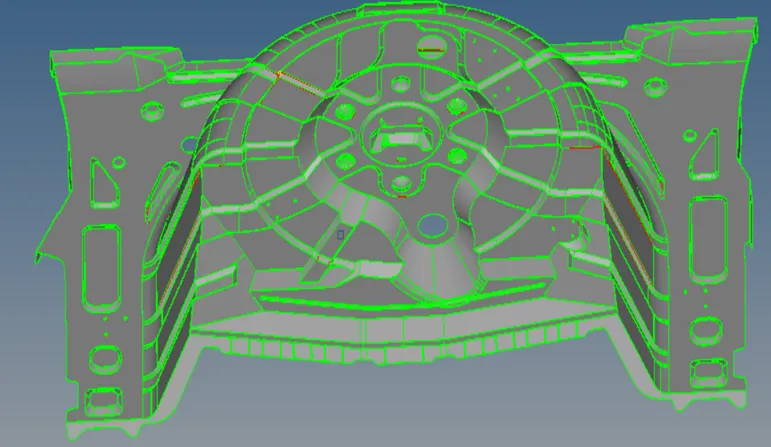

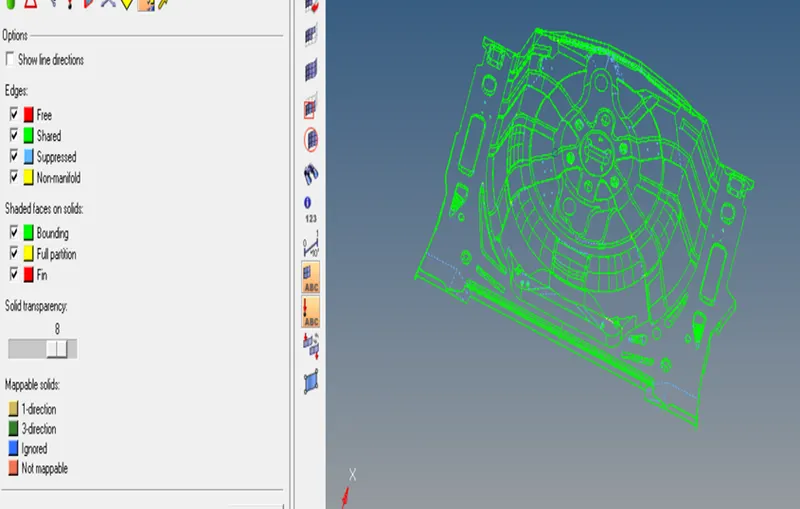

2.Create mid surface by Geom < midsurfs < auto midsurface < surface(displayed) < extract and we find the free edges.

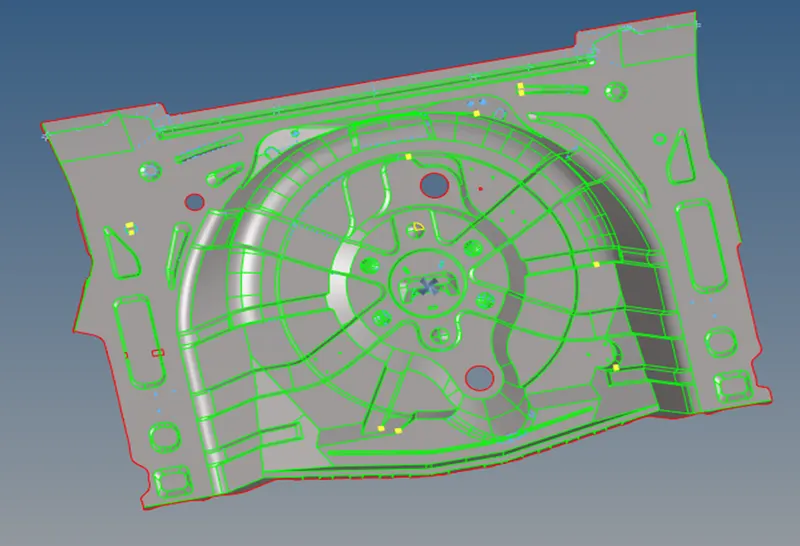

3. Eliminate the some modal error by auto cleanup by Geom < autocleanup and by some manual technique.

4. Now meshed the surface by 2D < automesh < surface(displayed) < mesh. Checked the given Quality criteria

5. Check the edge connection of the element by Tool < edges < element (displayed) < tolelence (0.01) < preview equivalence < equiv
6. Create the thickness of model to the element by Mesh (in top panel) <Assign < Midmesh Thickness < solid geom/mesh (surface) < Mesh (Elements) < calculate thickness.

Now all the thickness is assigned to the elements.

Results:

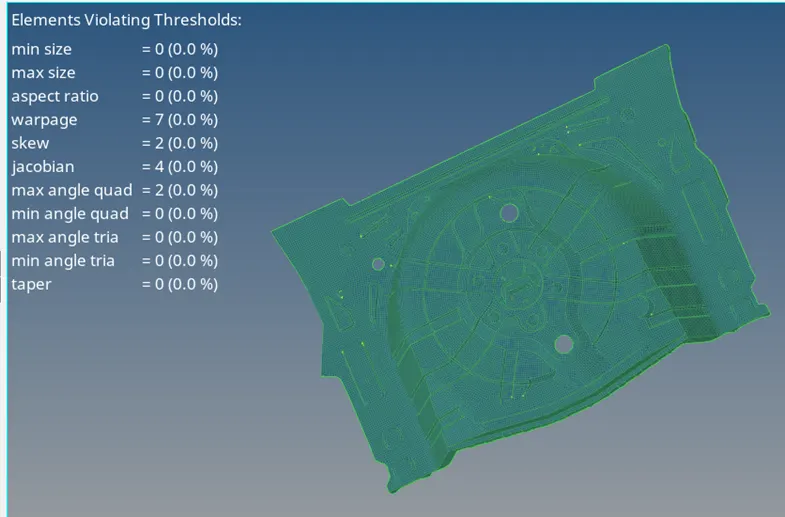

The given model full fill the Quality parameter .all the parameters is Zero percentage error as seen in above image.So we can say that our model is successfully meshed
