Week 12:Project 2-Meshing of Rear Wheel Holder challenge
Objective –
Mesh the wheel panel following below quality criteria.
Target Element Length = 5 Units
|
S.N |
Quality Criteria |
Value |
|
1 |
Aspect Ratio |
5 |
|
2 |
Skewness |
45 |
|
3 |
Warping |
15 |
|
4 |
Taper |
0.5 |
|
5 |
Min. Length |
2 Units |
|
6 |
Max. Length |
8 Units |
|
7 |
Min angle Quad |
45 |
|
8 |
Max angle Quad |
135 |
|
9 |
Min angle Tria |
20 |
|
10 |
Max angle Tria |
120 |
|
10 |
Tria % |
10 |
Procedure –

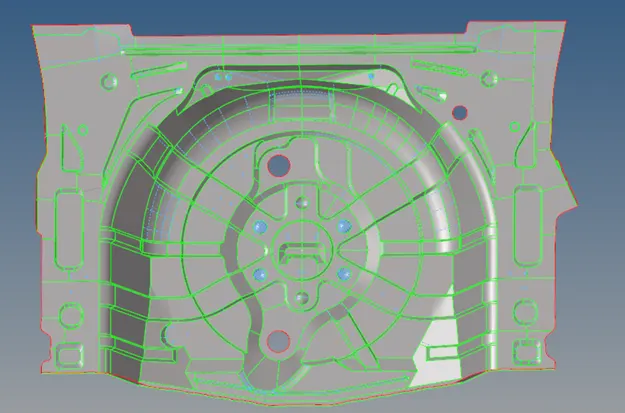

- First I have imported the model to hypermesh workbench and extracted mid-surface of it through auto mid-surface option.
- After getting mid-surface it was not perfect surface, that’s why again I went for manual mid-surface option.
- Then I went for meshing as per given criteria.
- To add given criteria value, I went to preference - Criteria file settings.

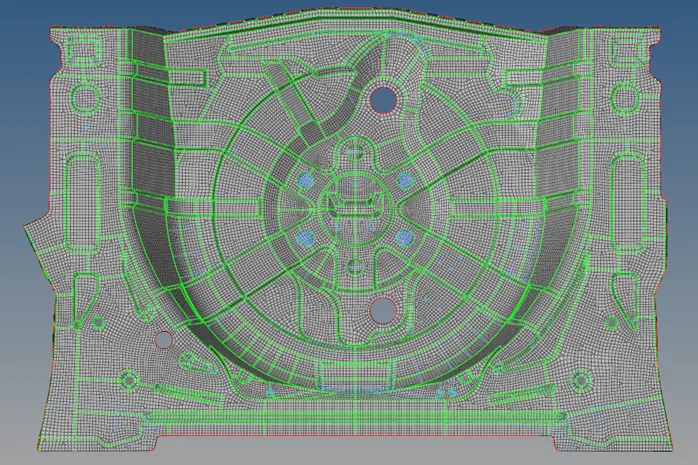

- Then I went for mesh option, since some of the portions are symmetry, I meshed that portion and reflected to symmetric part through reflect option.
- Those parts are not symmetric, those are got meshed alone. Like this I meshed total component.

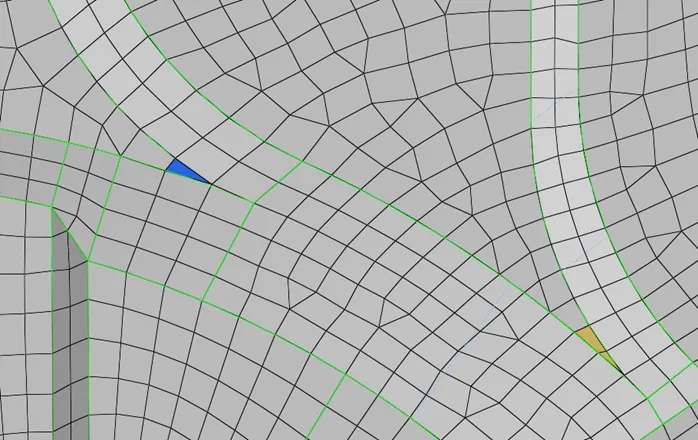

- While meshing of the component some portions are constrained with minimum area. So those portions are failing for minimum length, minimum tria angle, skewness quality.

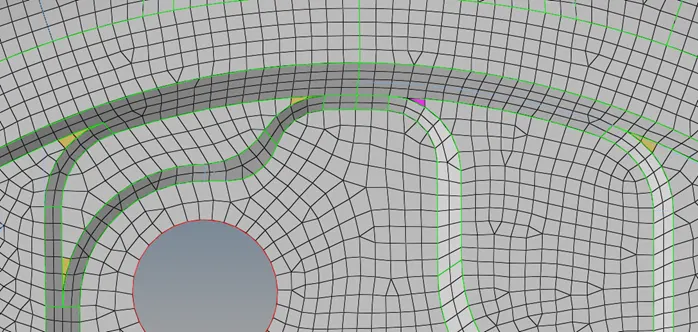

- Also while meshing some of the elements were failing for warpage, those are got cleared up with translate option.

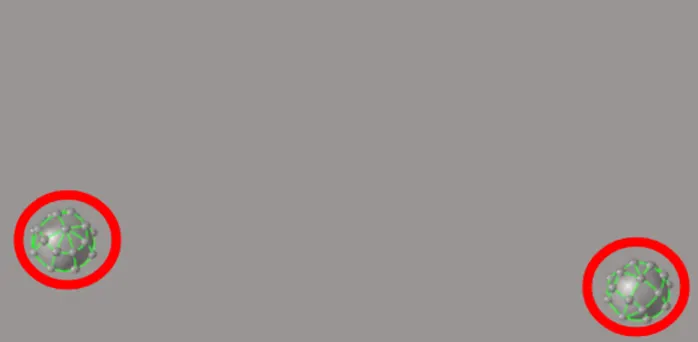

- In this component there were small buttons, which are will failing for minimum length issue while meshing. For this reason, those areas are got toggled up as per recommendation in question.

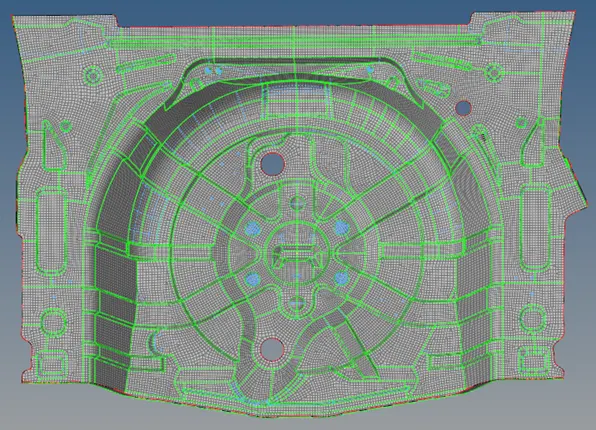

Final Model –
