Week 12:Project-1-Meshing of Door Inner Panel Challenge



1. After importing the model, check to see if any free edges are present in the parent components.



2. Create the duplicate surfaces of the parent component and organize them in a separate component collector.



3. Now to perform meshing, use F12 to select auto mesh; assign parameter files and criteria files as specified in the requirement mesh.



4. Clear the quality criteria by changing the mode to "quality" and rectify all parameters that are going to fail.



5. Assign the property to each portion's thickness.

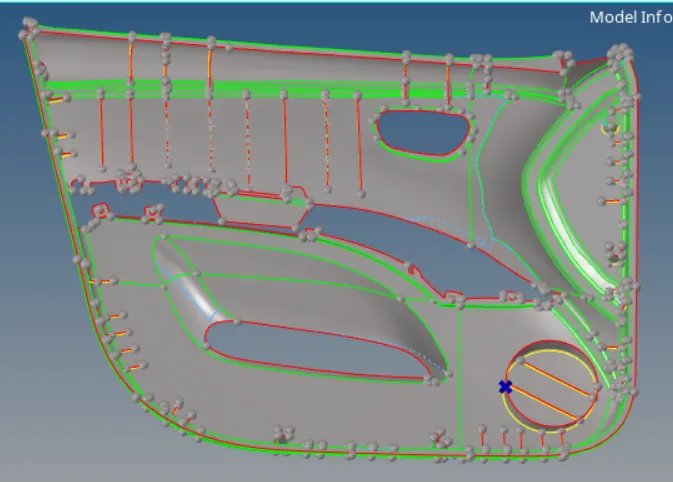

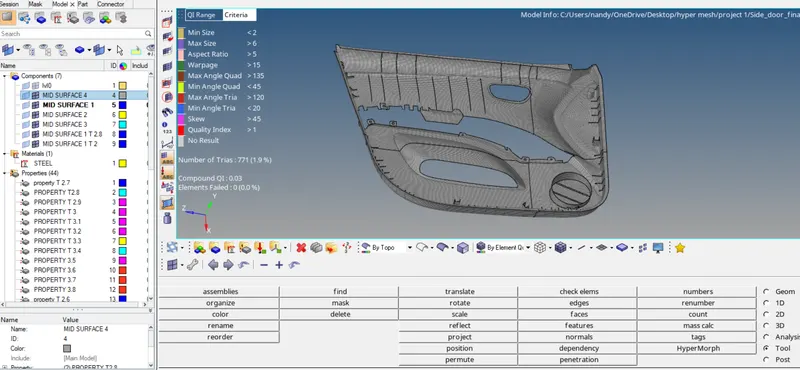

Total model that has assigned during this clallenge

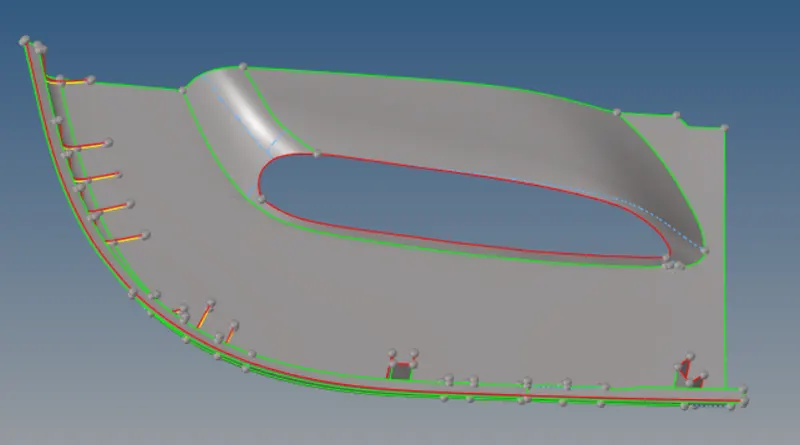

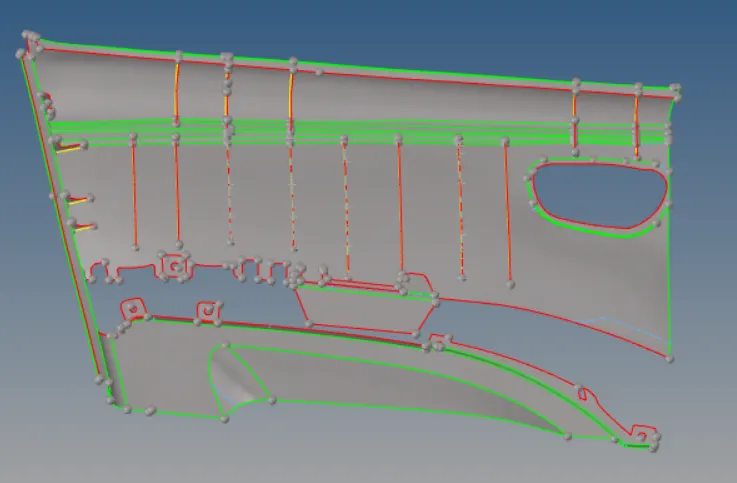

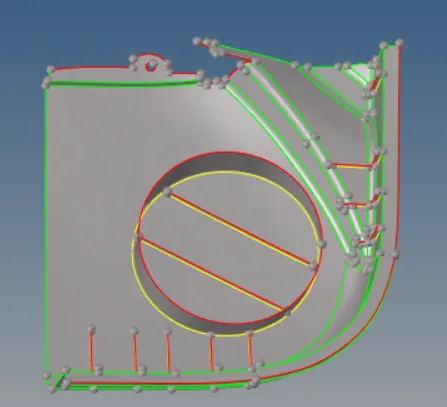

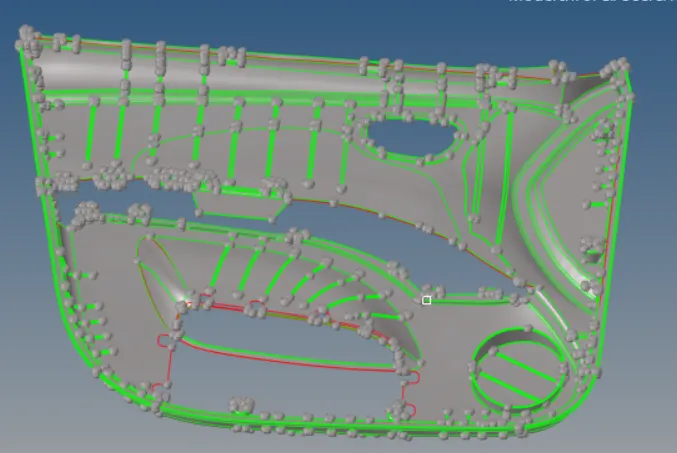

the below mide surface extracted by using midsurface in geometry mode using offset & skin method  & to extend all rib like portions , extend tool in sufaceedit panel is utilized.





for reducing complexity & good visualization etire part is segmented in four portions.



Part 1.



Part 2



Part 3

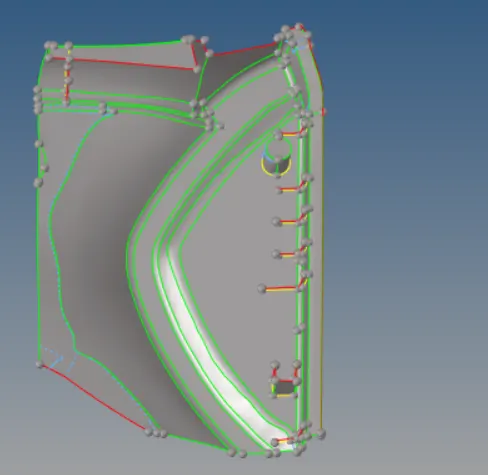

part 3.





Now meshing part will come into the picture with proper assinement of thickness after compleation of meashing.



for meshing automesh set quality & target criteria and mesh in 2d module



for assigning thickness crate property assign thickness according to portions of indivudual surface and need to do organise as well.

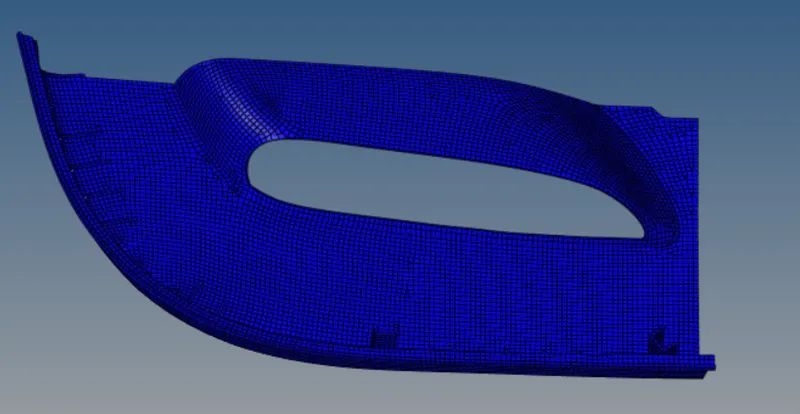

Part 1 mesh with thickness assinment.

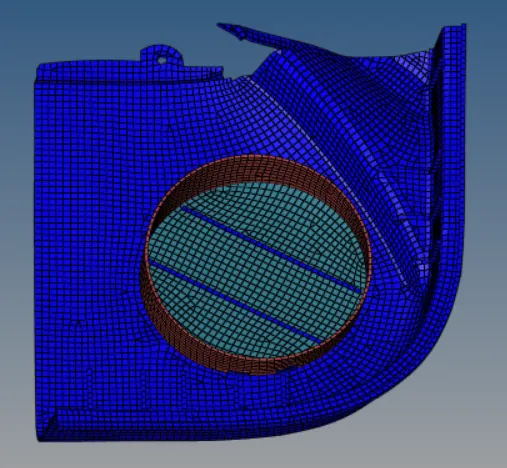

Part 2 with thickness assignment

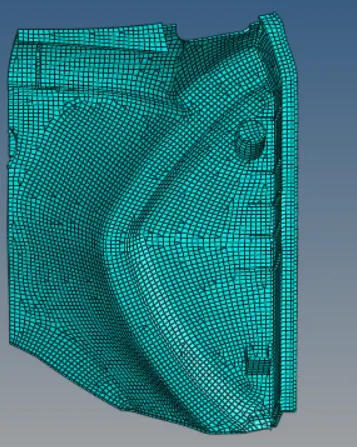

Part 3 with thickness assignment.

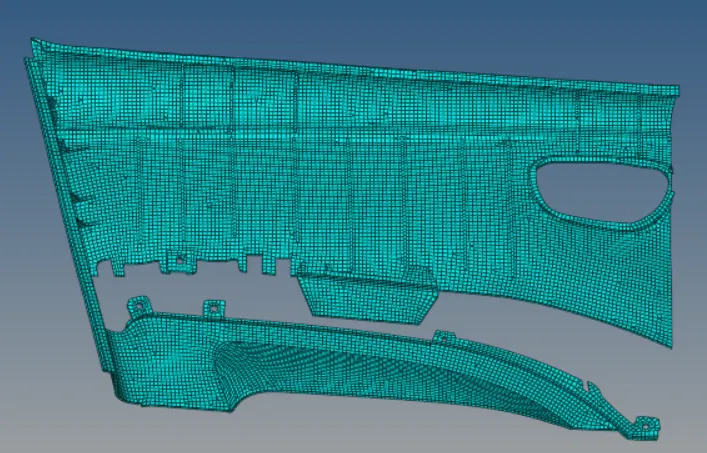

part 4 with thickness assignment.





After checking my all quality 0 elements are failed.







Heance conclude that side dore part has modelled as per quality criteria.
