Week 12:Project-1-Meshing of Door Inner Panel Challenge

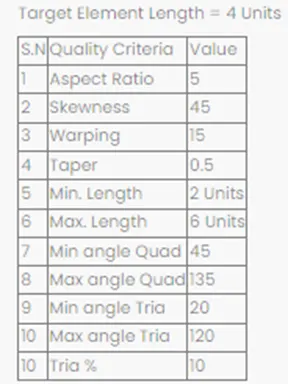

Aim: This study, all is done in hypermesh software .In this study, I have done the mid surface creation with surface clean up from the surface errors of given model. The 2d meshing is also done in this project, this meshing full filled the all quality perimeter as given input
Introduction: In this given model mid surface is created . mid surface is created for meshing purpose. So here 2d mesh is generated which take less computational time as compare to 3d meshing.
Meshing is the discretization of model into small element.
Methodology:

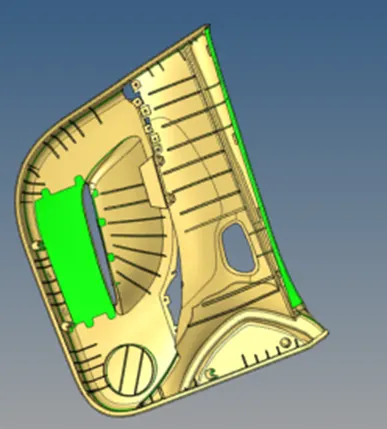

- Insert the given model-side door panel.

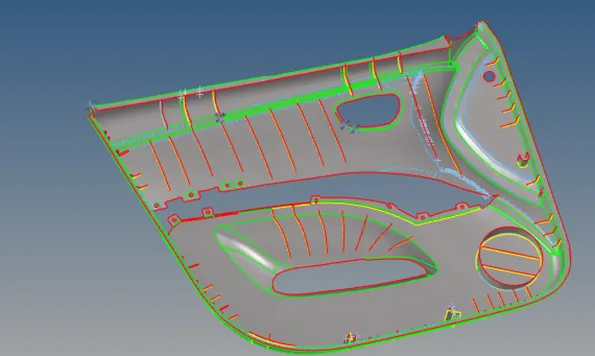

2.Create the mid surface of the given model by Geom < midsurface < auto mid surface (auto extraction) < surfs < extract .
3.Mid suface generates with some surface error like detachment of surface, merging of surfaces etc.

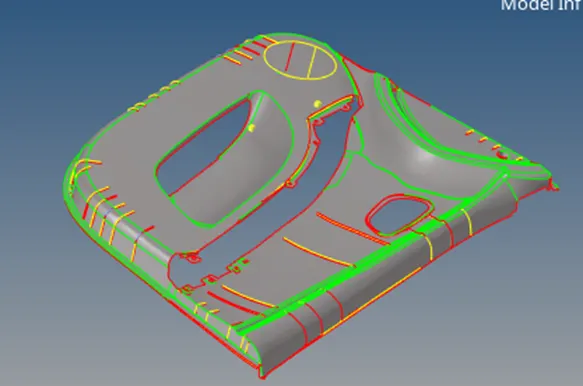

- Now geometry cleanup process starts under which we make sure the connectivity of surface.

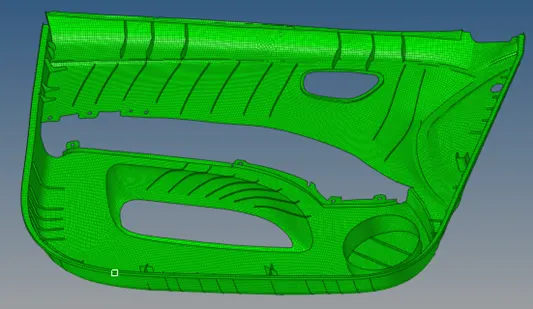

- Create mesh of the given model by 2D < automesh < surfs < mesh.

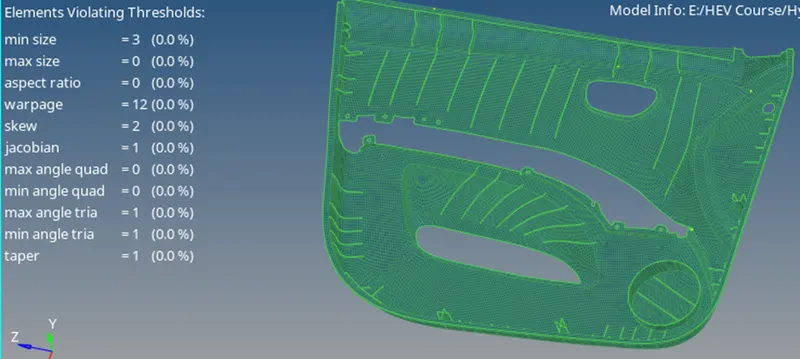

- Check the quality perimeters by 2D < quality index
- Give the thickness property of given model (t=2.8) and then assign that property to mesh elements.
Result and Discussion:

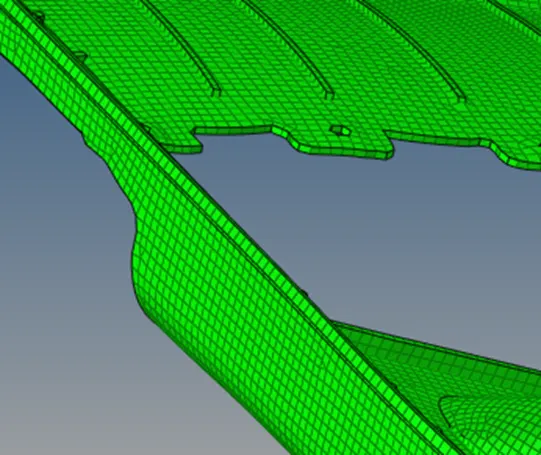

The given model is perfectly meshed and full fill the all quality parameters under 0 percent error. The edge connection of the element to each other is connected.
