Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM:

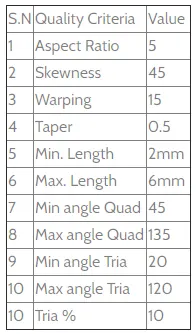

The goal is to extract the mid surface, generate the mesh, and to add the thickness to the given side door inner panel using the Following Quality Criteria.

Target Element Length = 4mm

Solution:

-Methodology:

The methodology for the given model is as follows.

i)Opening the File.

ii)Extracting the Mid Surface.

iii)Giving the Quality Criteria.

iv)Generating the Mesh.

v)Clearing the Errors.

vi)Applying Property.

vii)Giving the Thickness.
