Week 12 - Flex Bodies
- Determine the Maximum and Minimum Stress and Strain Values in the Flexible Lower Control Arm.
Study-1 output:

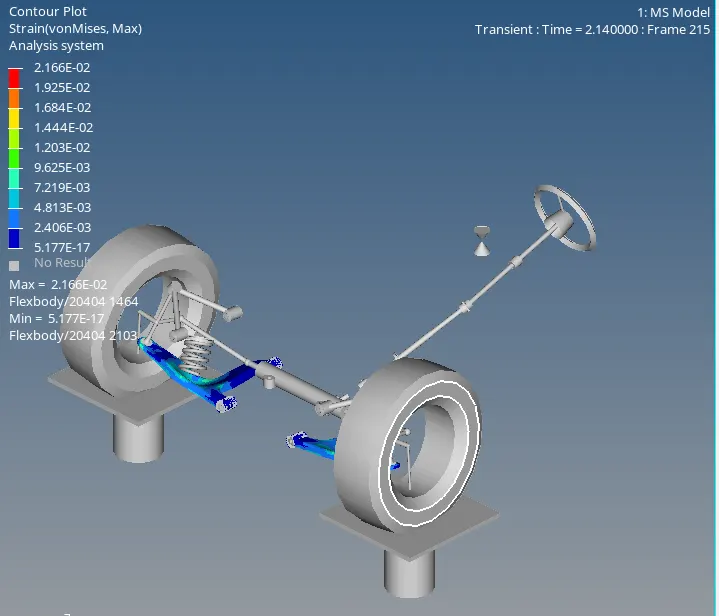

Strain Contours:

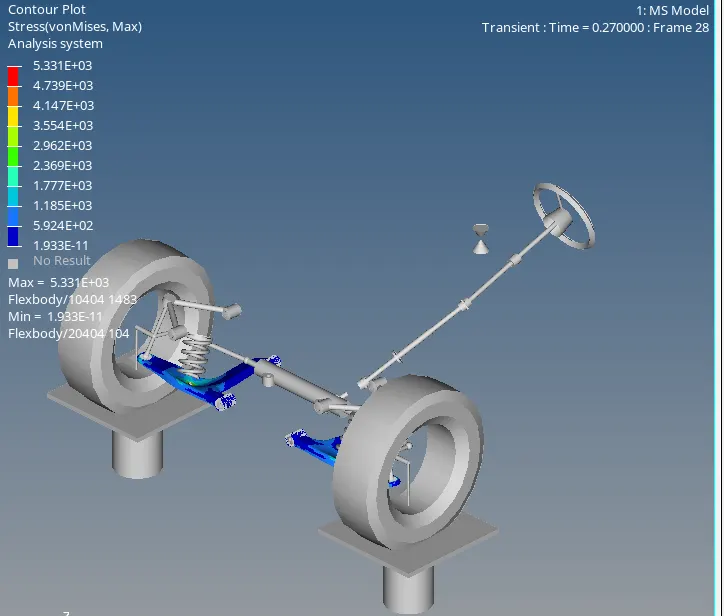

Stress Contours:

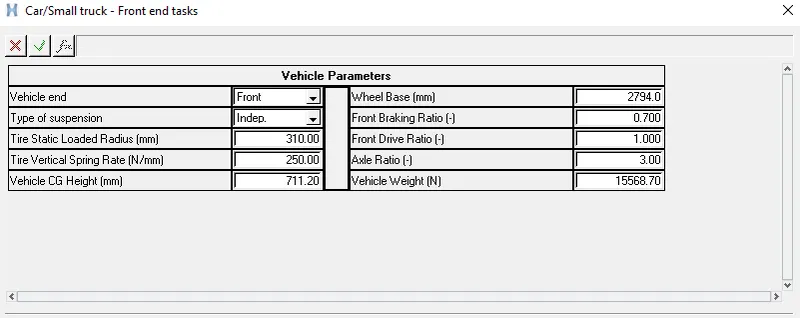

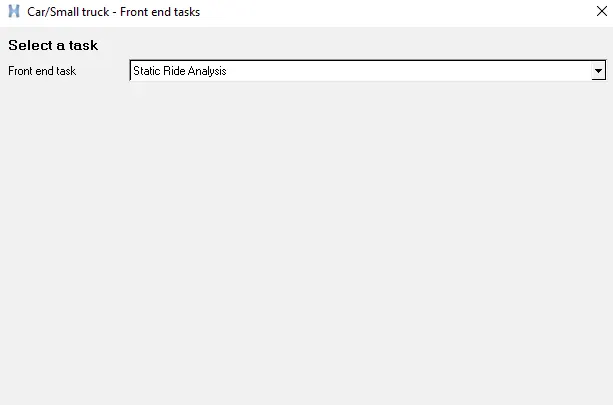

- Run a Static Ride Analysis. Run a sensitivity study on the following parameters and conclude which parameter/ combinations of the parameter have a maximum effect on the stress/strain of the lower control arm.
- Parameters to be considered.
1.Vehicle CG,
2.Vehicle Weight
3. Front Braking Video
4.Wheel Base and
5.Axle Ratio
Study-2 output:

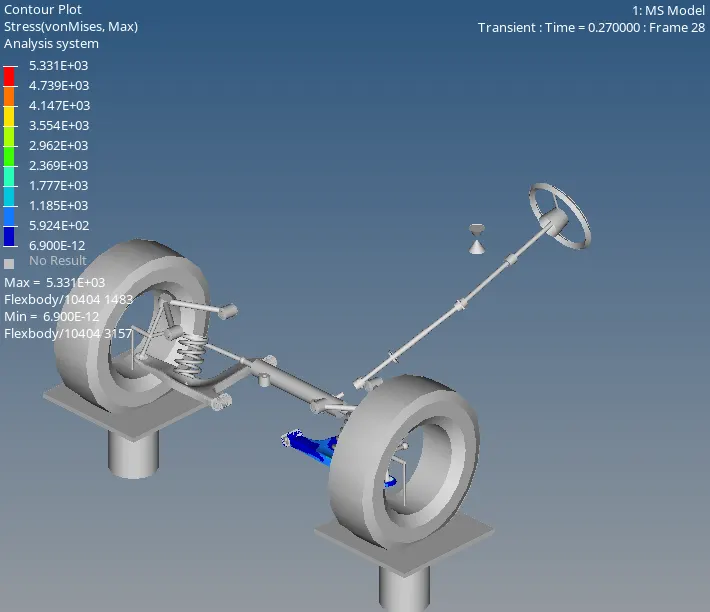

Stress Contour:

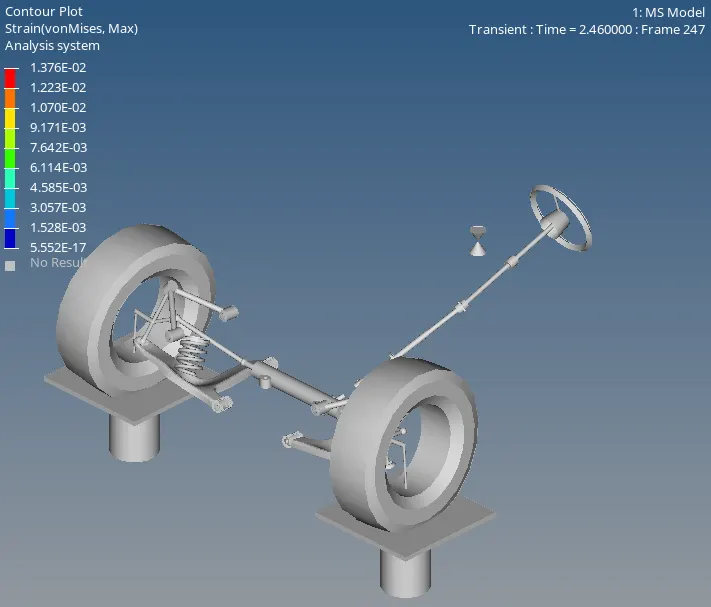

Strain Contour:
Conclusion:
1.Vehicle CG,
2.Vehicle Weight
3. Front Braking Video
4.Wheel Base and
5.Axle Ratio
By varying the above parameters there is no much change in the stress and strain values.
