Week 11 - Final project

FINAL PROJECT :

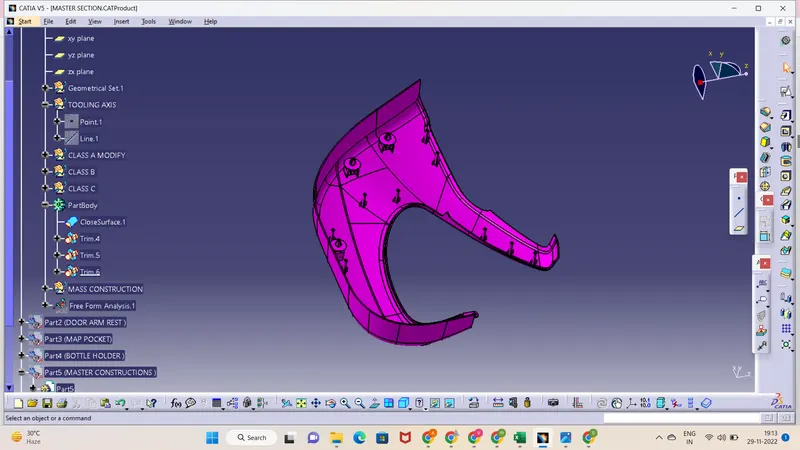

These are the given class A surface . These have slightly modified from the orginal due to imperfection and instability to the orginal one .

First of all take components in individually . divide the the all parts and start the further process ..

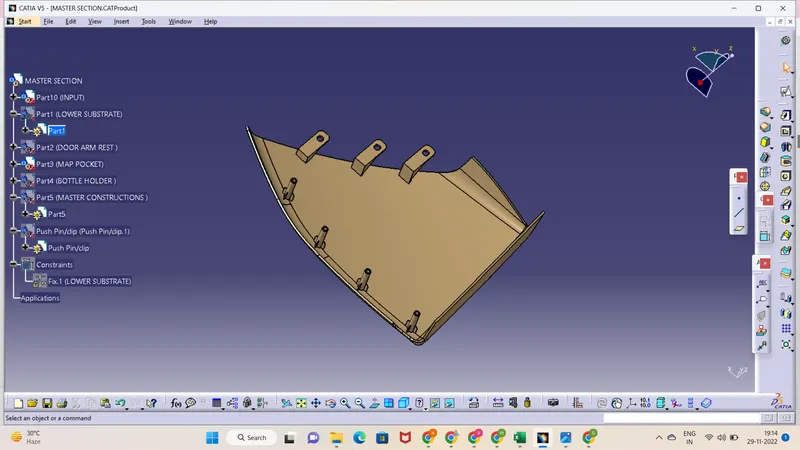

1) lower substrate

I make the B surface design in lower substrate by using of CLASS A surface . Then must check the Draft analysis process as per required method . Then After we will do same process like it to another components ( map pocket , bottle holder holder , door arm rest ) also as mentioned below ...

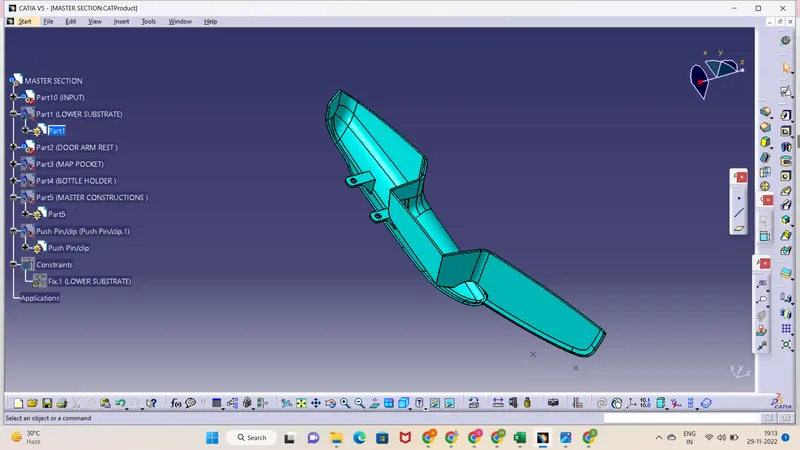

Door Arm Rest

BOTTLE HOLDER

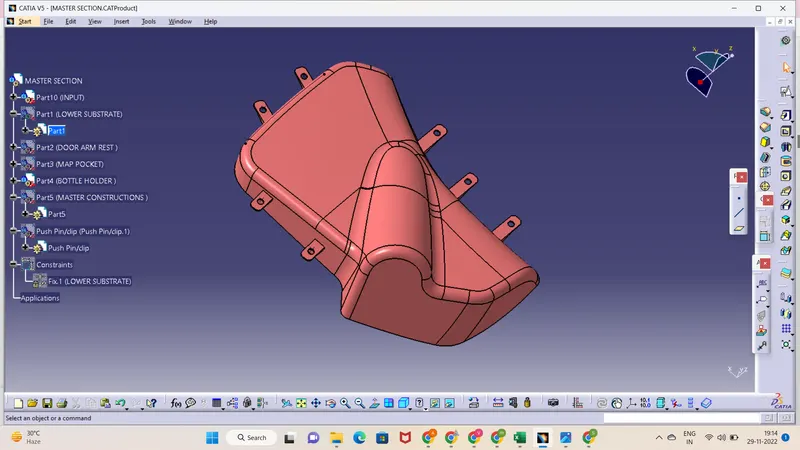

MAP POCKET

After Completion of all component process like A surface to C surface between B surface then we will got o Engineering features ..

Heat stakes

Ribs

Dog houses

push pin attachments above the dog house

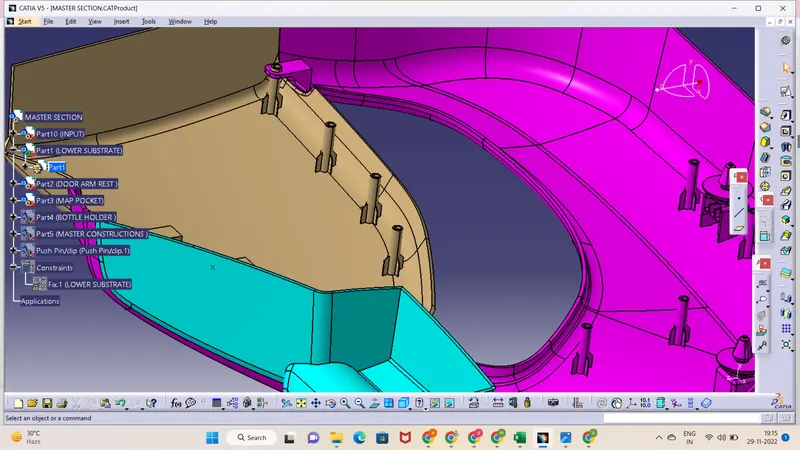

Heat stakes with Ribs

A circle of diameter 5mm was made and thickened outside 2mm to get a 7mm dia. circle outside. Ribs were added on both sides for strength to the heat stake. 15mm ribs were provided.

Multiple heat stakes were made using translate function on various areas of the doghouse. These heat stakes support the bottle holder, map pocket and door armrest.

A draft of 0.5 was given to the heat stakes and their ribs. Note that inside draft for the stake will be in the opposite direction to the outside.

Finally, the heat stakes were union trimmed with the lower substrate.

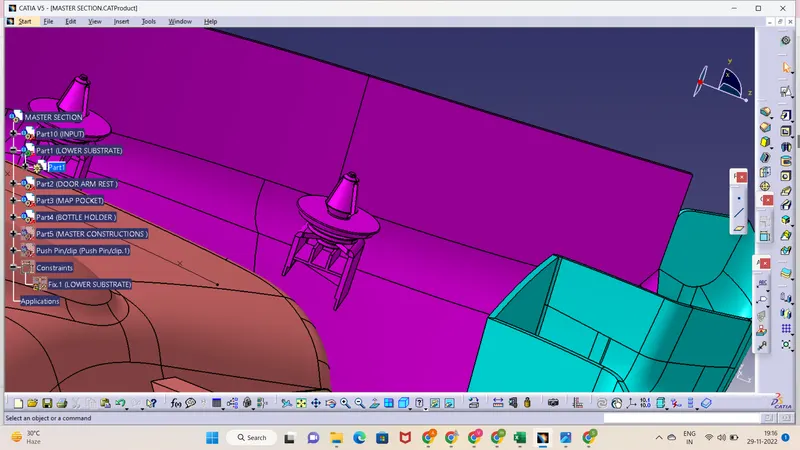

DOG HOUSE WITH PUSH PIN

The hole on the top surface of the doghouse is for placing the push pin, which we'll come to later.

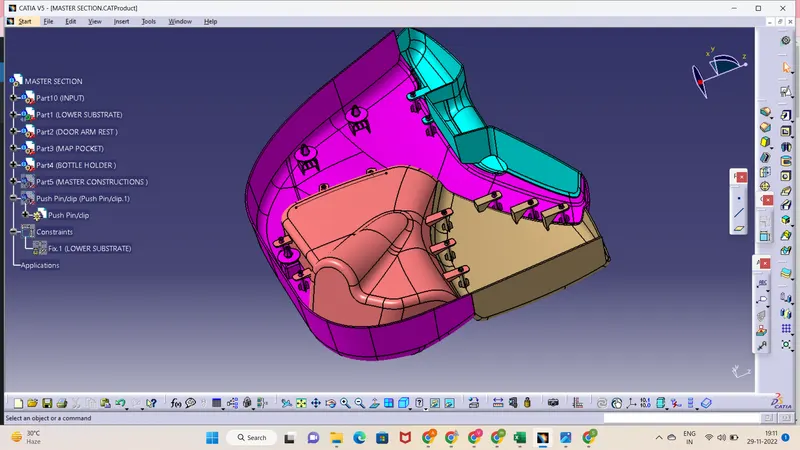

Then all compents are attached by flanges we are get the final product ..
