Week 11 Car Crash simulation

Objective :

To perform a parametric study using 3 different values of thickness for the car body.

Procedure :

• Initially import the model from the source.
• Now assign the materials for the car body.
• Next assign the symmetry conditions for the model.
• Now allign the fixed support & the displacement for the model.
• Afeter assigning the support and displacement provide the boundary conditions.
• Now assign the parametric test based on the thickness of the car body.
• Do a parametric test for 0.3 mm, 1 mm, 2 mm thickness of the car body.
• Solve the model and save the model.

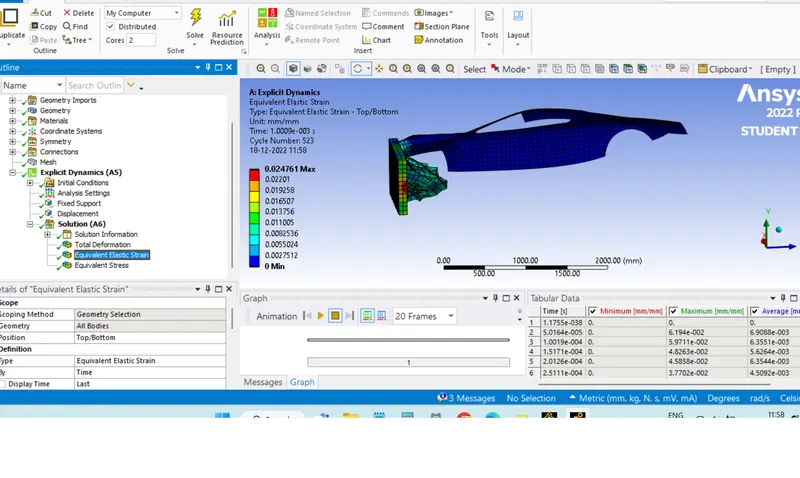

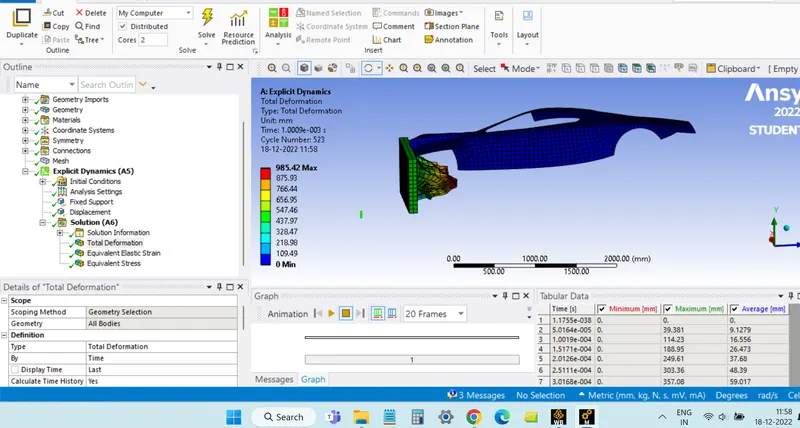

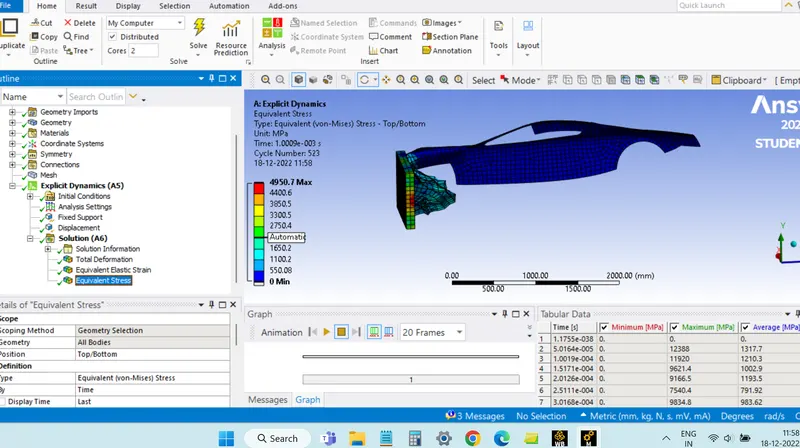

Cases :

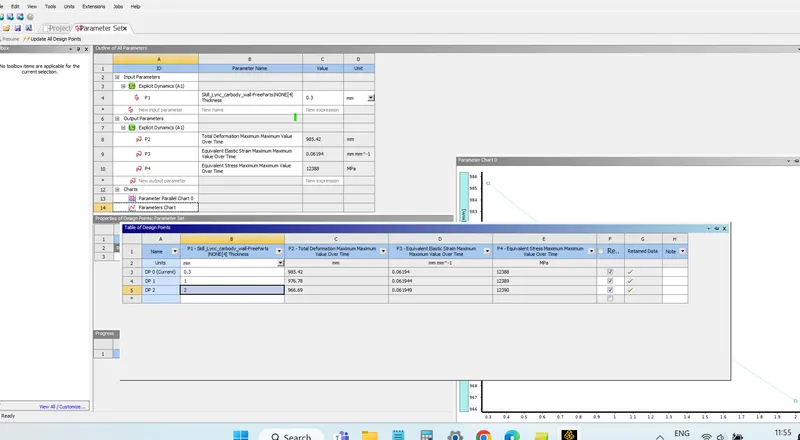

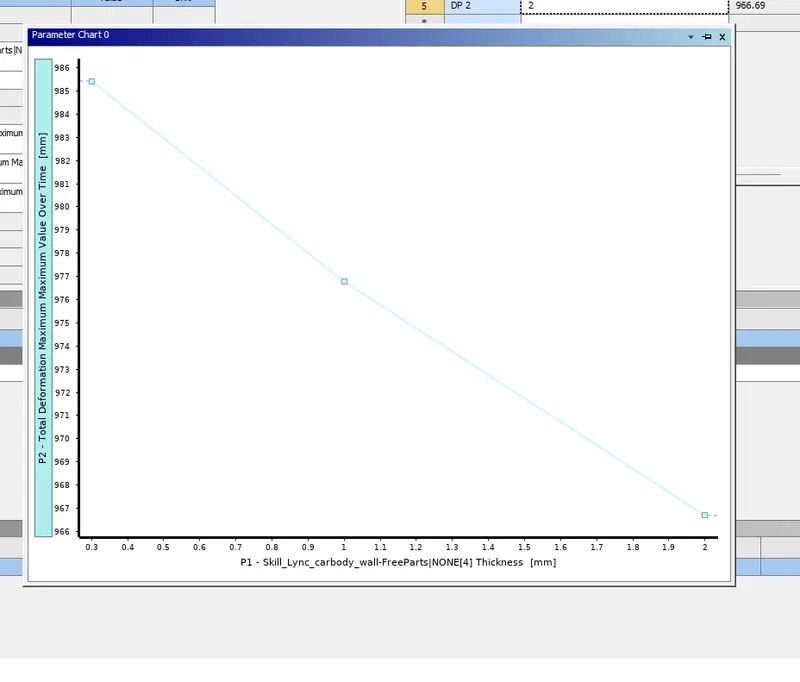

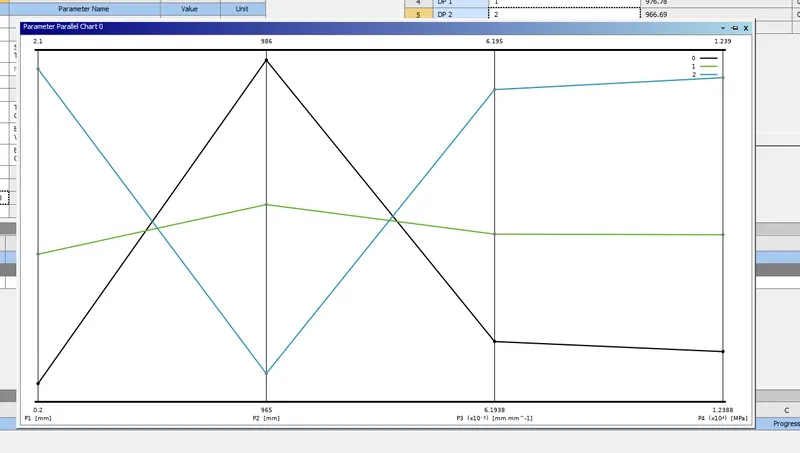

Parametric charts :

Conclusion :

The parametric study using 3 different values of thickness for the car body has been performed and saved.
