Week 11- Assembly Workbench

Objective : To Desing 3D parts of given 2D sketch of Quick Return Mechanism and CV Joint and Assemble them using Assembly Design.

Quick Return Mechanism

Below Images show the isometric View of the 3D parts of given 2-D sketch

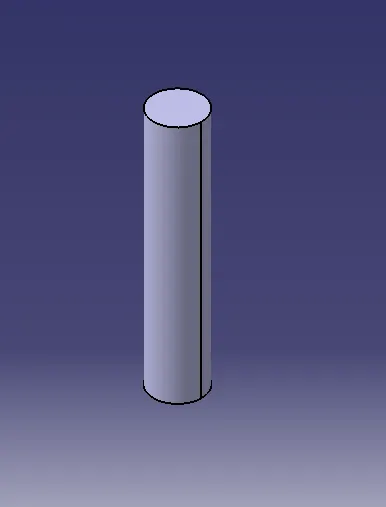

Part 1

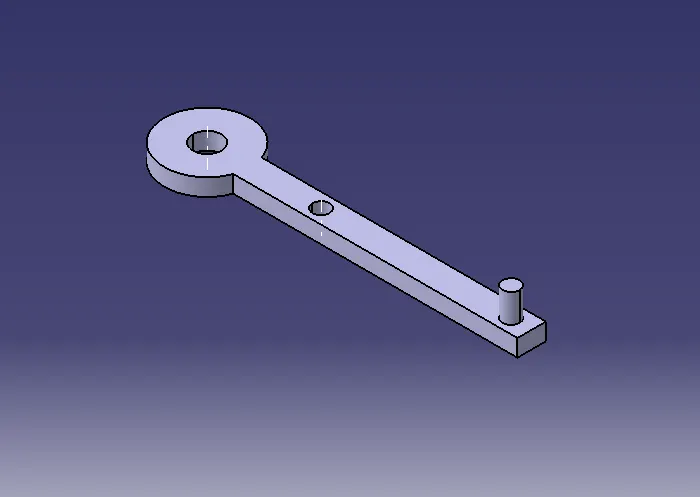

Part 2

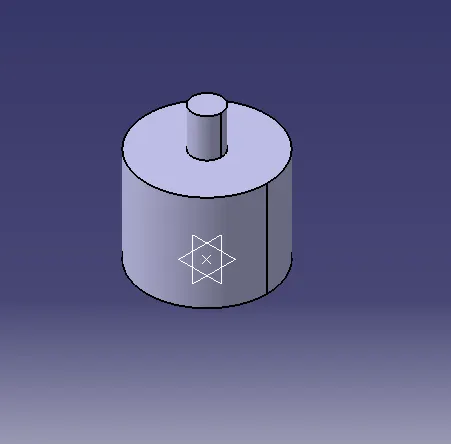

Part 3

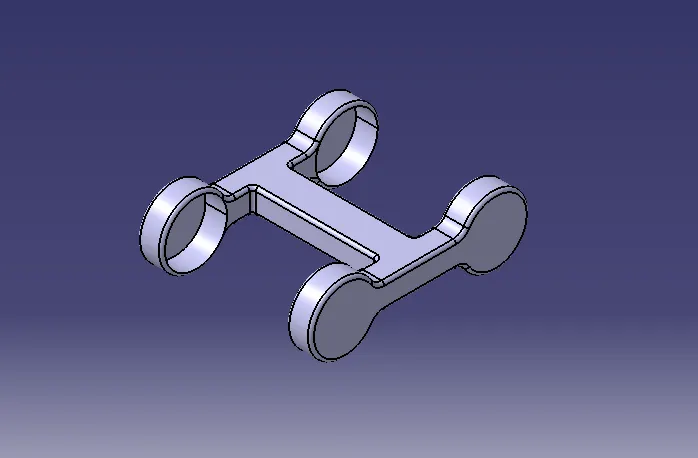

Part 4

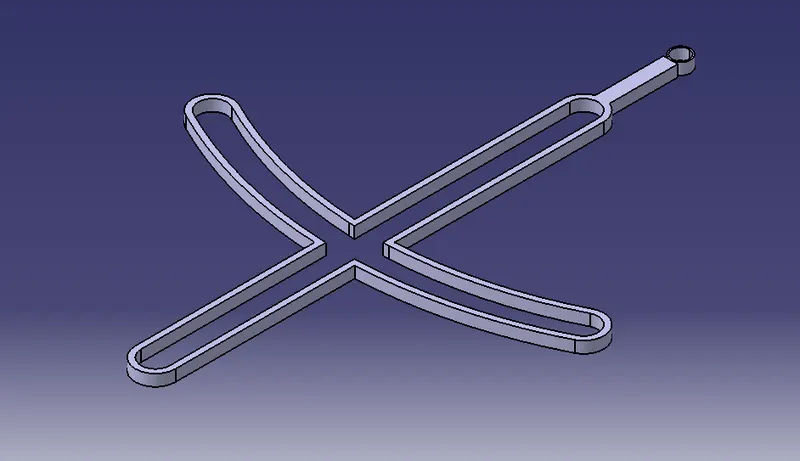

Part 5

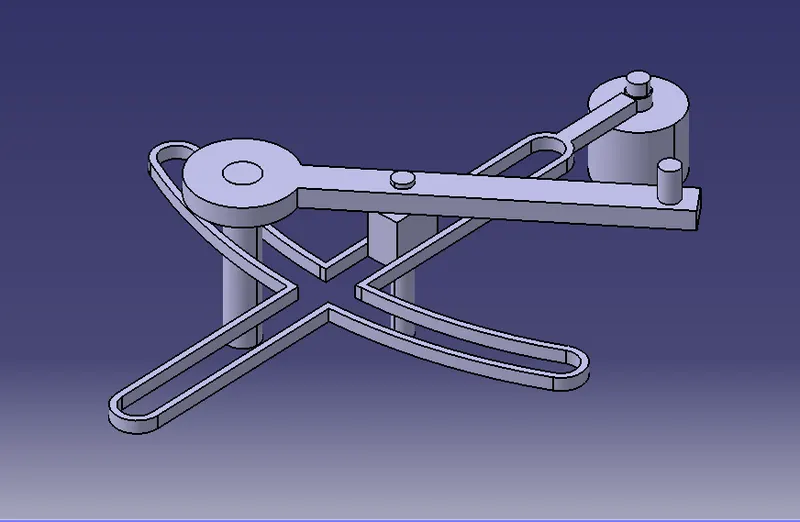

Assembly

Assembly is done on basis of Kinematic movement of each part of its physical Sturcture.

All the other degrees of freedom expect that of each parts are arrested such as Translational and rotational freedom using 'Constraints' and made an assembly as shown below.

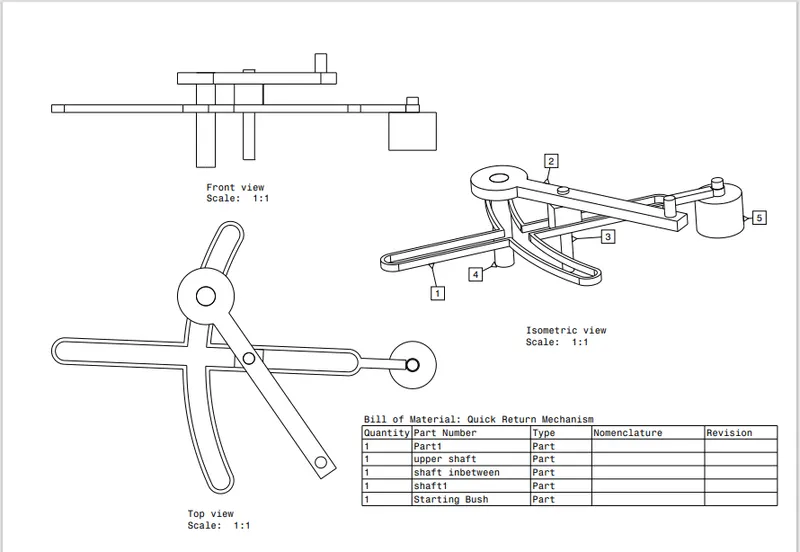

2-D Drafting

CV Joint Mechanism

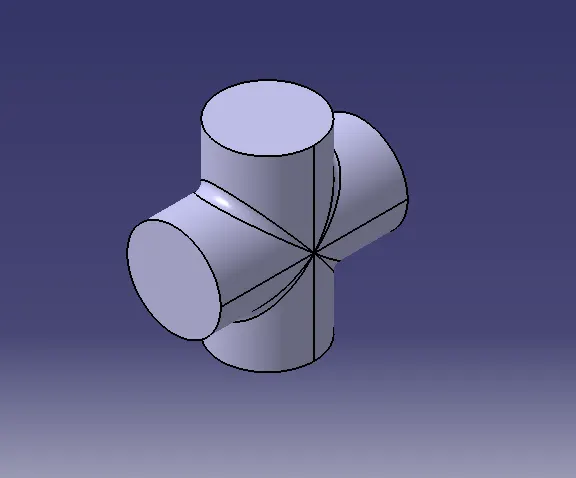

Below Images show the isometric View of the 3D parts of given 2-D sketch of CV-Joint Mechanism

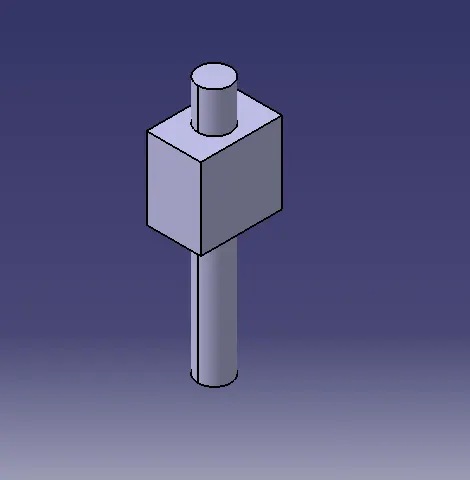

Part 1

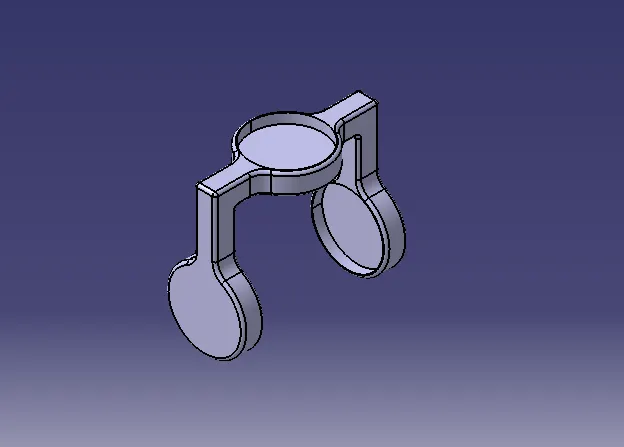

Part 2

Part 3

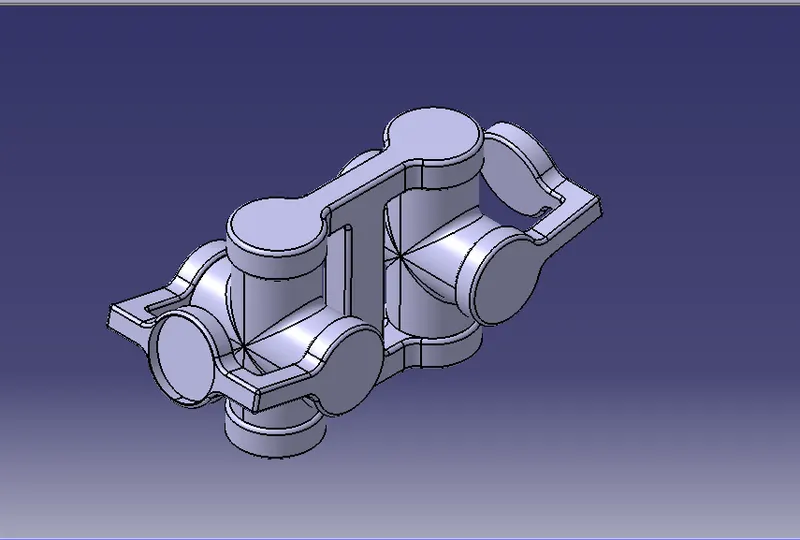

Assembly

Assembly is done on basis of Kinematic movement of each part of its physical Sturcture.

All the other degrees of freedom expect that of each parts are arrested such as Translational and rotational freedom using 'Constraints' and made an assembly as shown below.

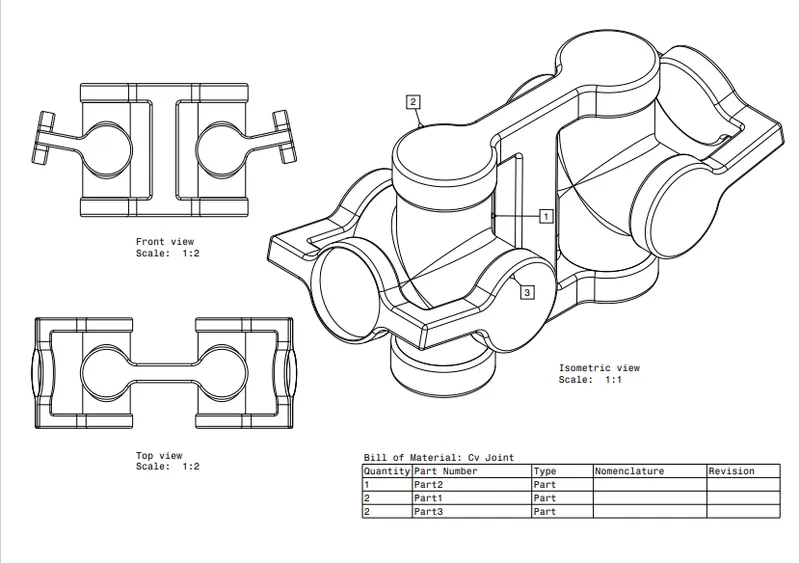

2-D Drafting

NOTE : FRAME AND TITLE BLOCK COULD NOT BE ADDED DUE TO SOFTWARE ISSUE AND TEMPLATE MISSING. GOT CLEARANCE FROM SUPPORT ENGINEERS TO SUBMIT.
