Week 11- Assembly Workbench

Report-

CV Joint

1. Refering to the input drawings created the parts of Assembly.

2. Called out the Parts in the assembly workbench and assign constraints in order to assemble them.

3. Generated 2D drafting files for parts and assembly

Quick Return Mechanism

1. Refering to the input drawings created the parts of Assembly.

2. Called out the Parts in the assembly workbench and assign constraints in order to assemble them.

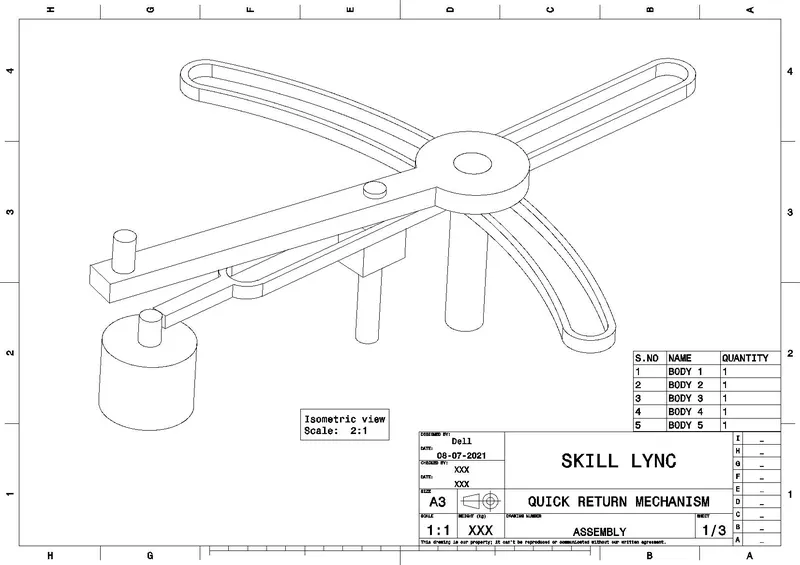

3. Generated 2D drafting files for parts and assembly
