Week - 10 Hyperelastic Material Models
Objective:
To calculate the Mooney Rivlin and Ogden material constants from the material data and validate them using stress-strain data from the tensile test of a dogbone specimen.
MAT 77 - Hyperelastic
Step 1: Material test data - Engineering stress vs Engineering strain

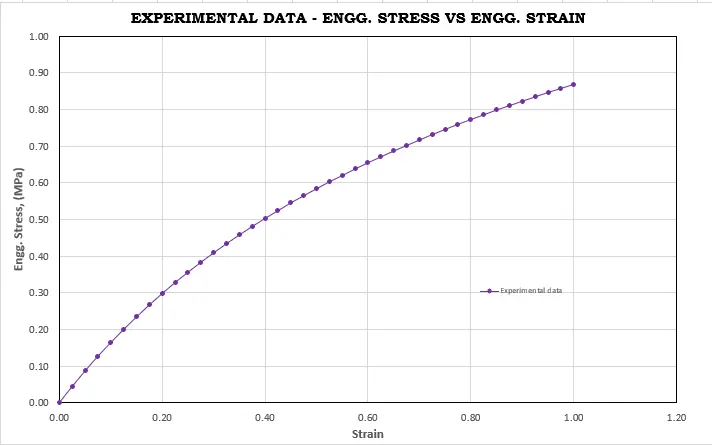

The given stress - strain data in imported into an excel sheet, and the values are plotted as shown below.
Step 2: Simulation set-up in LS Dyna
The dogbone specimen is setup for the tensile test simulation in LS-Dyna as shown below.

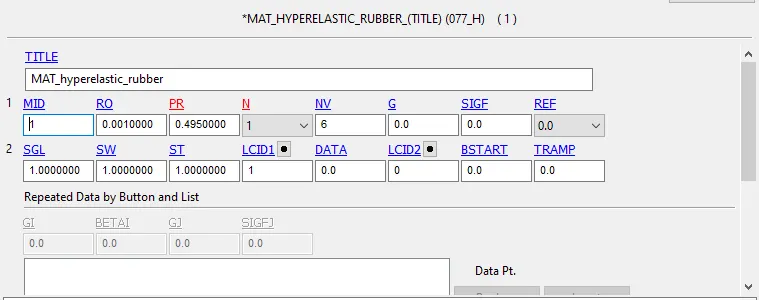

The Hyperelastic material card MAT_77 is assigned to the model, with N = 1, and the values of RO and PR as shown below.

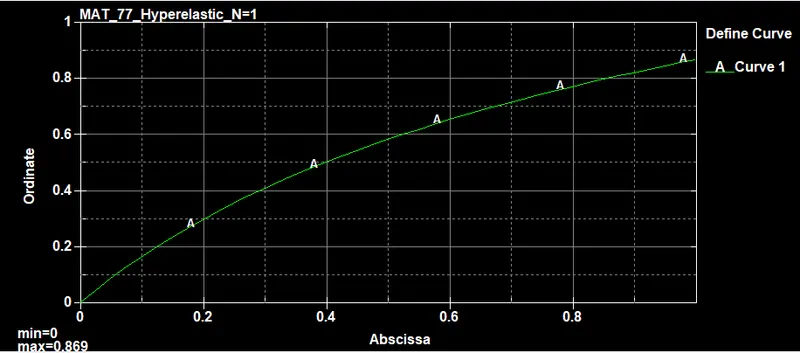

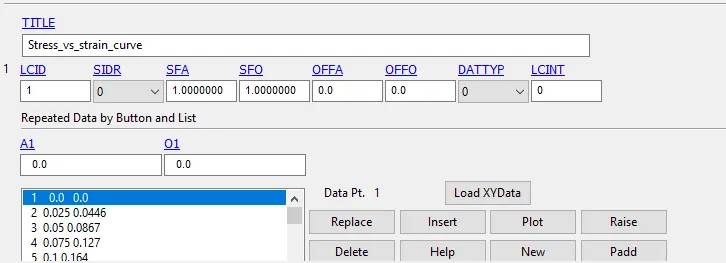

A curve is defined with the stress - strain data from excel, as shown below, and is assigned to the LCID shown above.

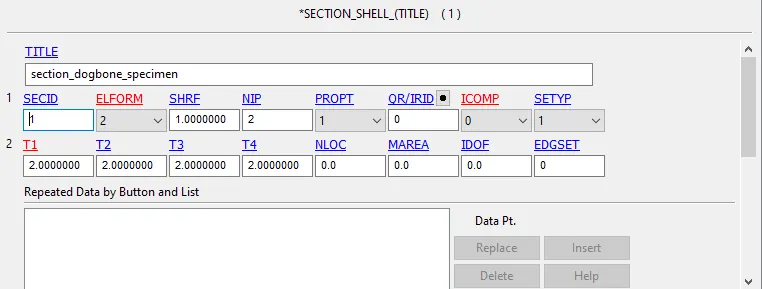

The section with a thickness of 2mm and ELFORM 2 is assigned to the specimen.

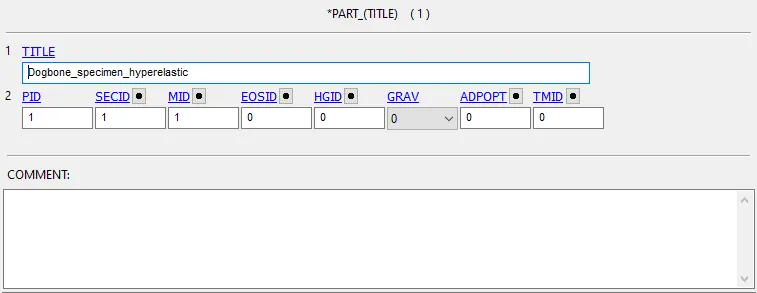

The section and the material are assigned to the part as shown below.
Step 3: Boundary conditions - SPC and Prescribed motion

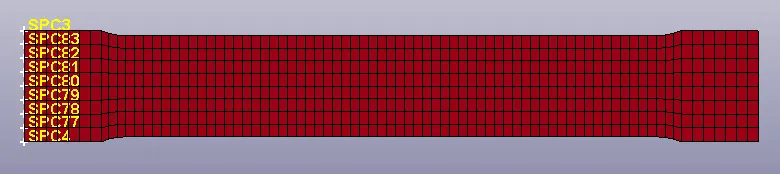

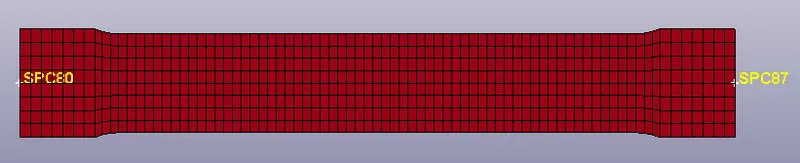

The nodes on the left-edge are constrained from motion in the X and Z directions.

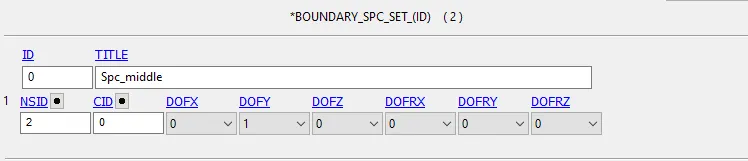

The middle nodes on either end are constrained from motion in the Y direction, since there is an elongation in the lateral direction during the tensile test.

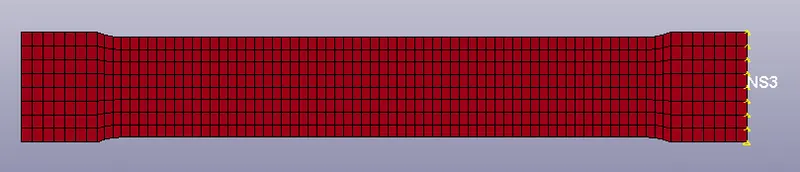

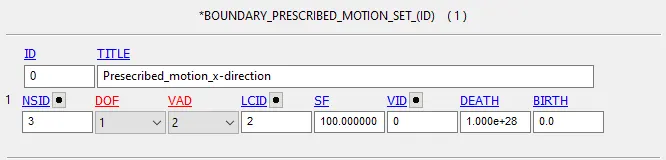

The nodes on the right edge are given a prescribed motion in the X - direction.

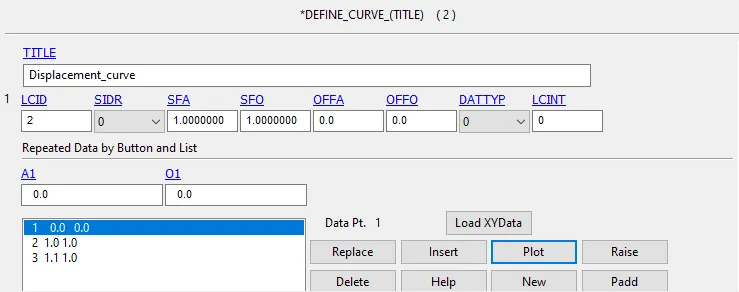

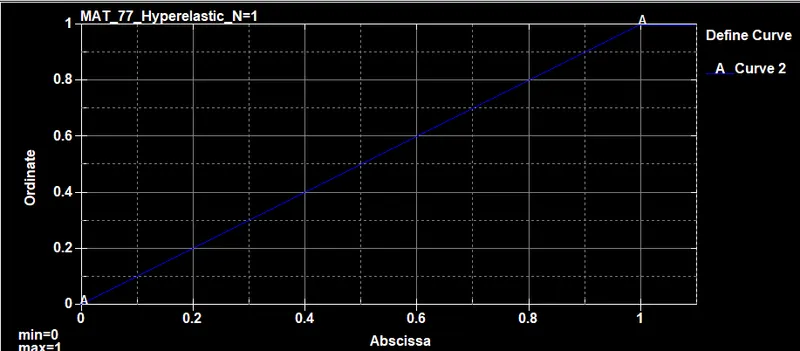

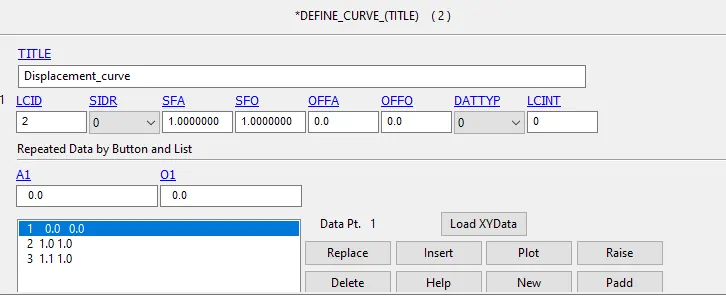

A curve is defined with the motion required and assigned to the LCID shown above.
Step 4: Control cards

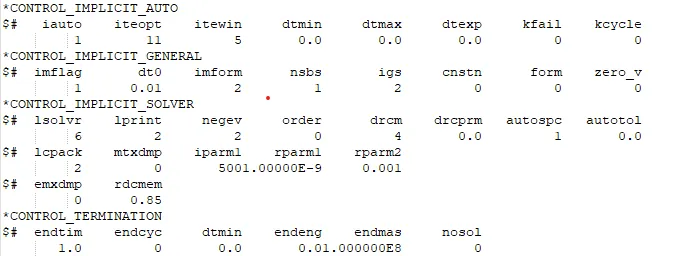

The tensile test is considered to be a quasi-static analysis. Therefore an implicit simulation scheme is used with the necessary control card parameters as shown below.
The model is simulated and the results can be analyzed.
Model verification

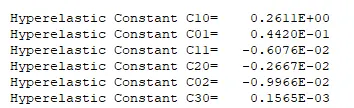

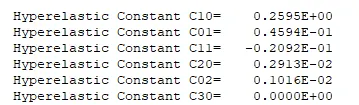

The Mooney - Rivlin constants for N=1, can be found from the d3hsp file, as shown below.

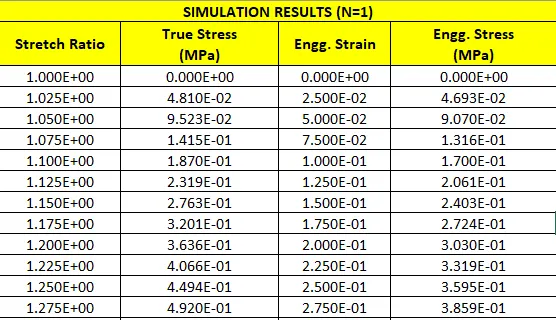

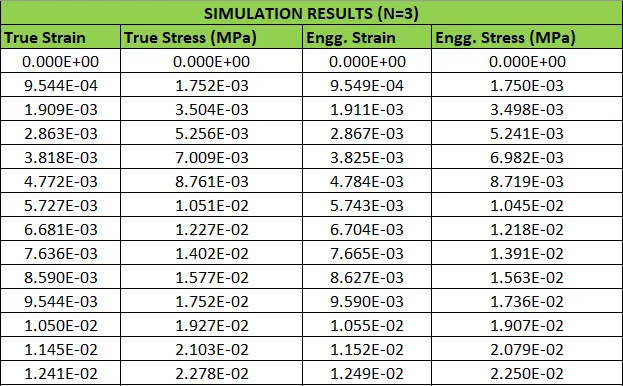

The values of stretch ratio and true stress are also available in the d3hsp file. These can be input into the Excel sheet and converted into Engineering stress and strain values. This can then be plotted and compared with the values from the material test data.

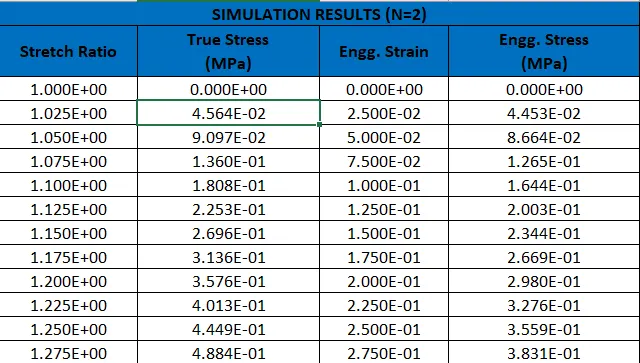

The same steps are followed to obtain the constants for N=2 and N=3.

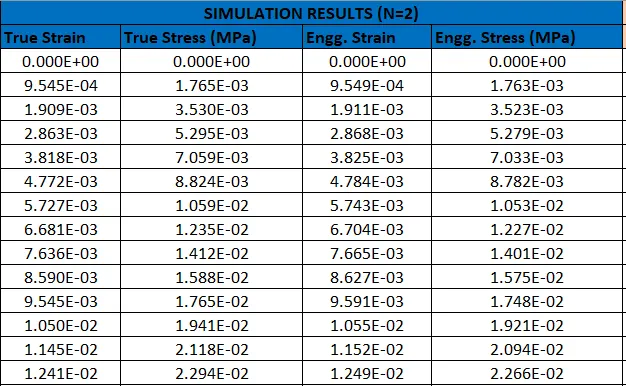

N=2

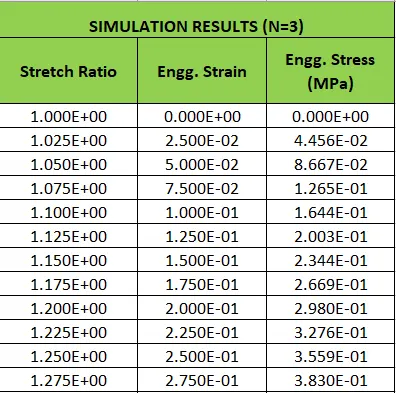

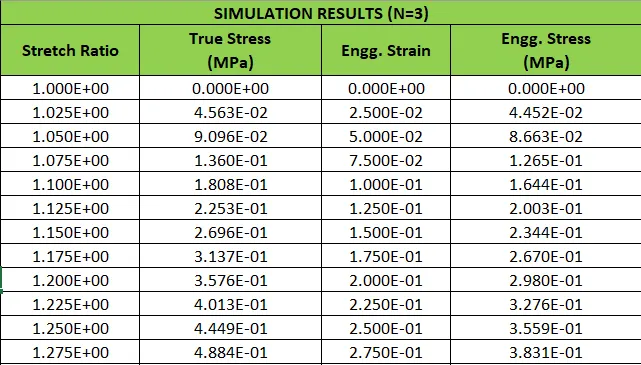

N=3

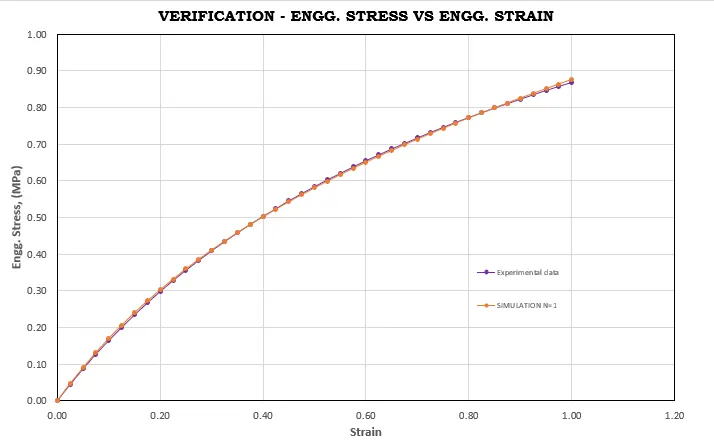

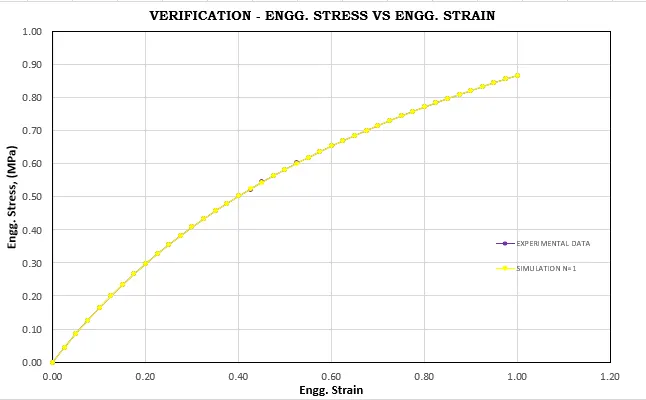

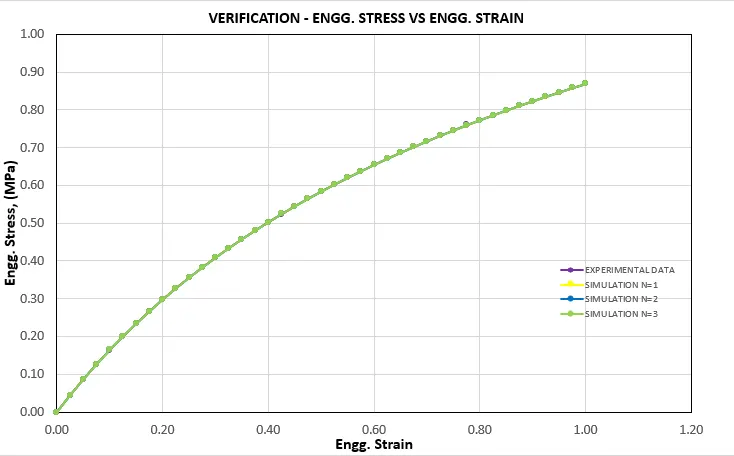

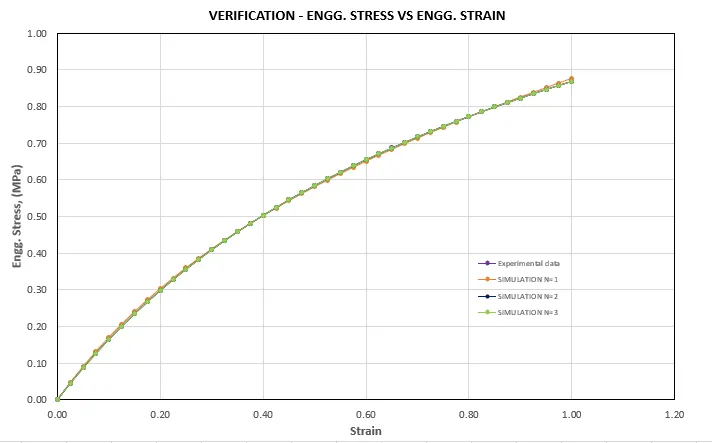

The graphs are plotted and compared against each other.
Model validation

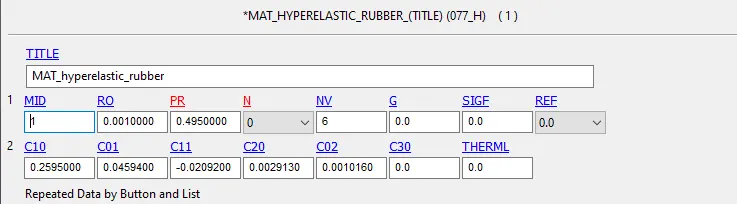

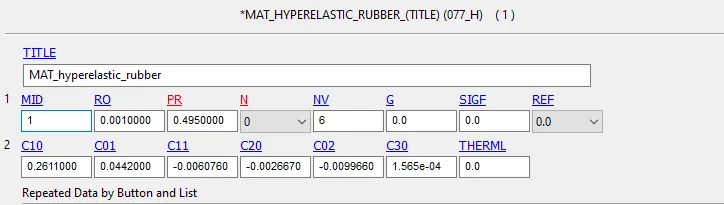

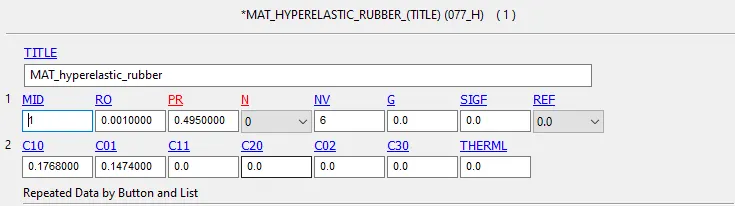

In order to validate the constants found, the values are entered in the LS-Dyna model with N=0 in the material card, and the simulation is run.

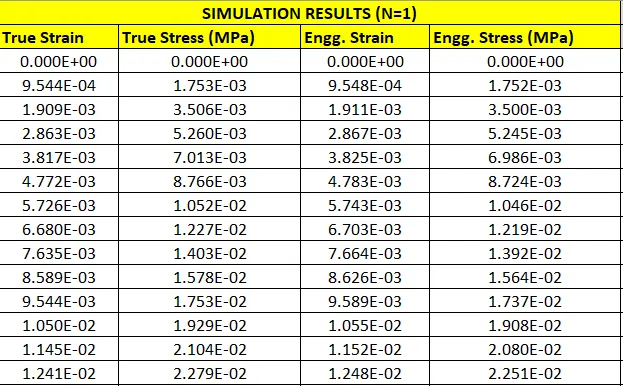

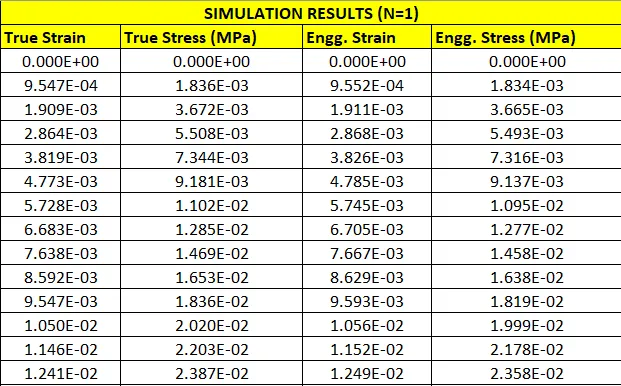

The stress - strain data obtained can be imported into the excel sheet and converted to engineering stress and strain, and can be plotted and compared against the experimental data.

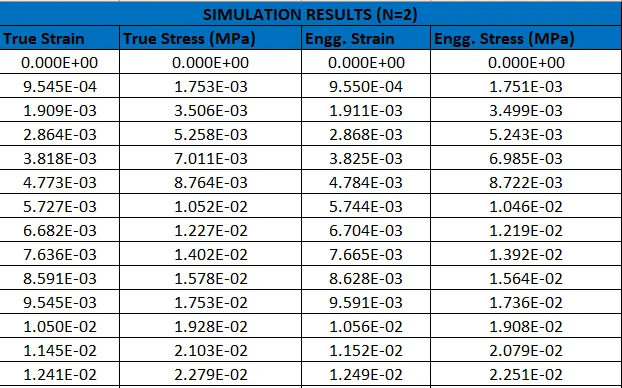

The same can be done for validating the constants found from N=2 and 3.
N=2

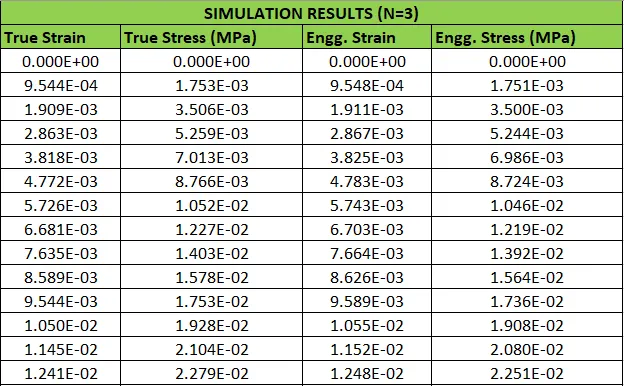

N=3

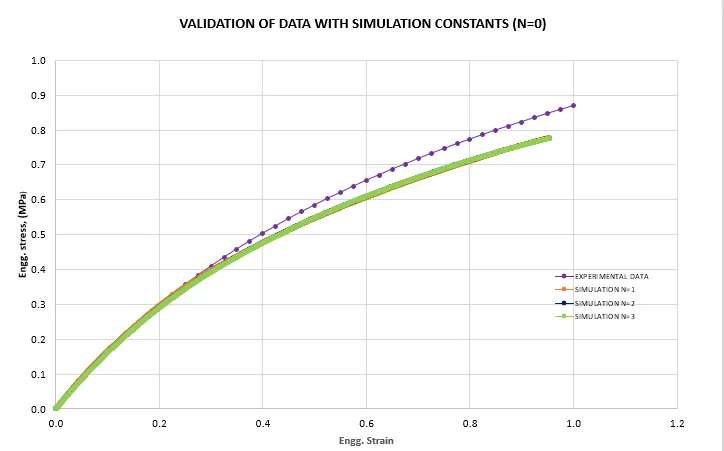

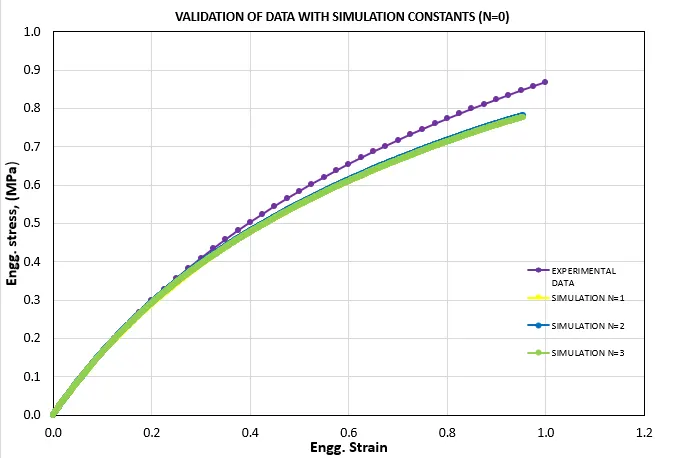

The engineering stress - strain data for all cases is plotted and compared against the experimental data as shown below.
MAT 77 - Ogden
Step 1: Material test data - Engineering stress vs Engineering strain
The given stress - strain data in imported into an excel sheet, and the values are plotted as shown below.
Step 2: Simulation set-up in LS Dyna
The dogbone specimen is setup for the tensile test simulation in LS-Dyna as shown below.

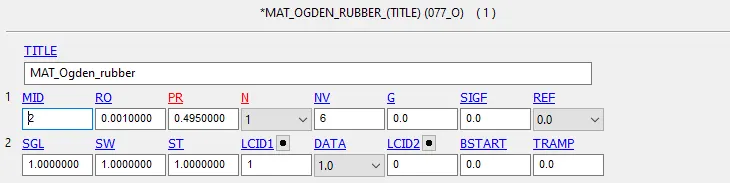

The Ogden material card MAT_77 is assigned to the model, with N = 1, and the values of RO and PR as shown below.

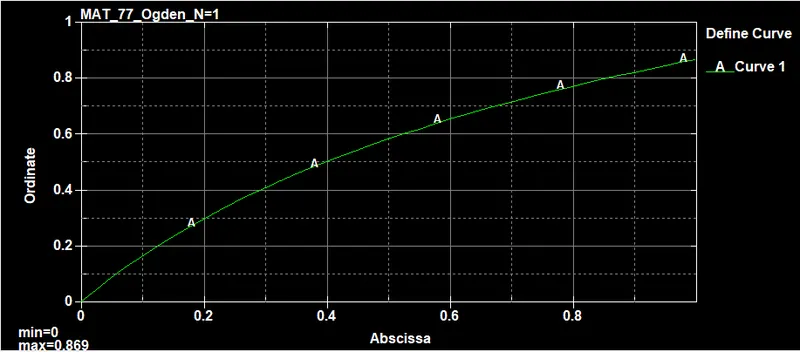

A curve is defined with the stress - strain data from excel, as shown below, and is assigned to the LCID shown above.
The section with a thickness of 2mm and ELFORM 2 is assigned to the specimen.

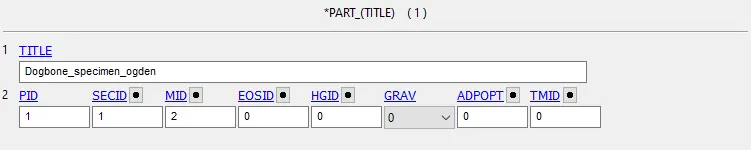

The section and the material are assigned to the part as shown below.
Step 3: Boundary conditions - SPC and Prescribed motion

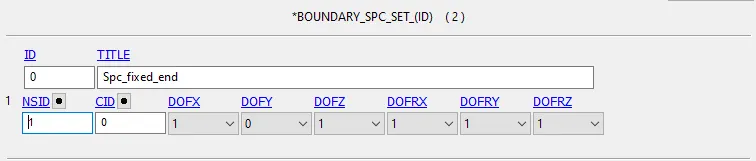

The nodes on the left-edge are constrained from motion in the X and Z directions.
The middle nodes on either end are constrained from motion in the Y direction, since there is an elongation in the lateral direction during the tensile test.
The nodes on the right edge are given a prescribed motion in the X - direction.

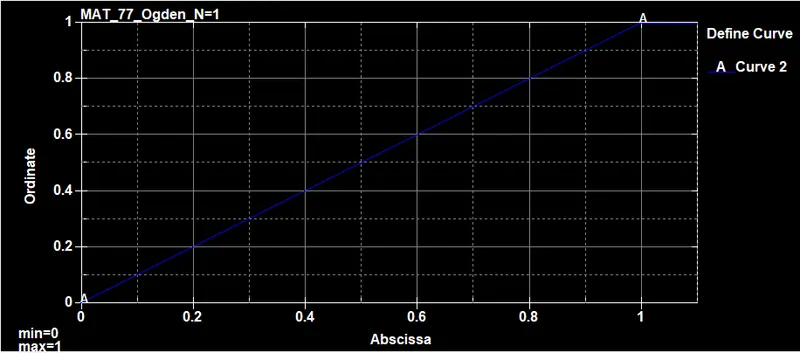

A curve is defined with the motion required and assigned to the LCID shown above.
Step 4: Control cards
The tensile test is considered to be a quasi-static analysis. Therefore an implicit simulation scheme is used with the necessary control card parameters as shown below.
The model is simulated and the results can be analyzed.
Model verification
The Ogden constants for N=1, can be found from the d3hsp file, as shown below.

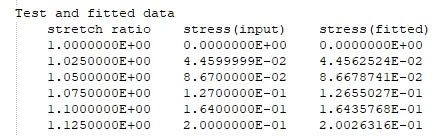

The values of stretch ratio and engineering (fitted) stress are also available in the d3hsp file.

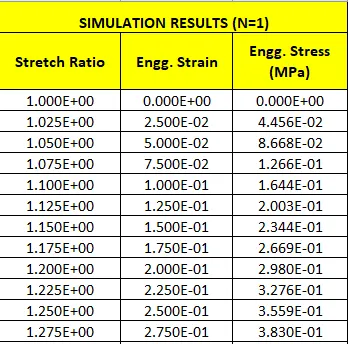

These can be input into the Excel sheet and converted into Engineering stress and strain values. This can then be plotted and compared with the values from the material test data.

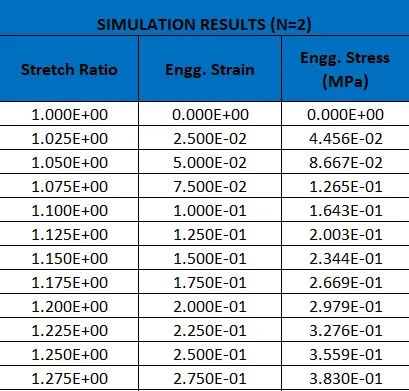

The same steps are followed to obtain the constants for N=2 and N=3.
N=2
N=3
The graphs are plotted and compared against each other.
Model validation

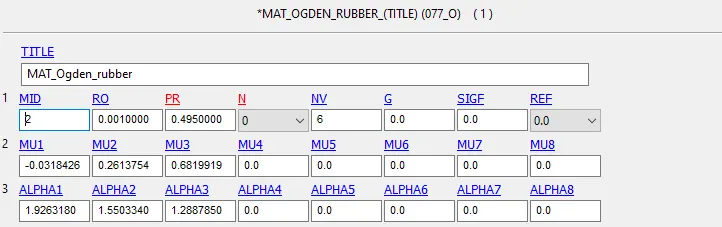

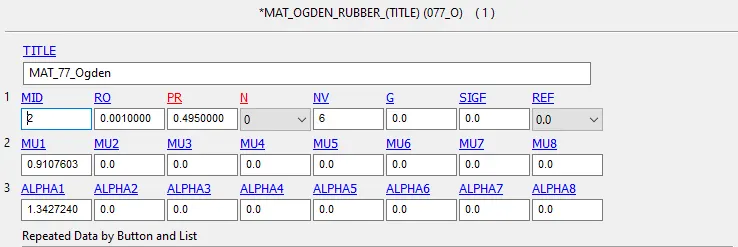

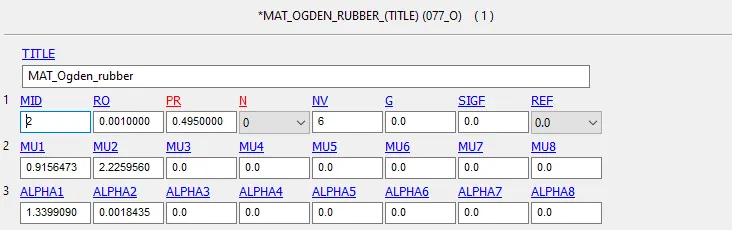

In order to validate the constants found, the values are entered in the LS-Dyna model with N=0 in the material card, and the simulation is run.
The stress - strain data obtained can be imported into the excel sheet and converted to engineering stress and strain, and can be plotted and compared against the experimental data.
The same can be done for validating the constants found from N=2 and 3.
N=2
N=3
The engineering stress - strain data for all cases is plotted and compared against the experimental data as shown below.
Results
The stress and strain results of the mooney rivlin and ogden material for N = 1 is shown below.
Von-mises stress
Mooney Rivlin
Ogden
The maximum von mises stress for both material models is 1.220 MPA.
Effective Plastic strain
Mooney Rivlin
Ogden
The maximum value of the effective plastic strain is 2.887 in both cases.

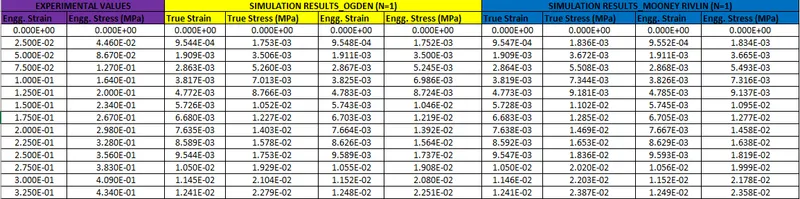

Comparison of stress and strain values

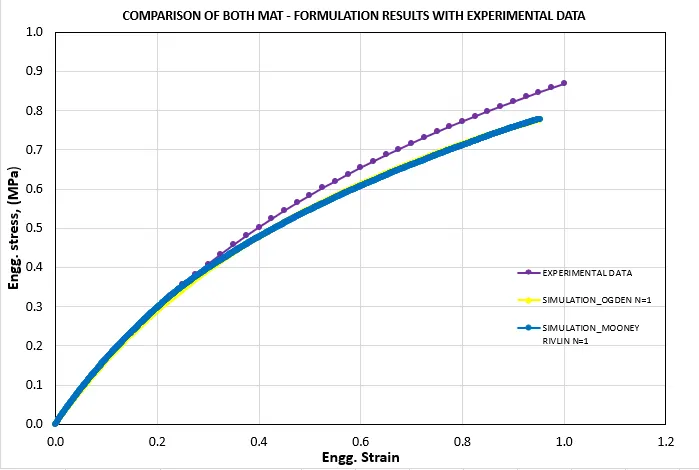

The stress and strain values obtained from the validation models (N=0) of both formulations can be compared to find out how well they agree with the experimental data.
From the above plot in Excel, we can conclude that there is not much difference between both the formulations, though the Ogden material gives a slightly better fit compared to the Mooney rivlin material formulation.
Conclusion
Thus, the tensile test has been performed with both the material formulations and the results are compared.
The related files can be found under the link below
https://drive.google.com/drive/folders/1sxfViZM-aqKXLRofaXw2jdIGt5Aa7Yq7?usp=sharing
