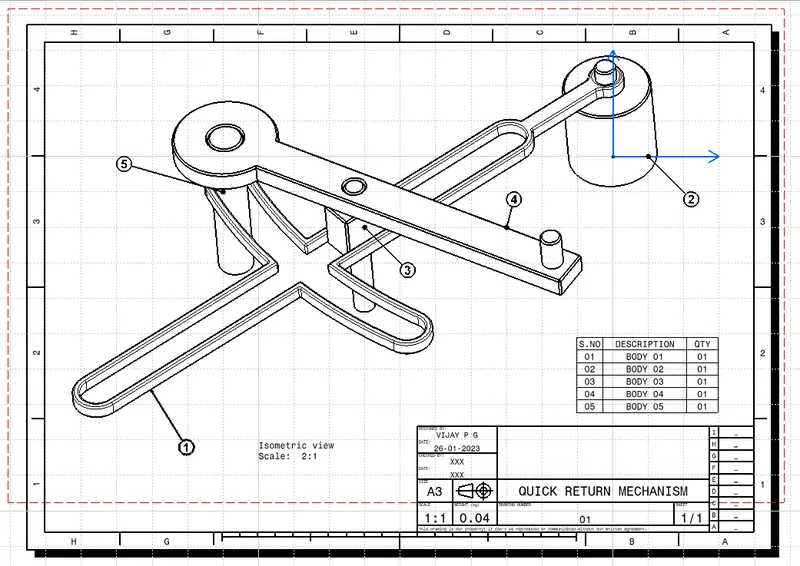

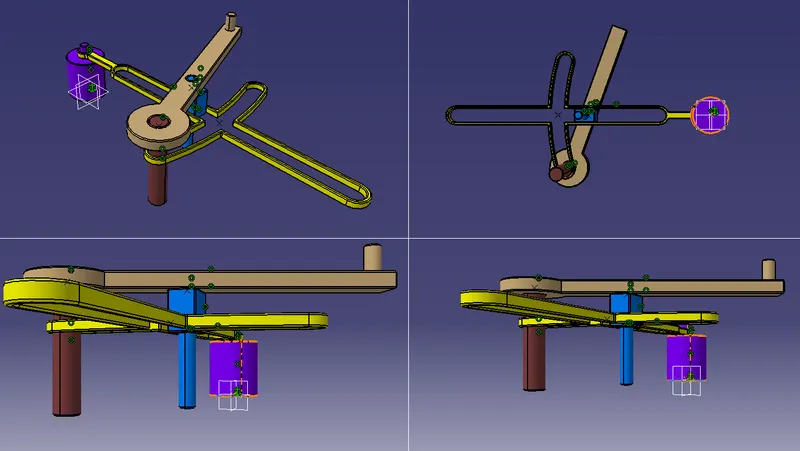

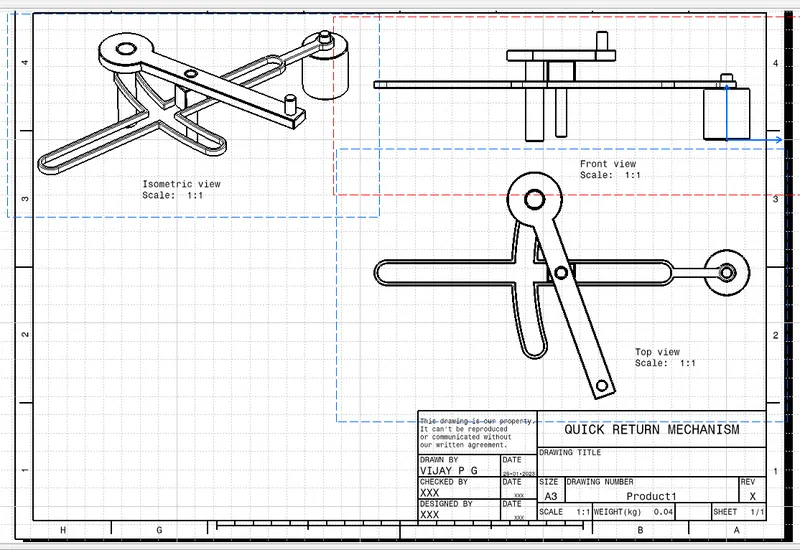

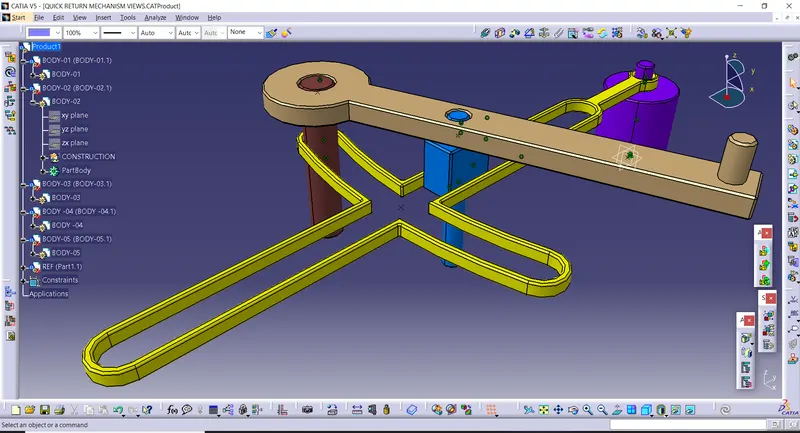

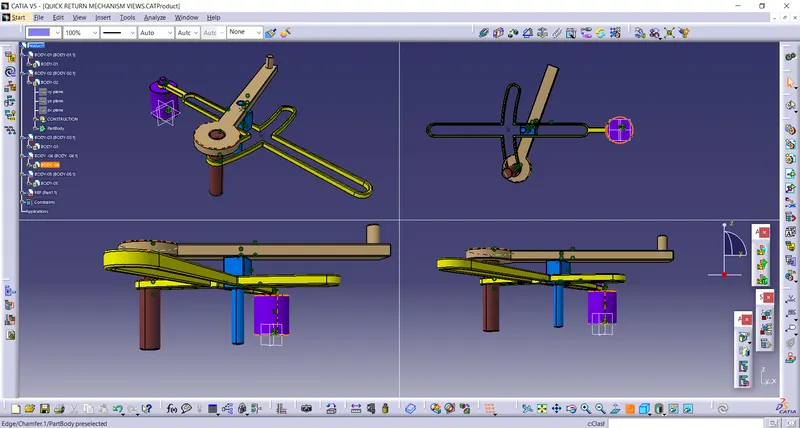

QUICK RETURN MECHANISM
WHAT IS QUICK RETURN MECHANISM?
A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke.
It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair.
Types of Quick Return Mechanism
- Hydraulic Drive.
- Crank and Slotted Link Mechanism.

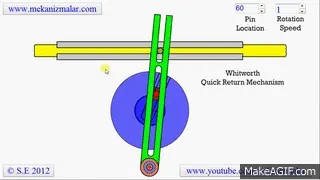

- Whitworth Mechanism.

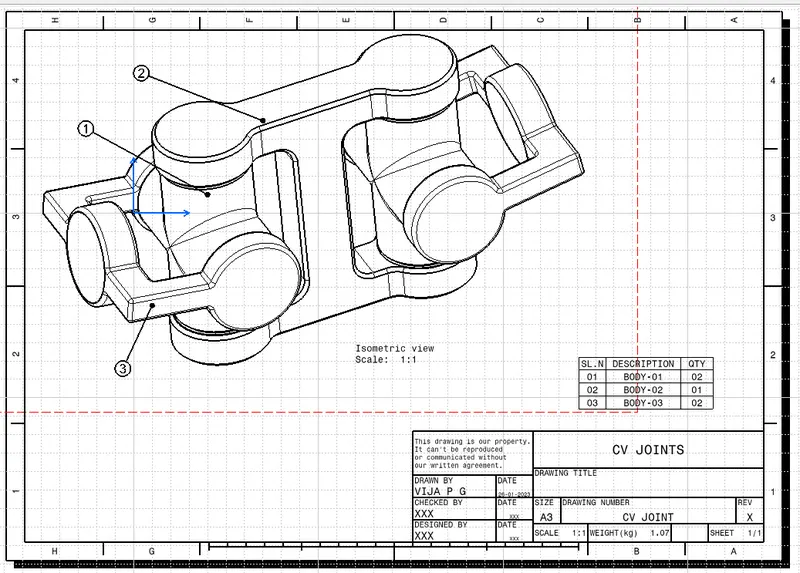

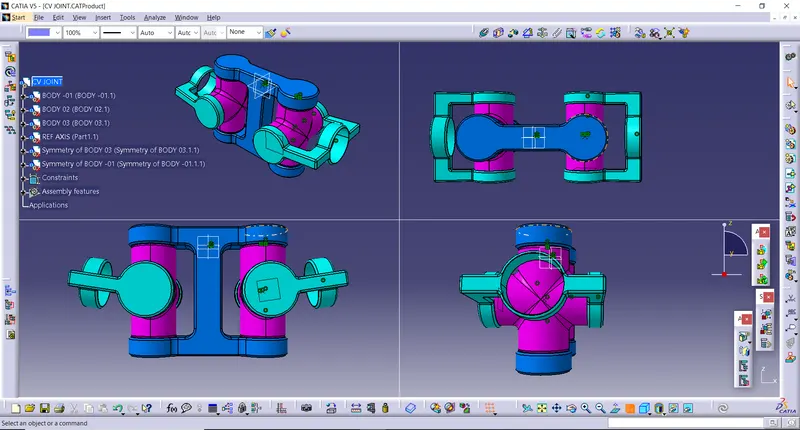

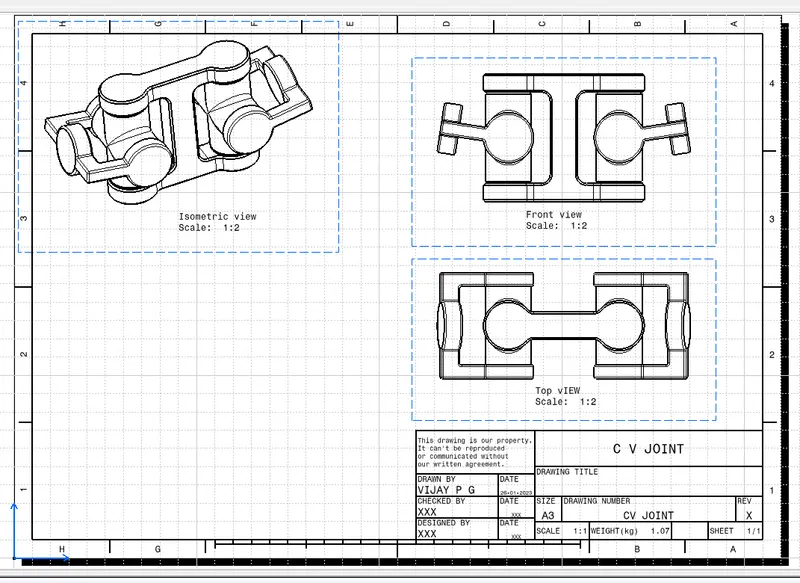

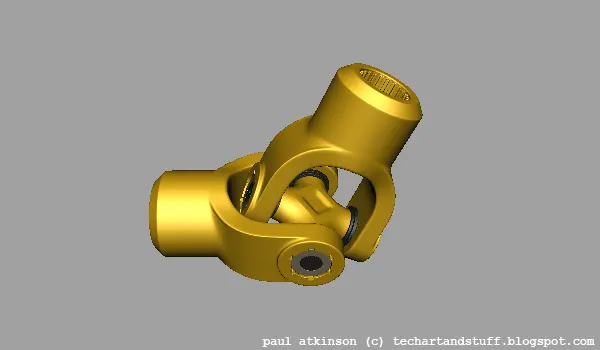

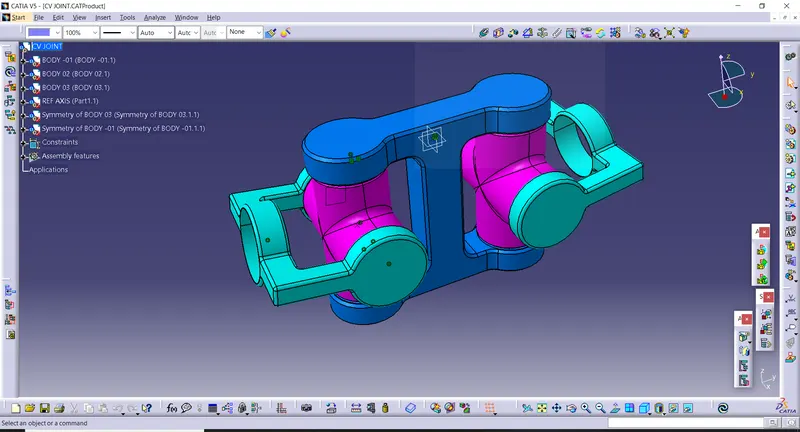

CV JOINT (Constant-Velocity):-
Constant velocity, or CV, joints are used to connect your vehicle's transmission to your wheels.
CV joints are part of the driveshaft and are used primarily on front-wheel drive vehicles, but they are also used in rear- and four-wheel drive vehicles.
Different Types of Constant-Velocity (CV) Joints
- Rzeppa CV Joint.
- Fixed and Plunge Joints.
- Plunge Joints (Tripod & Ball-Type)
- Tripod Joints.
- Tripod Joints (Fixed).
- Inboard Joints and Outboard Joints.
