Week 10- Assembly Workbench

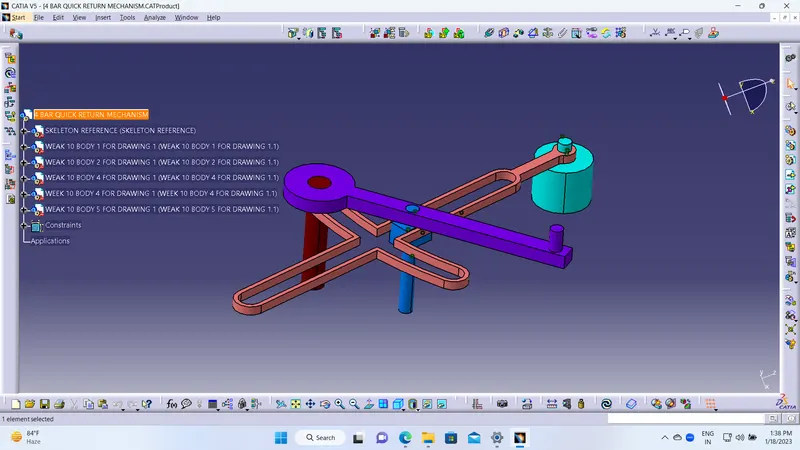

4 BAR QUICK MECHANISM -

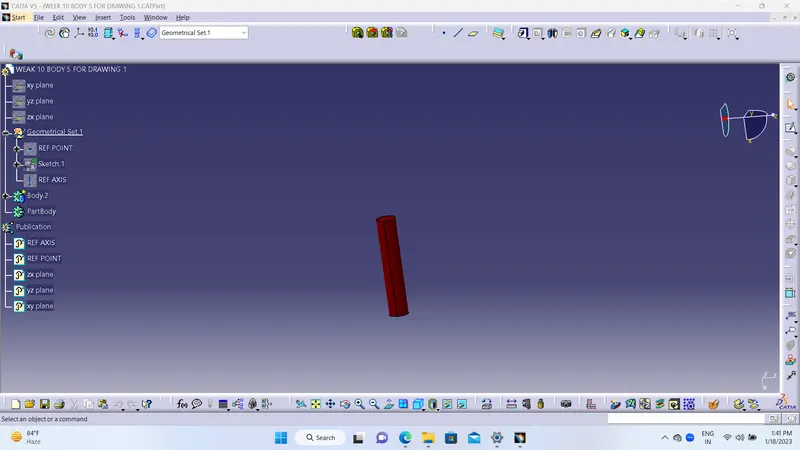

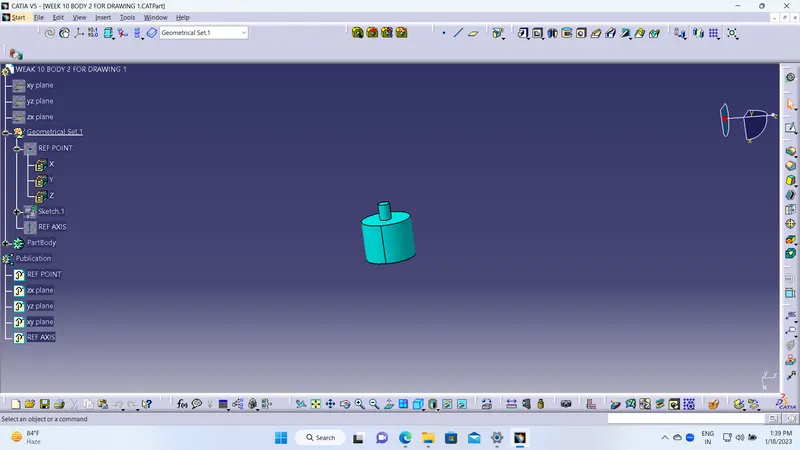

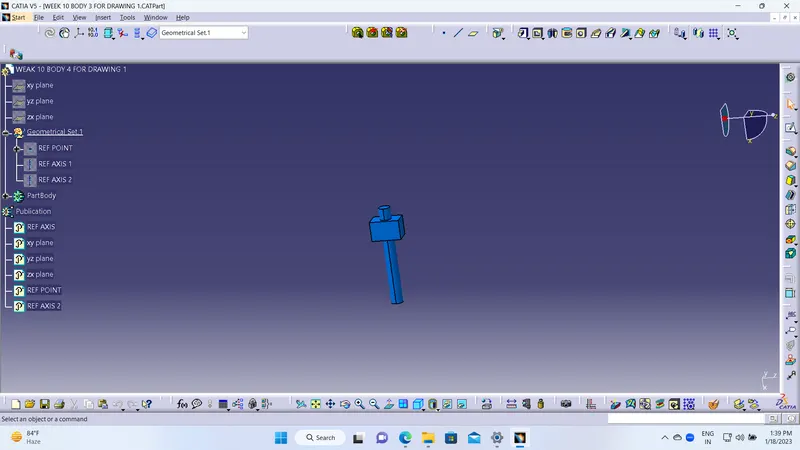

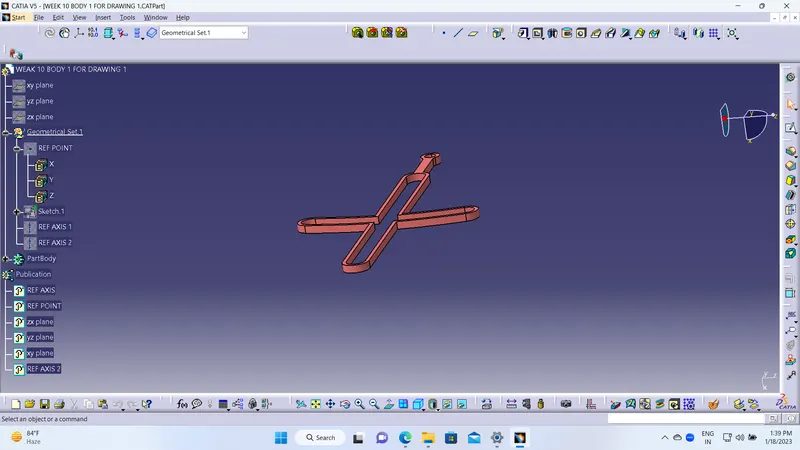

WE ARE ALL KNOW THAT HERE I WAS GIVEN THE 5 BODY SEPERATELY SO I WILL CREATE THE BODY 1 WITH THE HELP OF PART BODY DESIGN IN BODY 1 TAKE THE ELONGATED HOLE AND ALSO TAKE THE CYLINDRICAL ELONGATED HOLE AND THEN GIVE THE DIMENSSIONS AND USE THE QUICK TRIM AND COMPLETE THEN GOING TO THE FORWARD IN BODY 2 WE ARE TAKE THE 2 CIRCLE AND USE PAD COMMAND IN BODY 3 FIEST CREATE THE CIRCLE AND USE THE PAD COMMAND AND ALSO USE THE RECTANGLE AND THEN PAD IT IN BODY 4 FIRST CREATE THE RECTANGLE AND GIVE THE DIAMENSSION AND CREATE THE CIRCLE AND USE THE QUICK TRIM THEN USE THE PAD COMMAND IN BODY 5 CREATE CIRCLE AND PAD IT. AFTER COMPLETE THE ALL BODY THEN USE THE ASSEMBLY DESIGN AND COPY ALL BODY AND PASTE IN THE ASSEMBLY DESIGN THEN CREATE THE AXIS OF ALL BODY AND THEN USE THE CONSTRAINT COMMAND AND SELECT THE AXIS BY AXIS AND JOIN TO THE EACH OTHER.

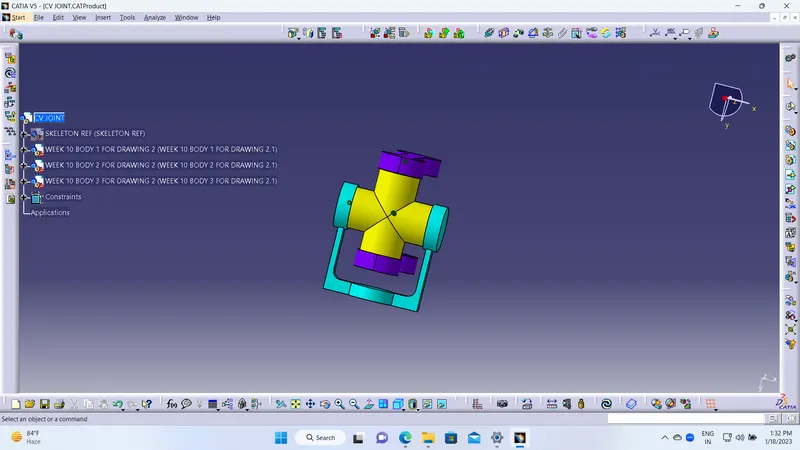

CV JOINT -

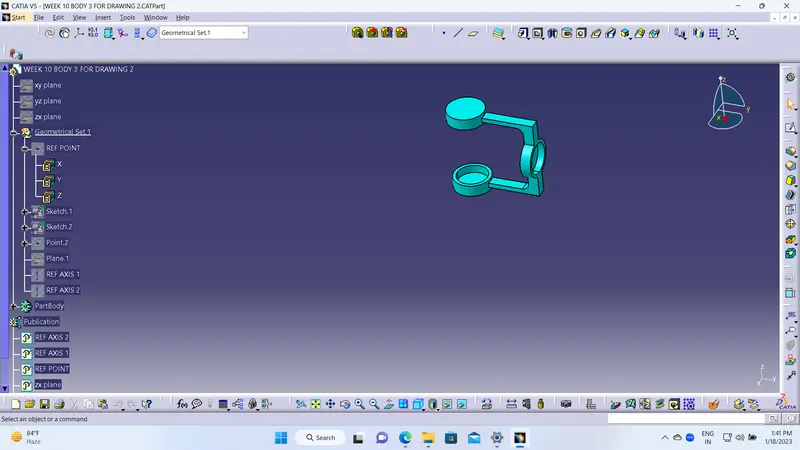

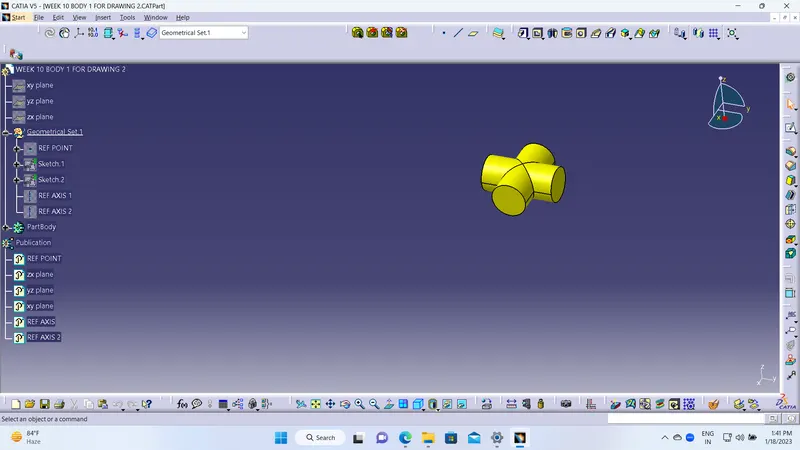

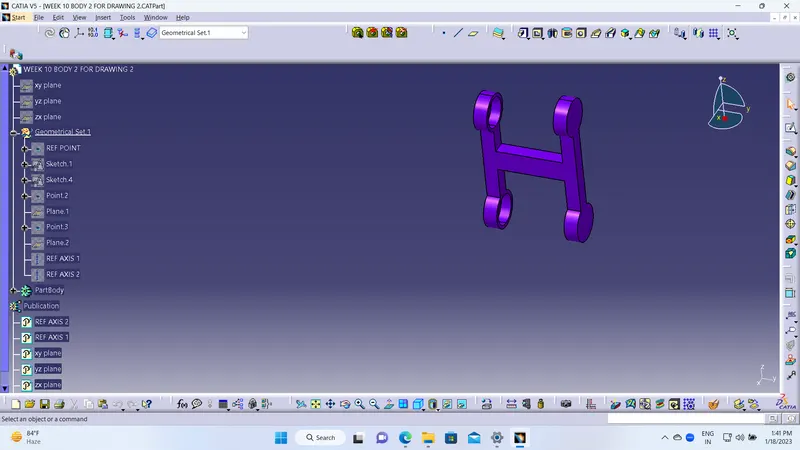

HERE I WAS GIVEN THE 3 BODY SEPERATELY SO I WILL CREATE ALL SEPERATELY BODY IN BODY 1 CREATE THE ONE CIRCLE AND PAD IT THEN CREATE THE SECOND CIRCLE AND ALSO PAD IT THEN ADD BOTH OF TWO BODIES WITH THE HELP OF BOOLEAN OPERATION IN BODY 2 CREATE THE I SECTION WITH THE HELP OF 3 RECTANGLE AND THEN USE THE ANOTHER PLANE AND CREATE THE 4 CIRCLE AND USE THE PAD COMMAND IN BODY 3 CREATE THE T SECTION WITH THE HELP OF RECTANGALE AND THEN CREATE THE ANOTHER PLANE AND USE THIS PLANE CREATE THE 3 CIRCLE AND PAD IT ALSO USE THE SHELL COMMAND AND ALSO USE THE UNION TRIM. AFTER COMPLETE THE ALL BODY THEN USE THE ASSEMBLY DESIGN AND COPY ALL BODY AND PASTE IN THE ASSEMBLY DESIGN THEN CREATE THE AXIS OF ALL BODY AND THEN USE THE CONSTRAINT COMMAND AND SELECT THE AXIS BY AXIS AND JOIN TO THE EACH OTHER.

THE VIEWS OF THE ALL MODEL -
