Week 10- Assembly Workbench

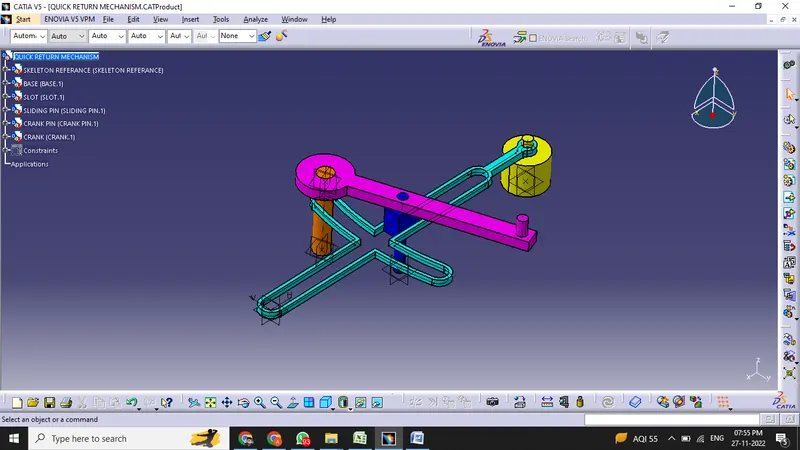

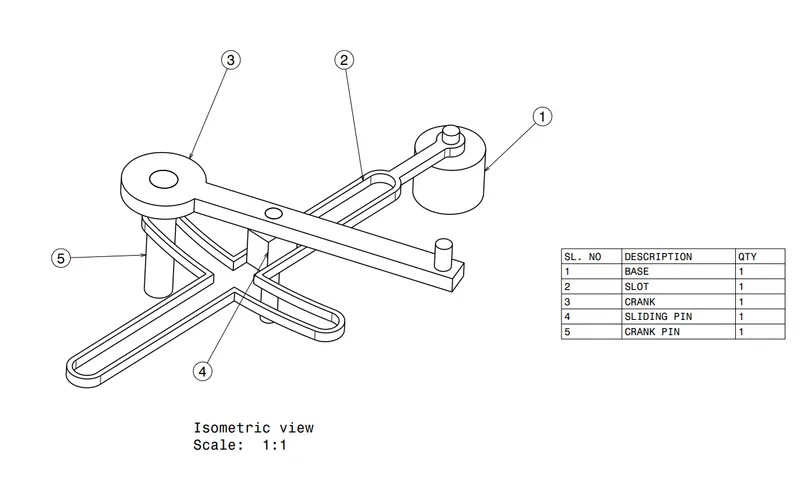

Initially I created the quick return mechanism, for that I created the parts seperately using part and boolean operation. Then opened a product and copied all parts in it .

Then created an axis system by new product tool and named it skeleton .then fixed it by its reference point.

After that ,using constraint tools i constrained the points and axis were ever it wanted and with respect to the skeleton and other constrrains, we can createaxis on any circular part and this make the assembly easy.

we can publish the ref axis and points and planes in every part.

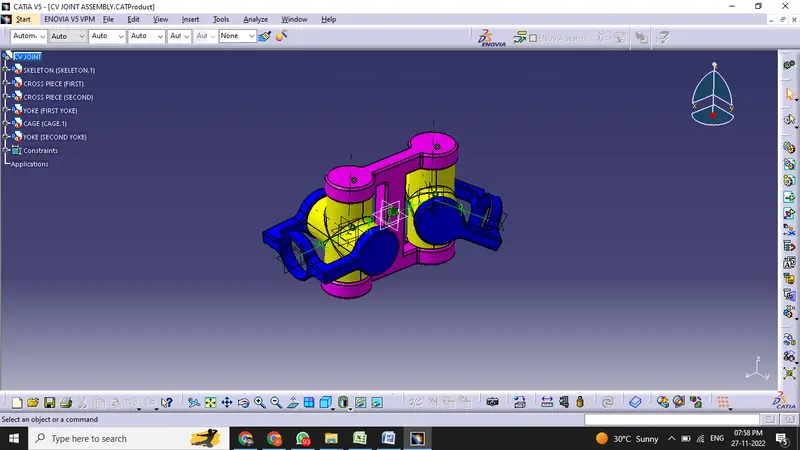

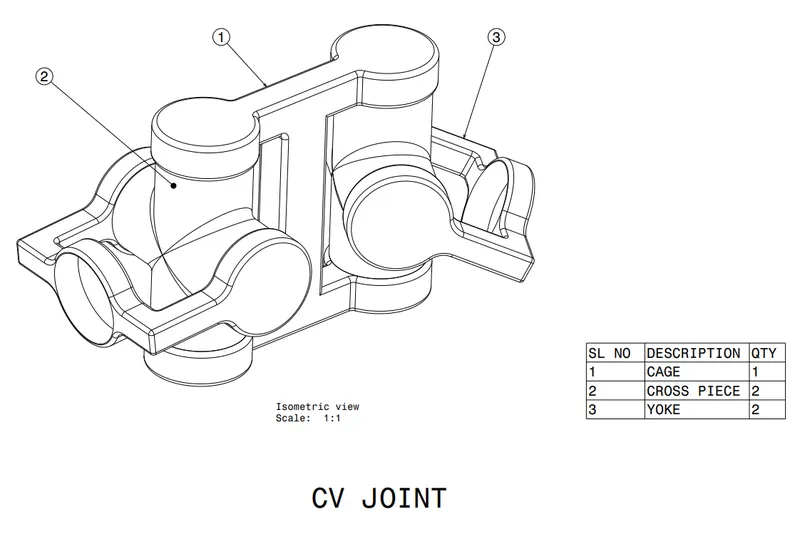

Similar process is done in cv joint
