Create the parts and assembly of QUICK RETURN MECHANISM
Create the 2D drawing of the QUICK RETURN MECHANISM
Create the parts and assembly of C V JOINT

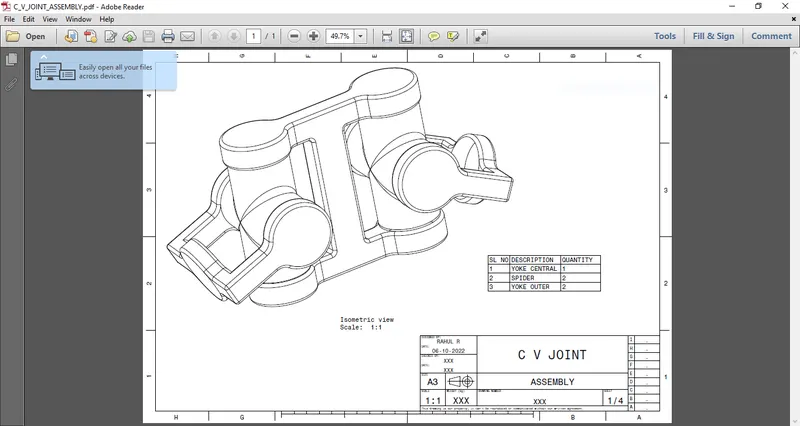

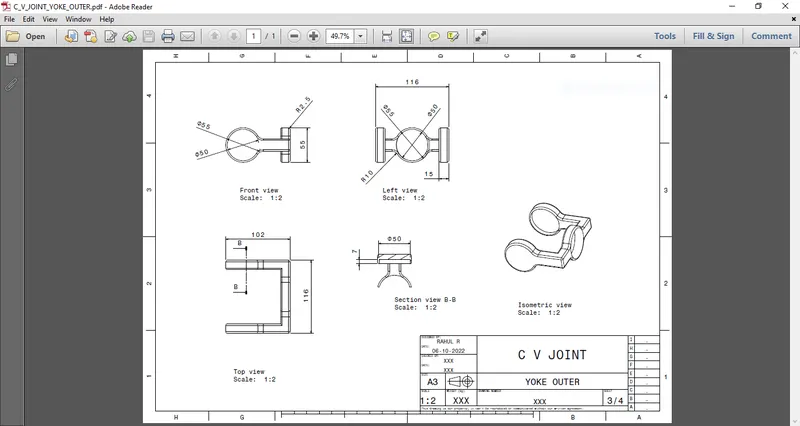

Create the 2D drawing of the C V JOINT

QUICK RETURN MECHANISM

A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair.

In this quick return mechanisms there are 5 parts and they are created seperately as a part file.Then open the assembly workbench, insert the required part files.

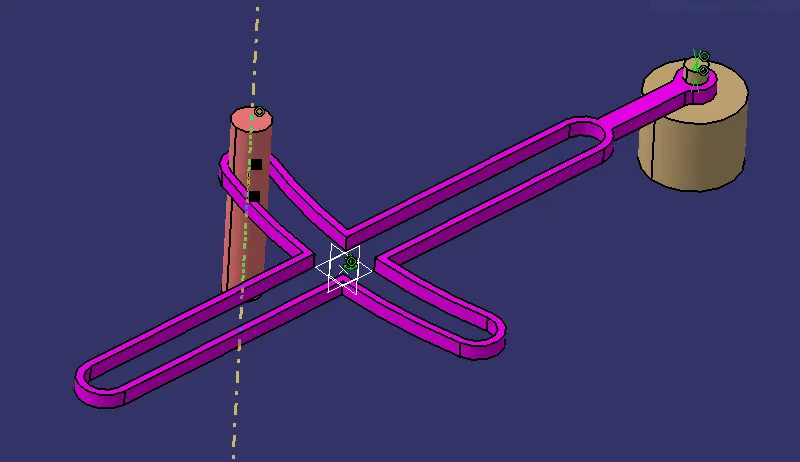

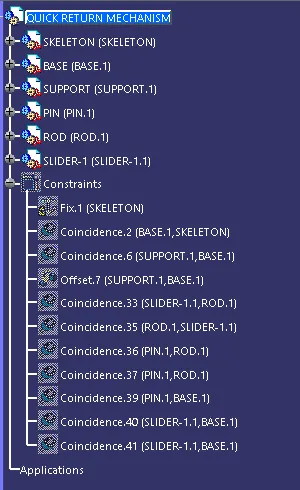

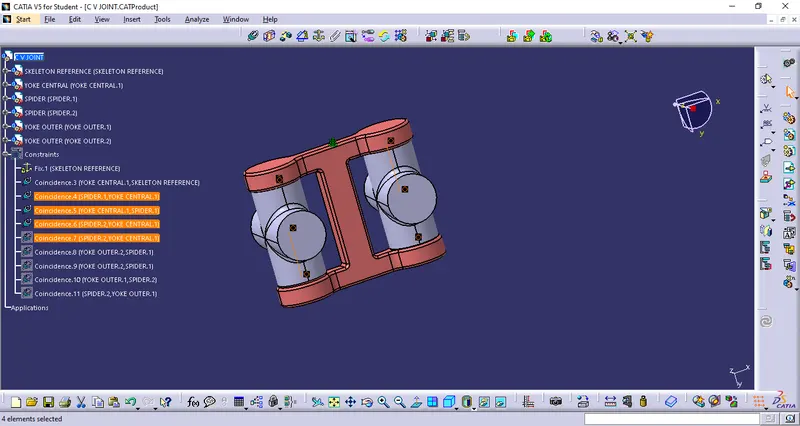

move the parts to the respective position .the base is fixed to a point .Then assemble the all parts respect to fixed part using the constrains

PARTS

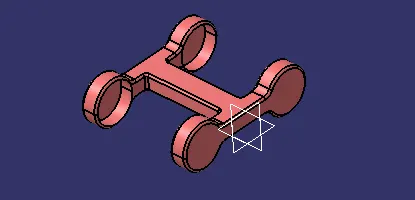

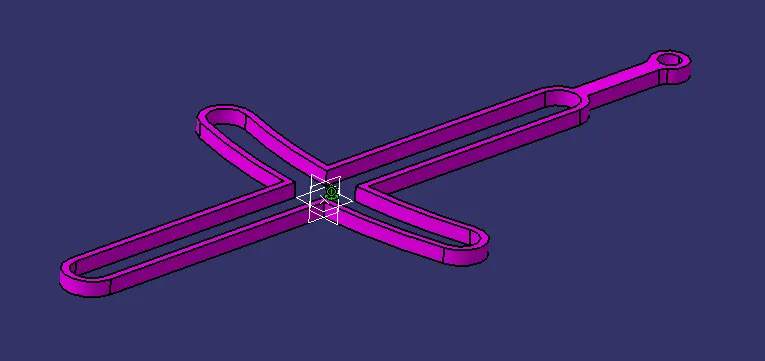

BASE

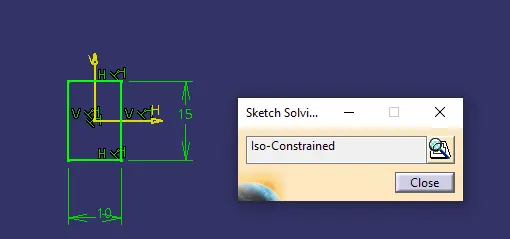

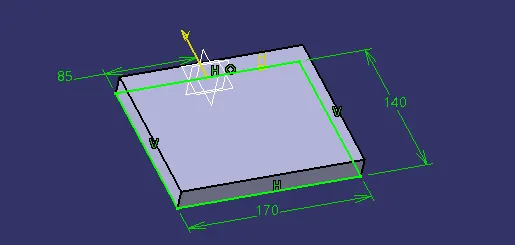

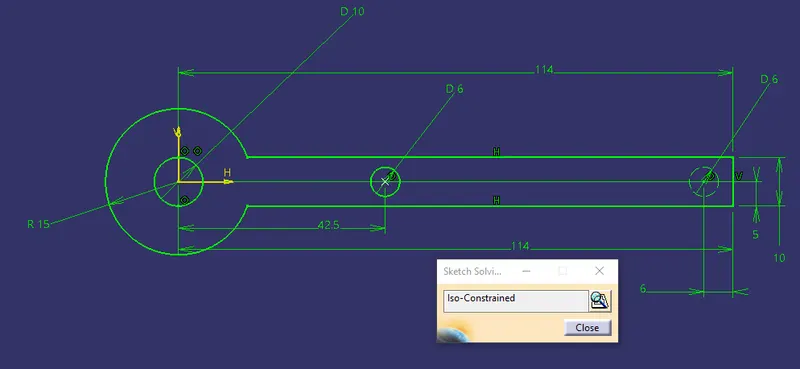

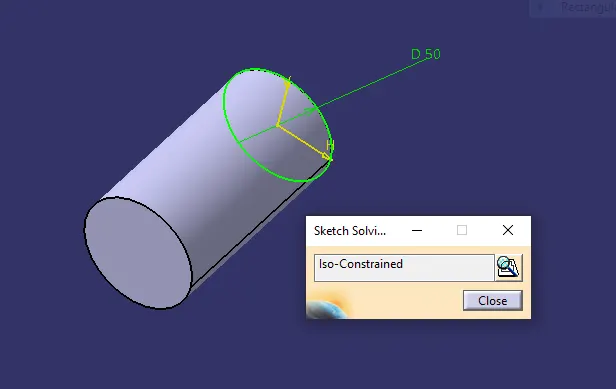

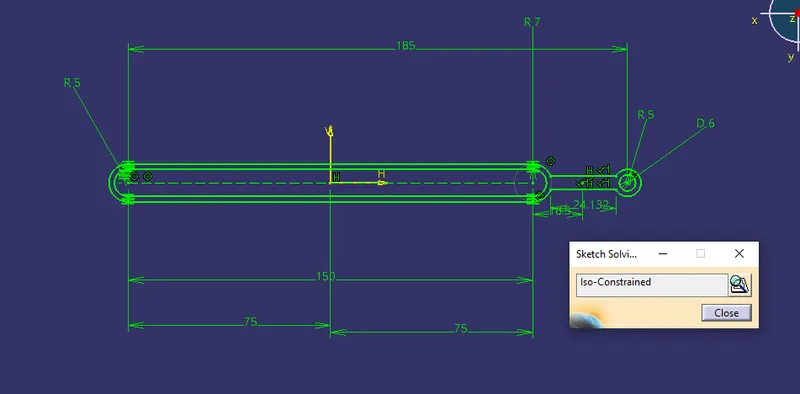

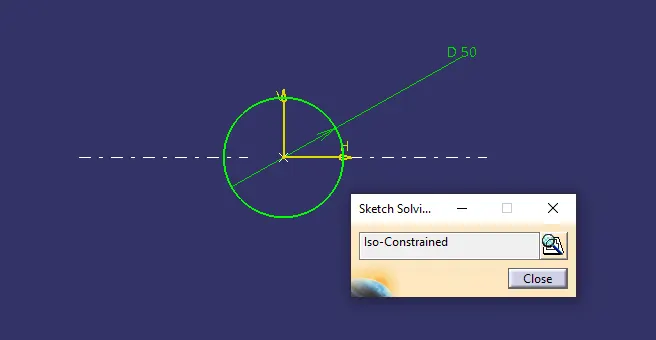

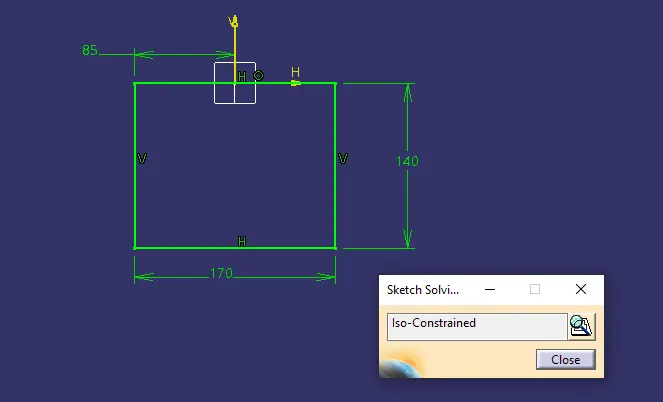

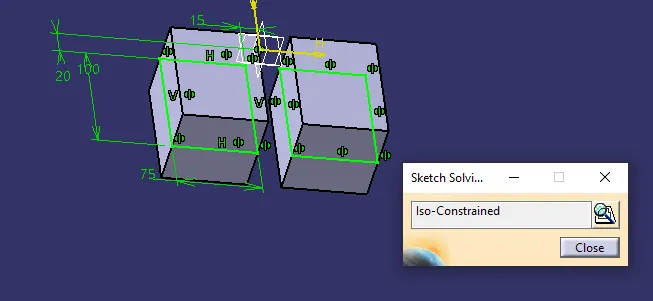

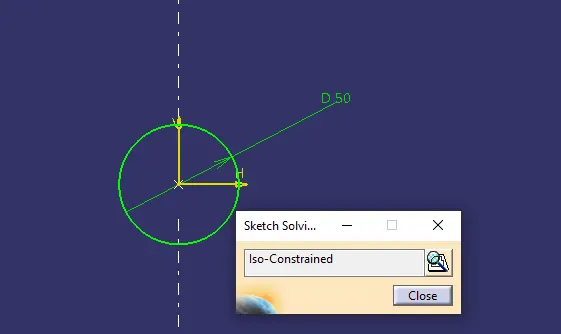

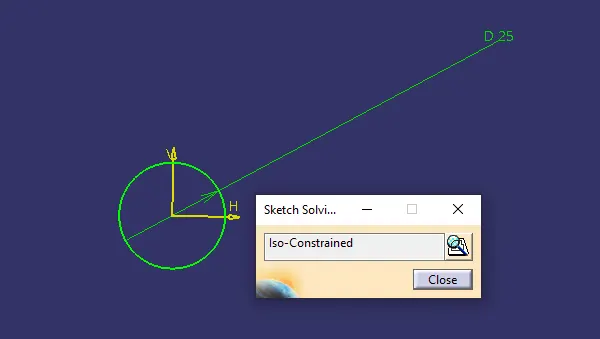

Sketch

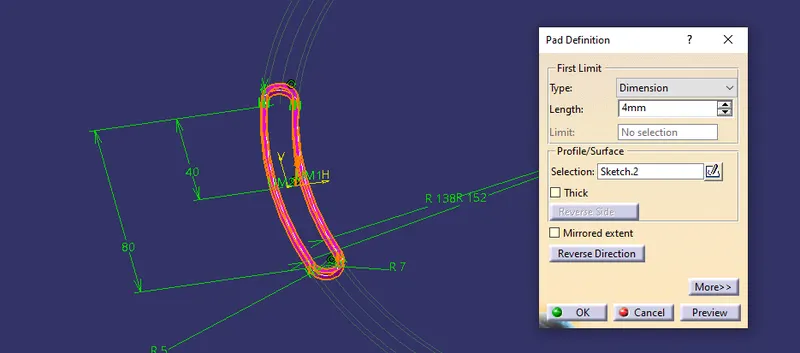

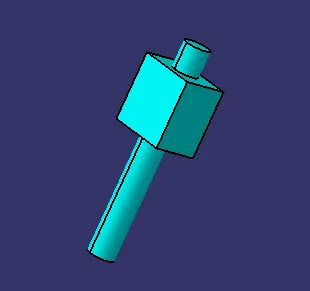

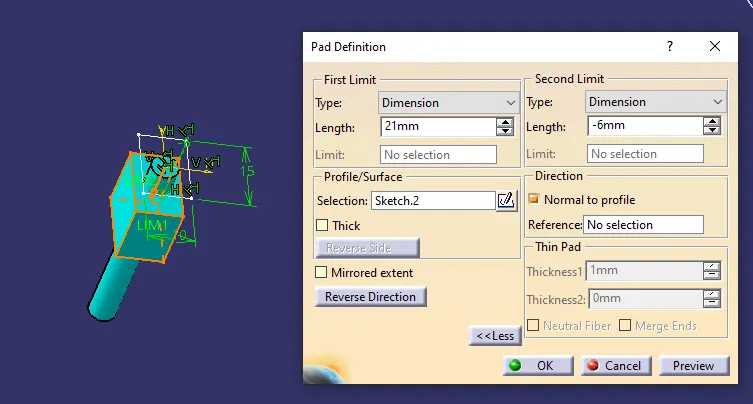

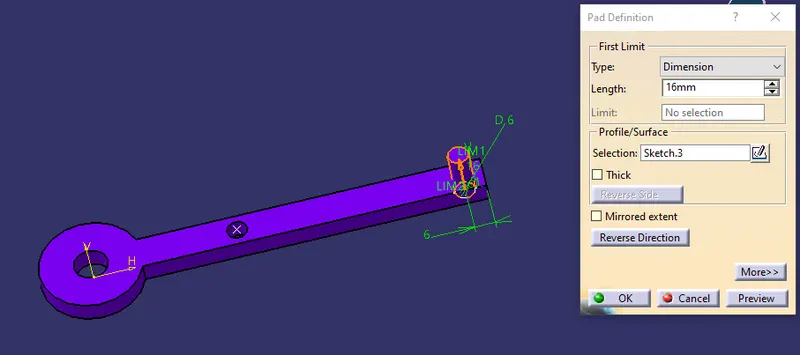

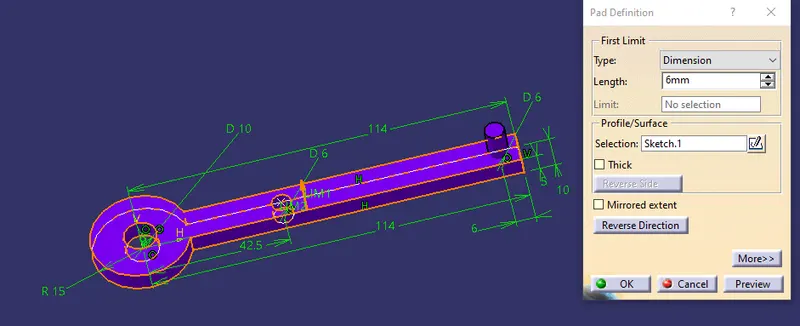

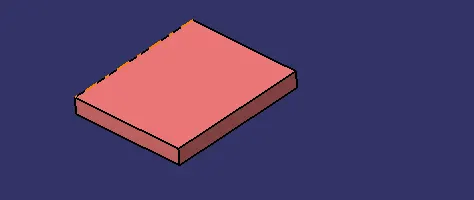

pad

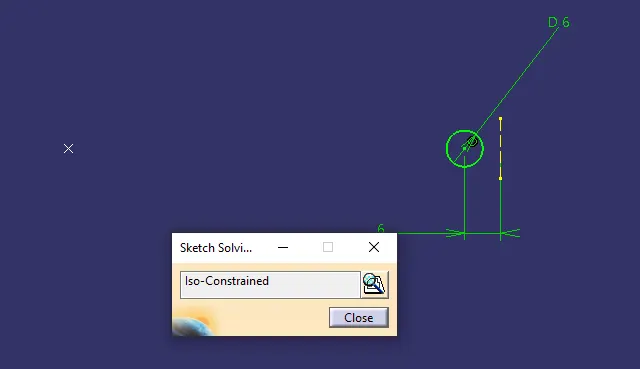

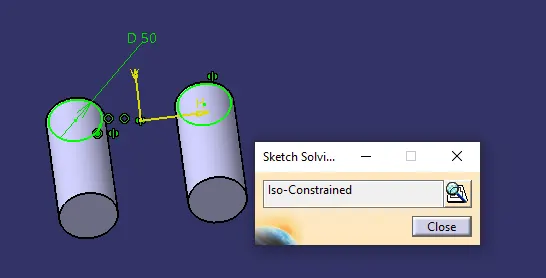

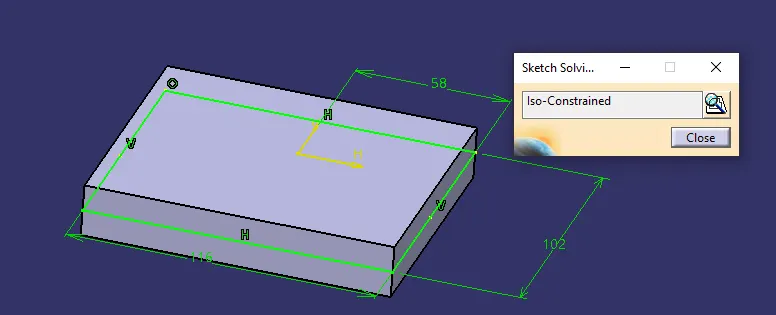

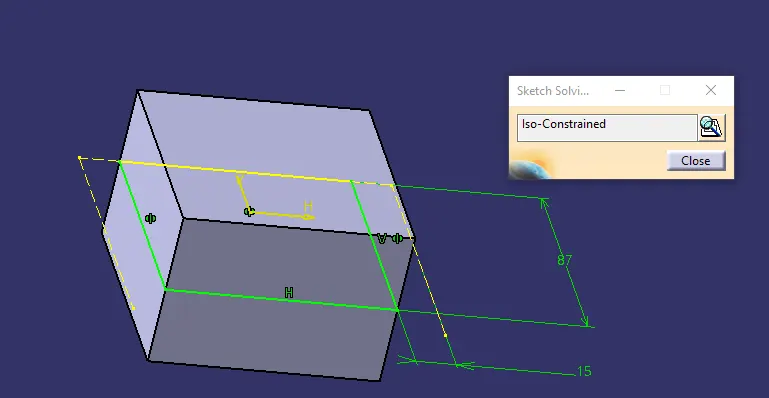

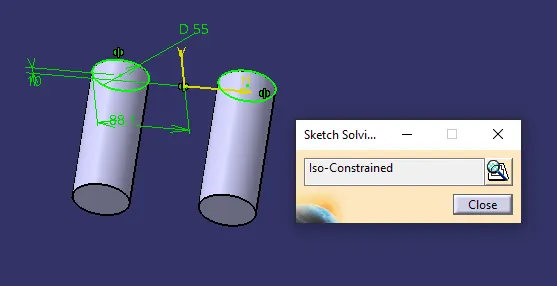

sketch

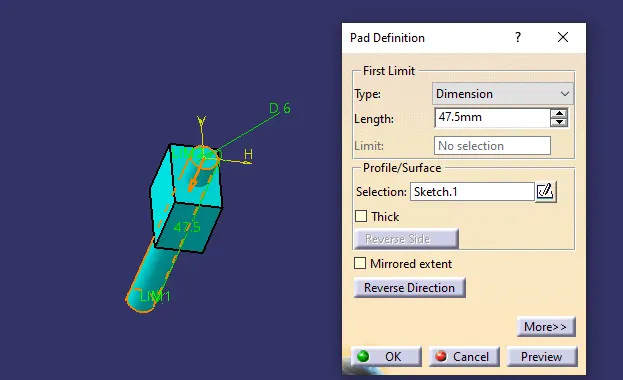

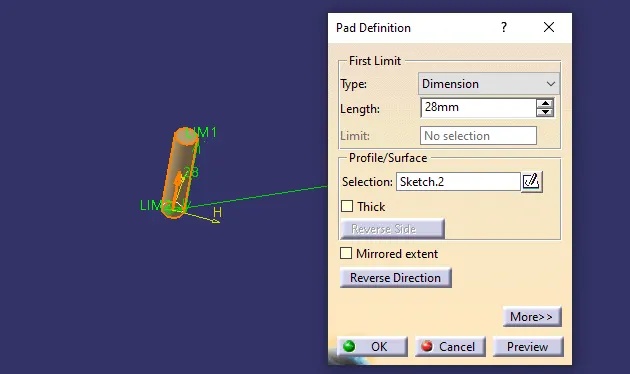

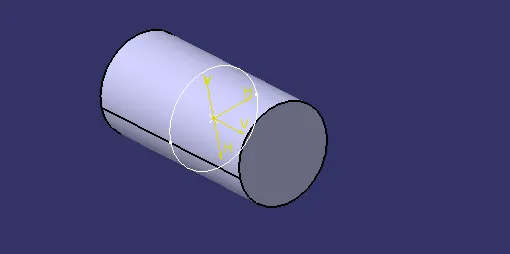

pad

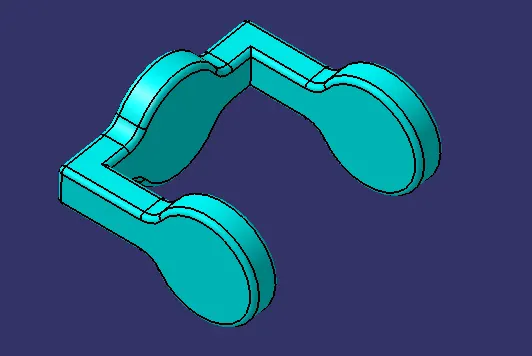

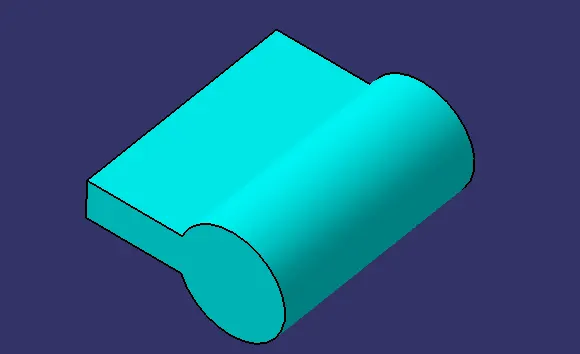

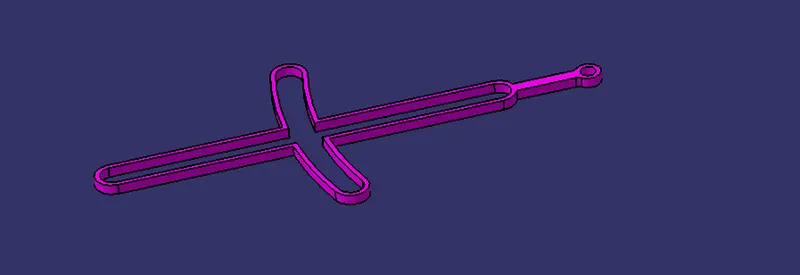

trim together form solid body

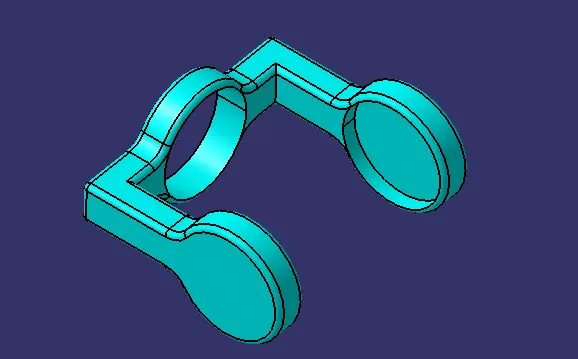

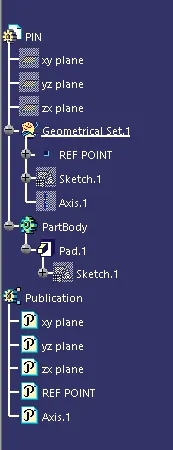

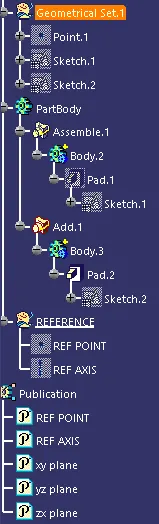

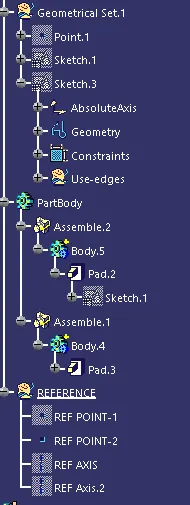

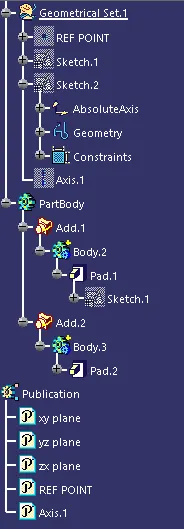

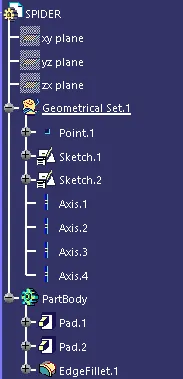

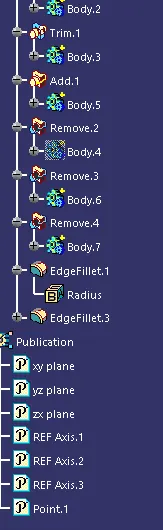

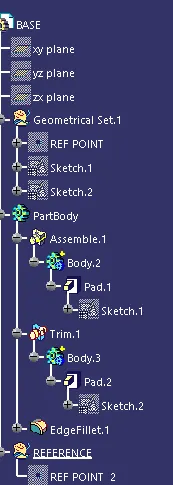

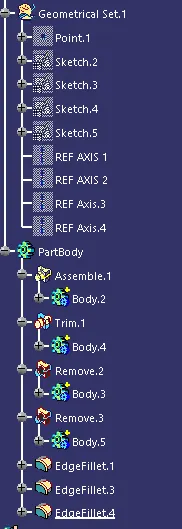

tree structure and publication

SUPPORT

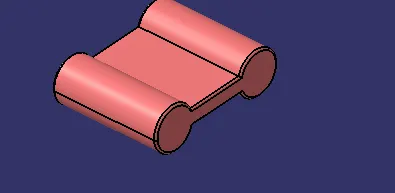

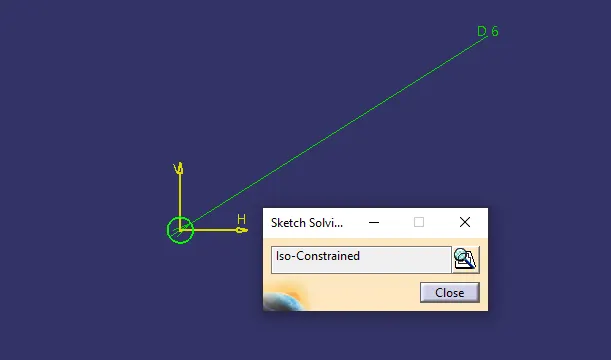

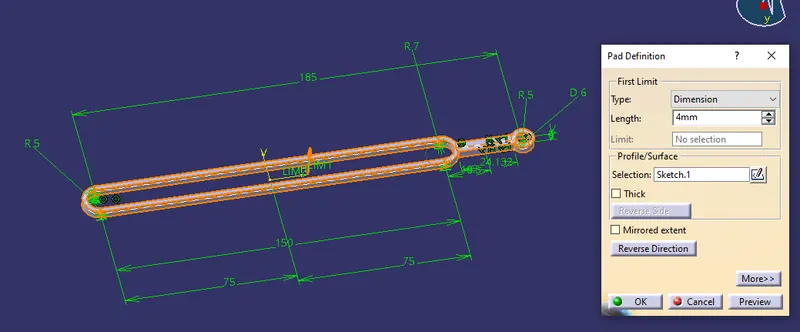

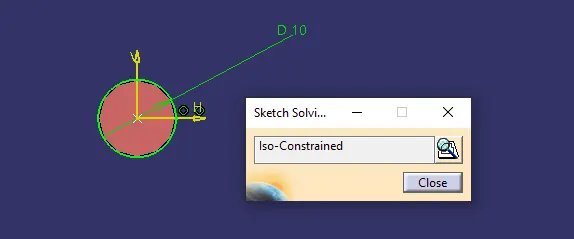

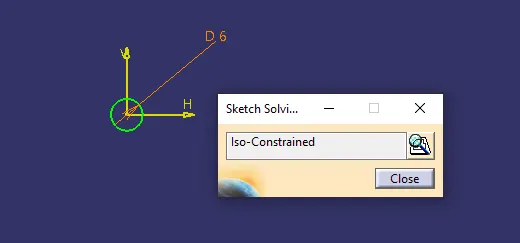

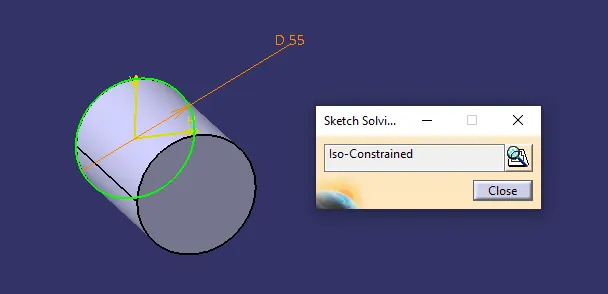

sketch

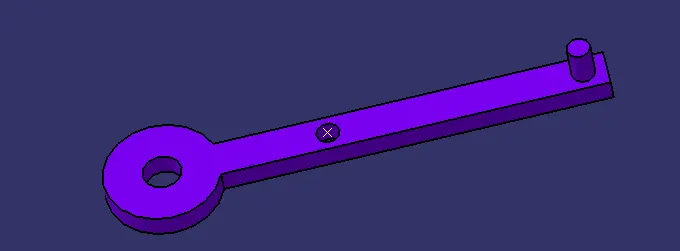

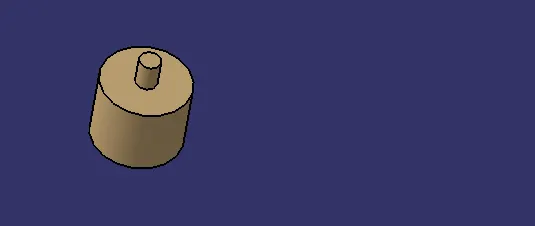

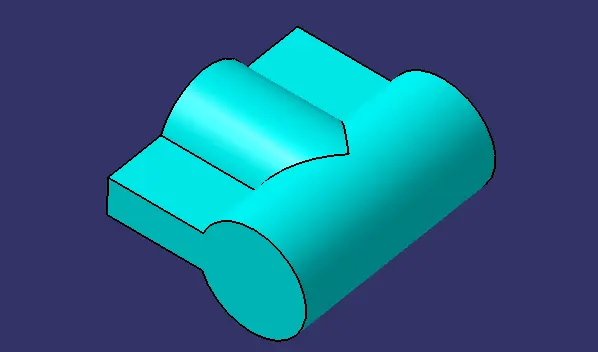

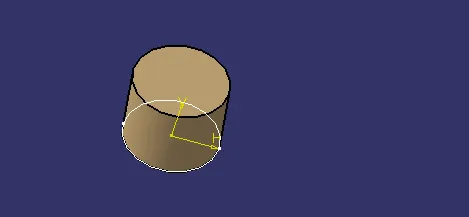

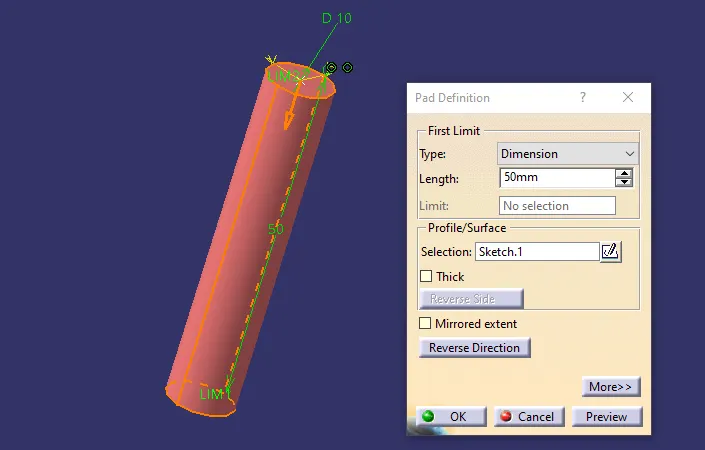

part

Tree structure and publication

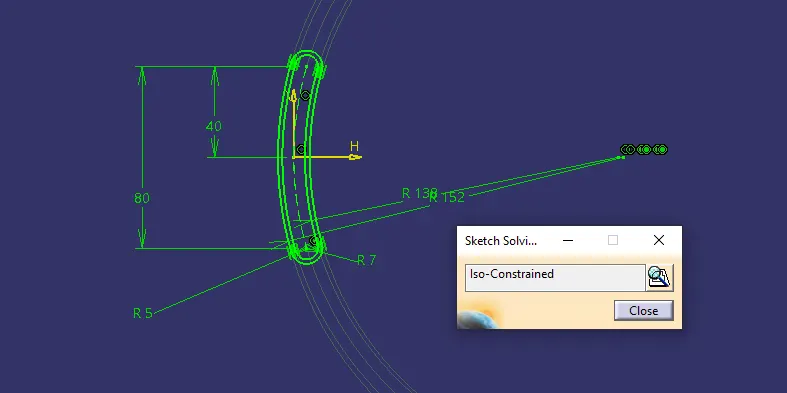

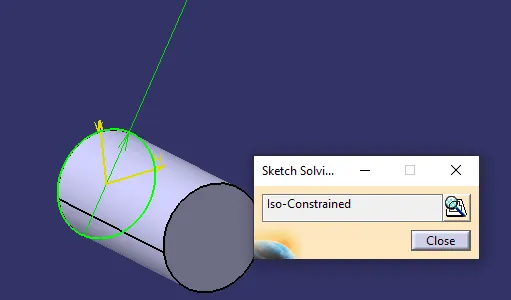

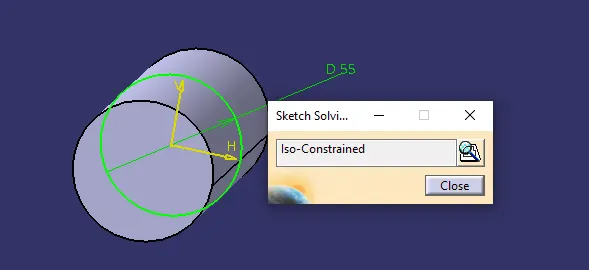

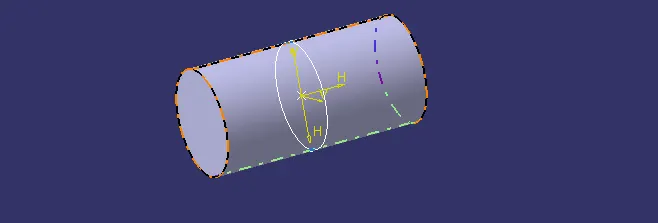

Sketch

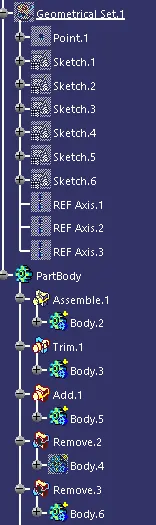

tree structure and publication

SLIDER

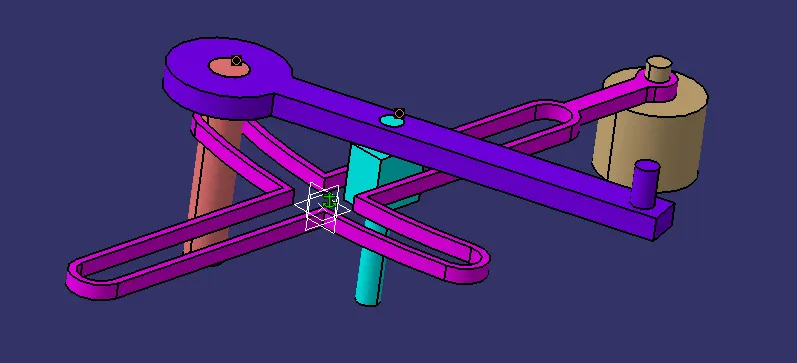

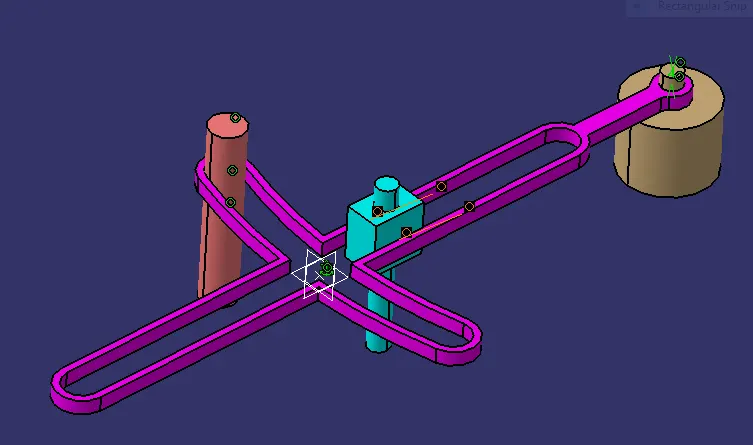

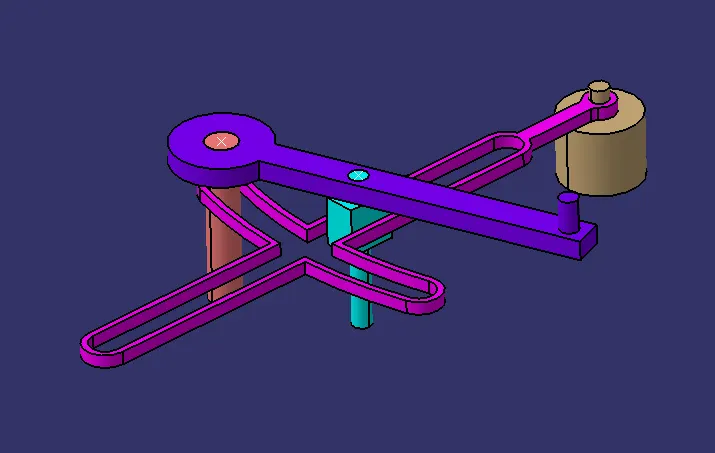

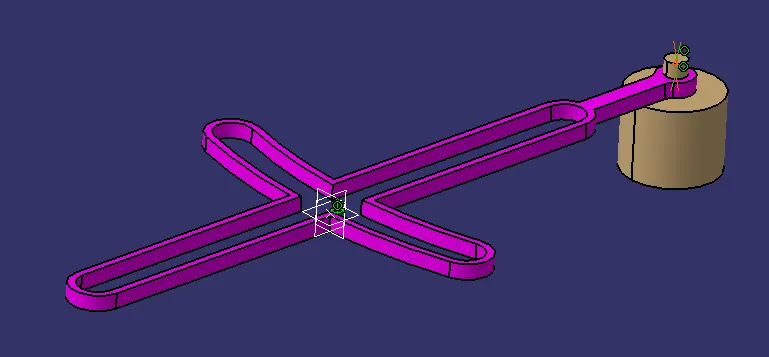

ASSEMBLY

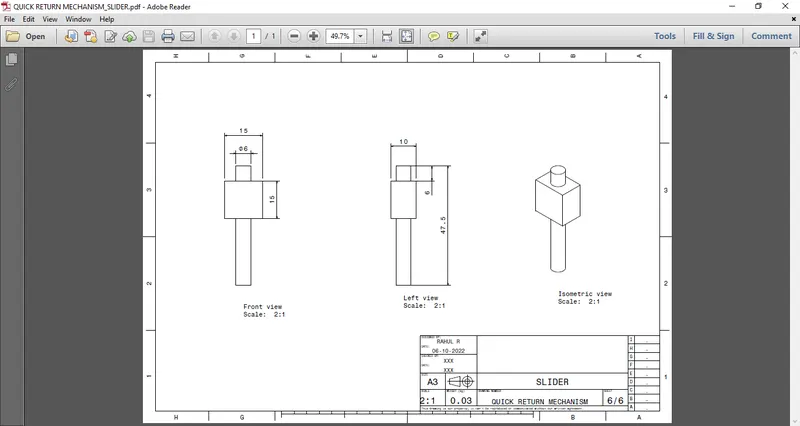

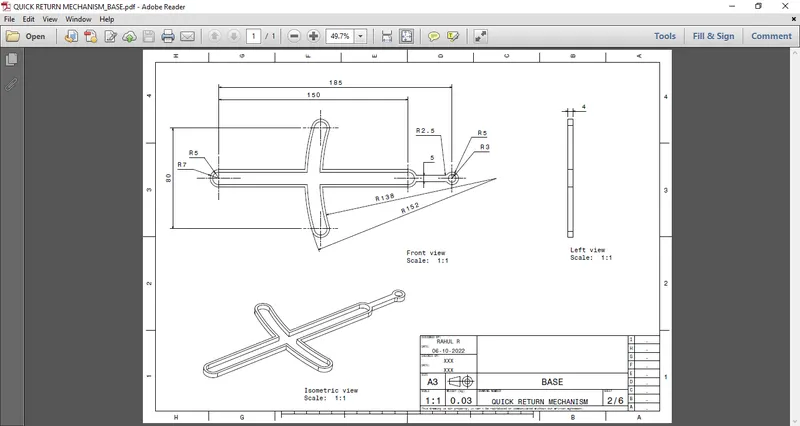

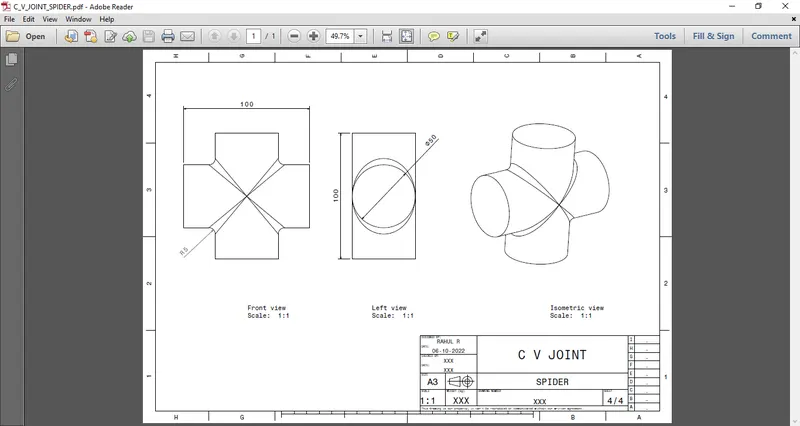

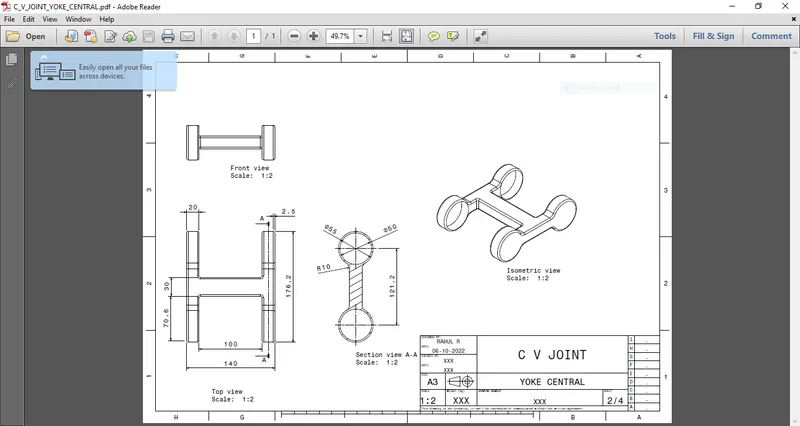

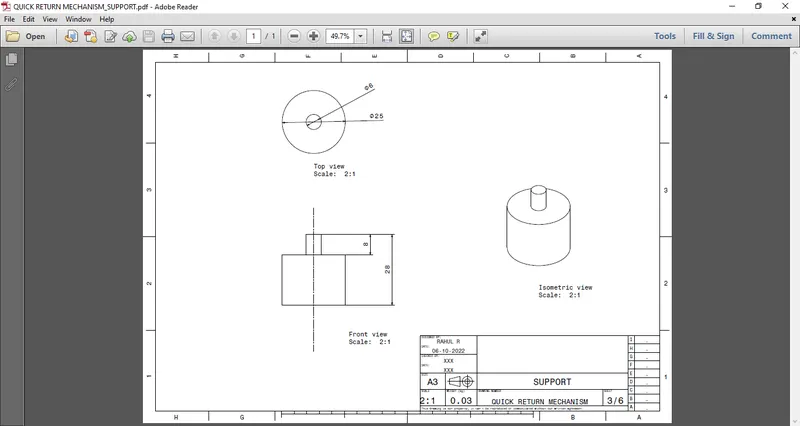

2D DRAWINGS

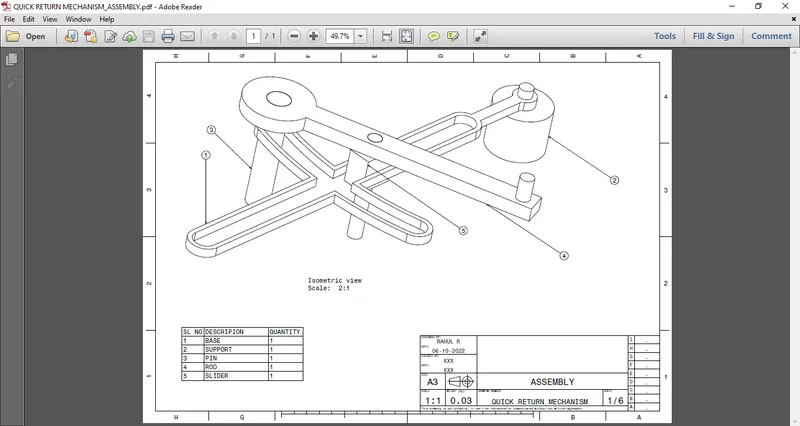

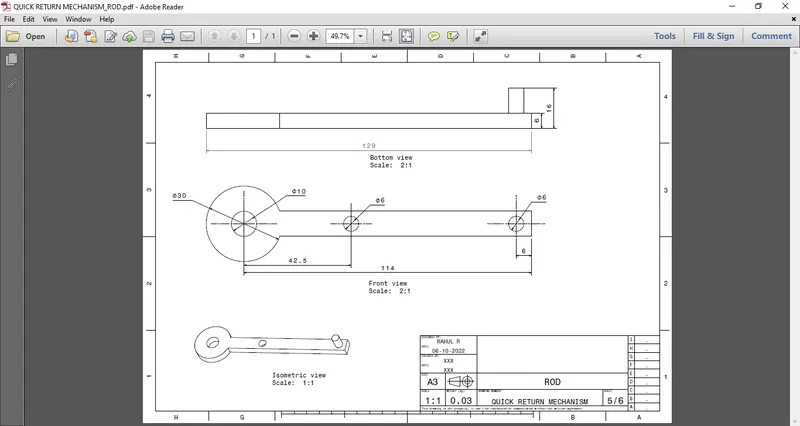

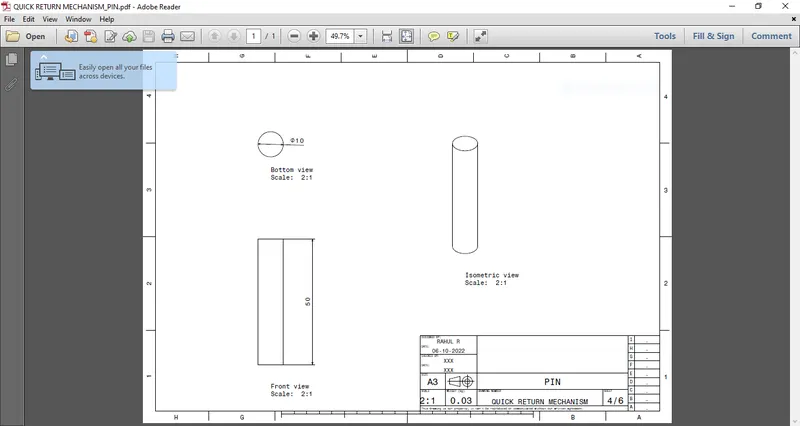

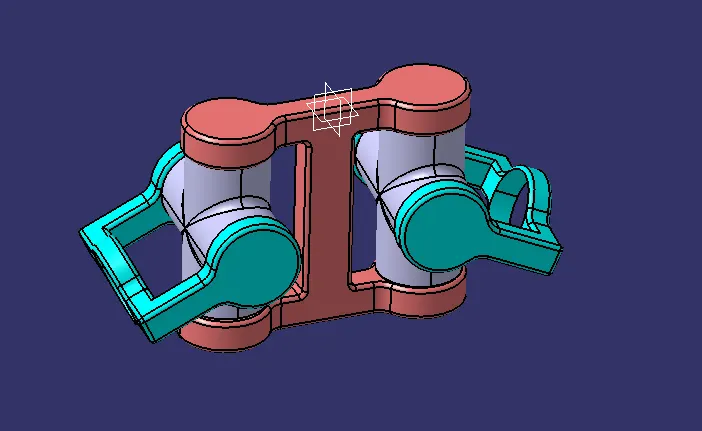

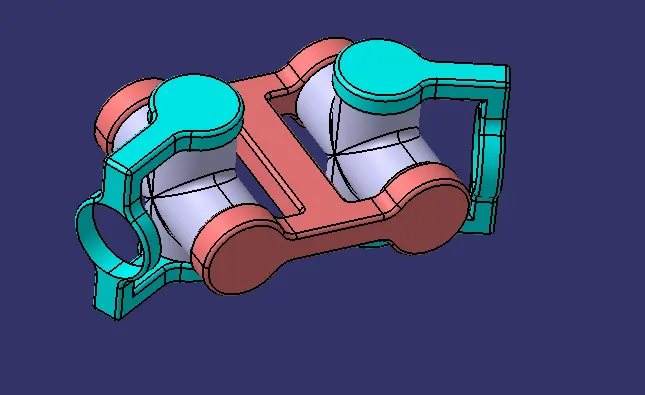

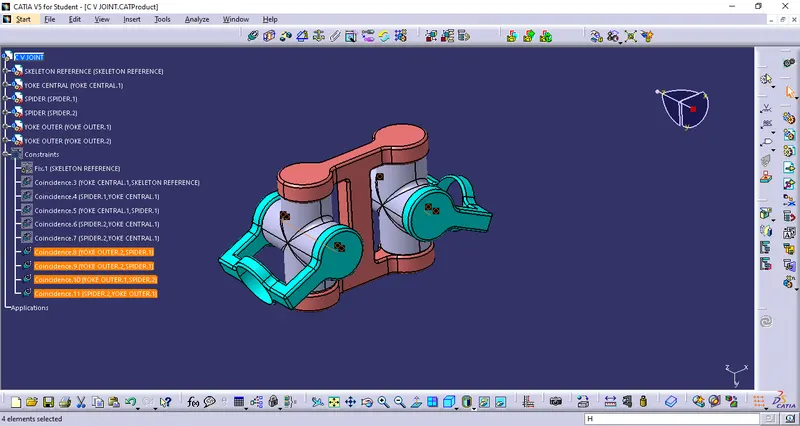

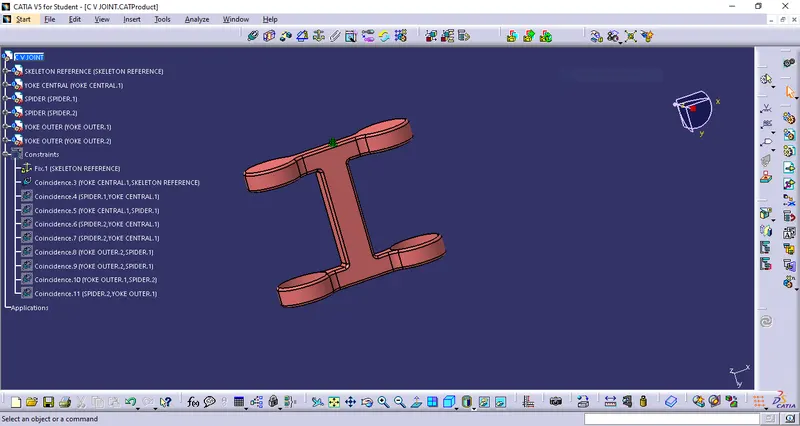

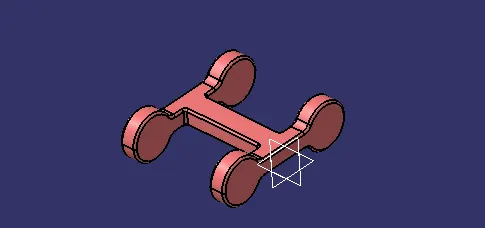

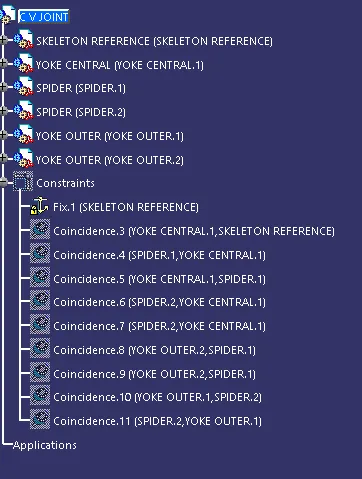

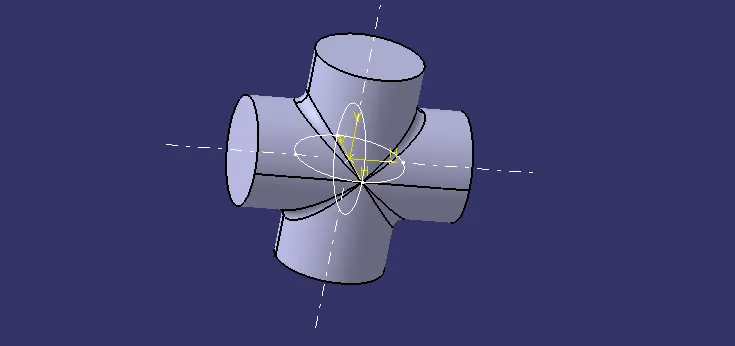

C V JOINT

Constant-velocity joints (also known as homokinetic or CV joints) are mechanicaloints which allow a drive shaft to transmit power through a variable angle, at constant rotational speed, without an appreciable increase in friction. They are mainly used in front wheel drive vehicles. Modern rear wheel drive cars with independent suspension typically use CV joints at the ends of the rear axle halfshafts and increasingly use them on the drive shaft.
