Week 10- Assembly Workbench

Assembly Design Report

Using Part modeling I constructed each parts accordingly.

Created the Reference elements like Reference Points and Reference Axis which the assembly wants to conducted in each parts.

Using the Assembly Workbench

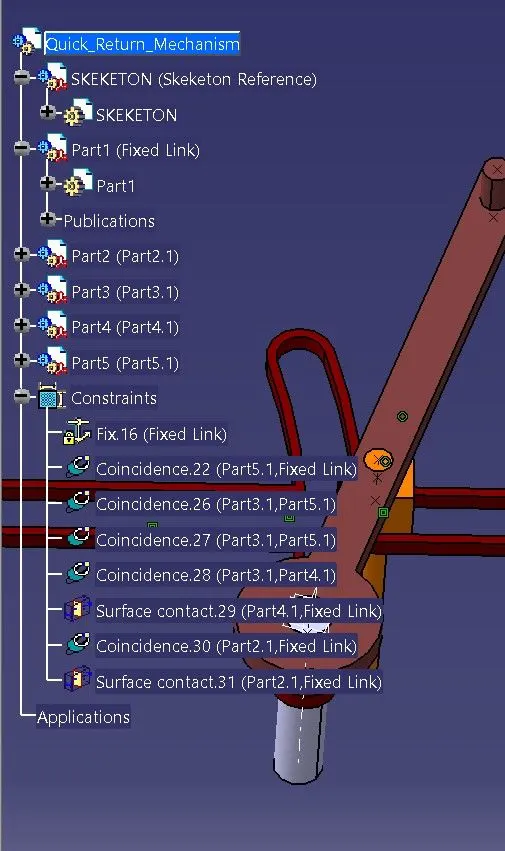

1. Created Skeleton Reference .
2. Fixed the stationary part according to the Skeleton reference.

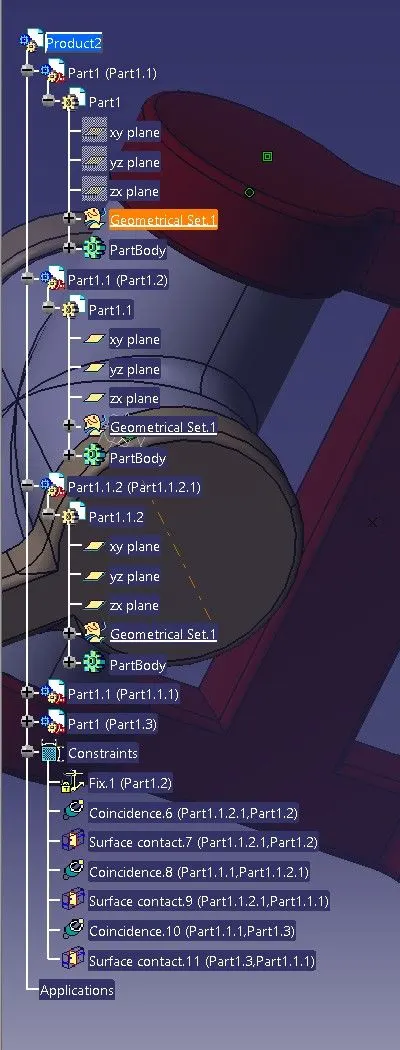

3. Using the constraint tool (Coincidence Constraint and Contact Constraint) the reference axis and reference pionts are coinstrainted.
4. Using the Manipulation Tool, The axis displacement is carried out and checked accordingly.

Construction

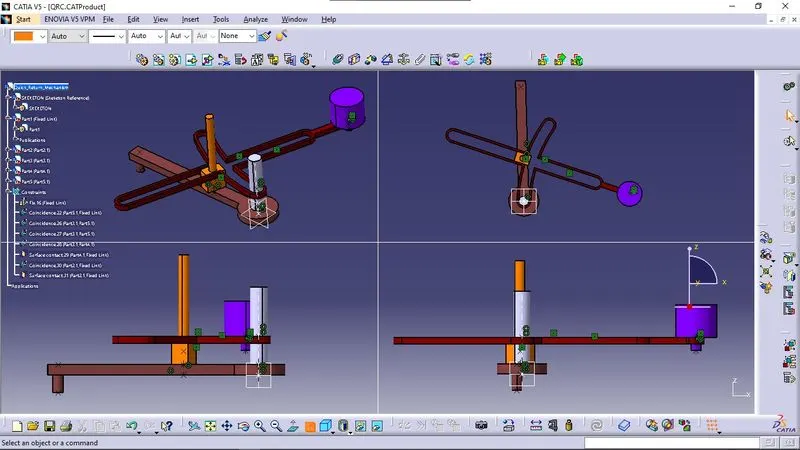

Model 1

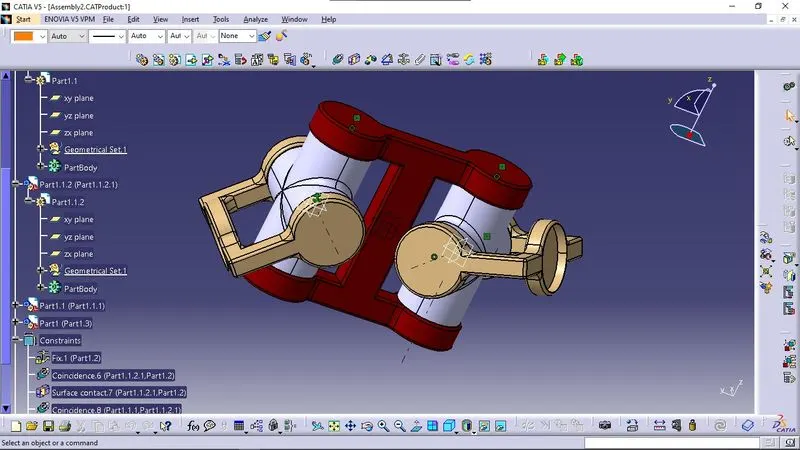

Model 2
