Week 1 Stress Concentration on a Plate with hole

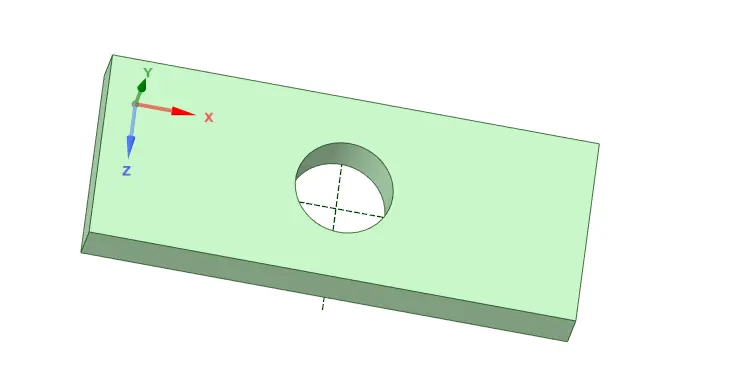

Case 1:

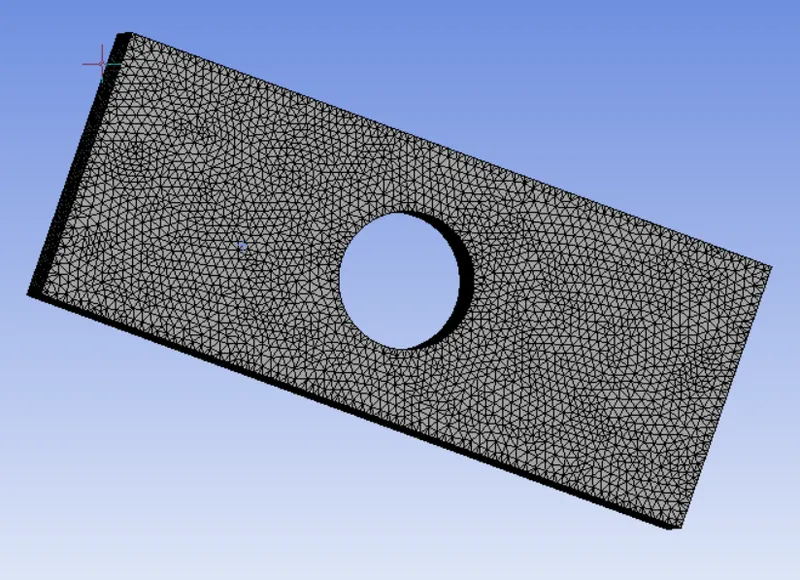

Mesh: Tetrahedron

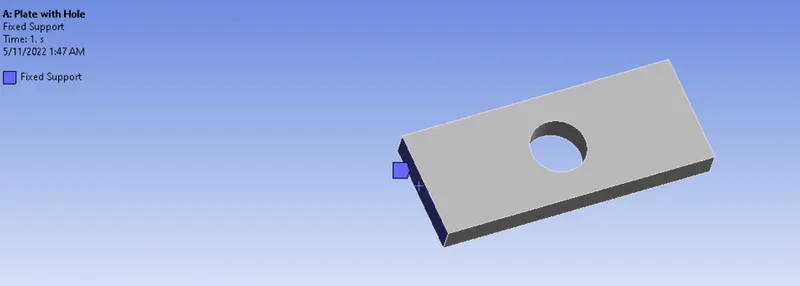

Fixed Support: Left face

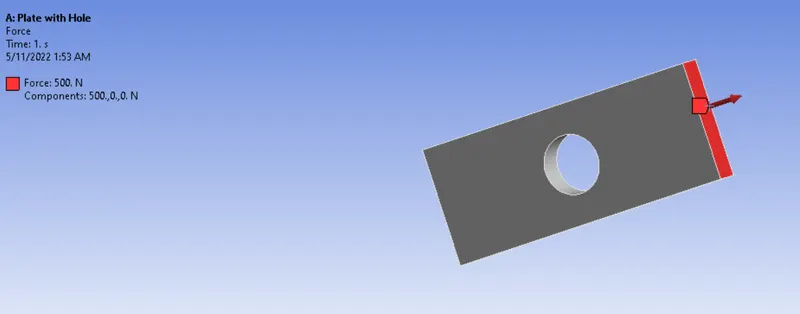

Load: 500N-Right Face

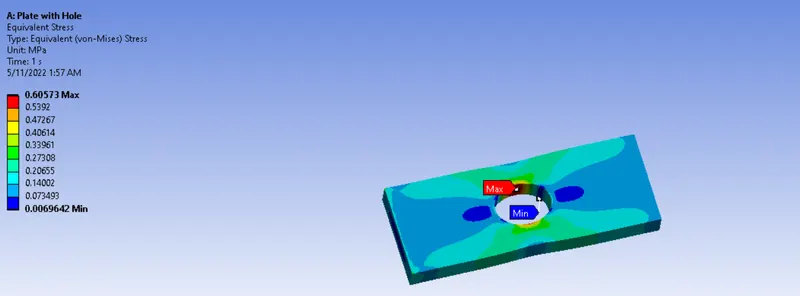

Stress:

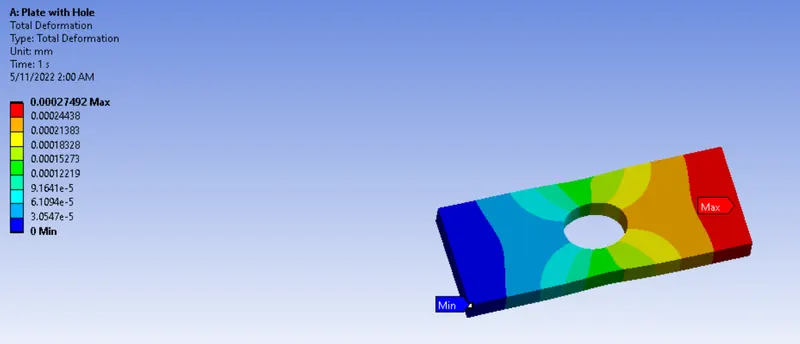

Deformation:

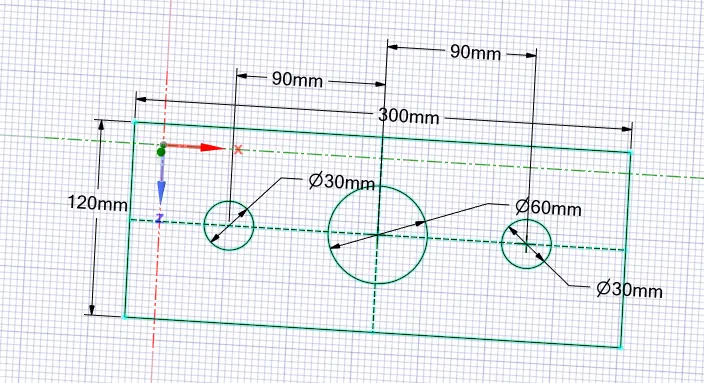

CASE 2:

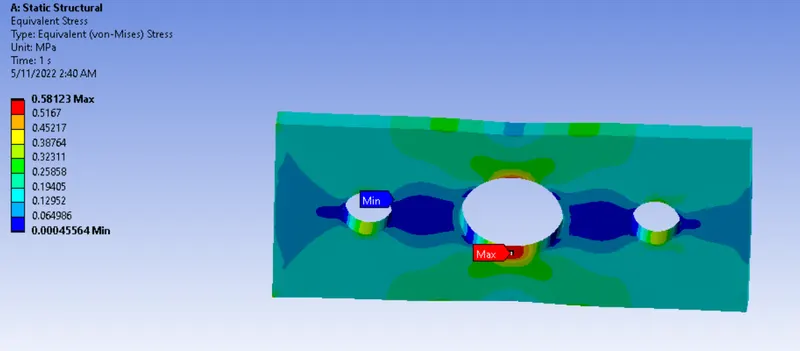

stress:

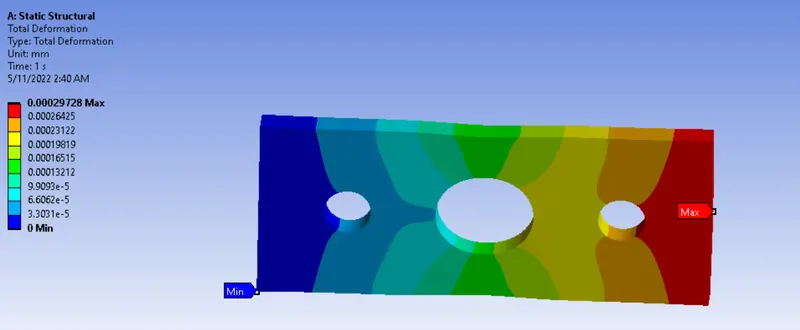

Deformation:

1 Ans:

2 Ans:

The stress value for case 2 is low hence from an analysis point of view; case 2 is the best design.

Ans 3:

From the manufacturing point of view case, 1 is better because of fewer holes to be drilled.
