Week 1 Spur Gear Challenge
PFA completed results of all 3 cases.
Case 1: Cast Iron(ductile)

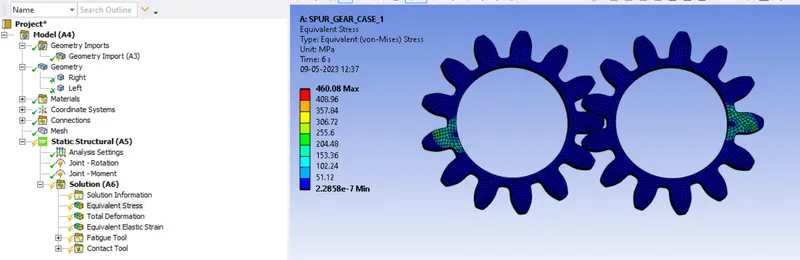

Stress : 460.08 Max & 2.2858e-7 Min

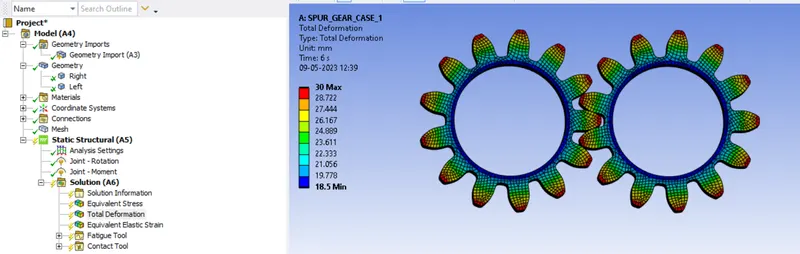

Total Deformation : Max 30 & min 18.5

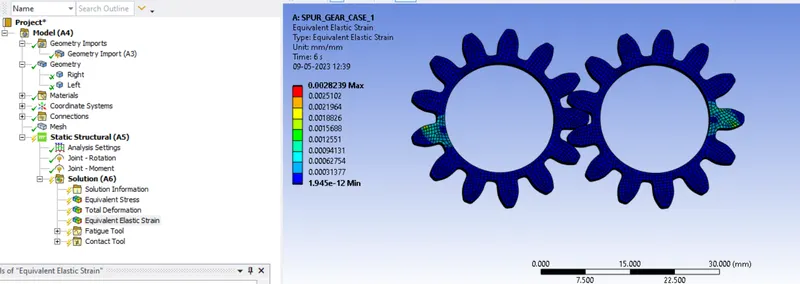

Strain : Max 0.0028239 & Min 1.945e-12
Case 2: Cast Steel

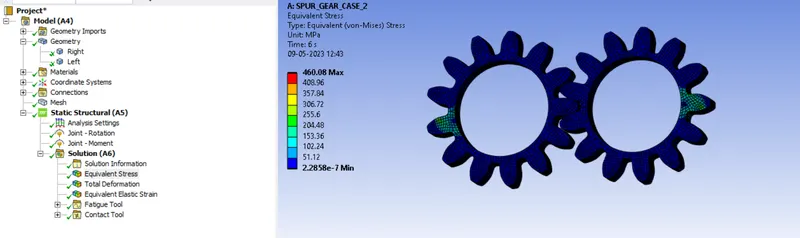

Stress : 460.08 Max & 2.2858e-7 Min

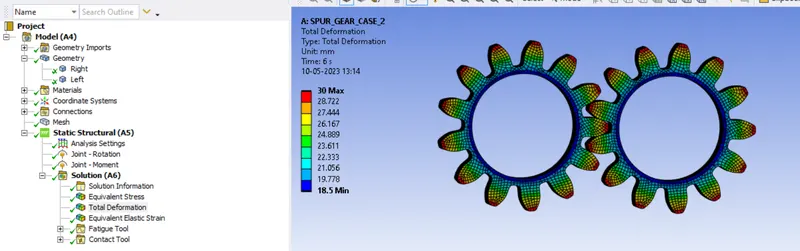

Total Deformation : Max 30 & min 18.5

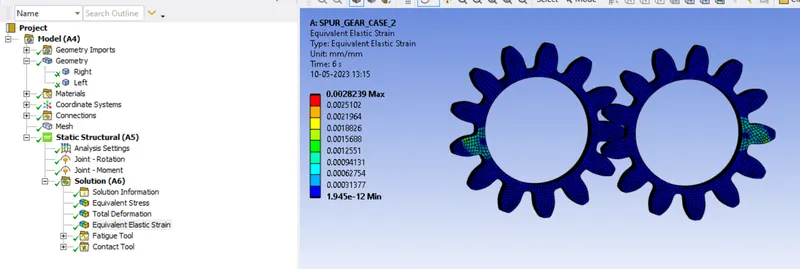

Strain : Max 0.0028239 & Min 1.945e-12
Case 3: Cast Bronze

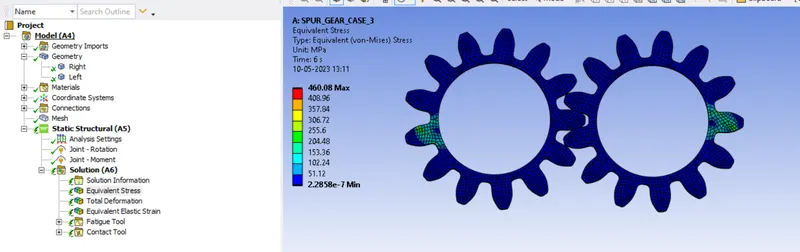

Stress : 460.08 Max & 2.2858e-7 Min

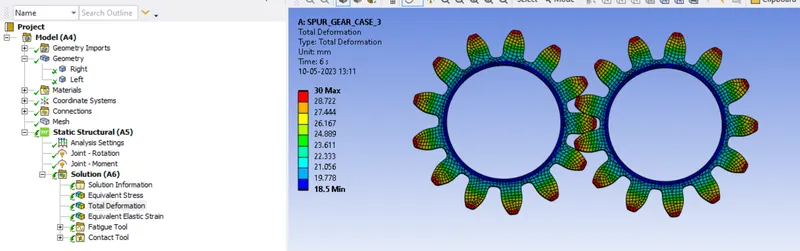

Total Deformation : Max 30 & min 18.5

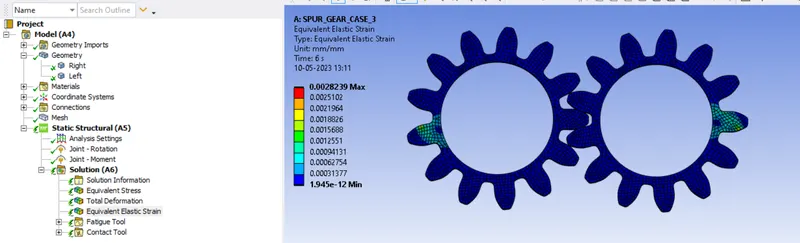

Strain : Max 0.0028239 & Min 1.945e-12
