Vasavi_External Exam_Tekla

Procedure for designing a boiler shed structure

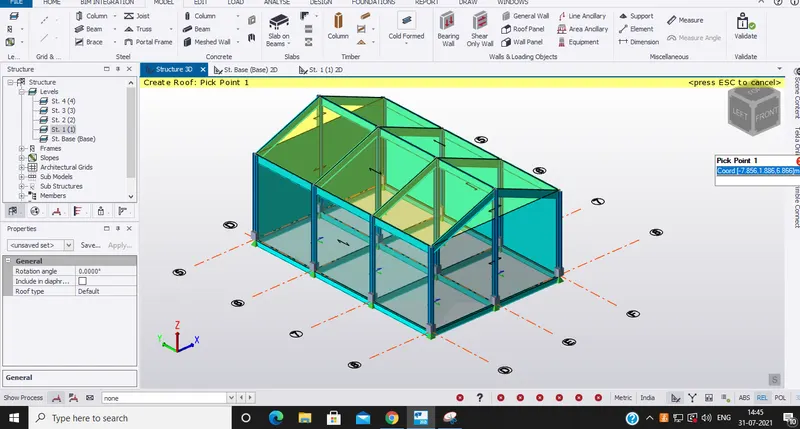

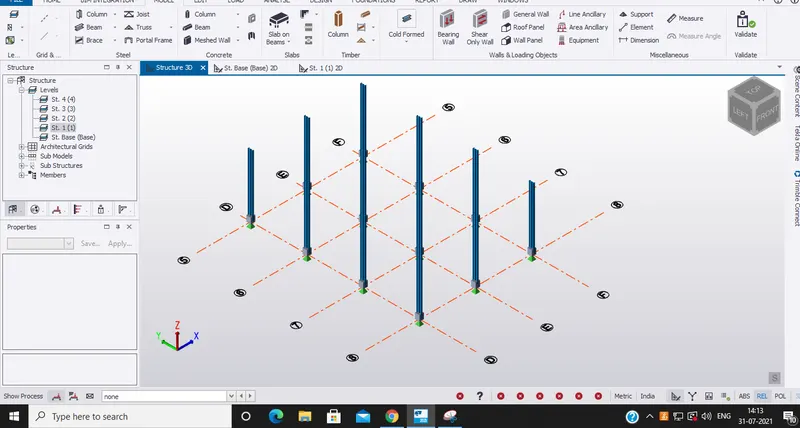

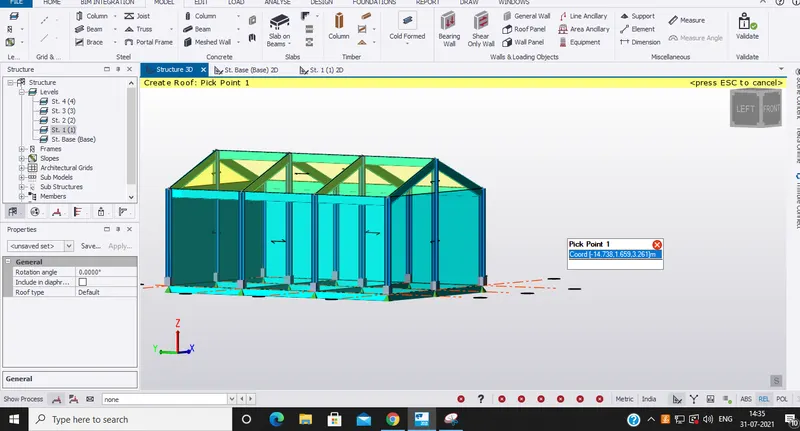

is a steel design of a factory shed with plot area 12000*38000. steel trusses rest on columns. bracing, purins

, etc provides resistance against wind loads. steel columns rest on base plates on footings. This industrial shed deals with the factories which can be used for multi purpose works. This will help the engineers to construct easily and effective cost of construction. This is highly made of precast steel members so the assembling will be easier.
