Underbody Coating

AIM:- To write a report on what is underbody coating,it's type and pros and cons.

INTRODUCTION:

WHAT IS UNDERBODY COATING?

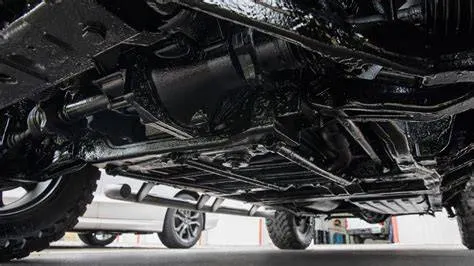

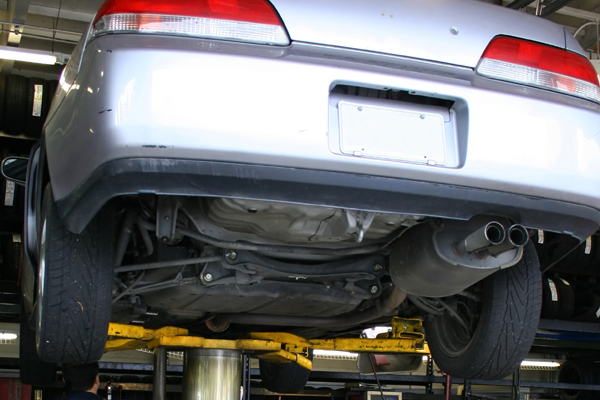

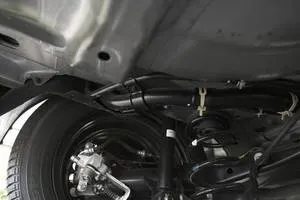

Underbody coating is a thick cladding (typically made of rubber) that is placed uniformly to the car’s underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on.

Underbody caoting is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones,which would rapidly chip ordinary paint, allowing rusting to begin.

Underbody coating provides long term protection from corrosion to car’s underbody. It also protects parts like internal body panels,frame rails and other inner cavities that are not physically accessible but are prone to corrosion.

PURPOSE OF UNDERBODY COATING

The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts.Underbody coating can also reduce wear and tear.

• Protection against corrosion
• Protection of car vital components like silencer,engine, numerous other wires and small engine components for different purposes in the car.
• Reduces NVH(Noise Vibration Harshness) levels
• Car underbody coating prevents paint from chipping
• Covering all the welded joints

DIFFERENT TYPES OF UNDERBODY COATING:

Underbody coatings are categorised into various types based on the type of material used and also the cost of the material.

Rubberized underbody coating:

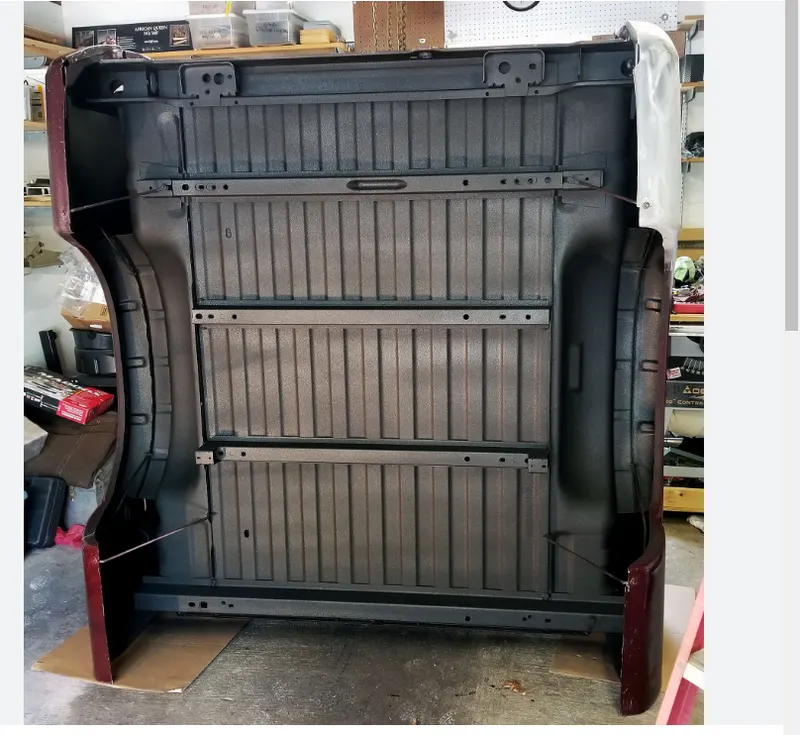

These coatings are easy to apply and offer sound-cushioning as well as protection from dust, moisture and dents. The coatings are safe even to use on wheel wells and quarter panels and when it is dried forms a soft rubbery finish that prevents further rust and moisture seep.

Polyurethane underbody coating:

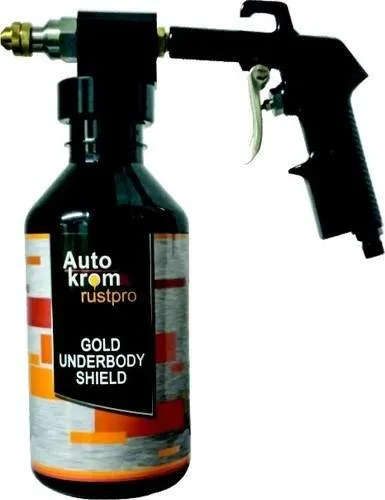

This type of undercoating is a lit a bit quicker and easy to apply. This type of undercoating often comes in a canister ready to preload into application gun. This type of undercoating always requires surface preparations before applying.

Wax or paraffin-based underbody coating:

Wax or paraffin-based undercoating will be the cheapest and quickest option available in the market. But these coatings last only for one year of duration.

Asphalt-based underbody coating:

The above-mentioned undercoating is mainly used for light commercial vehicles. For vehicles such as trucks, buses, vans etc. asphalt-based undercoating is used for sufficient protection against rock chips and moisture. These asphalt-based undercoatings have a little bit of rubberised material that set up firmly and also helps in reduction in noise.

PROS of Undercoating :

1)Fights Rust
2)Absorbs Noise
3)Reinforcement
4)Prolong Car’s Life

1)Fights Rust

• It has a crucial function in preventing corrosion. Underbody coating is particularly useful if you live near the sea,where there is excessive humidity and rust is a common occurrence.
• If you live somewhere where it snows in the winter,you should seriously consider undercoating. During the monsoon season, cars are at high risk of getting corrosion.
• If you want to extend your car’s life you should get an underbody coating.

2)Absorbs Noise

• Very strong undercoating, realize it or not, can attenuate noises that enter the cabin. The undercoating, which is frequently made of rubber, absorbs part of the rackets.
• The car’s occupants could avoid the road sounds at least to some extent. So if you want a quite ride and pleasant experience it is always a good idea to consider getting an underbody coating.

3)Reinforcement

• If your automobile already has an underbody covering, applying another one on top of it will not harm it.
• It will provide further protection for the underbody from water, road debris, gravel, and tiny stones.
• The factory coat would also have a lower risk of flaking away.

4)Prolong Car’s Life

• A good undercoat protects not just the underbody from corrosion, but also the engine and gearbox.
• Less corrosion combined with slower wear and tear can extend the life of your car by many years.
• On the undercarriage, there would be fewer dents, dings, and scratches to worry about.

CONS of Undercoating

• The biggest drawback is the cost.
• It adds weight to the vehicle.
• It must be reapplied every 3 to 5 years for the best results.

CONCLUSION:-

Here we studied about undercoating, its type, pros & cons and how it is necessory for automobile to apply.
