To model columns for industrial steel structure using TSD

QUESTION: 1

Create column properties for different types of pedestal members and model in the grids created as per the assignment 1

ANS:

AIM: To Create column properties for different types of pedestal members and model in the grids created as per the assignment 1

PROCEDURE:

STEP: 1

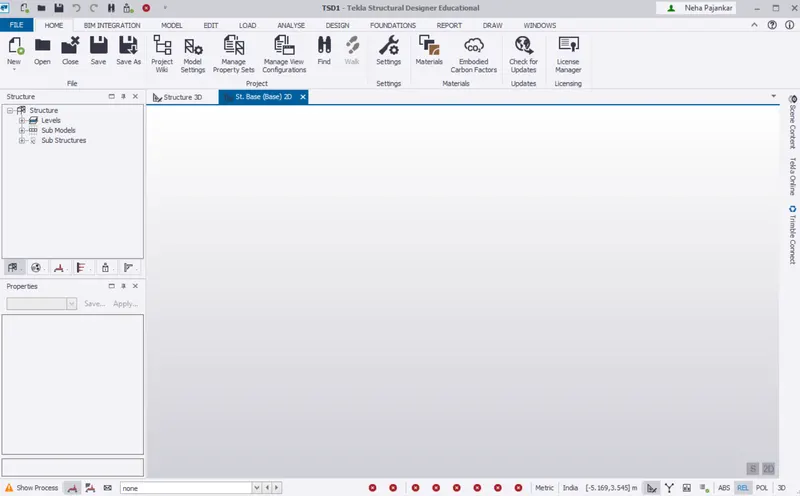

• Open the Tekla Structure Designer Software
• Creat new file

• save the file as required

STEP: 2

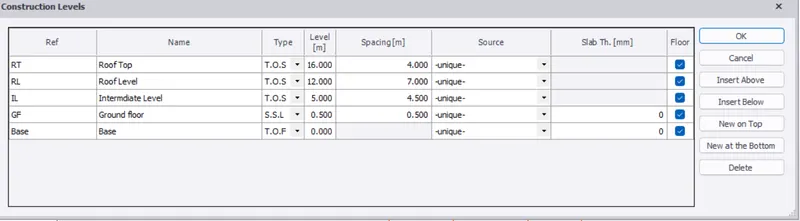

• Go to Model tab < Construction Level
• a new tab wil appear < Creat the level as required according to the given file

STEP: 3

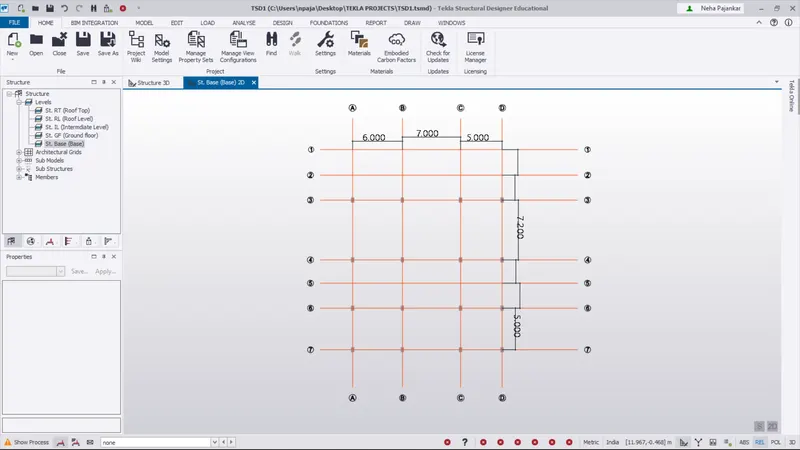

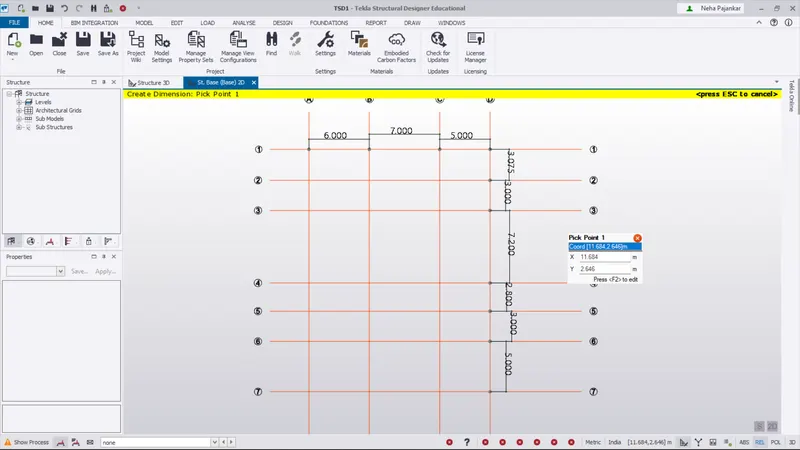

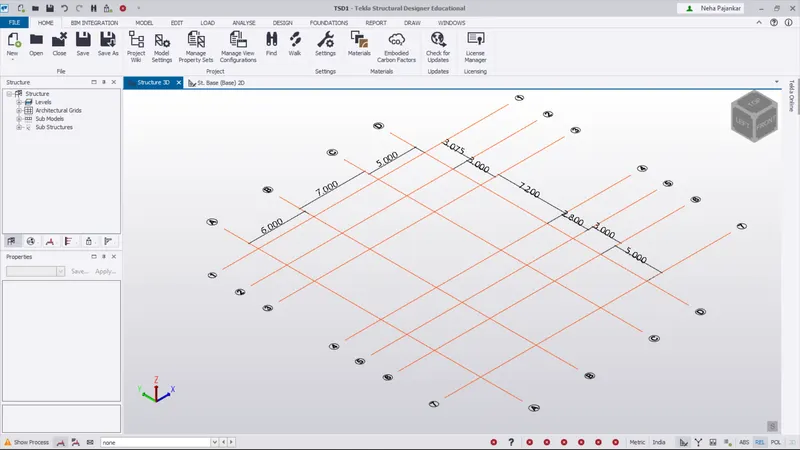

• Go to Model Tab < Grid Line
• using grid line and quick parallel grid make the grid as mentioned in Assignment 1

STEP: 4

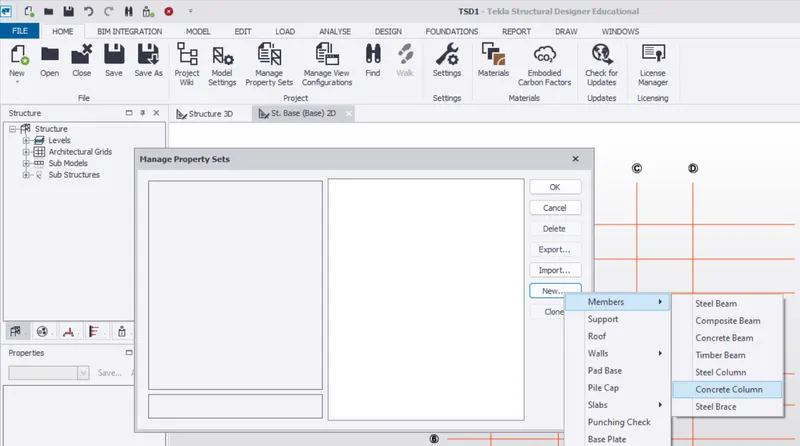

• Go to Home tab < manage property sets

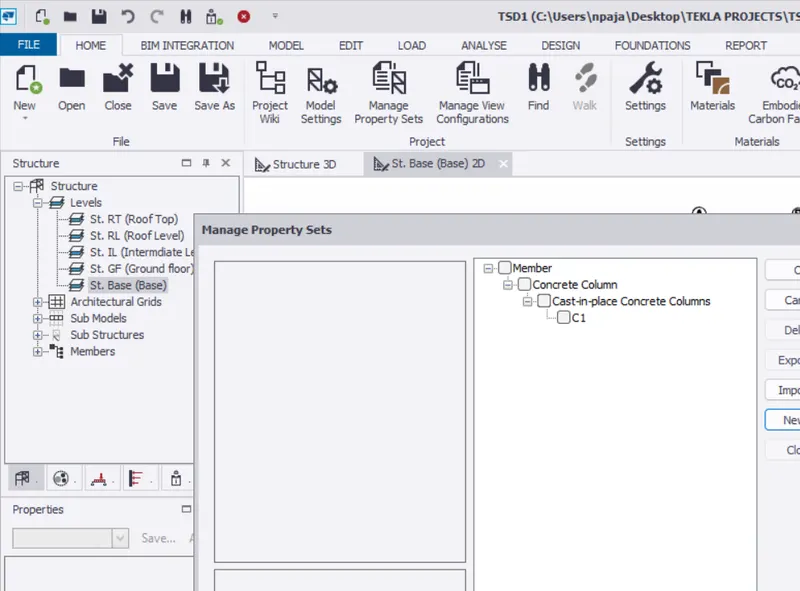

• new tab will open click on new < create New property < concrete columns < rename as C1

• change the required property as 400x600, M30 < Click OK

STEP: 5

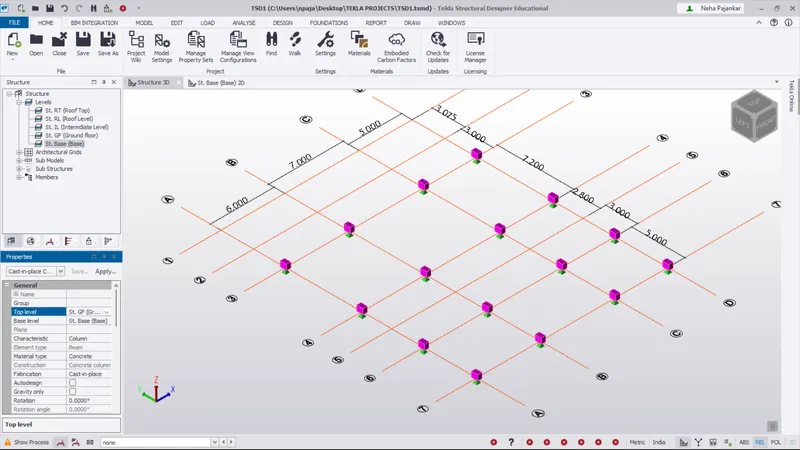

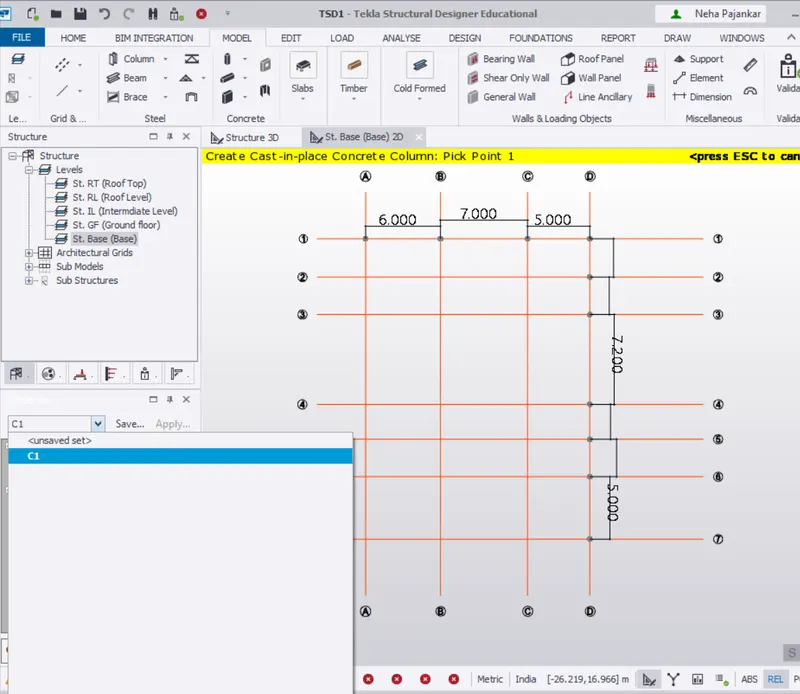

• Now Go to Base floor from the level

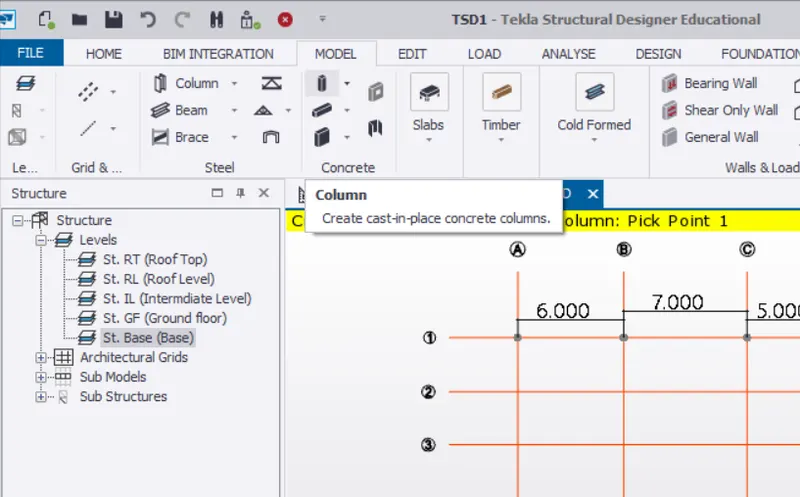

• Then go to Model tab < click on concrete column

• go to properties panel < select C1 from drop down list< place the column at grids were required

RESULT:

Hence, Created column properties for different types of pedestal members and model in the grids created as per the assignment 1

QUESTION: 2

Create column properties for steel columns and model columns in the grid created as per assignment 1.

ANS:

AIM: To Create column properties for steel columns and model columns in the grid created as per assignment 1.

PROCEDURE:

STEP: 1

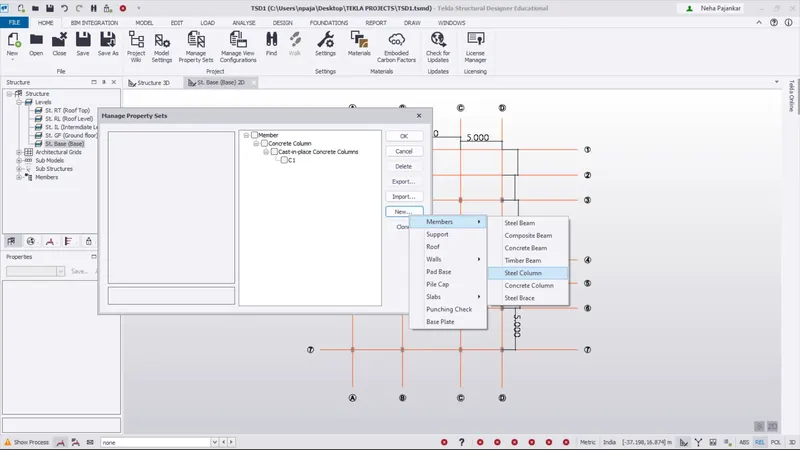

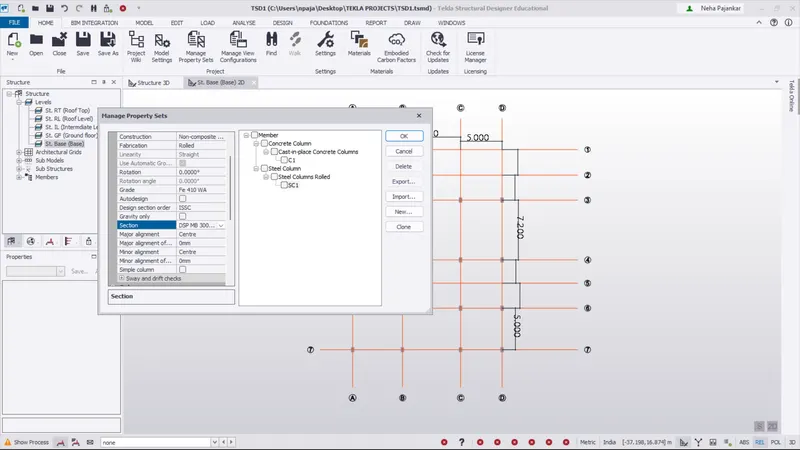

• Go to Home ribbon tab < manage property sets
• Create new property < member < steel column

• set the property to ISMB, MB300
• Click Ok

STEP: 2

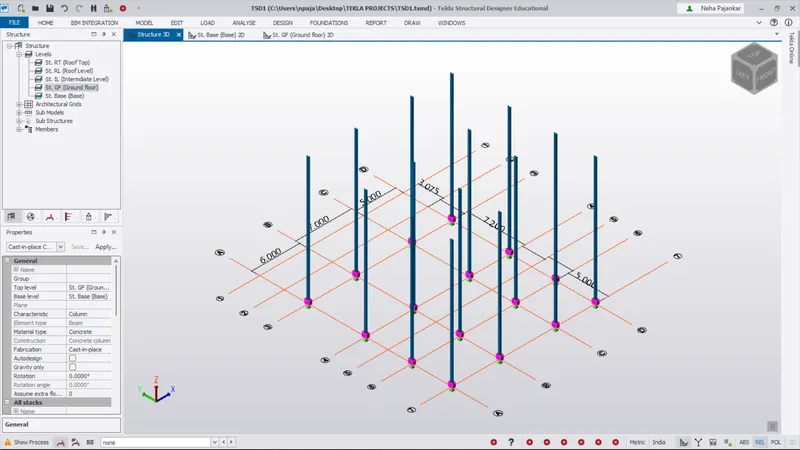

• Now open the ground floor plan < set the top restrsin as roof top
• go to model tab < select steel column < set the property set as SCI
• apply the column to the grid

RESULT:

hence, Created column properties for steel columns and model columns in the grid created as per assignment 1.

QUESTION: 3

Create beam properties and model primary and secondary beams on the ground floor

ANS:

AIM: To Create beam properties and model primary and secondary beams on the ground floor

PROCEDURE:

STEP: 1

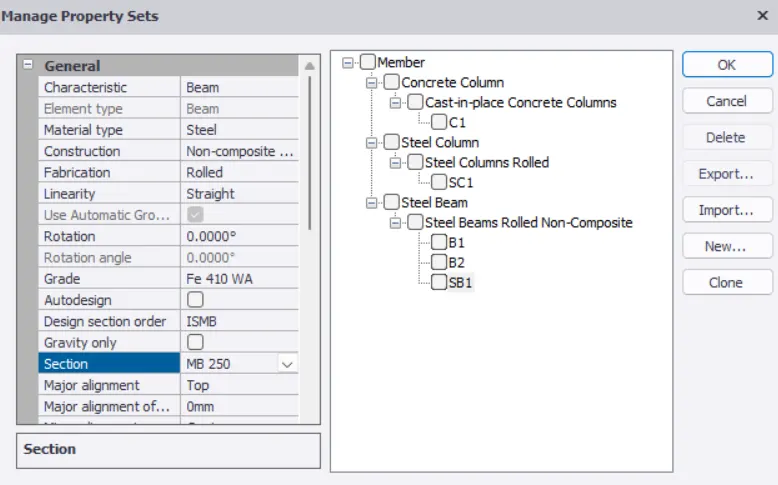

• Go to home tab , manage property sets
• Create new set < members < steel beam
• create diffrent setsof beam
• B1(MB300), B2(MB400), SB1(MB250)

STEP: 2

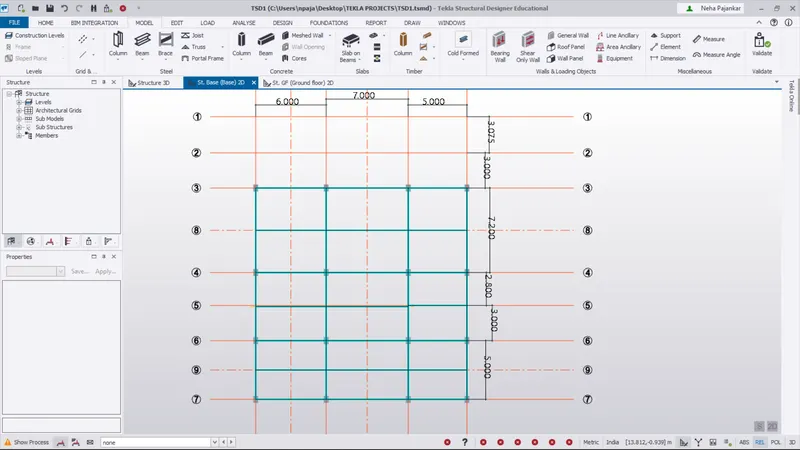

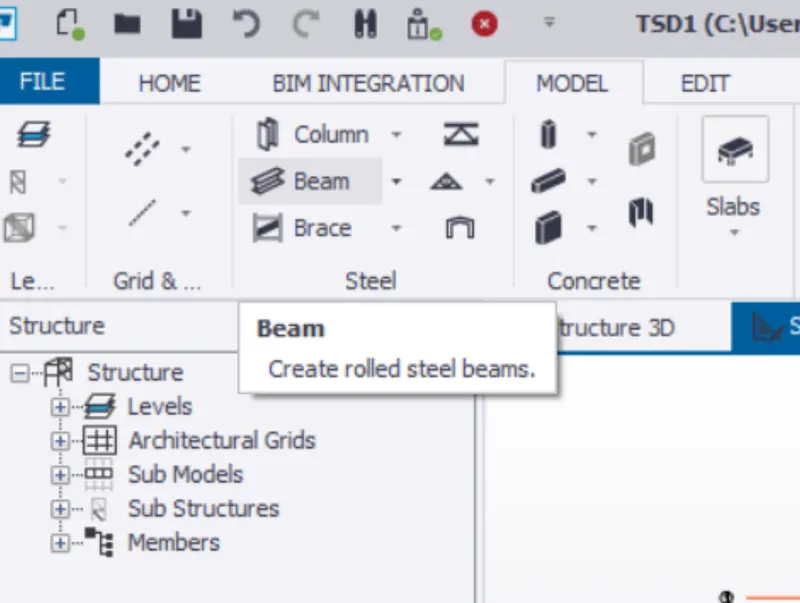

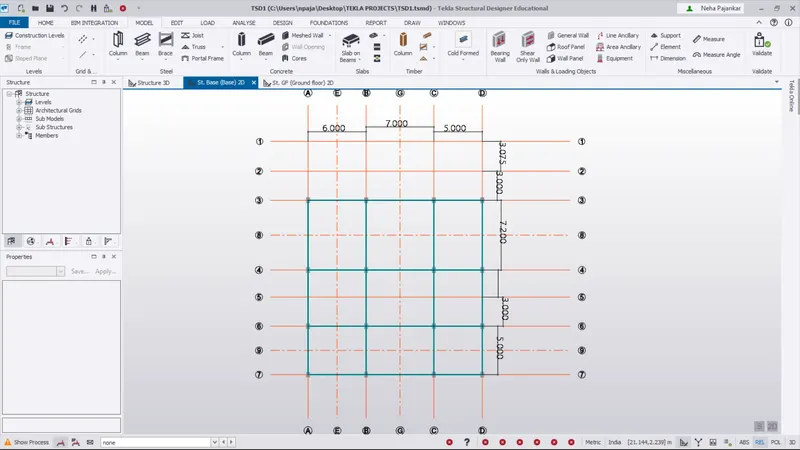

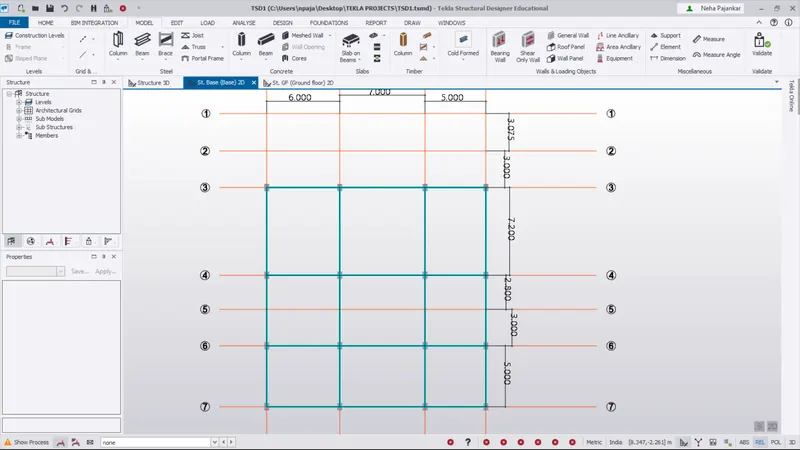

• Now go to the ground floor plan < go to model tab < steel beams
• select the beam as per the requirements (B3,B4 or SB1)

• draw the beam from grids to grids

STEP: 3

• For the secondary beams we divide the distance in not more than 4m
• using the construction lines we draw the line for secondary beams

STEP: 4

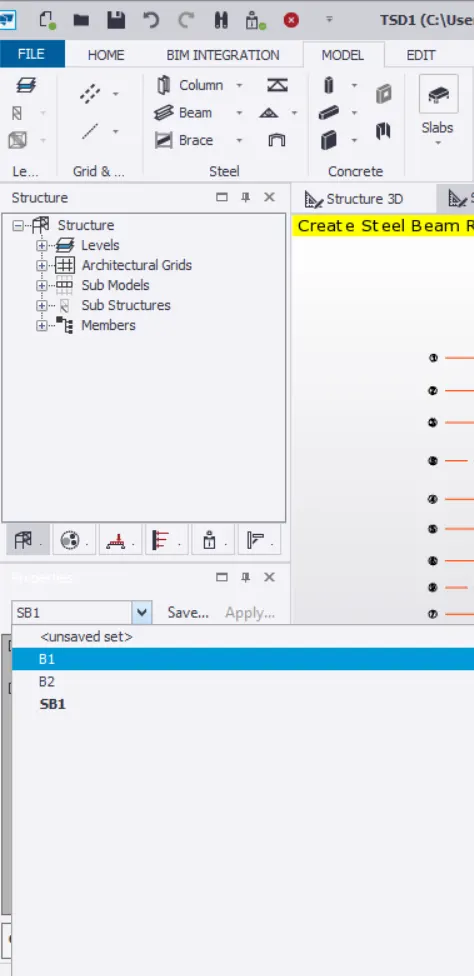

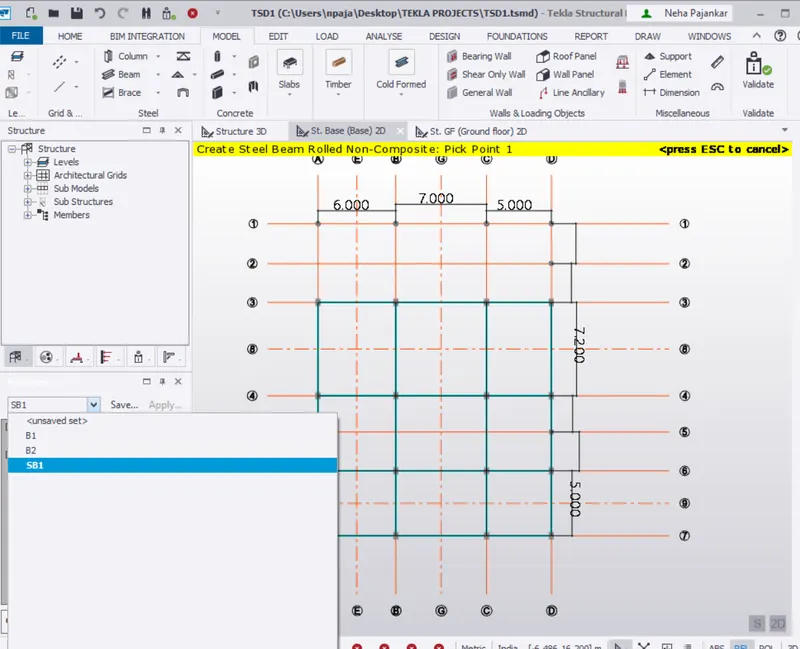

• Go to model < steel beam < select SB1 from the property panel

• Draw the secondary beams on grid as required

RESULT:

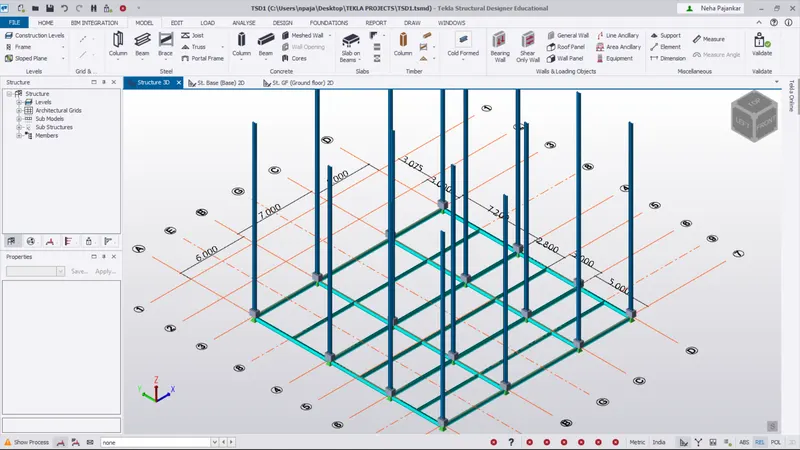

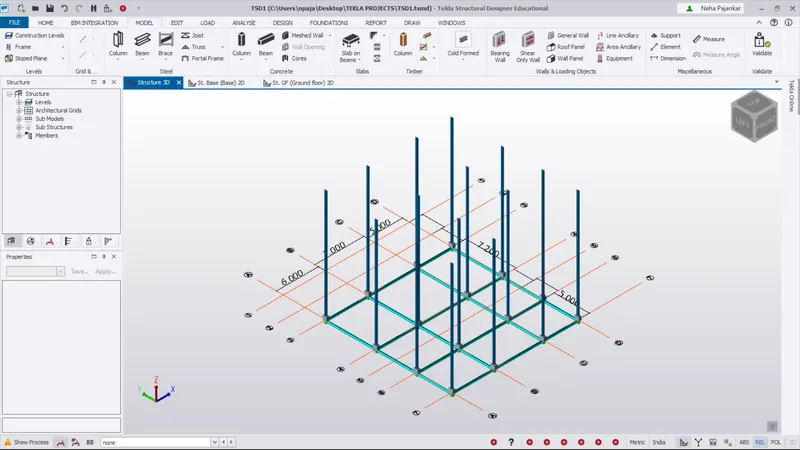

Hence, created the steel beam structure as shown below in 3D view.
