To Generate report for Steel Industrial and RC structures using TSD

Step 4:

1) Click Show Report

Step 5:

1) Go to report tab

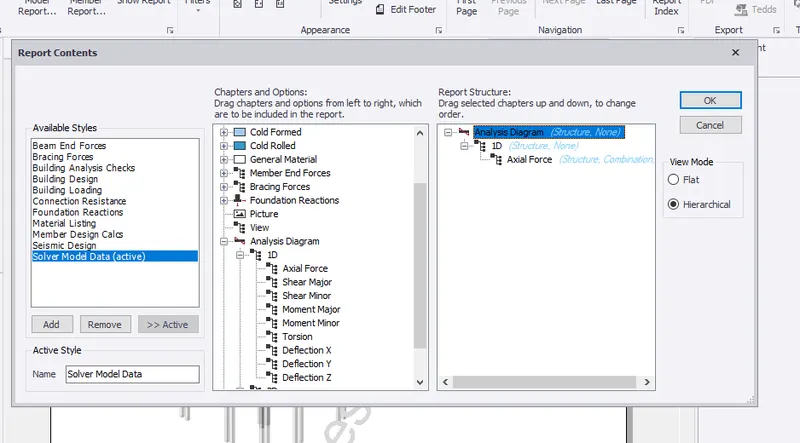

2) Select the Analysis diagram and choose shear force

3) Click ok

Step 6:

1) Click Show Report

Step 7:

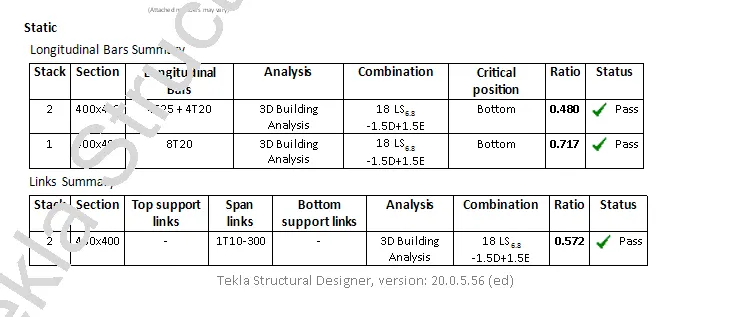

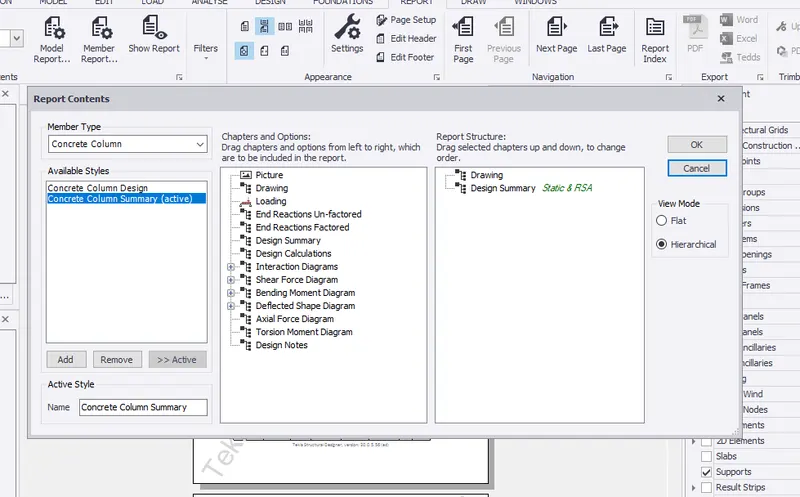

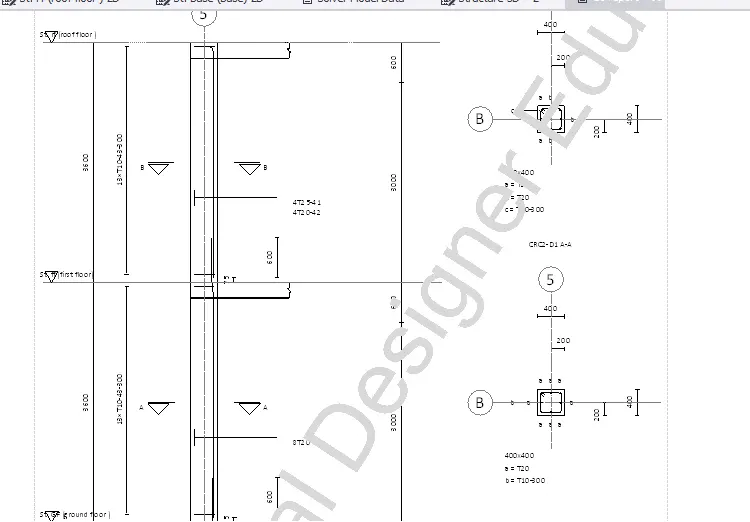

1) Click Show member report and select concrete column

2) Select drawing and shear for the particular member

Step 8:

1) Click show report

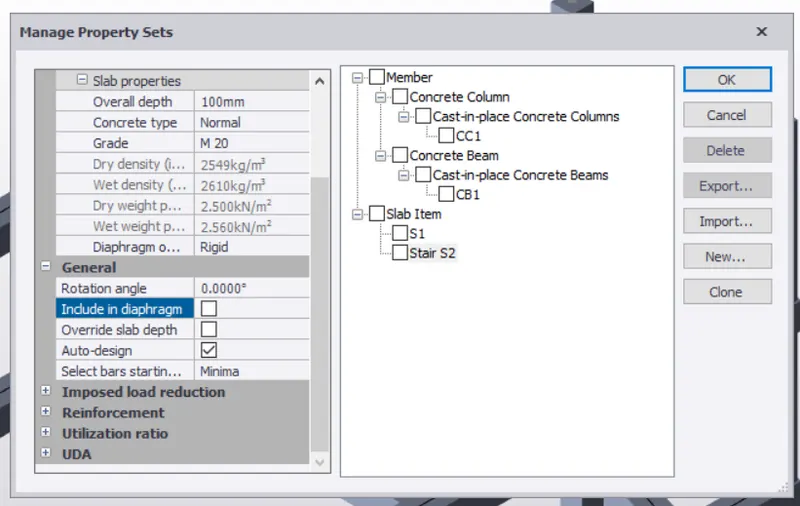

Manage Properties

->Slabs

->Properties tab

->Load

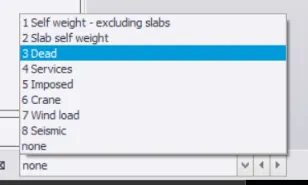

->Load cases

->Dead load

->Area

->Full UDL

->Line

->Validation

Calculations:

DEAD LOAD :

Slab load = Model slab in software.

Finishes loading (50THK) = 0.05m x 24 KN/m^3 = 1.2 KN/m^2.

Brick wall with cement plaster thickness = 150mm.

Unit weight = 20 KN/m^3

Floor height (GF to FF) = 5.2 m

Brick wall loading = 15.6 KN/m

Floor height (FF to Roof) = 6.8 m

Brick wall loading = 20.4 KN/m

Roof loading = 1.5 KN/m^2

Procedure:

• Firstly, open the file which was created earlier.

• Go to load tab and select load cases option under that, Load cases dialog box appears.

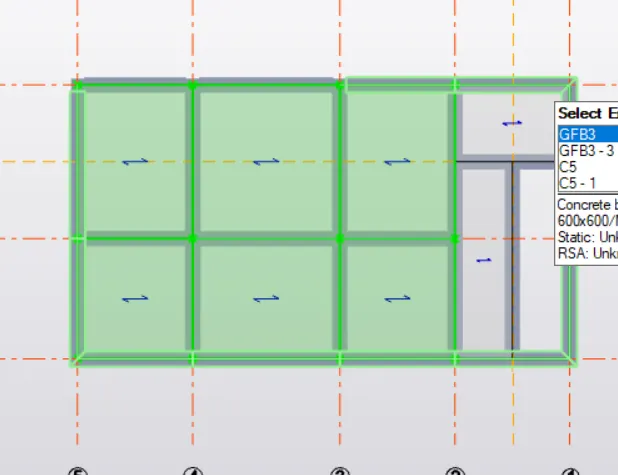

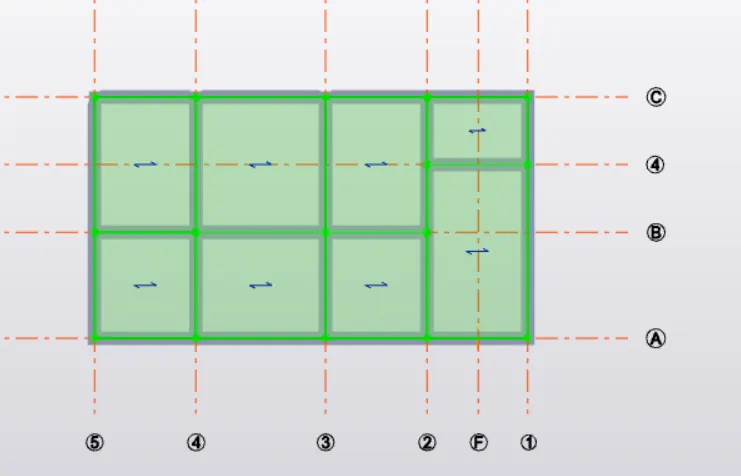

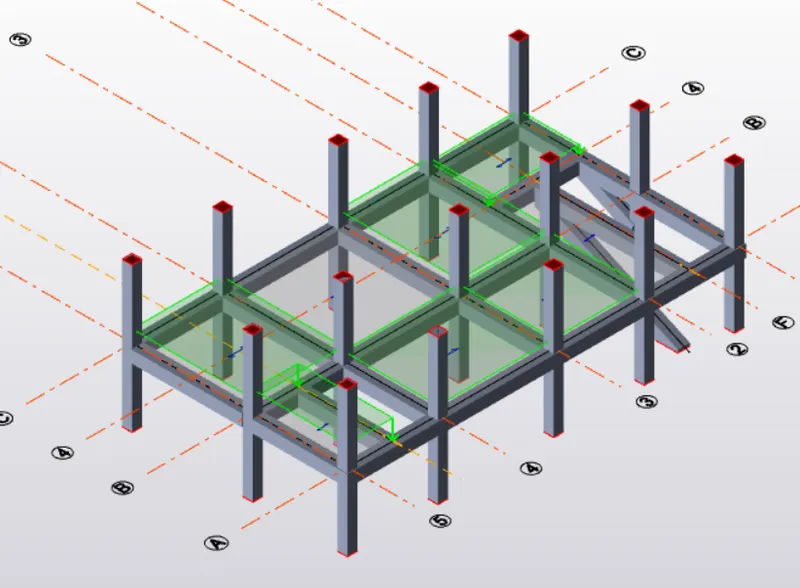

• Under load tab we have to select area and give the value of 1.2KN/m square, and select all the slabs.

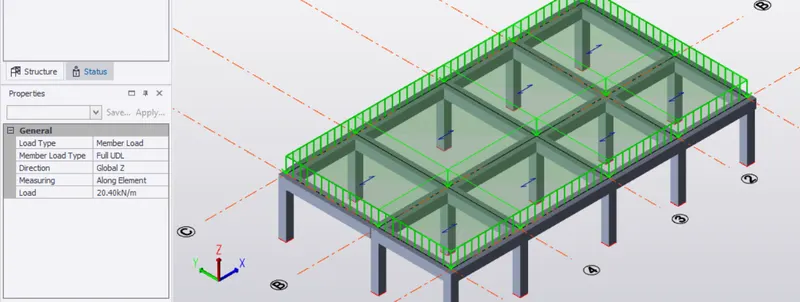

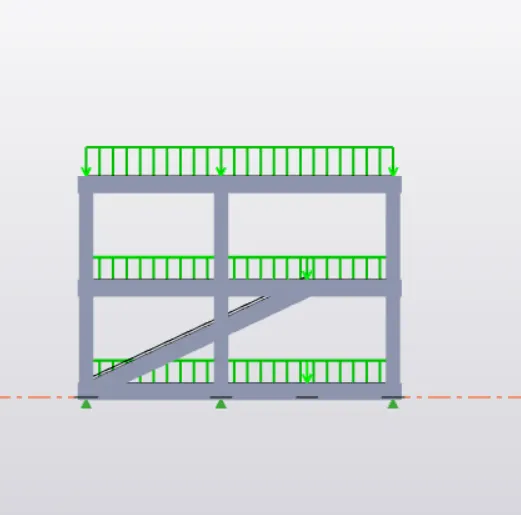

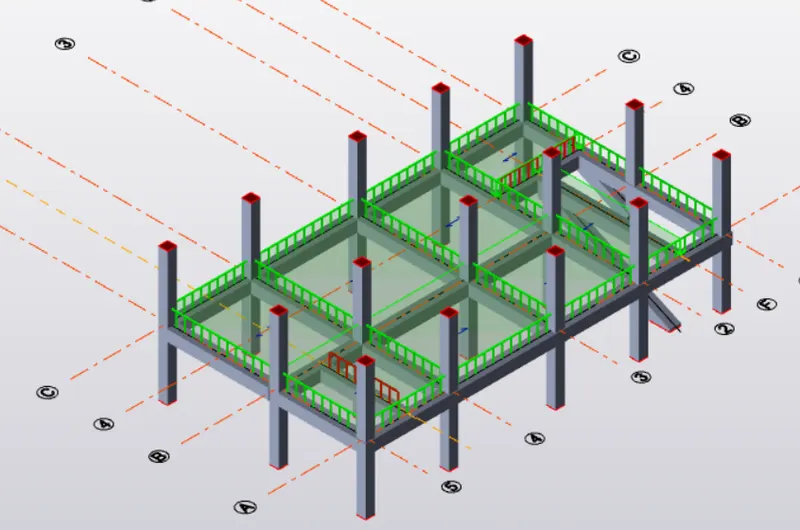

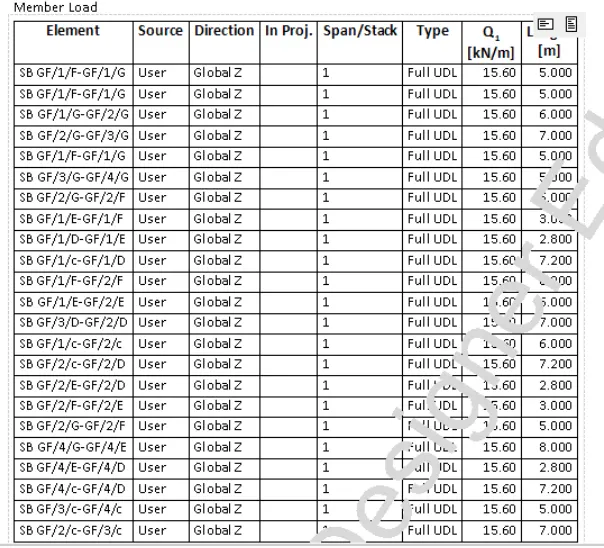

• Now we have to select Full UDL and apply the dead load to all the beams.

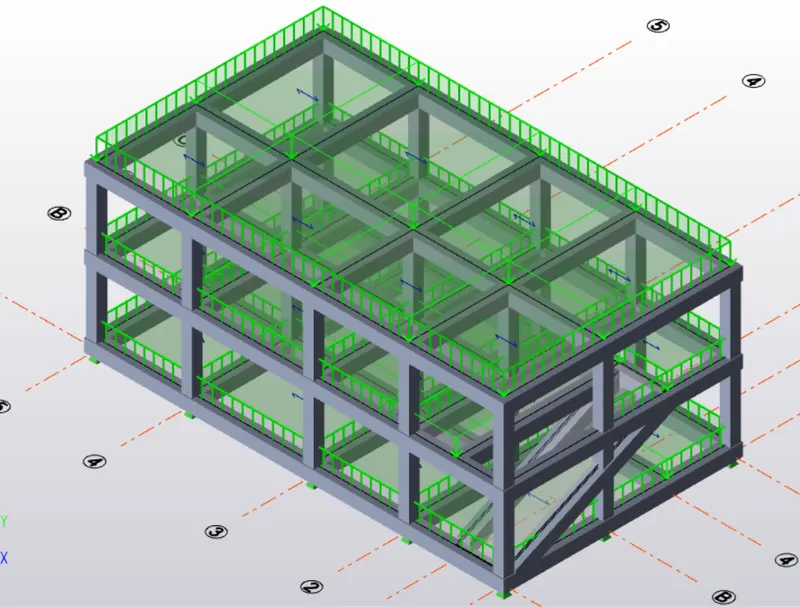

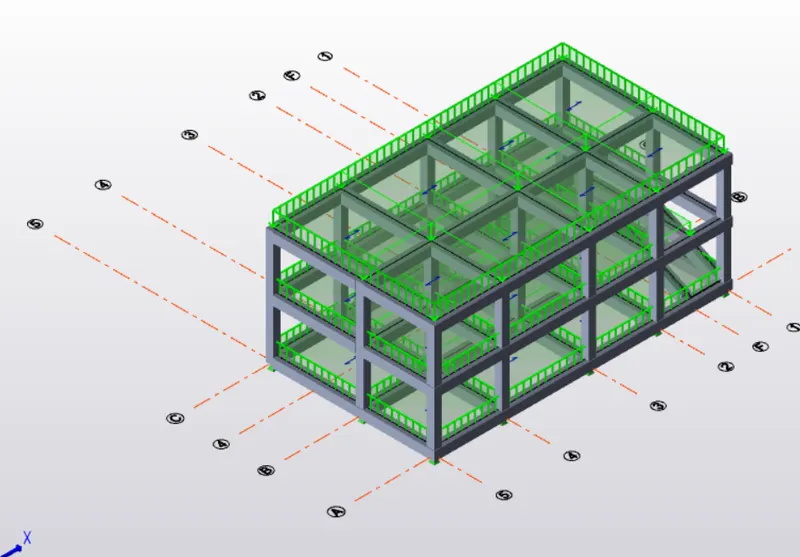

• Now select Line tool under load tab and draw the walls load in all the required floors.

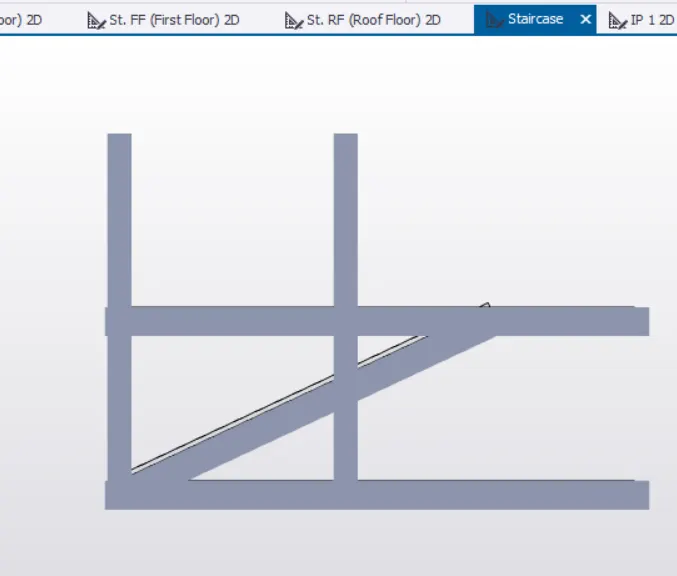

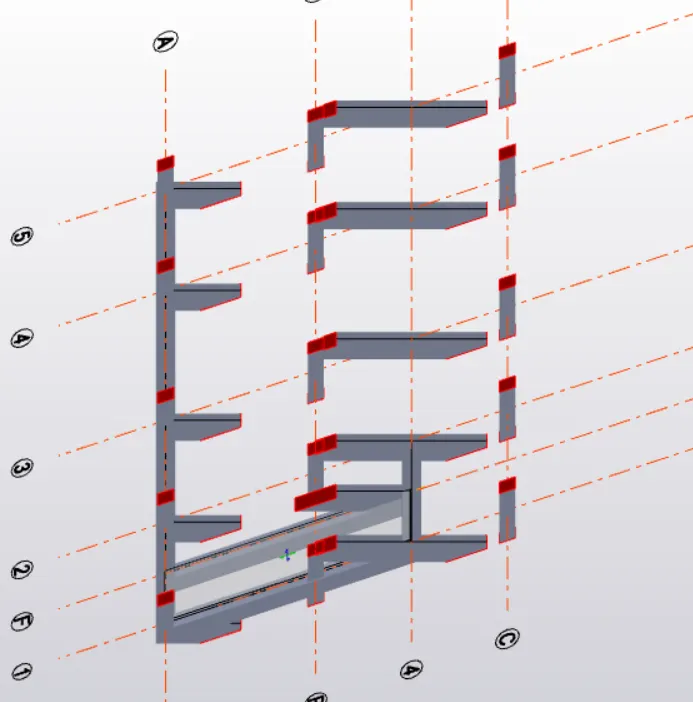

• Also design the staircase with the proper adjustments.

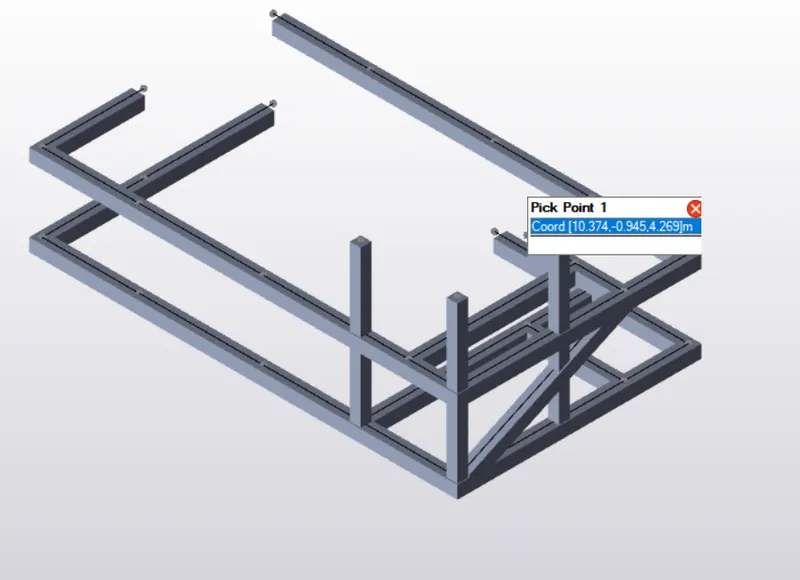

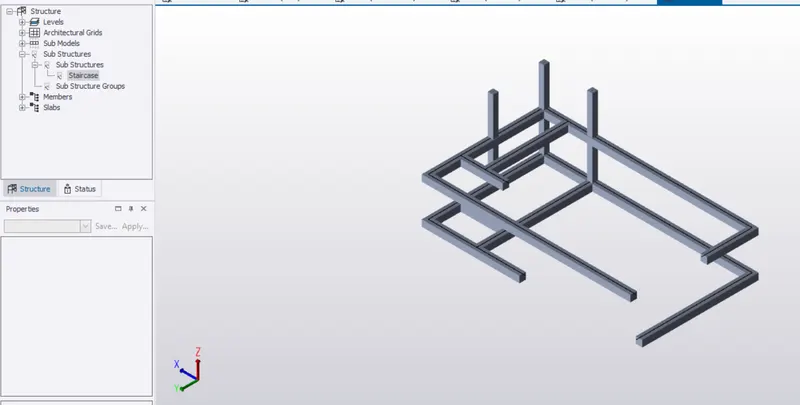

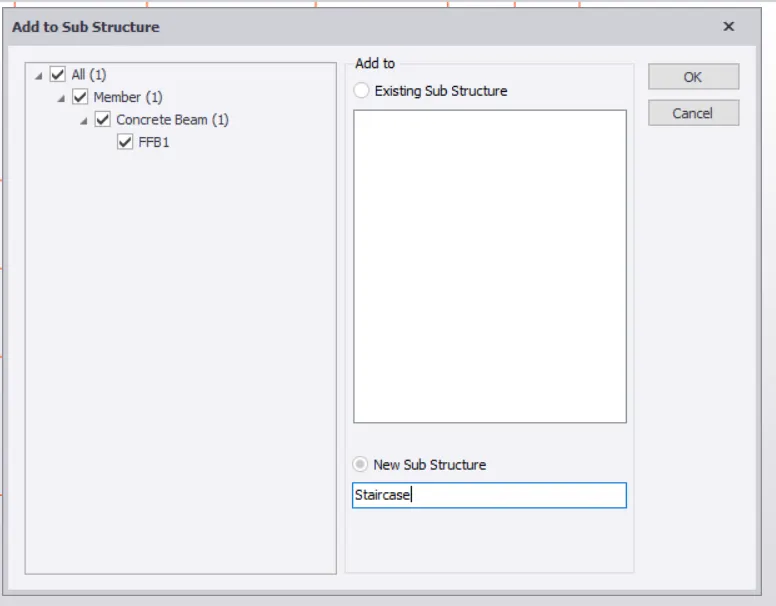

• To create stairs we need to select the components and make them all come under a substructure naming it as staircase.

• Now add the slope with the help of sloped plane option.

• Now create the slab and area load to the stairs also.

• Do not forget to validate your model every now and then as to check your errors and correct them.

Result:

Hence by following the above procedure we will be able to provide the dead loads to the slabs and beams for structure.

2)

AIM : To generate load summary report for the steel building design.

INTRODUCTION : Report commands are accessed from the report ribbon tab where we can customize model and member reports with specific content.

• MODEL REPORT : Create or edit chapters of the model report. Customisation to select particular level, frame, plane and substructure option is also available in model report.

Example : Structure, Analysis, Loading, Load cases etc

• MEMBER REPORT : Create or edit chapters of the member report

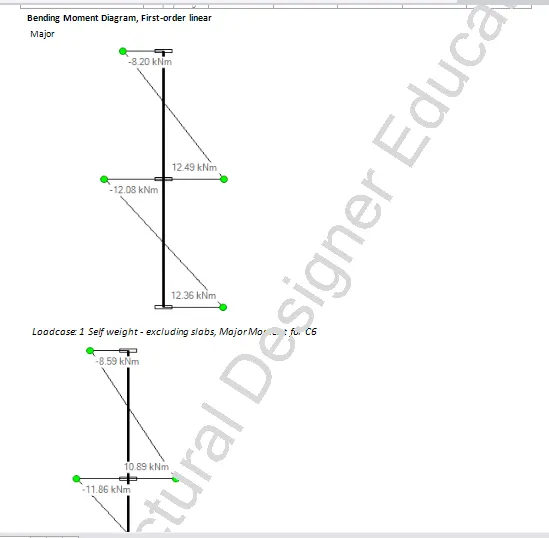

Example : Diagram and results of SFD, BMD, Deflections etc

• SHOW REPORT : Displays selected style report

PROCEDURE :

• Open steel building model
• First run analysis for the model

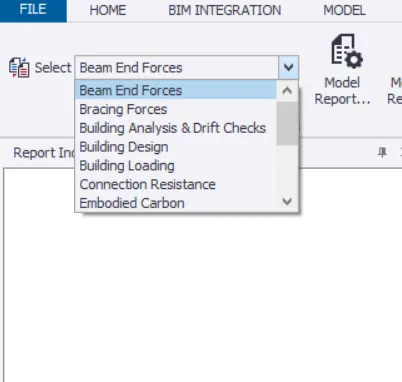

• Then go to report tab and select "Beam end forces"

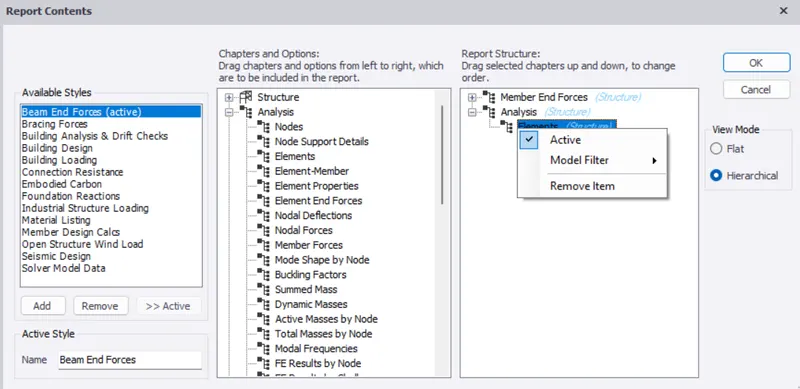

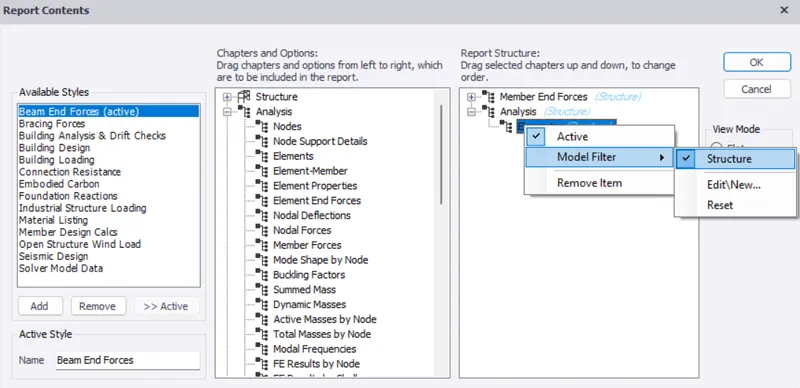

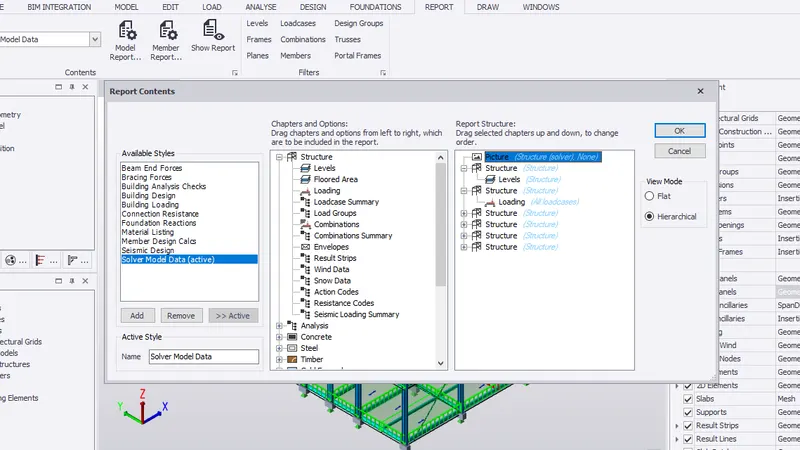

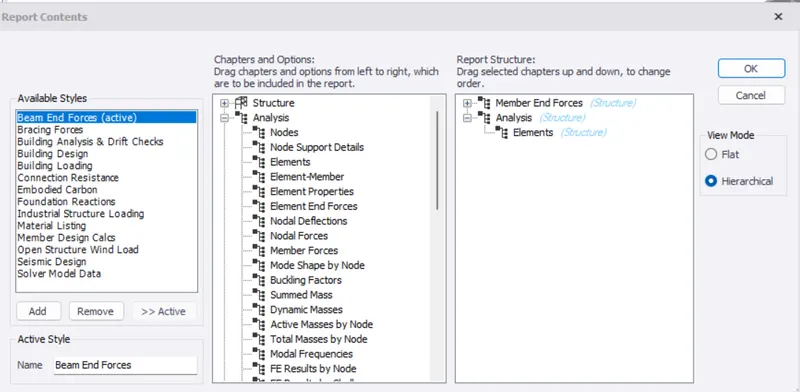

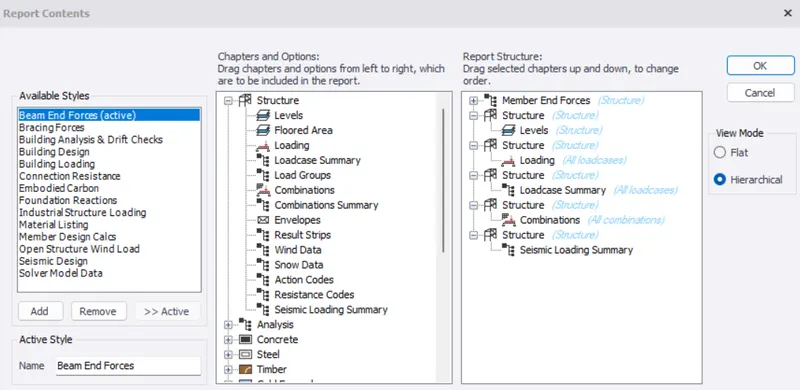

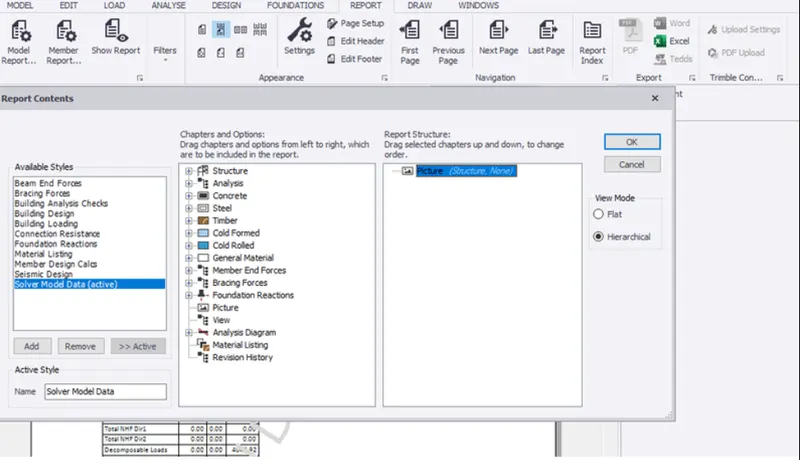

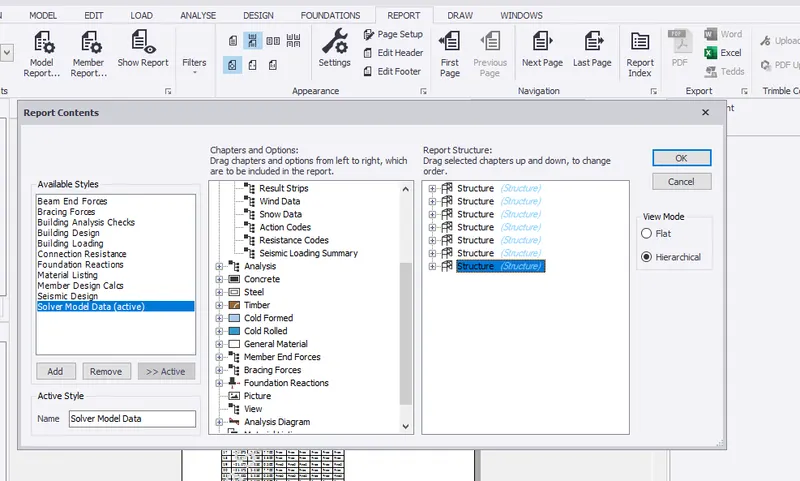

• Click on Model report settings and select necessary content for report generation

Example : For Beam end forces, In "Structure"
Select level, loading, loadcase summary, combination and seismic load

• Now select Show report
• Similarly generate analysis
• Click on Model report settings and select necessary content for report generation

Example : For Beam end forces, Analysis
Select element and move it to right side

• Right click and select Model Filter

• Select "Edit/New"

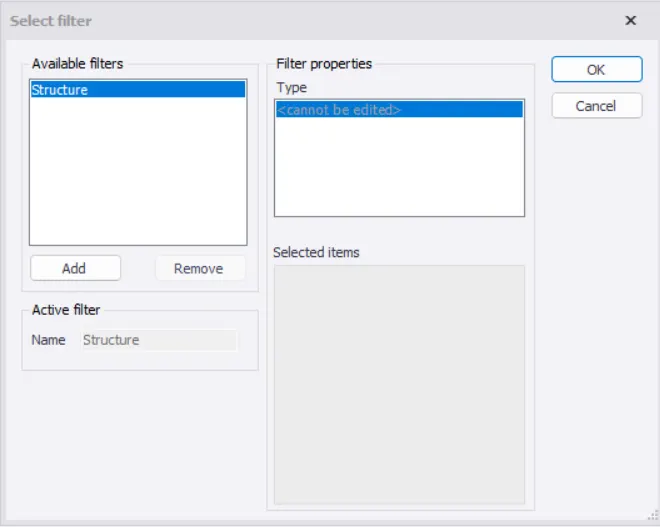

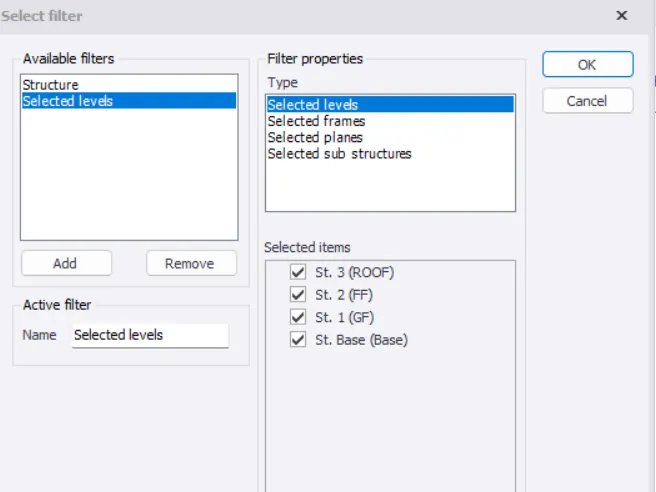

• We get a "Select Filters"

• Select "Add"
• Select the levels and click ok

• Firstly, open the file in which the live loads were added.

• Now at the bottom of our workspace we find imposed load option in the drop up dialog box.
• Now we can provide live loads to the structure by selecting the load and assigning the value for it according to the IS Code.

• Click on loads icon and select area option under that.
• The live loads for the structure can be obtained from the IS building standard codes.

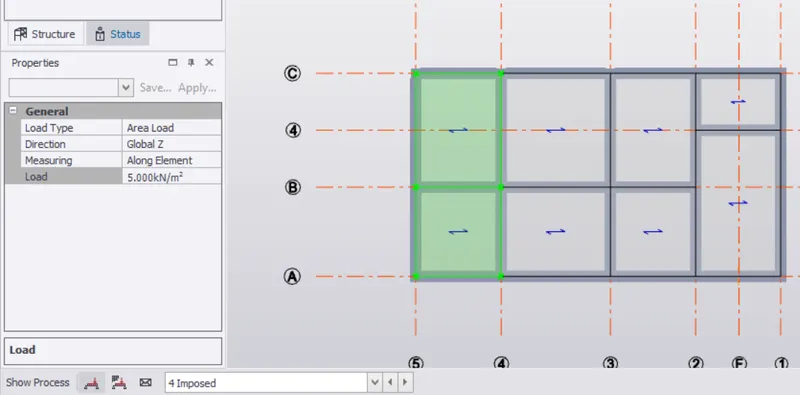

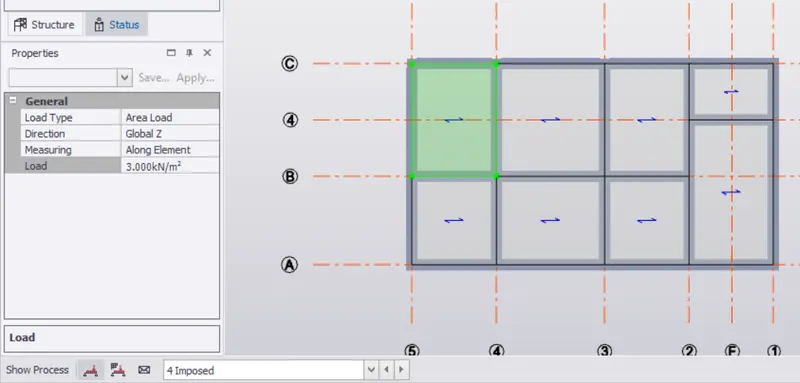

• Now under the property dialog box enter the required load for different room.

Store room = 5 KN/m^2

Office = 3 KN/m^2

Rest room = 2 KN/m^2

Meeting Room = 2 KN/m^2

Toilets = 2 KN/m^2

Pantry = 3 KN/m^2

Corridor = 4 KN/m^2

Equipment room = 10 KN/m^2

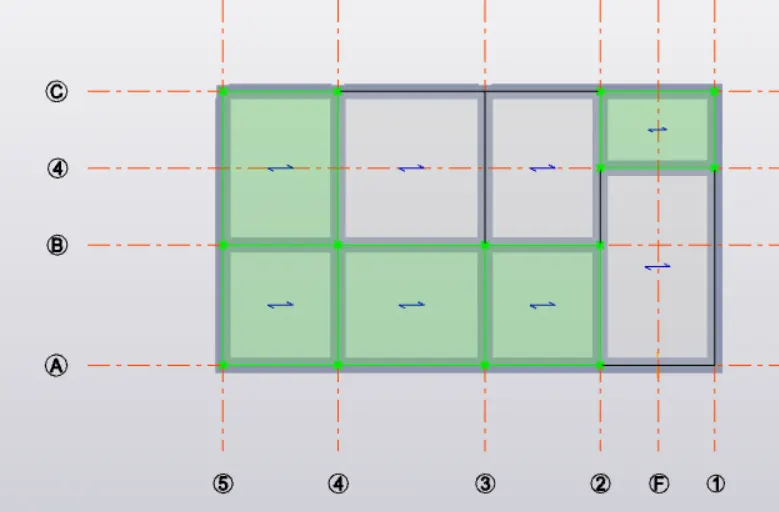

• Now set the loads with different values and apply them by clicking on the respective slabs.
• Now repeat the same process for all the remaining levels that is for the first and to top of the roof level.

• Do not forget to validate your model every now and then as to check your errors and correct them.

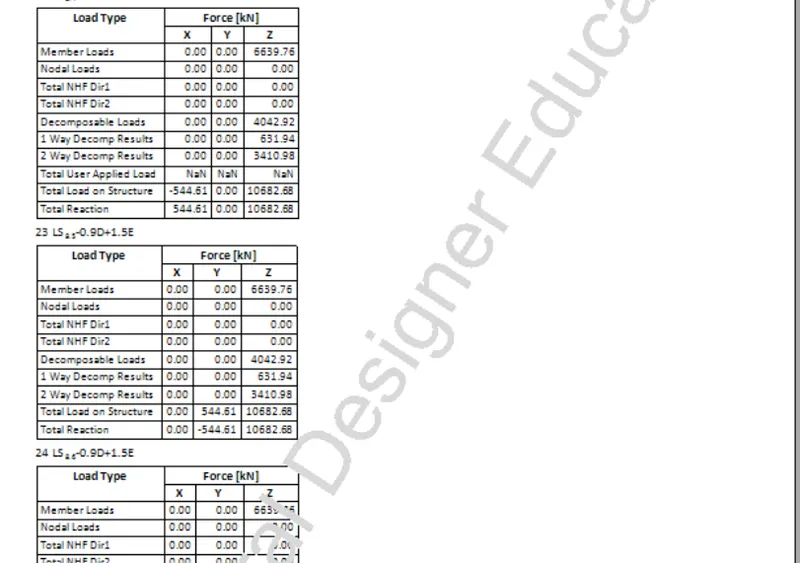

RESULTS :

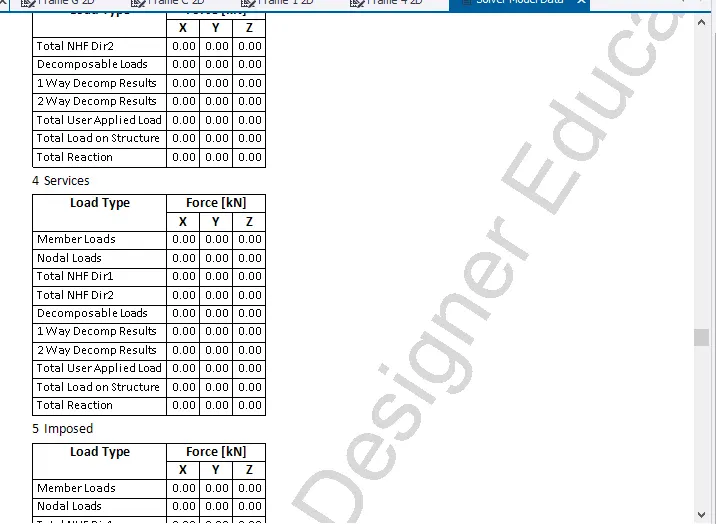

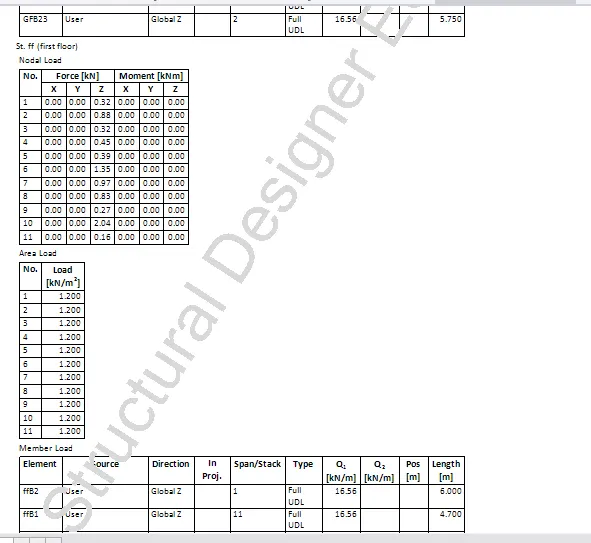

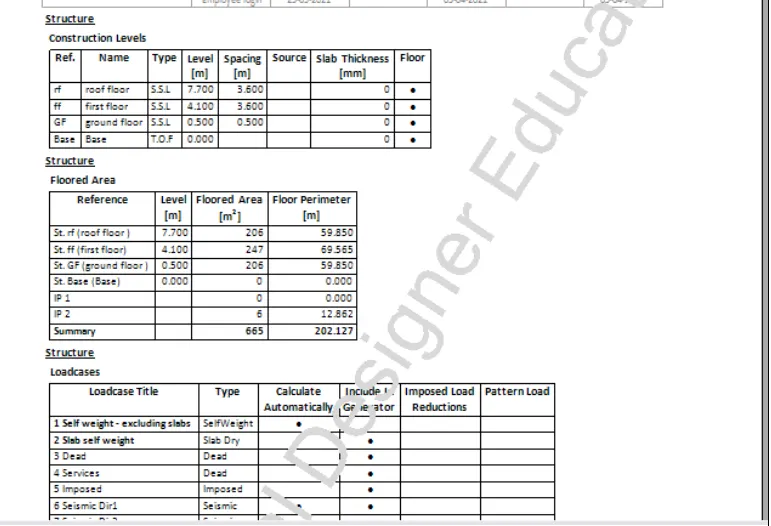

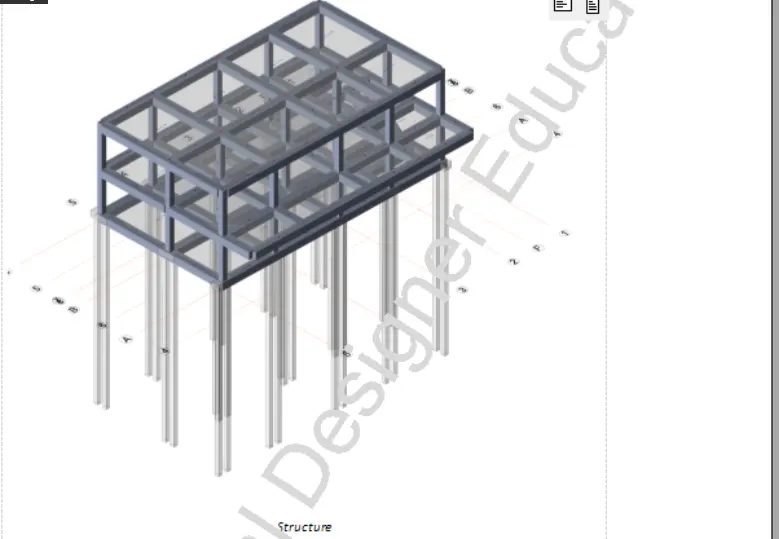

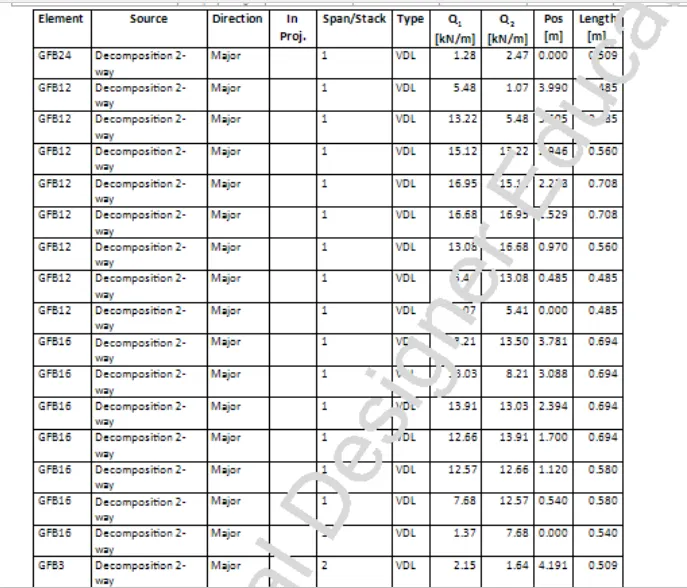

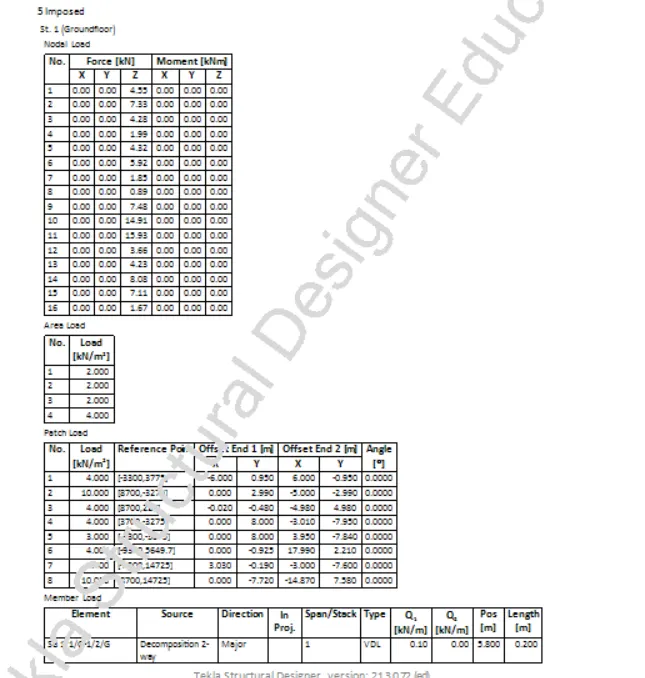

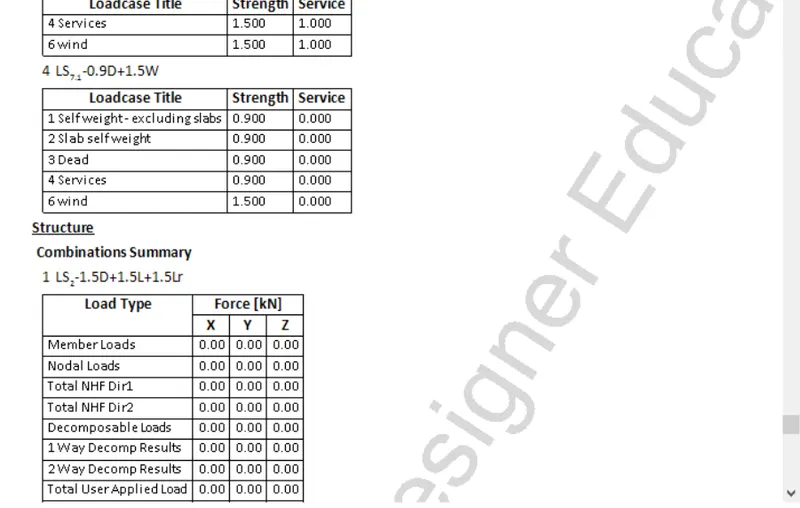

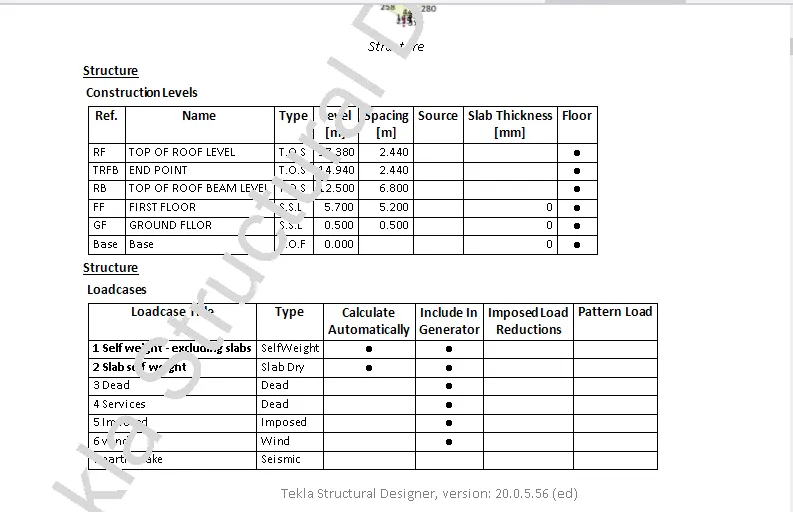

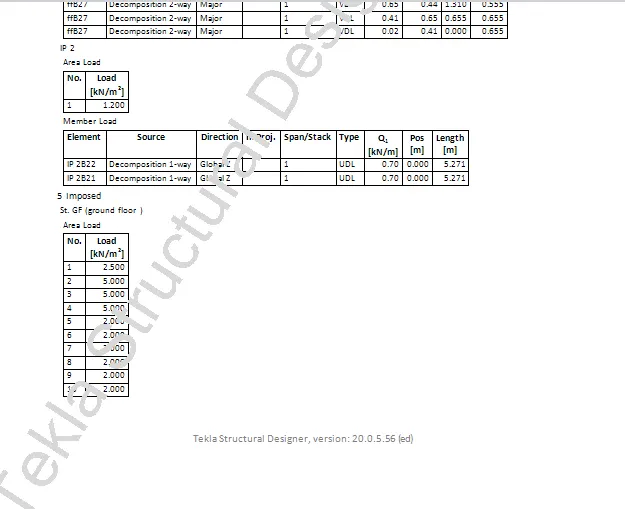

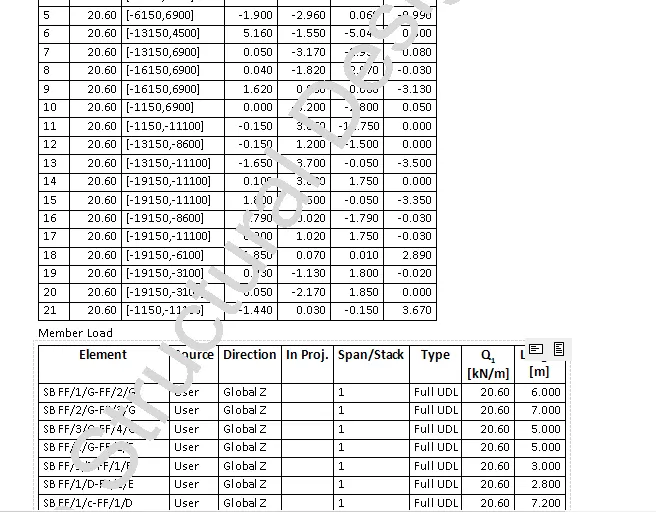

Structure report( For few members)

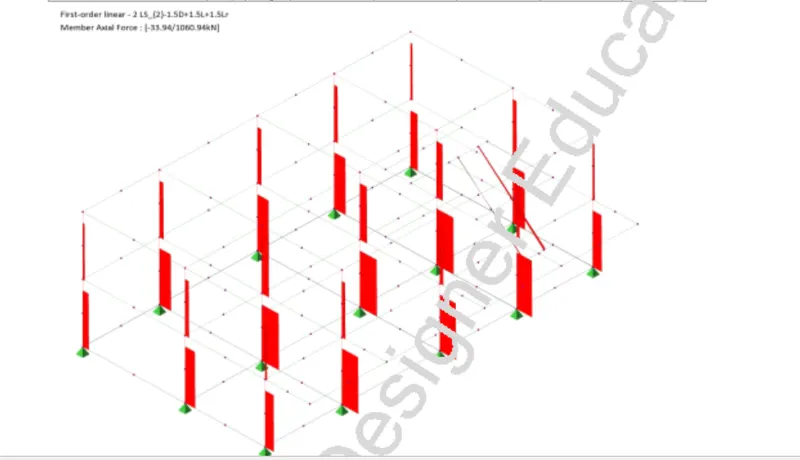

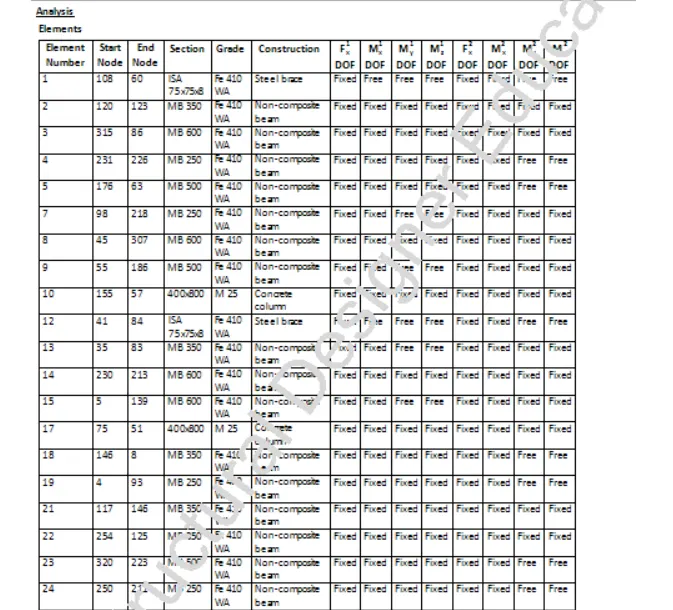

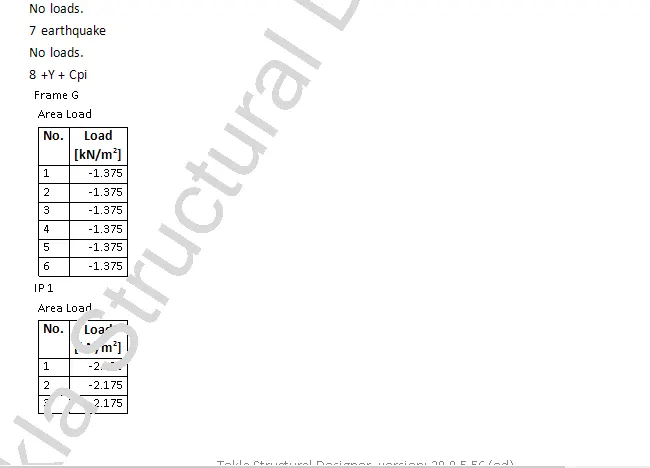

• Analysis report( for few members)

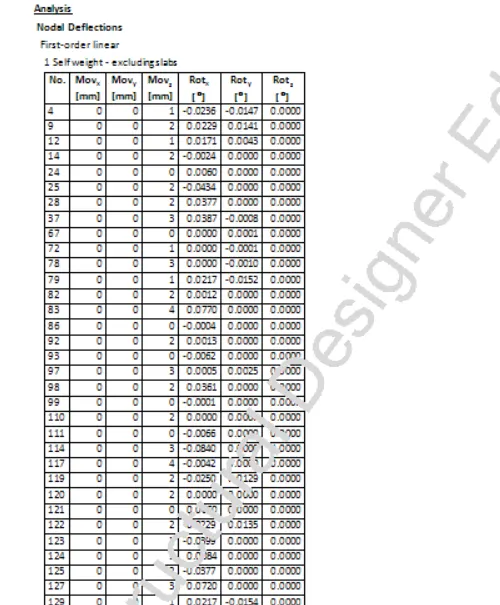

• Nodal deflections

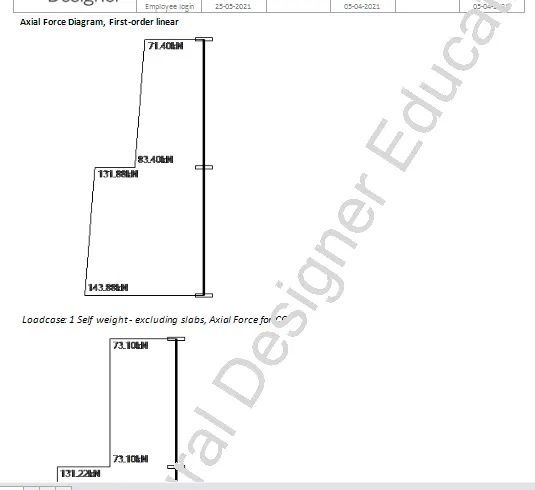

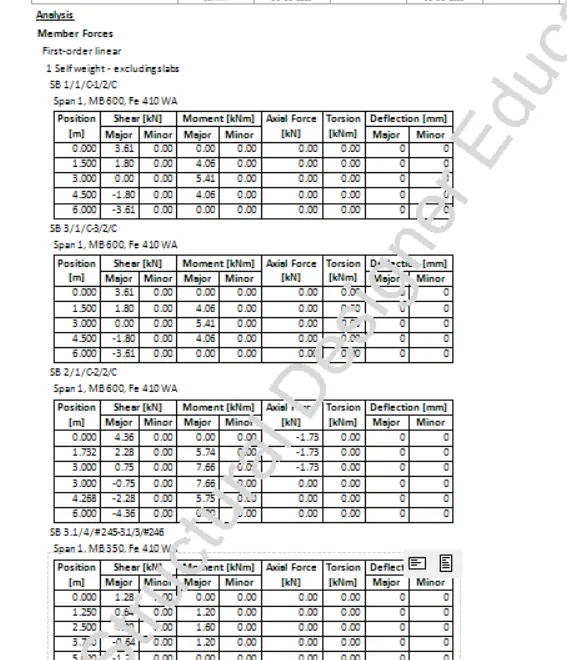

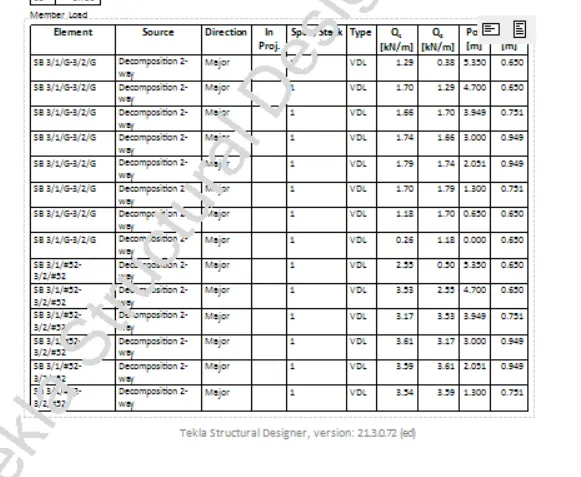

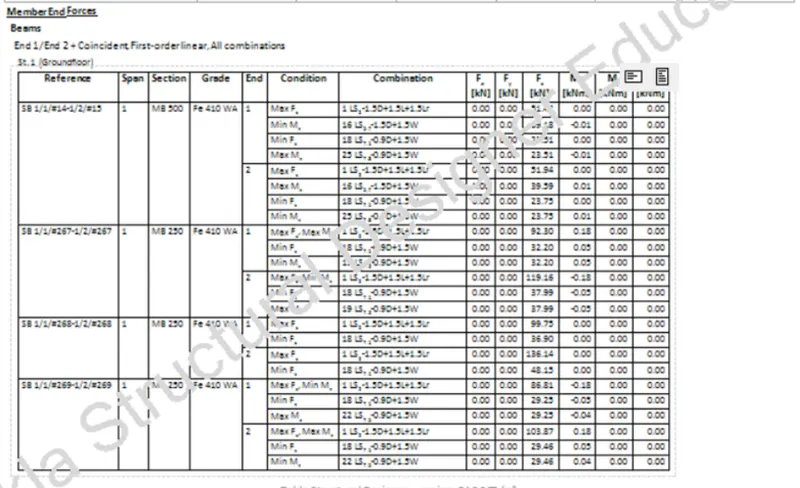

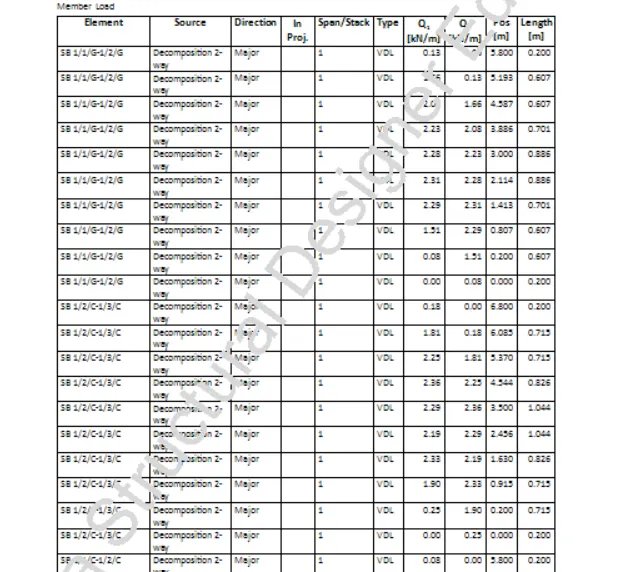

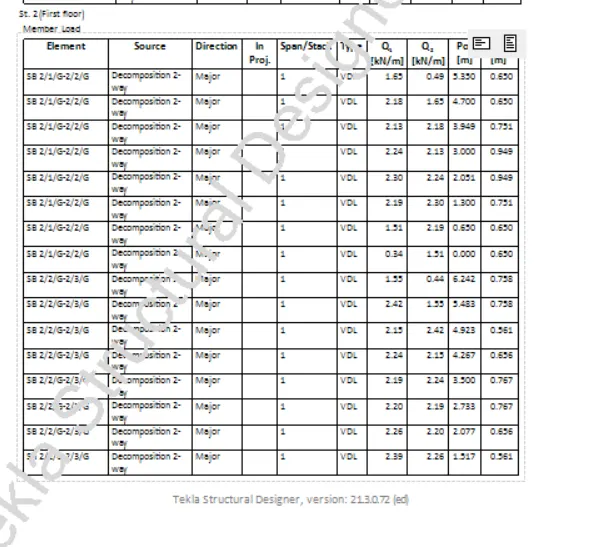

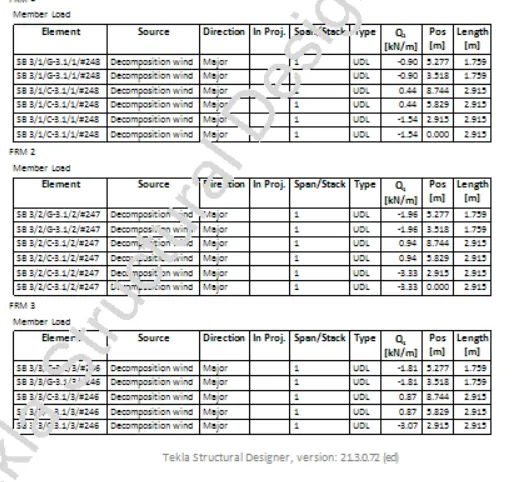

• MEMBER FORCES REPORT

3) Update the layers settings in the model and generate plan drawings and details from the model

AIM :

• To Update the layers settings in the model and generate plan drawings and details from the model

INTRODUCTION :

• An analytical report is a business report for stakeholders to determine the best course of action.
• For instance, a CMO might review a business executive analytical report to identify a specific issue caused by the pandemic before adapting an existing marketing strategy.
• With Tekla Structural Designer, analysis, design and BIM form an integrated, automated process.
• Regardless of material or project type, structural analysis and design proceed simultaneously.

PROCEDURE :

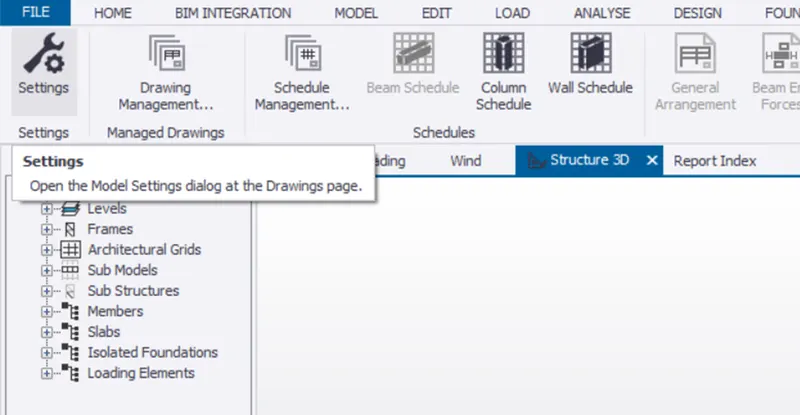

• Go to the setting under draw tab

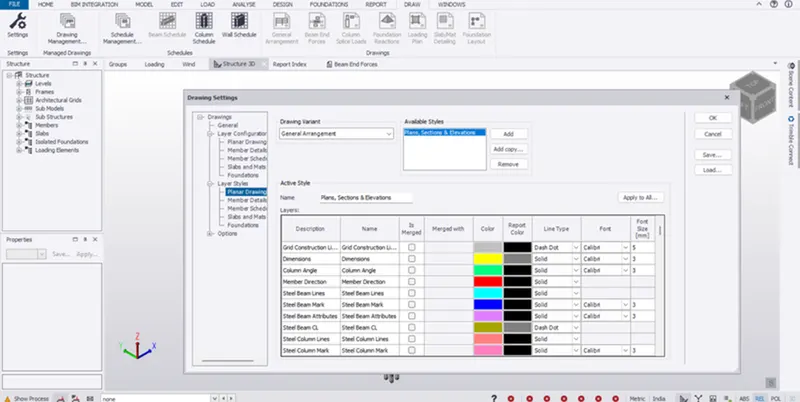

• Next go to the layer style
• And modify the colours on it

RESULT :

• To Update the layers settings in the model and generate plan drawings and details from the model as been completed
