To Design slab and foundation for an RC residential building using TSD

1)

Aim: To design the slab and foundation of the model

Procedure :-

Step 1

• Open the previos Model where we have designed column beam.

• Again Run the 1st order analysis.

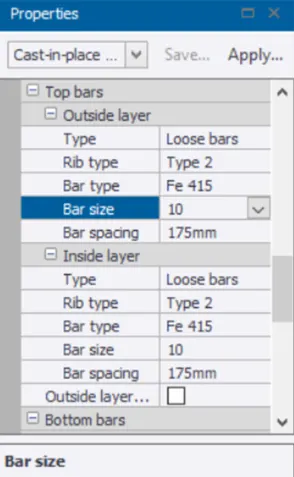

• But Before that change the following properties of slab.

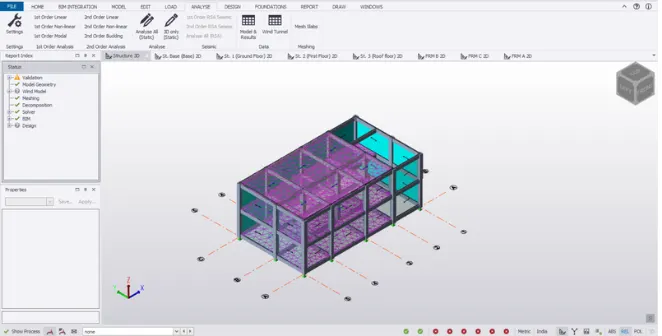

• Click on 1st order Analysis - Result View.

Step 2

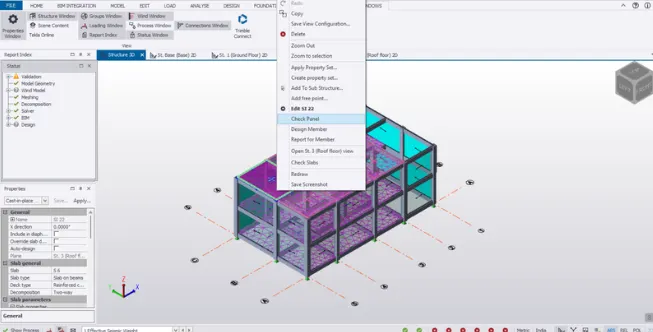

• Select the any slab and Right Click on it.
• Click on Check Panel.

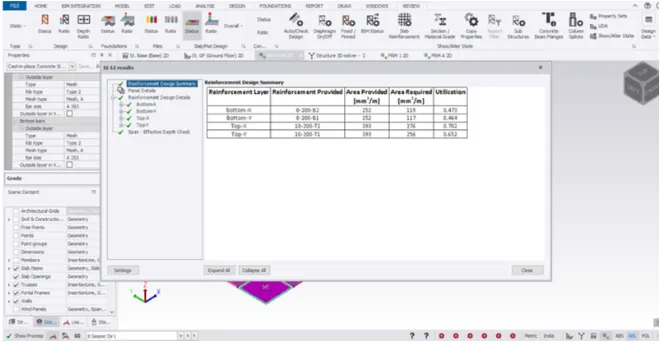

• Check the Design i.e Reinforcement at bottom and Top.

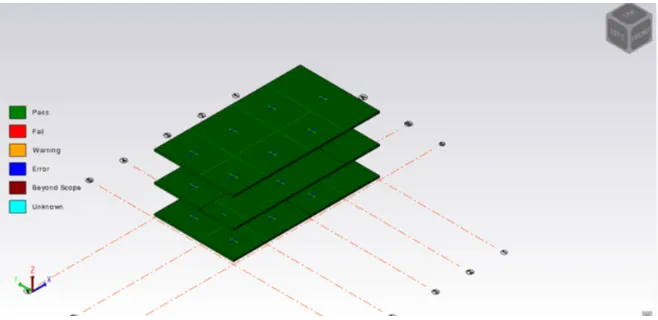

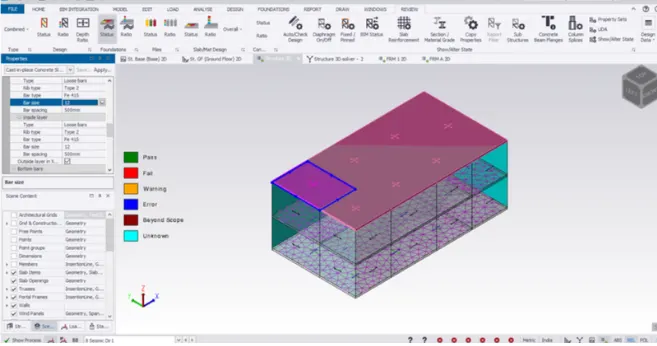

• Here we can see that Slab 12 is passed . So no need to change the property of slab.
• Similarly Follow the same procedure for other members also.

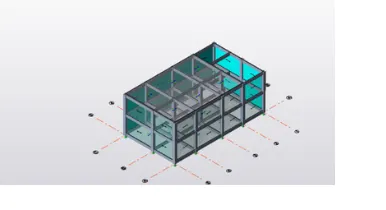

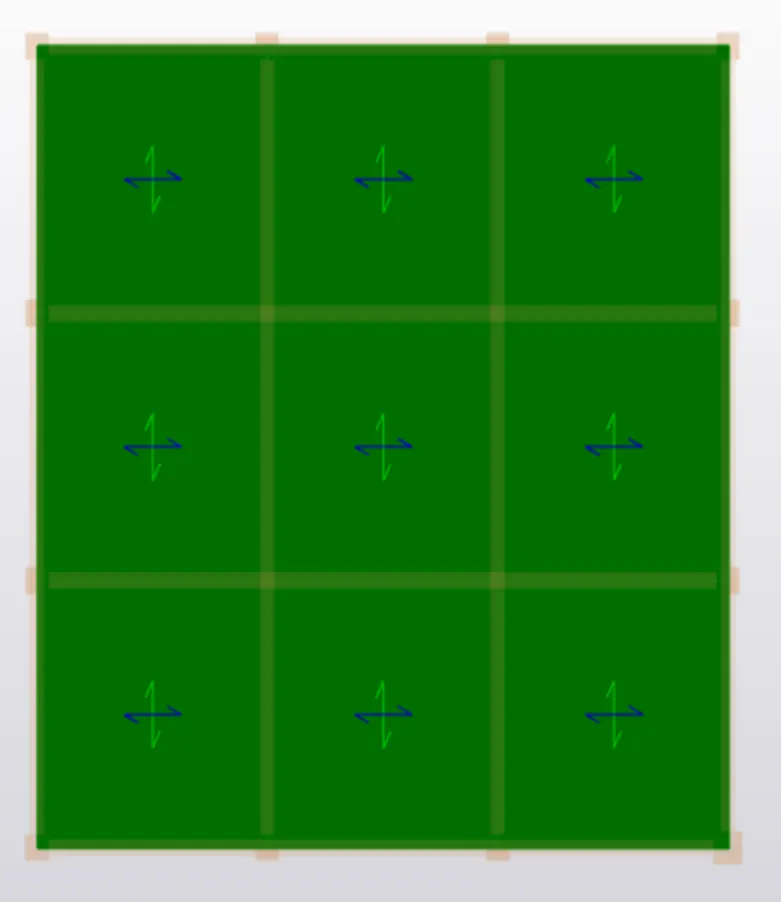

3D view :-

Step 3

Design of Foundation :-



• Once the slab is designed .
• Now we have to design the Footing.

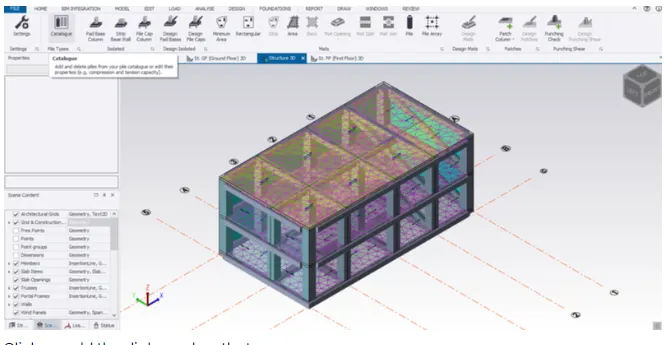

• Click on Foundation - Click on Catalogue .

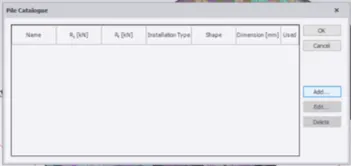

• A following dialog box will appear.

• Click on Add.

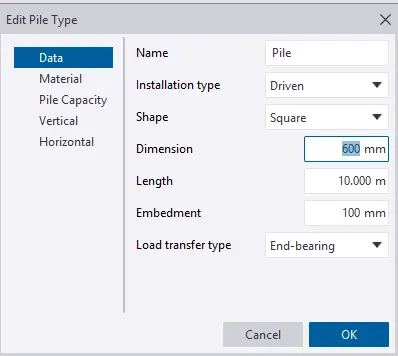

• Add the following details.
• And Click on Okay.

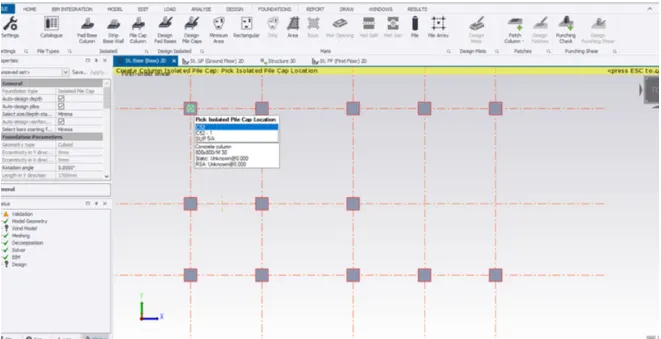

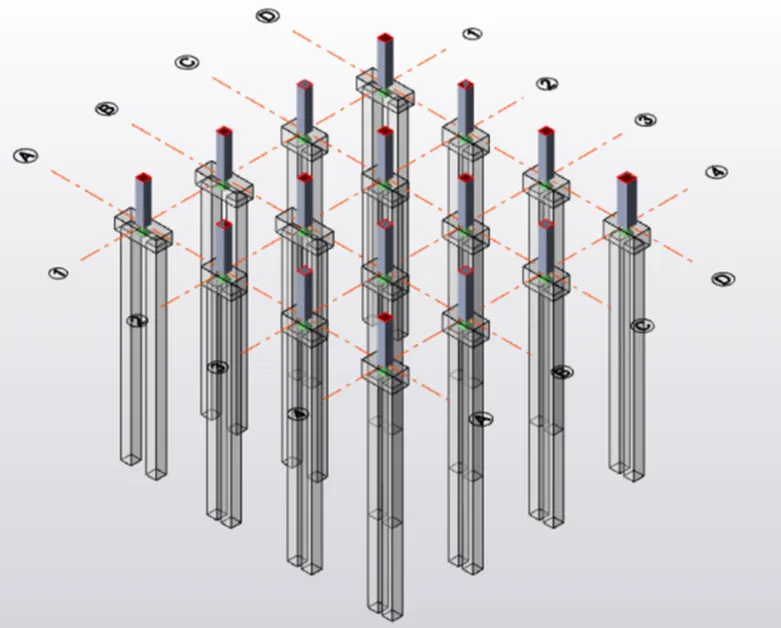

• Now Click on Foundation - Pile Cap Column - and Select the column.

• Again Check the model and Analyze the model.

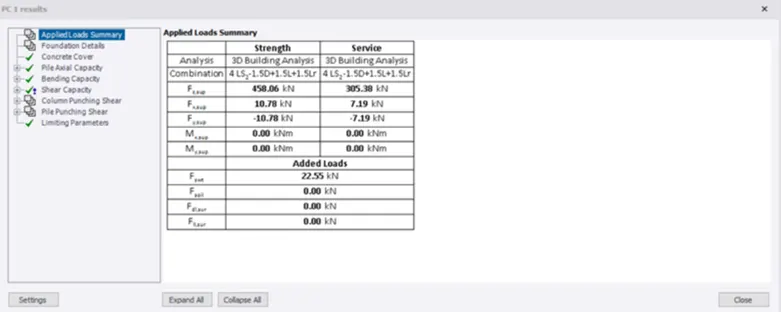

• Now right click on pile cap and Check the design
• If member is failed in shear increase the depth of footing.

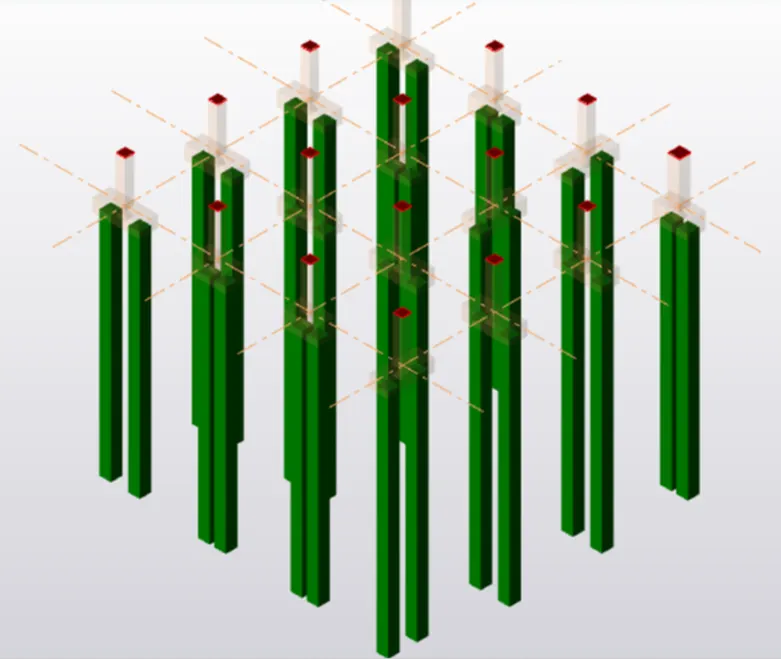

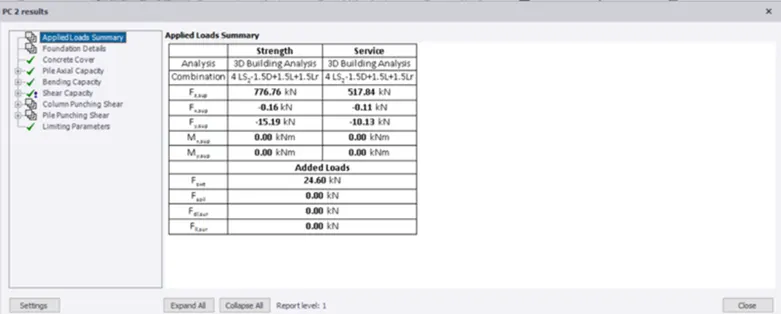

• As we can see that PC 1 and PC 2 are passed. Similarly we can design remaining members also.

Result :-

• The pile foundation is analyzed and designed for model.
