To Design RC column and beam for RC residential structure using TSD

Que :- 1. Based on the analysis design RC column and beam.

Ans :-

Aim : To Based On The Analysis Design RC Column And Beam

Introduction :-

An Ordinary reinfrced Concrete Beam Or The Column Itself Is An Inhomogeneous Section Composed Of Concrete And

Reinforcement , Whose Behavior Is Totally Different.

A Reinforced Concrete Column Is A Structure member Designed To carry Compressive Loads , Composed Of Concrete With An

Embedded Steel frame To provide Reinforcement.

Procedure :-

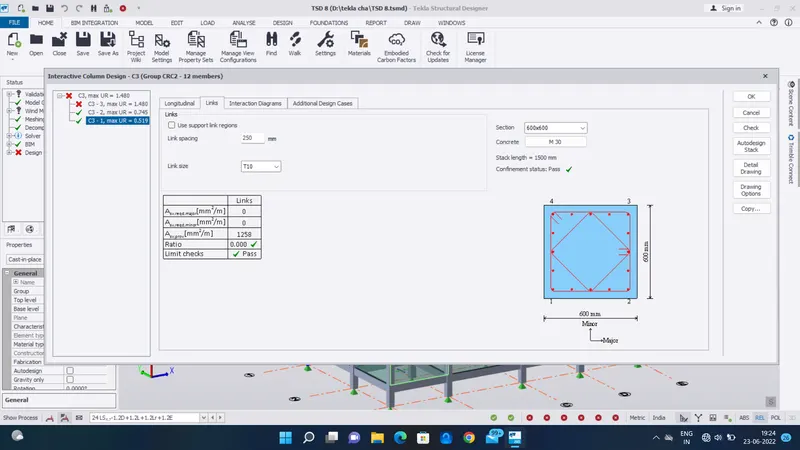

DESIGN THE COLUMN :

- Open The Tekla Software And Open Previous File

- After Analysis The Model

- Select The Column Andright Click

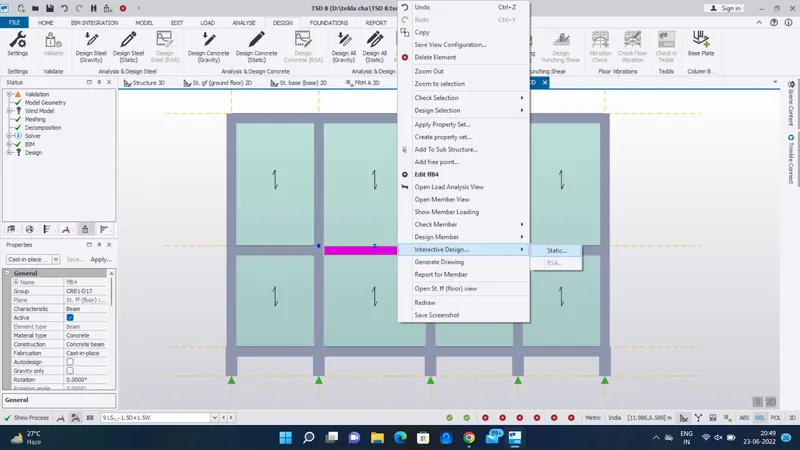

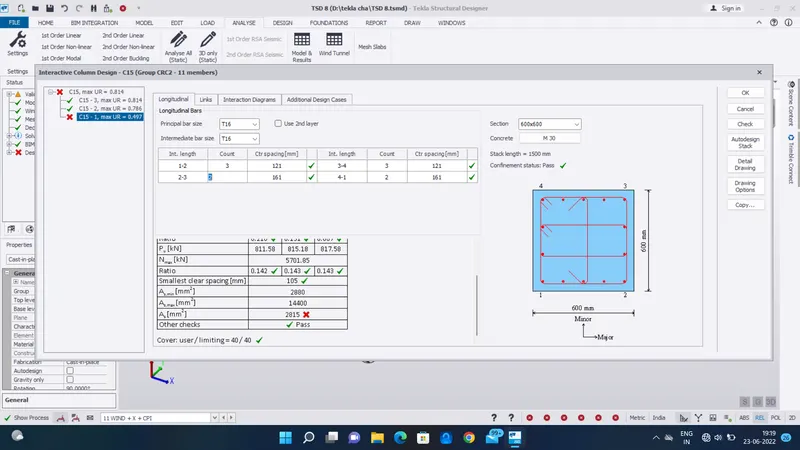

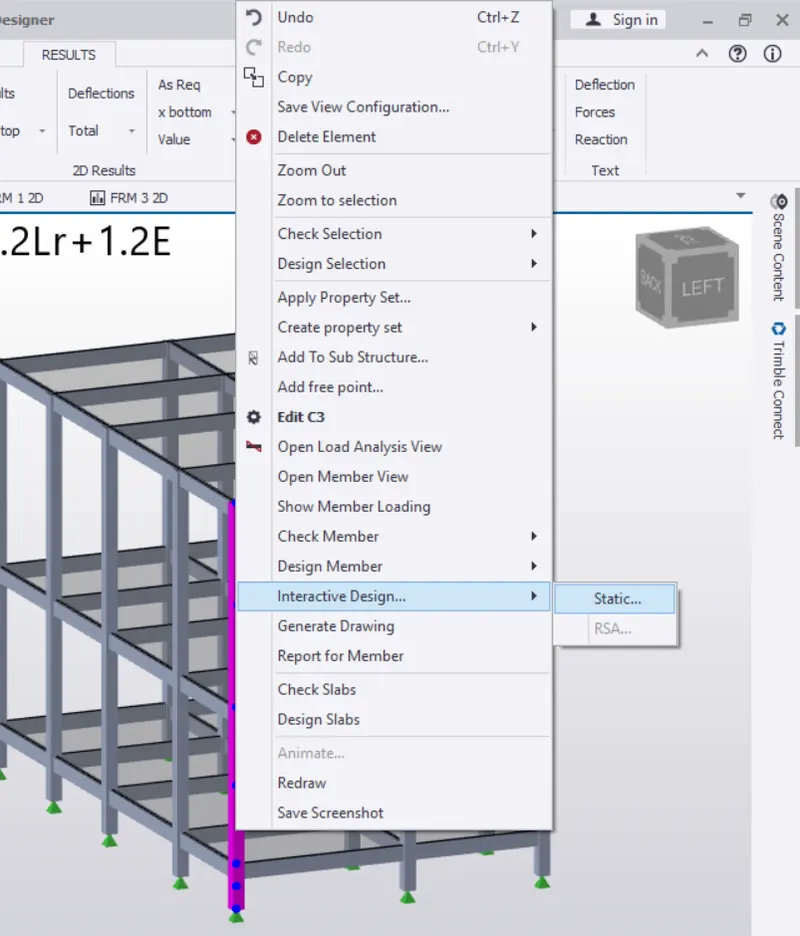

- Select The Interactive Design - - > static

- First We want To Check The errors

- And They Have Any Errors Shown

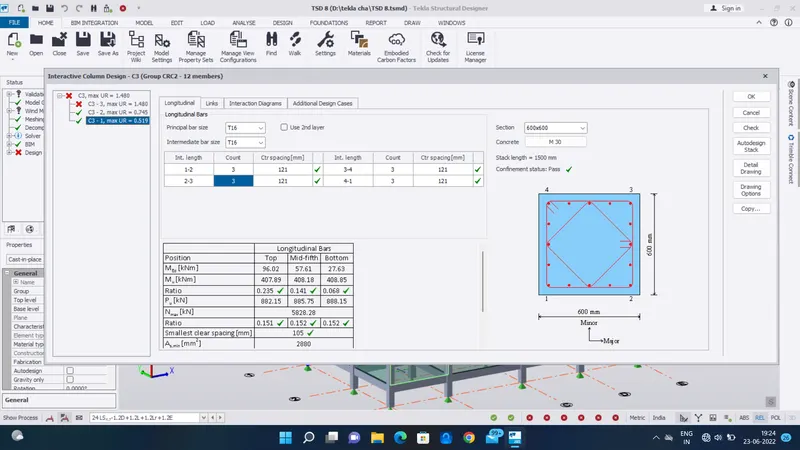

- First Change The Principle Bar Size And Intermidetate Bar Size

- Again Shows Errors Means Just Change The Counts

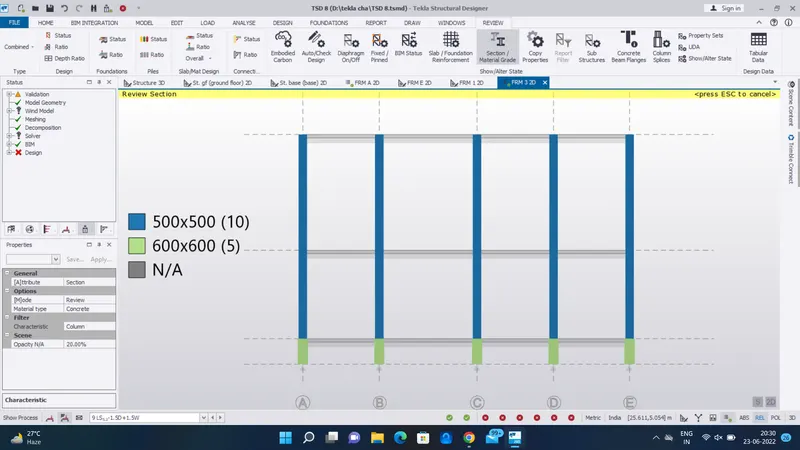

- And Again Shows Errors Change The Section Size

- Repeat The same procedure For All The Columns

- The Procedure Process Image As Been Given Below

DESIGN THE BEAM :-

- Here We want To Adjust The Beam Designs

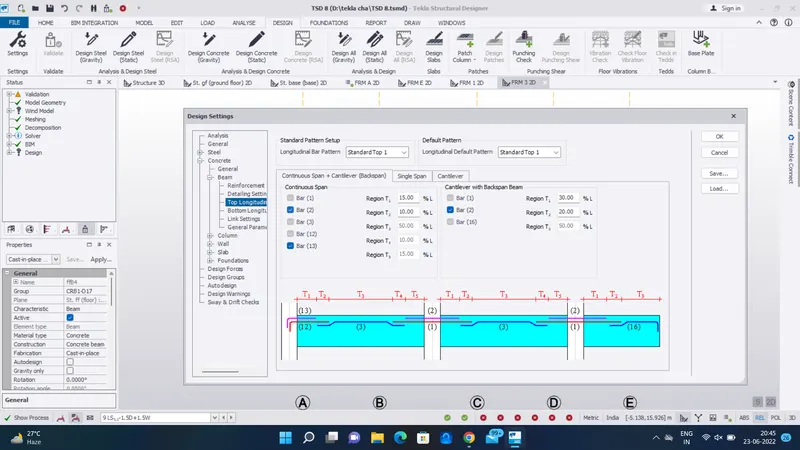

- First Go To The Design setting Under The Design Tab

- Go To The Concrete - - > Beam - - > Top Longitudinal Bar - - > Select The ( Bar 2 )

- Select The Beam And Right Click

- First We Want To Check The Errors

- And They Have Any Errors Shown

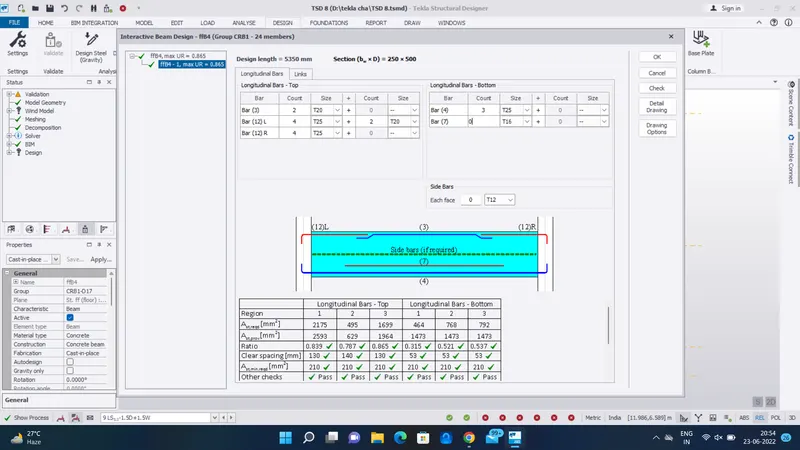

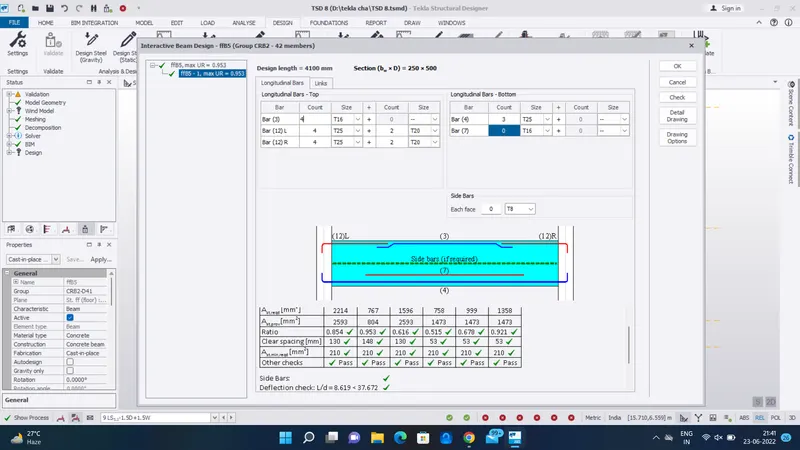

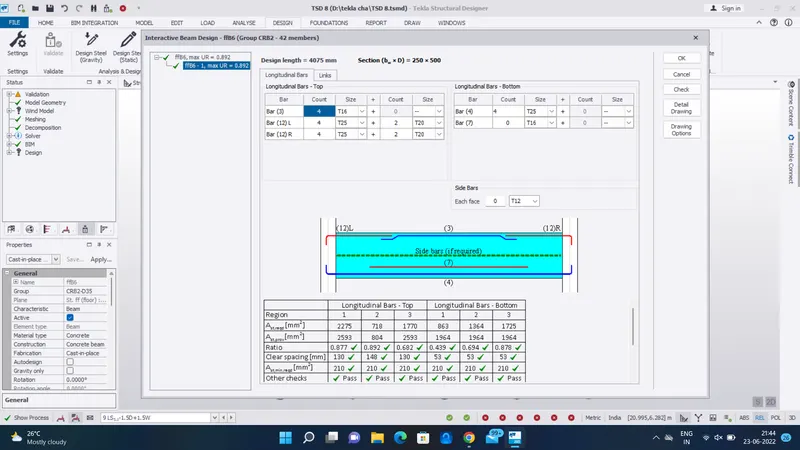

- First adjust The Size And Count Still The Beam As Been Passed

- Repeat The same Procedure For All The Beams

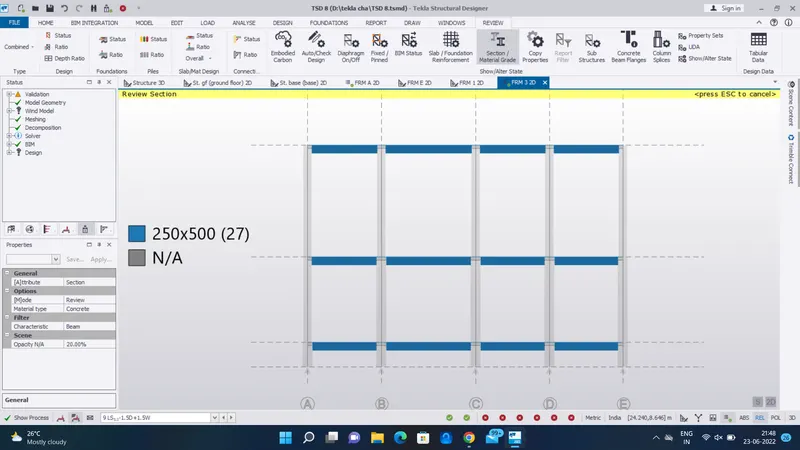

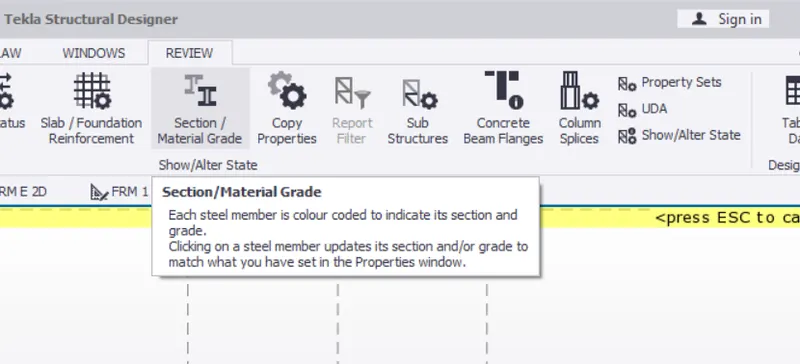

- After Finish All The Beams We Want Select The Status And We Check The member Are All Passed

Result :-

As Per The question

To Based On The analysis Design RC Column And Beam As Completed
