Supervised Learning - Classification Week 7 Challenge

SVM: Support Vector Machines

>is used in classification and regression problems

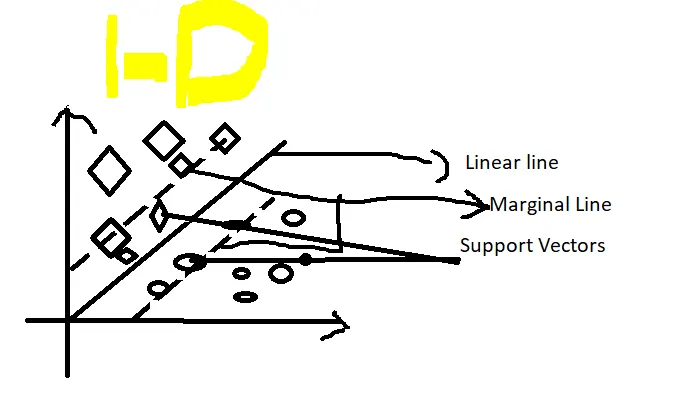

>is to predict a linearly seperable line for classification and need to find the marginal seperable line respect to that linear line with maximum distance (Marginal distance).

>the data points which are immediate next to those Marginal lines are called Support Vectors.

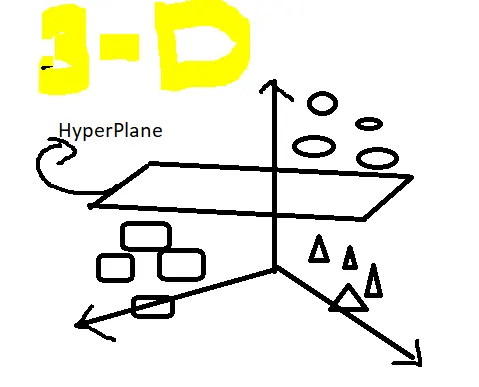

>In 2D data, the line would be linear seperable and in 3D data it would be known as Hyperplane.

>If there is a linearly seperable data in a dataset, we need to Support Vector Kernel for converting the Low dimension data into High dimension data for classification.

2)-Kindly find the attached file for implementing svm to Fault steel plates.

Maths Behind SVM:

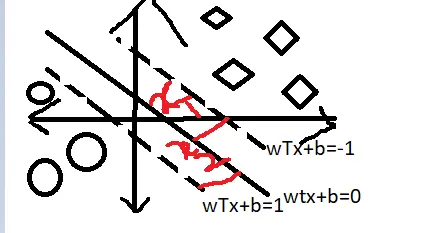

If we want to find the distance between x1,x2 we can write the equation as wTx1+b=-1,wTx2+b=1 then we get wT(x2-x1)=2

In order to remove wT will divide it by magnitude of w on both sides results:

(wT(x2-x1))/||w||=2/||w||

2/||w|| is a optimal function , and y can also be stated as

yi=-1 > wTx+b<=-1, yi=1 > wTx+b>=1 we can write it as yi * wTx+b >=1 so if the value is not >=1 then we can say its a misclassification.

There will not be always a linearly seperable data, we need to do hyper-parameter technique for changing w,b as

w,b=min(||w||/2) + (Count of errors C * (Sum of error values))

error> are the error distance from marginal plane to datapoint

SVM Kernels:

SVM Kernels will tranform the low dimension data into high dimension through mathematical formulas for classification.

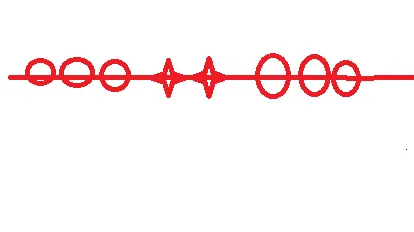

if we consider a 1-D data like below,

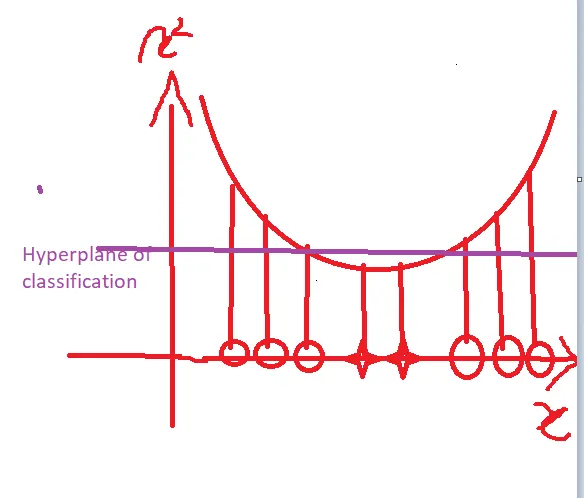

by using f(x)=x2 and plotting it as

1-D was converted into 2-D, now we can able to classify the data

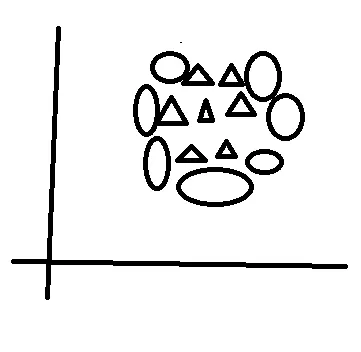

Similary if we have a data then applying a polynomial kernel function

f(x1,x2)=(x1T.x2+1)d

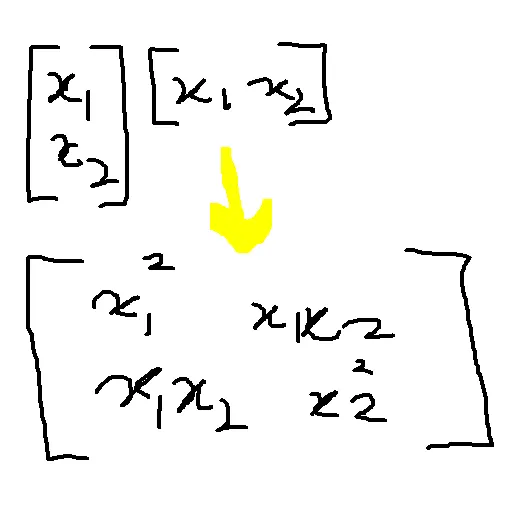

considering unique from above along with x1,x2 we got x1,x2,x12(square),x22(square),x1x2 and plotting these would help us to classify data using hyperplane.

1-Pros and Cons of SVM:

Pros:

We can use well, if we are not aware of data.

Provides a more generalized model of data and reduces the over-fitting issues.

Kernel function is key for better classification, by choosing the right kernel we can resolve a complex problems.

Works well in unstructed and semi-structured data (eg:images, videos)

Suits well for the High dimensional data

Comparing to ANN, it provides better results.

Cons:

Choosing a apt Kernel is not that easy.

Long training time for long dataset.

Difficult to interpret the final model, weights and individual impact.

Hyper parameters in SVM:

C, Gamma are the hyper-parameters in SVM.

Gamma:

>this parameter is to handle the non-linear seperable data

>Controls the distance of influence of single training point.

>Will be using hyperplane for converting the low dimension to high dimension data, one of the RBF kernel technique requires gamma as a parameter to control the peak when data points are raised.

>Lower Gamma values - high bias and low variance leads to under-fitting

>High Gamma values - Low bias and High Variance leads to over-fitting

C:

>cost of misclassification

>Lower C values - high bias and low variance leads to under-fitting

>High C values - Low bias and High Variance leads to over-fitting

Chossing a right Gamma and C can be done with the help of Grid-Search.
