Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

AIM:- To sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.

Also, to assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.

INTRODUCTION:-

In this project I will draw a plan according to Vaastu Shastra for a G+1 residential building. Also I will explain each and every details regarding vaastu shastra according to the position of room. In this project, I have calculated dead load of this G+1 residential building components likecolumn, beam, slab,walls etc., along with live load.

Vaastu Shastra :-

• Vastu Shastra is the Ancient Indian Science of architecture and acts as a guideline to design your home in the way that enhances positive energy.
• Our nature is abundant with powerhouses of energy sources like the Sun, Wind, Moon, Water, Earth and Fire.
• Effect of sunrays, flow of winds, pull of earth's magnetic field and other such cosmic energies utilise properly to enhance the positive energy at home.
• A good home needs to radiate the right kind of energy.
• A person dwelling in a house comes under the influence of a specific energy field.
• Architectural changes are not possible for a ready to move in house.

Significance of Eight directions :-

• Four cardinal direction are North, South, East and West.
• Four intercardinal direction are North-east, North-west, South-east and South-west.
• Each direction signifies an aspect of life and is governed by various gods as per Vaastu Shatra.
• North - Wealth
• South - Dharma
• West and East - Overall prosperity

Basic principles of Vastu Shastra :-

• Shape :-

Rooms should be preferably be square or rectangle.

• Room Basics :-

Rooms should be airy, well lit, bright and clean.

• Home center :-

Centre of the house should be an empty space.

• Stairs and Furniture :-

Heavy furniture should be kept in the south-west direction.

• Water :-

Avoid keeping plants and water features in the bedroom.

• Dining Table :-

Dining space should be near the kitchen and not near the main door.

• Mirror placement :-

Mirror facing the bed is strictly not allowed. Mirrors in the bedroom need to be placed in such a way that the bed cannot be seen.

Auspicious directions as per Vastu Shastra :-

• Kitchen :-

South-east is the best direction fo kitchen.

North-east to be avoided.

• Staircase :-

South-west is the best for stairs.

North-east to be avoided.

• Toilet :-

North-west is the best.

North-east to be avoided.

• Master Bedroom :-

South-west is the best.

• Guest Room :-

North-west is the best.

• Living Room :-

North-west is the best.

• Over Head Tanks :-

West is the best.

• Under ground Tanks :-

North-east is the best.

South-west to be avoided.

PROCEDURE :-

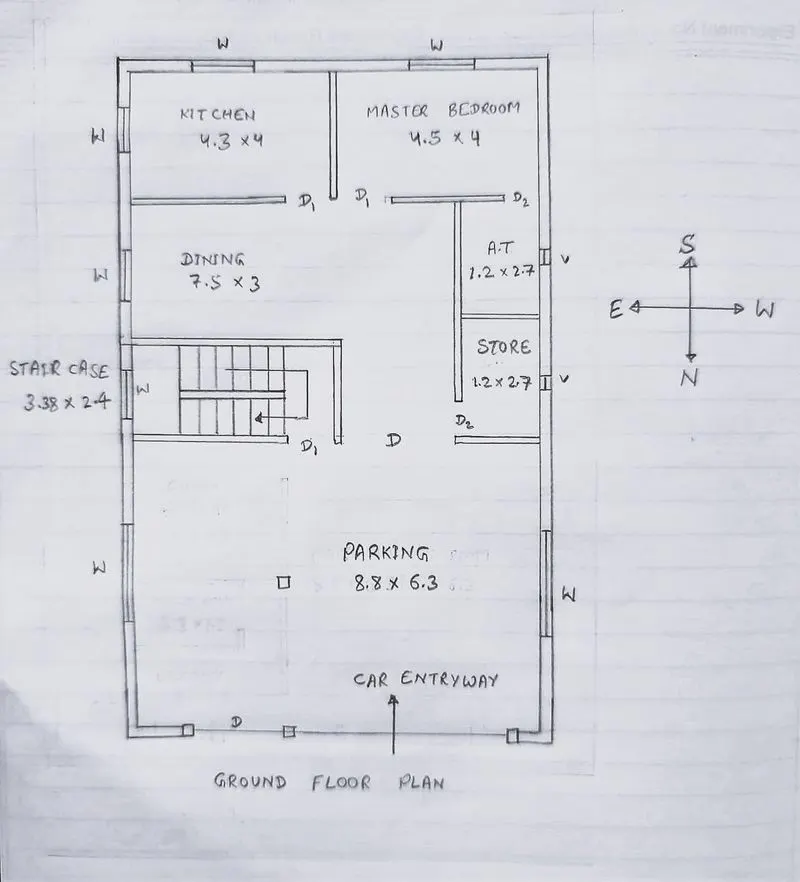

SKETCH OF GROUND FLOOR PLAN :-

Dimensions of Ground Floor plan­ :-

Living/Dining Room	- 7.5m x 3m
Bed Room	- 4.5m x 4m
Store Room	- 1.2m x 2.7m
Wash Room	- 1.2m x 2.4m
Kitchen	- 4.3m x 4m
Parking Area	- 8.8m x 6.3m

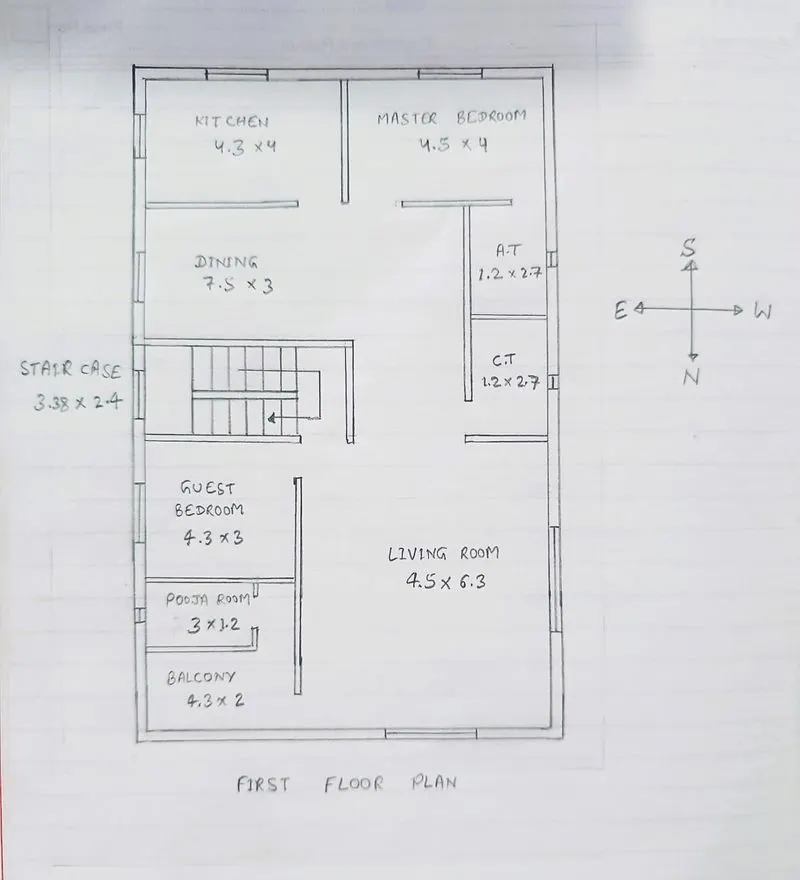

SKETCH OF FIRST FLOOR PLAN :-

Dimensions of First Floor Plan­ :-

Master Bed Room	- 4.5m x 4m
Kitchhen	- 4.3m x 4m
Dining	- 7.5m x 3m
Attached Toilet	- 1.2m x 2.7m
Common Toilet	- 1.2m x 2.7m
Guest Room	- 4.3m x 3m
Living/Drawing Room	- 4.5m x 6.3m
Puja Room	- 3m x 1.2m
Balcony	- 4.3m x 2m

Other Dimensions :-

Thickness of External/Internal Wall	- 0.23m (230mm)
Thickness of slab	- 0.25m (250mm)
Dimensions of column	- 0.3m x 0.3m
Dimensions of beam	- 0.3m x 0.45m
Height of the wall of Ground floor	- 4m
Height of the wall of First floor	- 3.5m

Calculation of loads :-

1) Dead load Calculations :-

Dead load of column:-

Assme size of column= 300mm X 300 mm = 0.3 meter X 0.3 meter.

Assume total 17 number of columns of height 6.5 meter for G+1 residential building

Unit weight of reinforced cement concrete= 25 KN/m3.

Dead load of a single column= (Volume of column X unit weight of reinforced cement concrete)

= (0.3X0.3X6.5X17) = 9.945 KN

Dead load for 25 number of column= (Volume of column X unit weight of reinforced cement concrete) X number of column

= ( 0.3 X 0.3 X 6.5 X 25)X17 = 248.625 KN

Dead load of beam:-

1).Calculation of dead load for plinth beam:-

Assume the size of plinth beam= 250mm X 350mm = 0.25 meter X 0.35 meter

Length of central line for plinth beam from aforementioned drawing= 104 meter

Unit weight of reinforced cement concrete= 25 KN/m3.

Dead load of plinth beam per meter=(Area of plinth beam X unit weight of reinforced cement concrete)

=(0.25X0.35X25)= 2.1875 KN/m

Dead load for plinth beam=(Area of plinth beam X Length of plinth beam X unit weight of reinforced cement concrete)

=( 0.25X0.35X104X25)= 227.5 KN

Calculation of dead load for Lintel beam:-

Assume the size of lintel beam= 250mm X 250mm = 0.25 meter X 0.25 meter

Length of central line for lintel beam from aforementioned drawing= 104 meter

Unit weight of reinforced cement concrete= 25 KN/m3.

Dead load of lintel beam per meter=(Area of lintel beam X unit weight of reinforced cement concrete)

=(0.25X0.25X25)= 1.5625 KN/m

3).Dead load for lintel beam for ground floor:-

=(Area of lintel beam X Length of lintel beam X unit weight of reinforced cement concrete)

=( 0.25X0.25X104X25)= 162.5 KN

4).Dead load for lintel beam for first floor:-

=(Area of lintel beam X Length of lintel beam X unit weight of reinforced cement concrete)

=( 0.25X0.25X104X25)= 162.5 KN

Total weight for lintel beam for ground floor and first floor= (162.5+162.5)KN= 325 KN.

5).Calculation of dead load for T-beam:-

Assume the size of T-beam= 250mm X 250mm = 0.25 meter X 0.25 meter

Length of central line for T-beam from aforementioned drawing= 104 meter

Unit weight of reinforced cement concrete= 25 KN/m3.

Dead load of T-beam per meter=(Area of T-beam X unit weight of reinforced cement concrete)

=(0.25X0.25X25)= 1.5625 KN/m

6).Dead load of T-beam for ground floor:-

=(Area of T-beam X Length of T-beam X unit weight of reinforced cement concrete)

=( 0.25X0.25X104X25)= 162.5 KN

7).Dead load of T-Beam beam for first floor:-

=(Area of T-beam X Length of T-beam X unit weight of reinforced cement concrete)

=( 0.25X0.25X104X25)= 162.5 KN

Total weight for T-beam for ground floor and first floor= (162.5+162.5)KN= 325 KN.

Grand total weight of plinth beam+Lintel beam+T-beam= (227.5+325+325)= 877.5 KN.

8).Dead load of stair case:-

Calculation of dead load for ground floor stair case:-

Assume the thickness of waist slab= 150mm

Assumed the size of waist slab landing = (1.2 meter X 2.5 meter)

Dead load of landing= (1.2X2.5X0.15X25)=11.25 KN.

Assume the size of flight deck=(2.36 meter X 0.960 meter)

There are two flight deck in a stair case

Hence dead load of flight deck= (2X2.36X0.96X0.15X25)=16.992 KN.

Total dead load of stair case for first floor= (11.25+16.992)= 28.242 KN.

Calculation of dead load for first floor stair case:-

Assume the thickness of waist slab= 150mm

Assumed the size of waist slab landing = (1.2 meter X 2.5 meter)

Dead load of landing= (1.2X2.5X0.15X25)=11.25 KN.

Assume the size of flight deck=(2.36 meter X 0.960 meter)

There are two flight deck in a stair case

Hence dead load of flight deck= (2X2.36X0.96X0.15X25)=16.992 KN.

Total dead load of stair case for first floor= (11.25+16.992)= 28.242 KN.

Grand total weight of stair case for ground and first floor= (28.242+28.242)= 56.484 KN

Dead load of slab:-

Calculation of dead load for ground floor slab:-

Assume thickness of slab is 140mm or 0.14 meter

Area of slab = (9 meter X 17 meter)= 153 square meter

Dead load of slab per square-meter=(Volume of slab X unit weight of reinforced cement concrete)

=(0.14X1X1X25)= 3.5 KN/m2

Area for stair case = (3.88 X 2.4)= 9.312 square meter

Deduction of stair case area from slab area= (153 - 9.312)= 143.688 square meter.

Dead load of ground floor slab= (Area of slab X thickness of slab X unit weight of reinforced cement concrete)

=(143.688 X 0.14 X 25)= 502.908 KN

Calculation of dead load for first floor slab:-

Assume thickness of slab is 140mm or 0.14 meter

Area of slab = (9 meter X 17 meter)= 153 square meter

Dead load of slab per square-meter=(Volume of slab X unit weight of reinforced cement concrete)

=(0.14X1X1X25)= 3.5 KN/m2

Area for stair case = (3.88 X 2.4)= 9.312 square meter

Deduction of stair case area from slab area= (153 - 9.312)= 143.688 square meter.

Dead load of first floor slab= (Area of slab X thickness of slab X unit weight of reinforced cement concrete)

=(143.688 X 0.14 X 25)= 502.908 KN

Grand total weight for ground floor slab and first floor slab= (502.908 + 502.908)= 1005.816 KN.

Dead load of wall:-

Calculation of dead load for outside wall for ground floor:-

Assume the thickness of ouer wall is 250mm or 0.25 meter

Height of ground floor wall is 3 meter

Length of central line for outer wall from aforemention drawing= 43 meter

Unit weight of brickwork= 20 KN/m3.

Dead load of outside wall for ground floor:-

=(Area of outside wall X central line Length for outside wall X unit weight of brickwork)

=( 0.25X3X43X20)= 645 KN

Calculation of dead load for outside wall for first floor:-

Assume the thickness of outer wall is 250mm or 0.25 meter

Height of ground floor inside wall is 3 meter

Length of central line for plinth beam from aforemention drawing= 50 meter

Unit weight of brickwork= 20 KN/m3.

Dead load of wall per meter=(Area of wall X unit weight of brickwork)

=(0.25X3X20)= 15 KN/m

Dead load of outside wall for first floor:-

=(Area of outside wall X central line Length for outside wall X unit weight of brickwork)

=(0.25X3X50X20)= 750 KN

Calculation of dead load for Inside wall for ground floor:-

Assume the thickness of inner wall is 125mm or 0.125 meter

Height of ground floor wall is 3 meter

Length of central line for Inner wall from aforemention drawing= 36 meter

Unit weight of brickwork= 20 KN/m3.

Dead load of wall per meter=(Area of wall X unit weight of brickwork)

=(0.125X3X20)= 7.5 KN/m

Dead load of Inside wall for ground floor:-

=(Area of Inside wall X central line Length for Inside wall X unit weight of brickwork)

=( 0.125X3X36X20)= 270 KN

Calculation of dead load for Inside wall for first floor:-

Assume the thickness of inner wall is 125mm or 0.125 meter

Height of ground floor wall is 3 meter

Length of central line for Inner wall from aforemention drawing= 56 meter

Unit weight of brickwork= 20 KN/m3.

Dead load of wall per meter=(Area of wall X unit weight of brickwork)

=(0.125X3X20)= 7.5 KN/m

Dead load of inside wall for first floor:-

=(Area of Inside wall X central line Length for Inside wall X unit weight of brickwork)

=( 0.125X3X56X20)= 420 KN

Calculation of dead load for Parapet wall for top roof:-

Assume the thickness of parapet wall is 125mm or 0.125 meter

Height of ground floor wall is 0.9 meter

Length of central line for Parapet wall from aforemention drawing= 50 meter

Unit weight of brickwork= 20 KN/m3.

Dead load of wall per meter=(Area of wall X unit weight of brickwork)

=(0.125X0.9X20)= 2.25 KN/m

Dead load of parapet wall for top floor:-

=(Area of Parapet wall X central line Length for Parapet wall X unit weight of brickwork)

=( 0.125X0.9X50X20)= 112.5 KN

Great grand total for all types of wall for ground floor and first floor and roof= (645 + 750 + 270 + 420 + 112.5)= 2197.5 KN.

**Total dead load from colum, beam, stair case, slab and wall= (248.625 + 877.5 + 54.484 + 1005.816 + 2197.5)= 4383.925 KN

2) Live load Calculations :-

As per IS -875 Part-2, for residential building, Live Loads are taken as :-

• Living/Dining - 2 kN/m²
• Kitchen - 2 kN/m²
• Bed Room - 2 kN/m²
• Wash Room - 2 kN/m²
• Toilet - 2 kN/m²
• Store Room - 2 kN/m²
• Puja Room - 2 kN/m²
• Staircase - 3 kN/m²

3) Wind load Calculations :-

• If the height of the building is more then 10 meters then building need to be designed for wind load.
• But, in this case, Height of the building is 8 meters. Thus, Wind Load need not to be considered.

The names of the structural drawings required to be provided to the site for construction are :-

1. Centre line drawing
2. Footing and column layout with reinforcement details
3. Column schedule with reinforcement details
4. Plinth beam layout with reinforcement details
5. Each floor beam layout with reinforcement details
6. Lift pit and head room with reinforcement details
7. Each Floor plans
8. Foundation plan
9. Block plan
10. Roof slab layout
11. Column layout
12. Column sections
13. Septic tank detail
14. Overhead water tank detail
15. Furniture plan
16. Road drainage plan
17. Setting out plan
18. Section drawings of buildings
19. Plumbing details
20. Electrification details

Results :-

• Total dead load from colum, beam, stair case, slab and wall= 4383.925 KN
• Live load gas been given as per table-1 of IS 875 (part-2)
• Wind load is not considered for this project as building height is less than 10m.
• The plan of G+1 Floor Residential Building is prepared with consideration of Concept of Vaastu Shastra.
• The load calculations are done as per the IS code considerations.

References and IS codes used for the design :-

• IS 875 :1987 (Part 1) for Dead load

• IS 875 :1987 (Part 2) for Live load

• IS 875 :1987 (Part 3) for Wind load

• IS 456 :2000 for Reinforced Concrete
