Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Ans:

1.

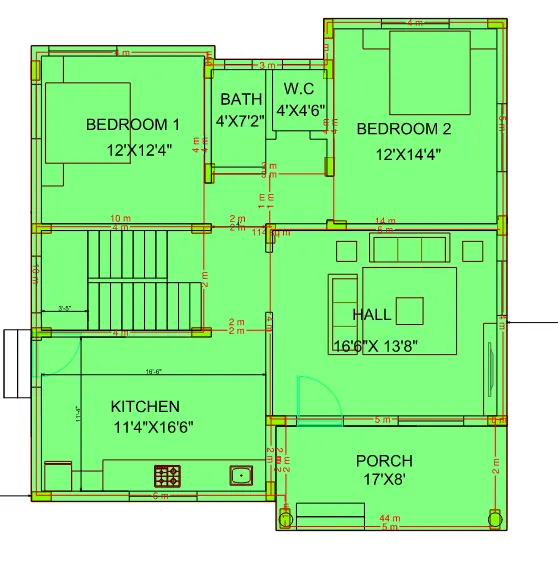

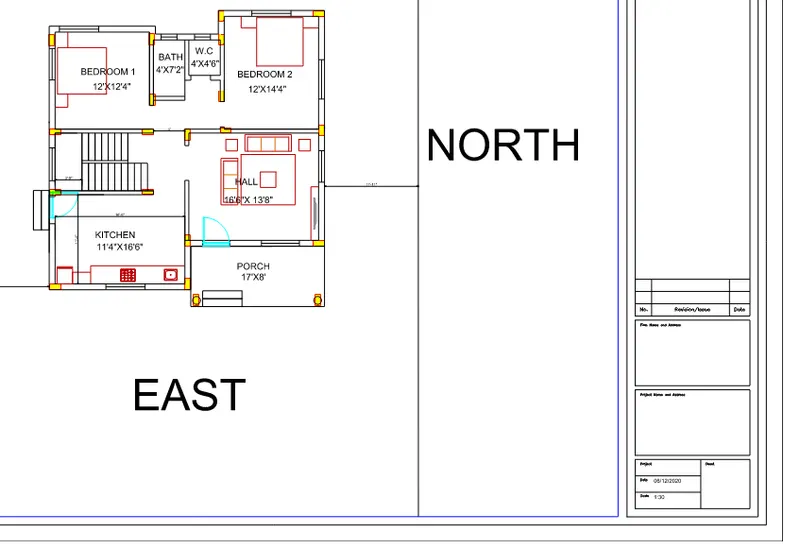

It was Previously Designed-My house as per vastushastra by me. (Right now i don't have autocad aslo.)

I haven't Given Column Details previously, That i have added now.

Load Calculations:

Dead Load:

Of Slab:

Area= 114Sq.m

Volume= 114 X 0.125 = 14.25 m3

Dead Load = Volume X Unit Weight

= 14.25 X 25 = 356.25 KN/m3

Of Column:

No. Of Column: 20 Nos.

Assume Column Size:= 0.3 X 0.45 X3

(0.3 X 0.45 X 3)X 20 = 8.1m3

Dead Load = Volume X Unit Weight

= 8.1 X 25= 202.5 KN/m3

Of Beam:

Length Of Beam= 88m

Assume Beam Size:= 0.3 X 0.45

Volume= 0.3 X 0.45 X 88= 11.88 m3

Dead Load = Volume X Unit Weight

= 11.88 X 25 = 297 KN/m3

Of Wall:

Length of Ground Floor Wall= 73meter X 3 X 0.23 = 50.37 m3

Length of Parapet Wall= 44meter X 0.9 X 0.23 = 9.10m3

Length of Staircase Cap Wall= 12m X 3 X 0.23 = 8.28m3

Total Volume of Brick= 67.75m3

Dead Load = Volume X Unit Weight

= 67.75 X 20 = 1355KN/m3

Total Dead Weight = 356.25+202.5+297+1355= 2210.75m3

Total Live Load:

For Floors in Houses= 2.0KN/m3

356.25 X 2 = 712.5KN/m3

Total Wind Load:

Not applicable since Height do not cross 10m.
