Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.
Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.
ANS:-
(Dimensions in meters.)

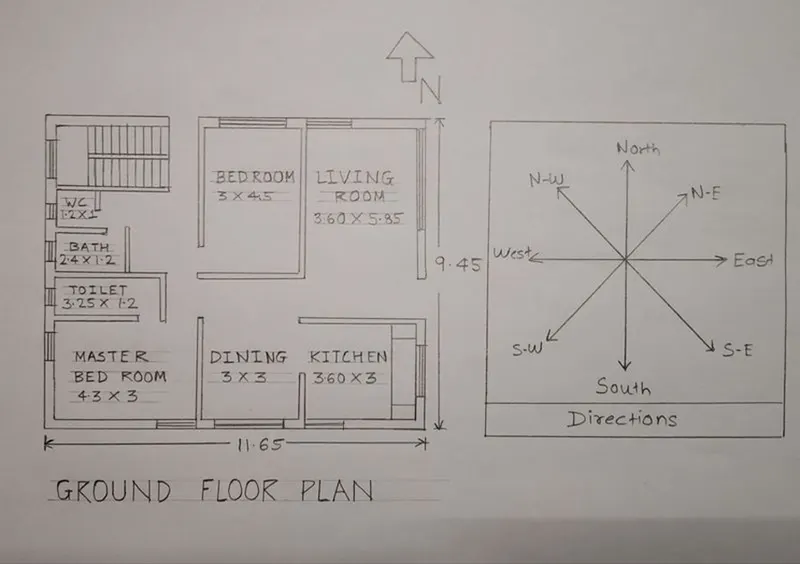

Dimensions of Ground Floor plan-
Living room- 3.60m X 5.85m
Kitchen room- 3.60m X 3m
Dining room- 3m X 3m
Master bedroom- 4.3m X 3m
Bedroom- 3m X 4.5m
Toilet- 3.25m X 1.2m
Bath- 2.4m X 1.2m
WC- 1.2m X 1m

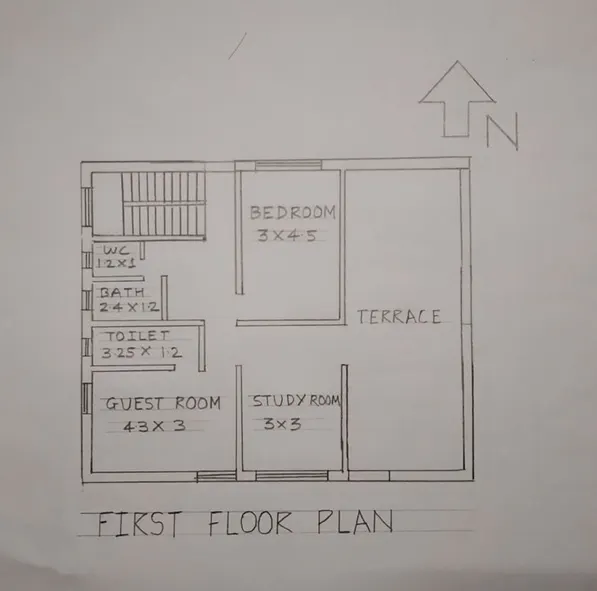

First Floor plan-
Guest room- 4.3m X 3m
Study room- 3m X 3m
Bedroom- 3m X 4.5m
Toilet- 3.25m X 1.2m
Bath- 2.4m X 1.2m
WC- 1.2m X 1m
Other dimensions
-Thickness of internal wall- 0.15m (150mm)
-Thickness of external wall- 0.23m (230mm)
-Thickness of slab- 0.25m (250mm)
-Dimensions of column – 0.3m X 0.3m
-Dimensions of beam-0.3m X 0.45m
-Height of the wall of each floor- 3m
A list of drawings that are provided during the construction are:-
- -Centre line drawing.
- -Footing and column layout with reinforcement details.
- -Column schedule with reinforcement details.
- -Plinth beam layout with reinforcement details.
- -First-floor beam layout with reinforcement details.
- -Lift pit and headroom reinforcement details.
- -Centre line drawing.
- -Floor plans.
- -Foundation plan.
- -Design drawings.
- -Block plan.
- -Roof slab layout.
- -Column layout.
- -Site plans.
- -Column sections.
- -Septic tank design.
- -Overhead water tank design.
- -Plinth beam sections
- -Flooring plan.
- -Furniture plan.
- -Road drainage plan.
- -Setting out a plan.
- -Section drawings of buildings.
- -Plumbing details.
- -Electrification details.Etc..
LOAD CALCULATIONS AS PER IS CODES:-
(A). Dead load Calculations
- Dead load of columns-
Dimension of column= 0.3m X 0.3m (300mm X 300mm)
Height of column = (Slab thickness X 2) + (Height of wall for each floor X 2)
= (0.25 X 2) + (3 X 2) = 6.5m
Total volume of concrete = 0.3 X 0.3 X 6.5 = 0.585m3
Unit weight of RCC= 25KN/m3.
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Dead load of column= 25 X 0.585=14.62KN.
- A dead load of beams-
Dimension of beam= 0.3m X 0.45m (300mm X 450mm)
Total volume of concrete = 0.3 X 0.45 X 1 = 0.135m3.
Unit weight of RCC= 25KN/m3.
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Dead load of beam= 25 X 0.135=3.375KN
- Dead load of slab-
Slab is always designed for the span of 1m.
Hence assume size of slab as 1m X 1m.
Thickness of slab= 0.25m
Density of RCC= 25KN/m3.
Self-weight of slab= 1 X 1 X 0.25 X 25= 6.25KN.
- Dead load of walls
Dead load of external wall
Thickness of External wall = 0.23m. (230mm)
Unit weight of brick wall= 20KN/m3
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Height of wall = 3m.
Load of wall on beam= 3 X 0.23 X 20= 13.8kN.
Dead load of internal wall
Thickness of Internal wall = 0.15m. (150mm)
Unit weight of brick wall= 20kN/m3
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Height of wall = 3m.
Load of wall on beam= 3 X 0.15 X 20= 9kN.
(B). Live load calculations-
(According to IS 875 Part 2)
Bed room= 2kN/m2
Living room= 2kN/m2
Bath=2kN/m2
Terrace = 3kN/m2
Toilet= 2kN/m2
Staircase= 3kN/m2
Study room= 2kN/m2
Kitchen= 2kN/m2
(C). Wind load calculation-
Wind load is designed only when the height of the building exceeds 10m.
The height of the designed building is 6.5m which is less than 10m.
So, the calculation of wind load is not required.
References and IS codes used for the design-
IS 875:1987, Part 1 for Dead load
IS 875:1987, Part 2 for Live load
IS 875:1987, Part 3 for Wind load
IS 456:2000, for Reinforced Concrete.
Results-
-The plan is prepared by the Vaastu shastra concept considering all the principles and considerations of Vaastu shastra
-The load calculations are done as per the IS code considerations.
