Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

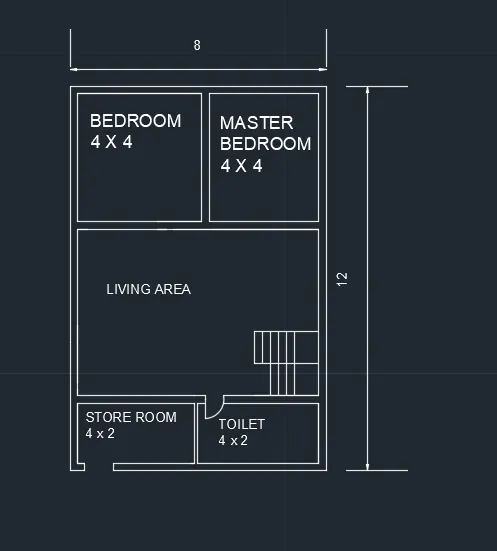

GROUND PLAN

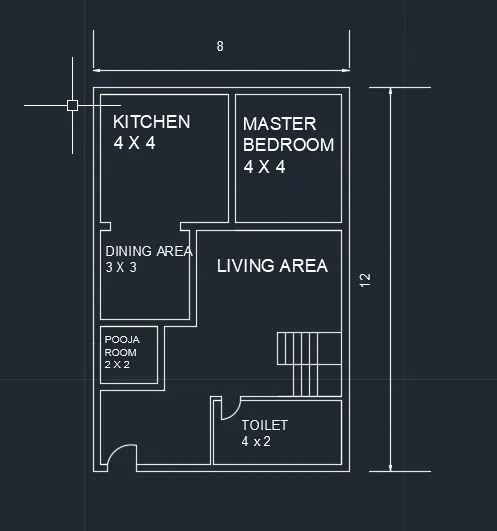

FIRST FLOOR

Opening is provided above the ground level for the aesthetic look

All doors are inwards & Here

1. Main door is facing the north direction.
2. Toilets are not placed near the kitchen .

• Dining area is near to kitchen far from main door.

1. Bedrooms are placed in southwest and south east where north east is avoided.
2. All rooms are rectangle in shape.
3. Centre house is kept empty.

• Kitchen is placed in south east direction.
• Toilet is in north west.

1. Livingroom is in north west.
2. No overhanging beams are allowed to rooms xi. Pooja room is placed at east.

REQUIRED QUALITY

1. centre line drawing

Il. footing and column layout with reinforcement details

III. column schedule with reinforcement details

1. plinth beam layout with reinforcement details
2. first floor beam layout with reinforcement details
3. first floor slab layout with reinforcement details

VIl. lift pit and headroom reinforcement details

Load calculations

Specify the assumed size of the rooms.

All columns are 300mm x 300mm

All beams are 300mm x 450mm

Slab thickness if 125mm

The height of the wall is 3m

A.Dead loads.

Column the height of the column as 3 m

Dead load of the column of size 0.3*0.3*3

Total volume of the column

= 0.3*0.3*3

= 0.27 m13

Unit weight of concrete = 25KN/m^3

Dead load of column

= unit weight of concrete * volume of concrete

= 25 KN/m^3 * 0.27m/3

= 6.75 KN

1. Beams

Total C/S area of the BEAM

= 0.3*0.45

= 0.135m^2

Unit weight of concrete = 25KN/m^3

Dead load of column

= unit weight of concrete * area of concrete

= 25 KN/m^3 * 0.135m^2

= 3.375 KN/m

1. Slabs

Dead load of a slab of 125mm thickness

Unit weight of concrete = 25KN/m^3

self-weight of the slab

= unit weight of concrete * thickness of concrete

= 25 KN/m^3 * 0.125m

= 3.125 KN/m^2

1. walls

Height of wall 3m

Dead load of a wall of 300mm thickness

Unit weight of brick wall = 20KN/m^3

self-weight of the wall

= unit weight of brick wall * thickness of wall*height of wall

= 20 KN/m^3 * 0.3m * 3m

= 18 KN/m

Live loads. • According to the IS875 (part2) table 1

For the residential buildings use the live load of the UDL 2KN/m^2

For these rooms and bathroom and no balconies are present in the building.

And near staircase provides the live load on UDL 3KN/m^2

Here since it is the house the live load of the 2KN/m^2 is adopted on the slabs from IS 875-part 2 Table 1

• Wind load calculations

since, height of the building is less than 10 m wind load calculation is not implemented on the building

where total height of building is 3m+3m = 6m.
