Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
Aim of the project-
To sketch a G+1 floor residential plan according to vastu Shastra and to list down the names of structural drawings required to be provided to the site for construction.
To assume the size of structural elements (Column, Beam, slab etc) and to calculate the loads from the members as per IS code

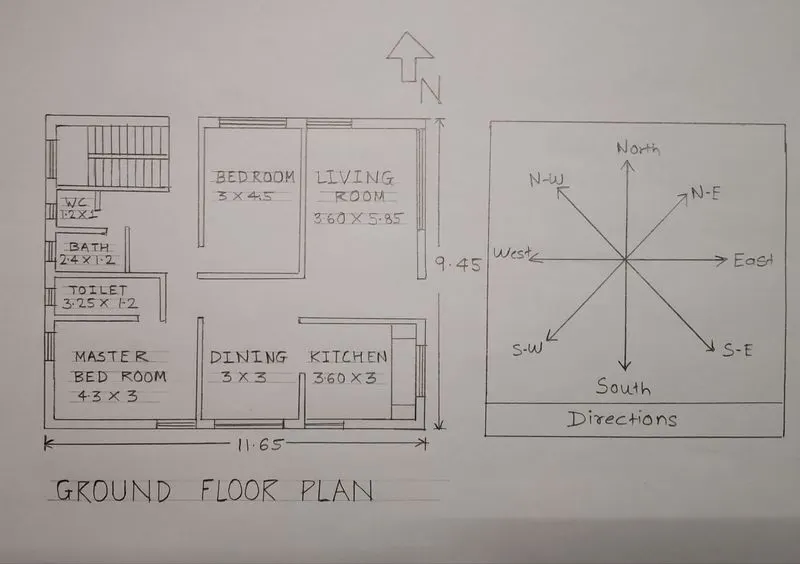

- Dimensions of Ground Floor plan-
Living room- 3.60m X 5.85m
Kitchen room- 3.60m X 3m
Dining room- 3m X 3m
Master bedroom- 4.3m X 3m
Bedroom- 3m X 4.5m
Toilet- 3.25m X 1.2m
Bath- 2.4m X 1.2m
WC- 1.2m X 1m

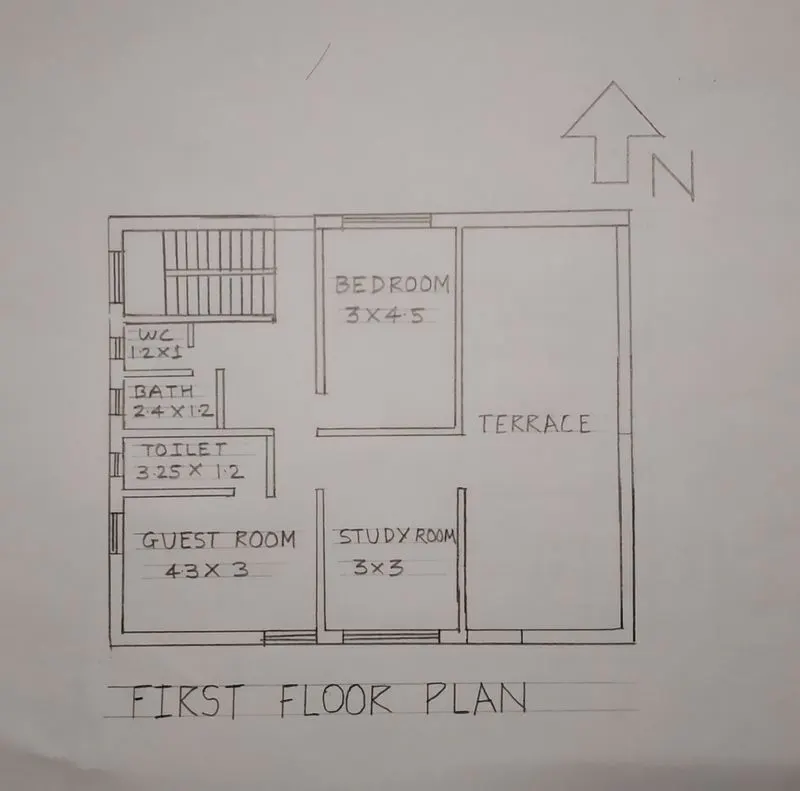

Dimensions of First Floor Plan-
Guest room- 4.3m X 3m
Study room- 3m X 3m
Bedroom- 3m X 4.5m
Toilet- 3.25m X 1.2m
Bath- 2.4m X 1.2m
WC- 1.2m X 1m
Other dimensions
-Thickness of internal wall- 0.15m (150mm)
-Thickness of external wall- 0.23m (230mm)
-Thickness of slab- 0.25m (250mm)
-Dimensions of column – 0.3m X 0.3m
-Dimensions of beam-0.3m X 0.45m
-Height of the wall of each floor- 3m
Vastu.
Calculation of loads-
(A). Dead load Calculations
- Dead load of columns-
Dimension of column= 0.3m X 0.3m (300mm X 300mm)
Height of column= (Slab thickness X 2) + (Height of wall for each floor X 2)
= (0.25 X 2) + (3 X 2) = 6.5m
Total volume of concrete = 0.3 X 0.3 X 6.5 = 0.585m3.
Unit weight of RCC= 25KN/m3.
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Dead load of column= 25 X 0.585=
- Dead load of slab-
Slab is always designed for the span of 1m.
Hence assume size of slab as 1m X 1m.
Thickness of slab= 0.25m
Density of RCC= 25KN/m3.
Self-weight of slab= 1 X 1 X 0.25 X 25= 6.25KN.
- Dead load of walls
-Dead load of external wall
Thickness of External wall = 0.23m. (230mm)
Unit weight of brick wall= 20KN/m3
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Height of wall = 3m.
Load of wall on beam= 3 X 0.23 X 20= 13.8KN.
-Dead load of internal wall
Thickness of Internal wall = 0.15m. (150mm)
Unit weight of brick wall= 20KN/m3
Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)
Height of wall = 3m.
Load of wall on beam= 3 X 0.15 X 20= 9KN.
(C). Wind load calculation-
Wind load is designed only when the height of the building exceeds 10m.
The height of designed building is 6.5m which is less than 10m.
So, the calculation of wind load is not required.
Results-
-The plan is prepared by the Vaastu shastra concept considering all the principles and considerations of Vaastu shastra
-The load calculations are done as per the IS code considerations.

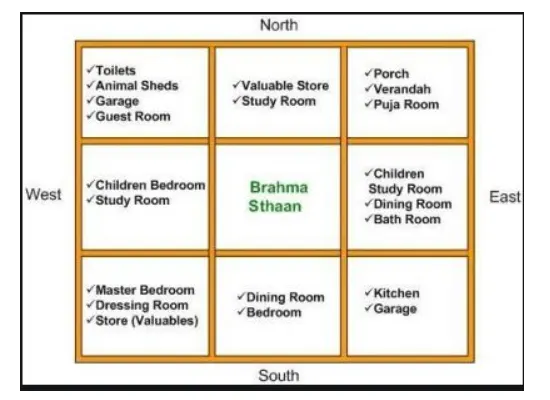

Vastu Shastra followed during planning is-
- Entrance of the house is provided in the east direction which is the symbol of progress in life.
- Living room is placed in north east direction.
- Master bedroom is placed in south west position this direction brings good health and prosperity.
- Kitchen is placed in south east direction.
- Study room is placed in east direction.
- Staircase is placed at Northwest corner.
- Bathroom, WC and toilet is placed in West direction.
Concept of Vaastu-
