Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Aim of the project-

To sketch a G+1 floor residential plan according to Vastu Shastra and to list down the names of structural drawings required to be provided to the site for construction.

To assume the size of structural elements (Column, Beam, slab etc) and to calculate the loads from the members as per IS code.

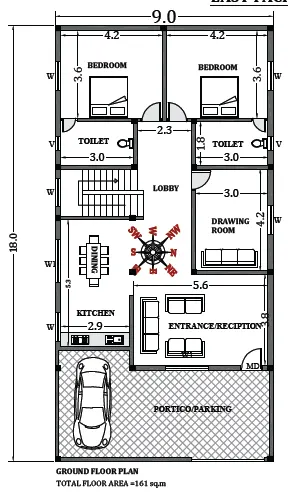

Ground Floor plan:

Dimensions of Ground Floor plan-

Enternance - 5.60m X 3.80m

Kitchen room & Dining room- 5.30 m X 2.90 m

bedroom- 4.2 X 3.60 m

Toilet- 3.00m X 1.80 m

Car Parking

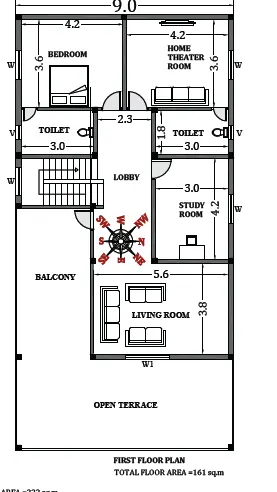

First Floor plan:

Dimensions of First Floor Plan:

Living Room - 5.60m X 3.80m

Kitchen room & Dining room- 5.30 m X 2.90 m

Master bedroom- 4.2 m X 3.60 m

Home Theatre Room 4.2 m X 3.60 m

Toilet- 3.00m X 1.80 m

Study Room 4.20 m x 3.00 m

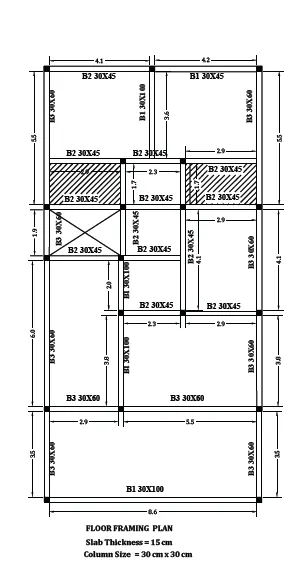

Structural Floor Plan

-Thickness of internal wall- 0.15m (150mm)

-Thickness of external wall- 0.23m (230mm)

-Thickness of slab- 0.15m (150mm)

-Dimensions of column – 0.3m X 0.3m

-Dimensions of beams as per below table:

Pattern	b	h
B1	0.30	1.00
B2	0.30	0.45
B3	0.30	0.60

-Height of the wall of each floor- 3.0 m

Vastu Shastra followed during planning is-

• Entrance of the house is provided in the east direction which is the symbol of progress in life.
• Living room is placed in north east direction.
• Master bedroom is placed in south west position this direction brings good health and prosperity.
• Kitchen is placed in south east direction.
• Study room is placed in north direction.
• Staircase is placed at south direction
• Bathroom, WC and toilet is placed in West direction.

Vaastu Concept:

List of drawings provided at the construction project

-Centre line drawing.

-Footing and column layout with reinforcement details.

-Column schedule with reinforcement details.

-Plinth beam layout with reinforcement details.

-First floor beam layout with reinforcement details.

-Lift pit and head room reinforcement details.

-Centre line drawing.

-Floor plans.

-Foundation plan.

-Design drawings.

-Block plan.

-Roof slab layout.

-Column layout.

-Site plans.

-Column sections.

-Septic tank design.

-Overhead water tank design.

-Plinth beam sections

-Flooring plan.

-Furniture plan.

-Road drainage plan.

-Setting out plan.

-Section drawings of buildings.

-Plumbing details.

-Electrification details.

Calculation of loads-

(A). Dead load Calculations

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Unit weight of RCC= 25KN/m3.

1. Dead load of columns-

Dimension of column= 0.3m X 0.3m (300mm X 300mm)

Height of column/Floor = Wall height+max beam height-slab thickness = 3.0+1.0-.15 = 3.85 m

No. of Columns/Floor = 19 Columns

Volume of a column= 0.3 x 0.3 x 3.85 = 0.3465 m^3

Self weight of all Columns = Vol. of a Column x No. of columns/Floor x No. of Floors x Unit weight of RCC

Self weight of all Columns = 0.3465 x 19 x 2 x 25 = 329.175 KN

2. Dead load of beams-

Pattern	No.	B	h	L	Volume (m^3)	RCC unit weight	Self Weight KN
B1	1	0.3	1	8.6	2.58	25	64.5
B2	2	0.3	0.45	4.1	1.107	25	27.675
B2	1	0.3	0.45	4.2	0.567	25	14.175
B2	1	0.3	0.45	4.2	0.567	25	14.175
B2	6	0.3	0.45	2.9	2.349	25	58.725
B2	4	0.3	0.45	2.3	1.242	25	31.05
B2	2	0.3	0.45	1.7	0.459	25	11.475
B2	1	0.3	0.45	1.9	0.2565	25	6.4125
B2	1	0.3	0.45	2	0.27	25	6.75
B2	1	0.3	0.45	3.8	0.513	25	12.825
B2	1	0.3	0.45	3.6	0.486	25	12.15
B3	3	0.3	0.6	5.5	2.97	25	74.25
B3	1	0.3	0.6	1.9	0.342	25	8.55
B3	1	0.3	0.6	6	1.08	25	27
B3	1	0.3	0.6	3.5	0.63	25	15.75
B3	1	0.3	0.6	4.1	0.738	25	18.45
B3	1	0.3	0.6	2.8	0.504	25	12.6
B3	1	0.3	0.6	3.5	0.63	25	15.75
B3	1	0.3	0.6	2.9	0.522	25	13.05
Total					17.8125		445.3125

DL of beams/ Floor = 445.3125 KN

Total DL of beams = 445.3125 x 2 = 890. 625 KN.

3. Dead load of slab-

Density of RCC= 25KN/m3.

Area of Slab = 9 * 18 = 161 m^2

Self-weight of slab/Floor= 161 X 0.15 X 25= 603.75 KN.

Total Self-weight of slab = 603.75 x 2 = 1,207.5 KN.

4. Dead load of walls

-Dead load of external wall

Thickness of External wall = 0.23m. (230mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m.

Load of wall/m'= 3 X 0.23 X 20= 13.8KN/m'.

-Dead load of internal wall

Thickness of Internal wall = 0.15m. (150mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m.

Load of wall/m'= 3 X 0.15 X 20= 9KN/m'.

(B). Live load calculations-

(According to IS 875 Part 2)

Bed room= 2KN/m²

Living room= 2KN/m²

Terrace = 3KN/m²

Toilet= 2KN/m²

Staircase= 3KN/m²

Study room= 2KN/m²

Kitchen= 2KN/m²

(C). Wind load calculation-

Consider my structure is in the green area

Vb= 47 m/s

K1 = 0.71 , K2 = 1, K3 = 1.1 , K4 = 1

Vz= Vb * k1 * k2* K3 * K4= 47 * 0.71 * 1* 1.1*1= 36.71 m/s

Pz=0.6 Vz^2 = 0.6 * 36.71 ^2 = 825.85 N/m^2

References and IS codes used for the design-

IS 875:1987, Part 1 for Dead load

IS 875:1987, Part 2 for Live load

IS 875:1987, Part 3 for Wind load

IS 456:2000, for Reinforced Concrete.

Results-

-The plan is prepared by the Vaastu shastra concept considering all the principles and considerations of Vaastu shastra

- Structural dimensions had been assumed.

-The load calculations are done as per the IS code considerations.
