Section Modulus calculation and optimization

Use the Section from your Hood design and calculate the section modulus using the formula S = I/y

S = Section Modulus

I = Moment of Inertia

y = distance between the neutral axis and the extreme end of the object

Come up with a new section that has improved the section modulus of the previous section and mention what change you made that has increased the strength.

Section Modulus Challenge Assignment help video using CATIA

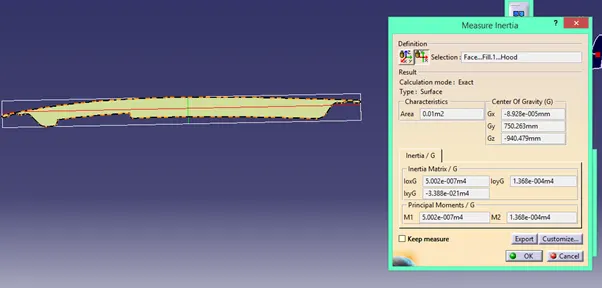

Moment of Inertia is

M1 = 5.00213e-007 m⁴ = 0.500213 e6 mm⁴

M2 = 0.000136772 m⁴ = 136.772000 e6mm⁴

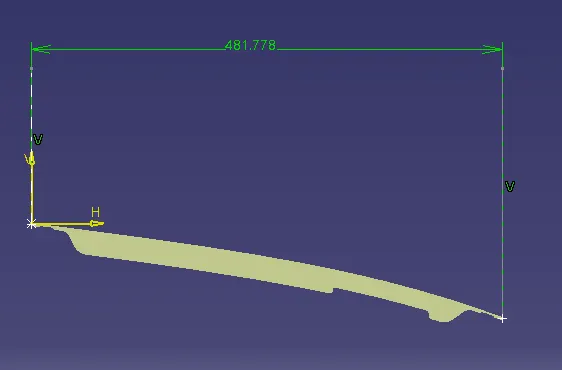

y = distance between the neutral axis and the extreme end of the object

Y = 481.778/2 = 235.889
