Section Modulus calculation and optimization

AIM:

calculate the section modulus using the formula S = I/y in the HOOD design.

Procedure:

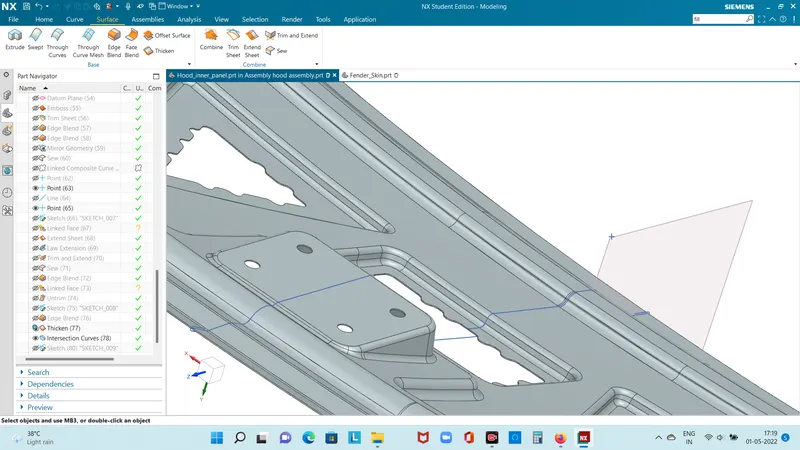

To intersect the hood design

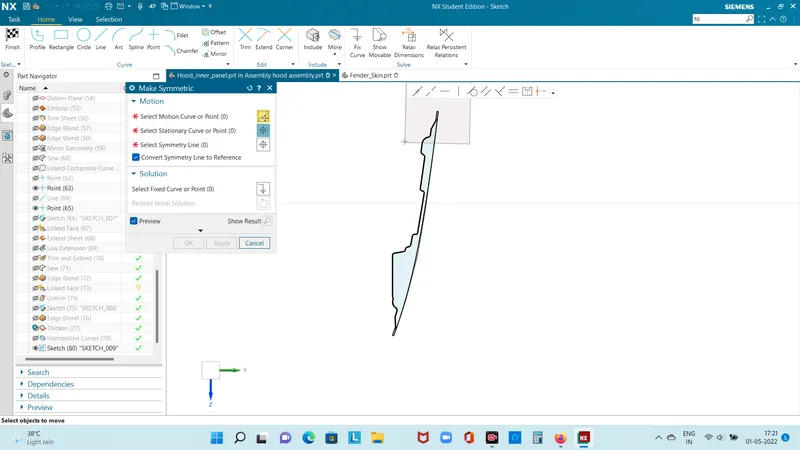

Then hide the body and create sketch

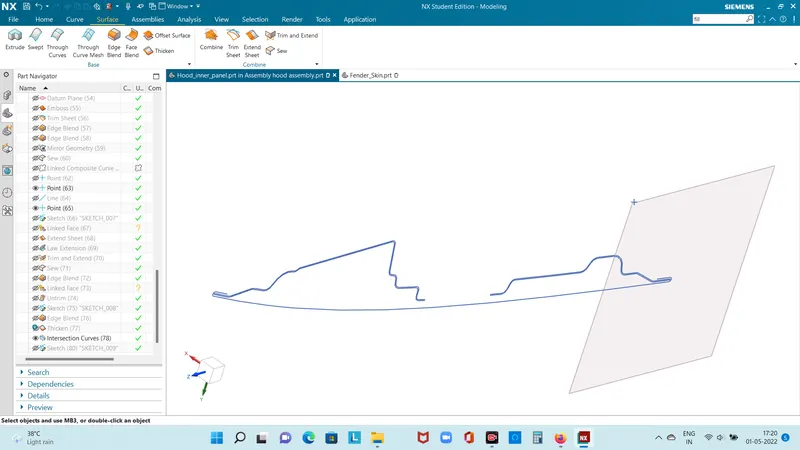

connect all the curves

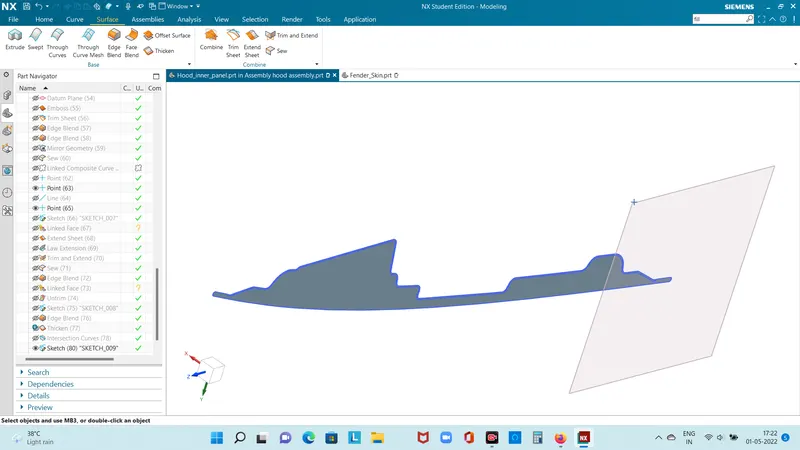

the fill command use to make sheet

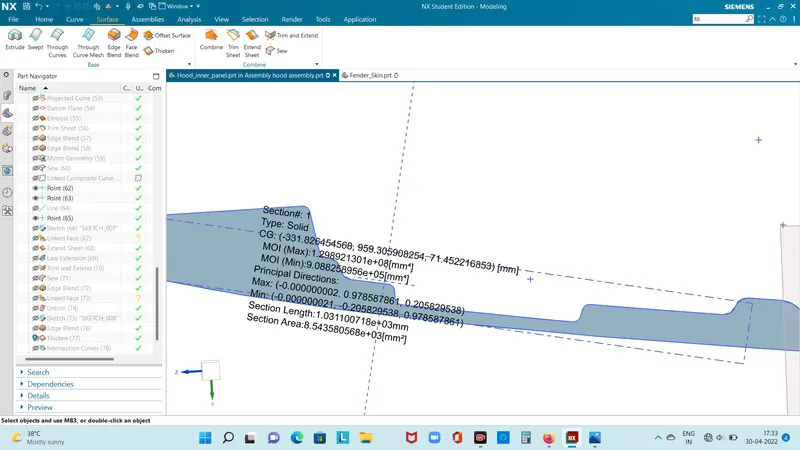

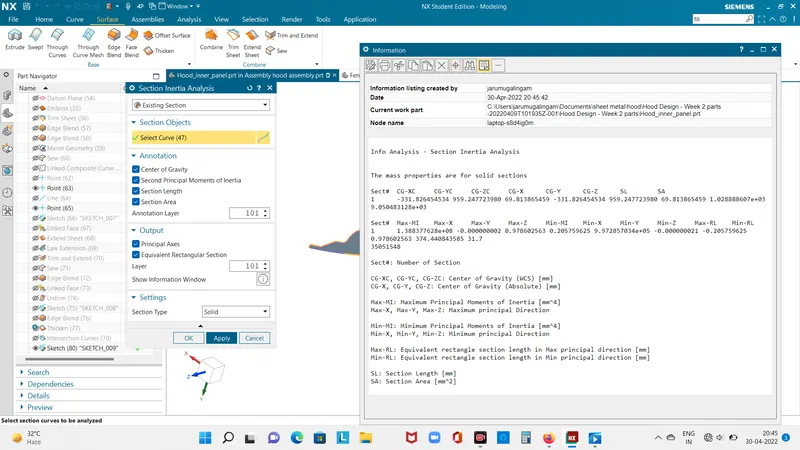

measure section modulus area of the sheet s=I/Y

calulation for section modulus area

I=9.08825*10^5

y=241.3

s=9.08825*10^5 /241.3

s=3766.26

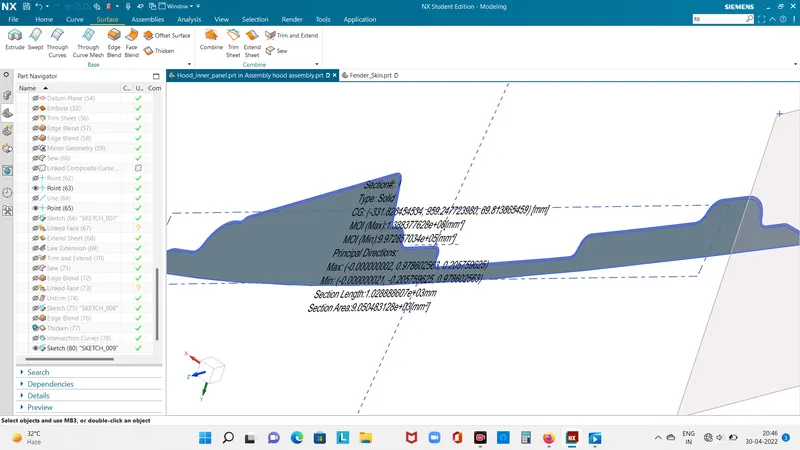

then increase the value of the size

I=9.9728*10^5

Y=241.3

S=I/Y

s=4132.946

to compare two section

then find the proper answer

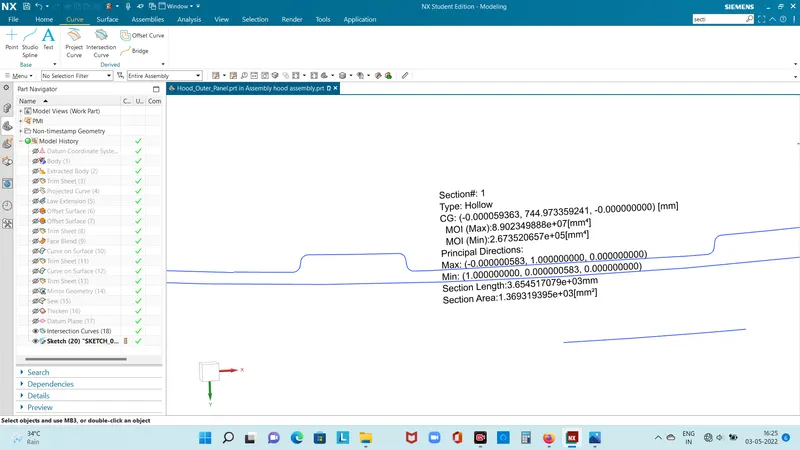

create intersection another axis reference method

calculate section modulus of this portion

I=2.673*10^5

y=437.7332

S=I/Y

S=2.673*10^5/437.7332

S=610.6459

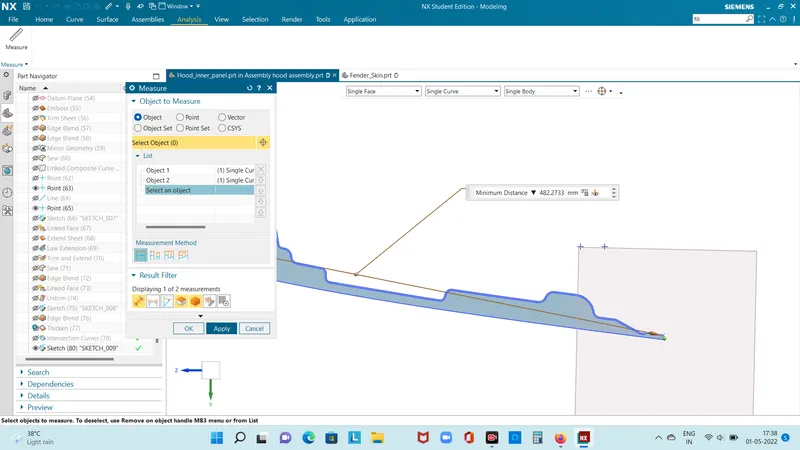

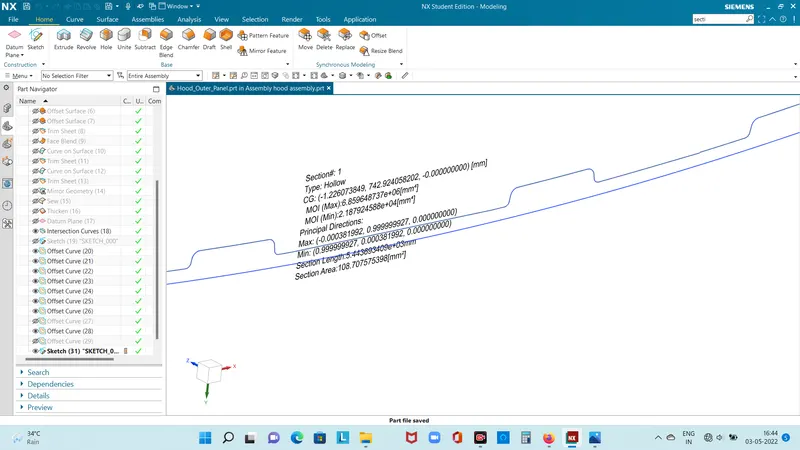

then calculate the extend distace o.8mm

I=2.18792*10^5

y=473.733

s=2.18792*10^5/473.733

s=461.864mm

RESULT:

In this challenge analysed the section modulus of the hood design by two ways.
