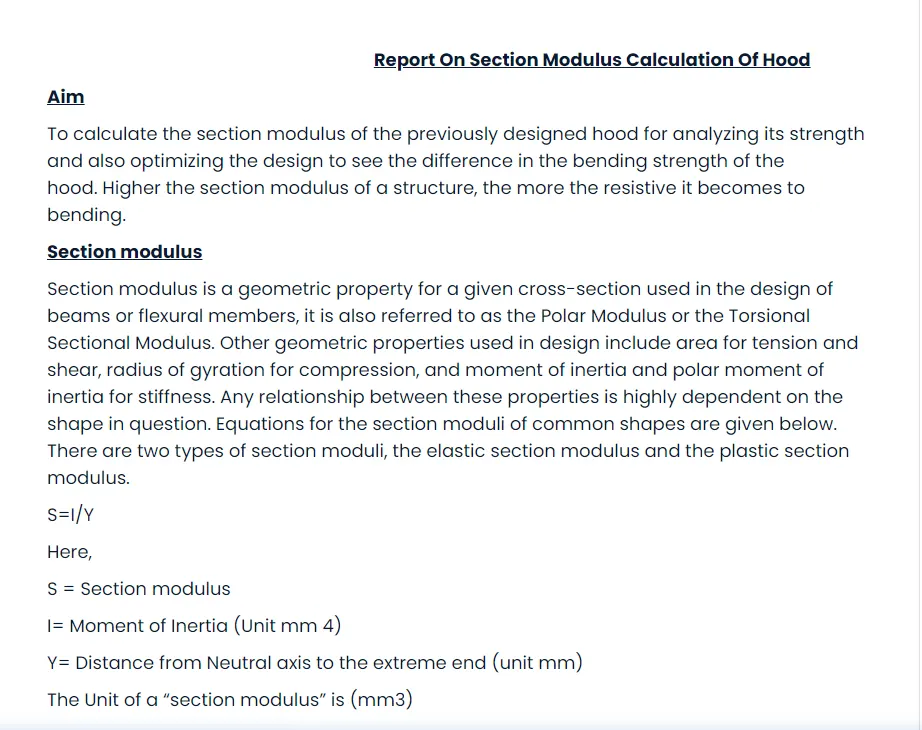

Section Modulus calculation and optimization

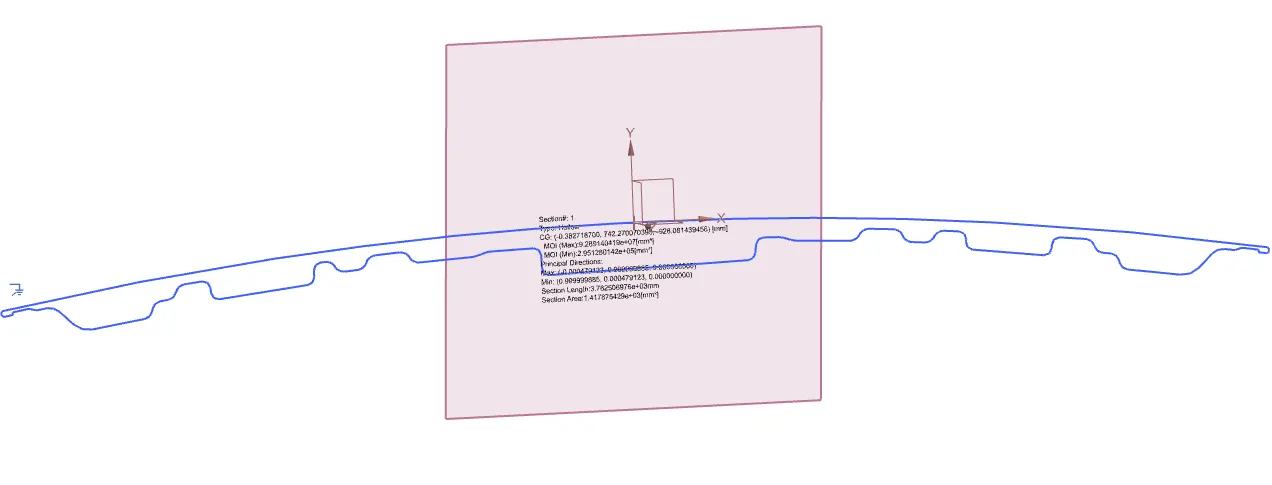

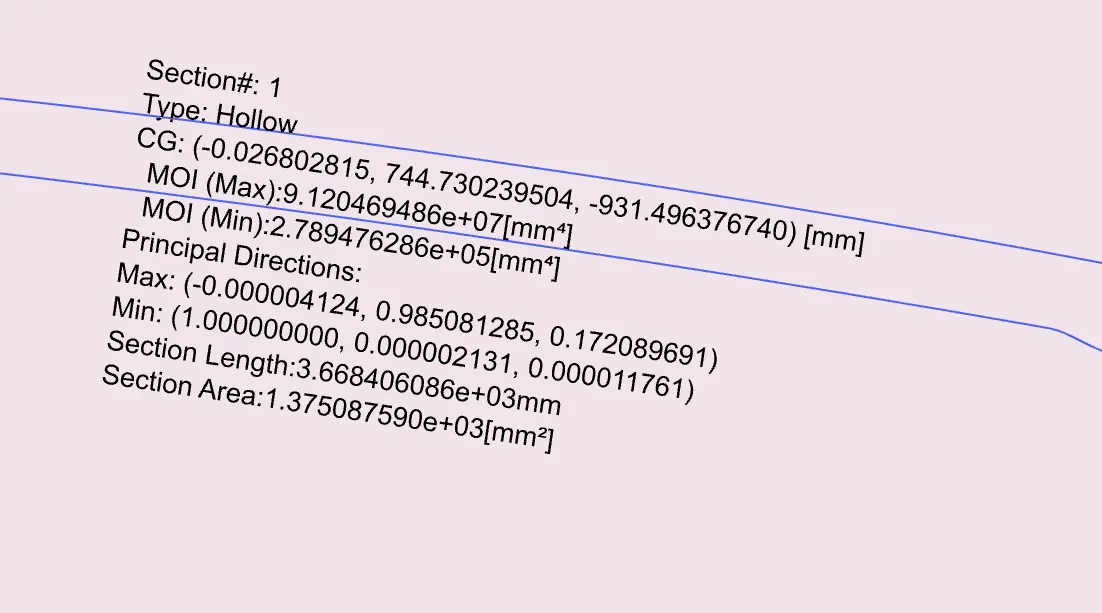

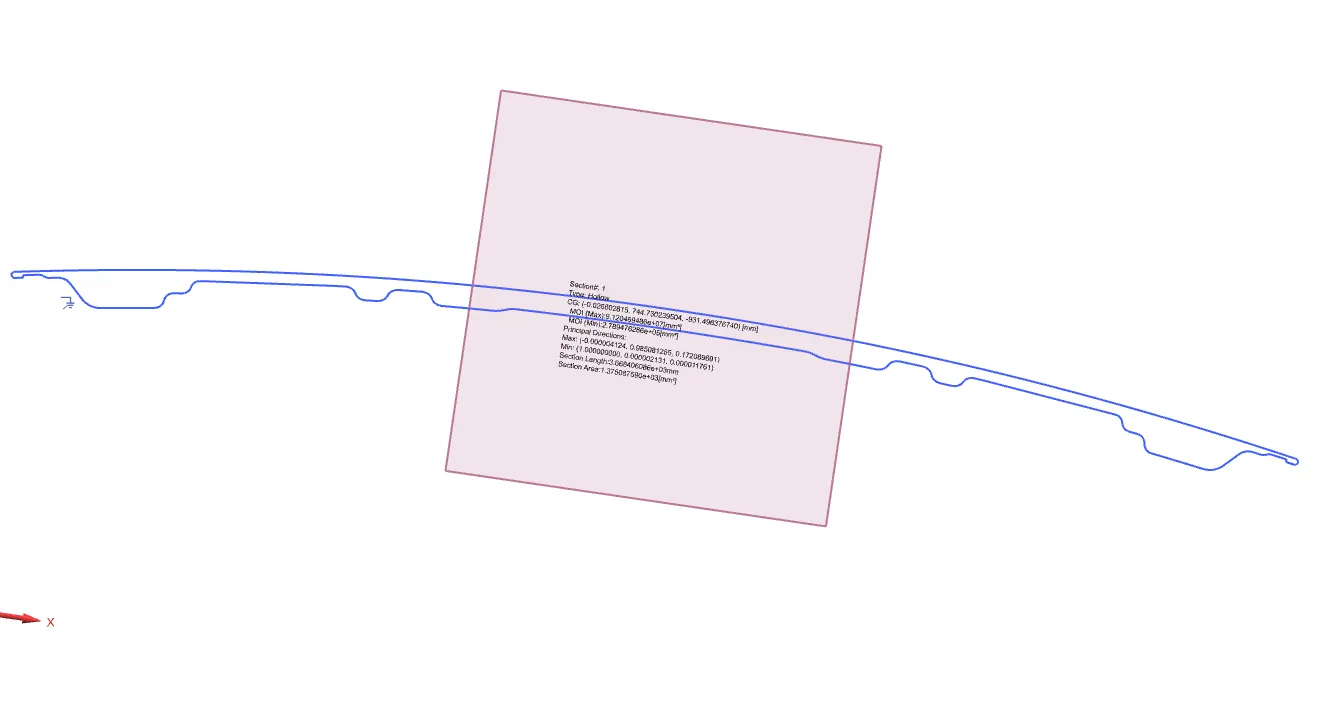

Moment of Inertia(Max)=9.12046*10^7mm^4
Moment of inertia(min)=2.78947*10^5mm^4
Y=876.5330/2=438.2665mm
S=I/Y
S=2.78947*10^5/438.2665=636.4780mm^3
Hood Design Optimization:
By increasing the depth of inner panel by 0.5-

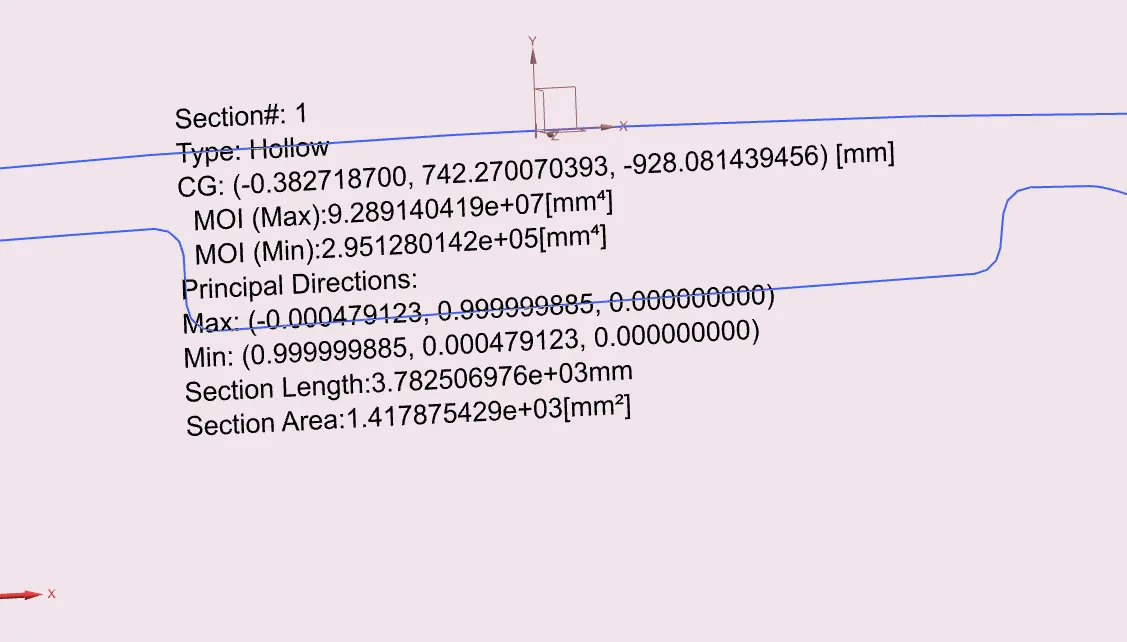

Moment of inertia(Max)=9.28914*10^7mm^4
Momennt of Inertia(Min)=2.95128*10^5mm^4
Y=876.5330/2=438.2665mm
S=I/Y
S=2.95128*10^5/438.2665=673.39849mm^3
