Reinforcement Detailing of Beams from ETABS output

1) Analysing of the model is done

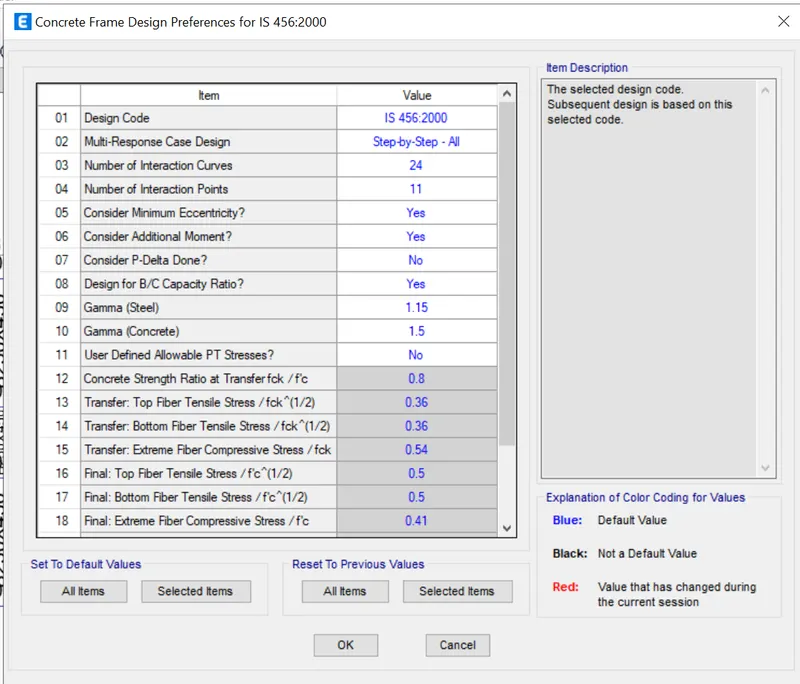

Frame design preferences:

Design --> design combination

Design --> start design check

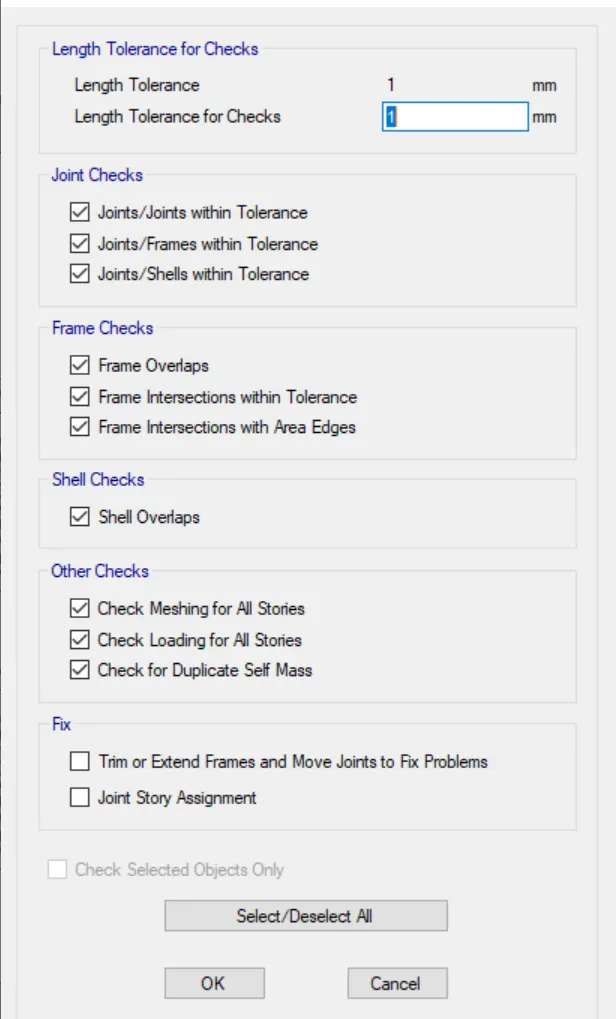

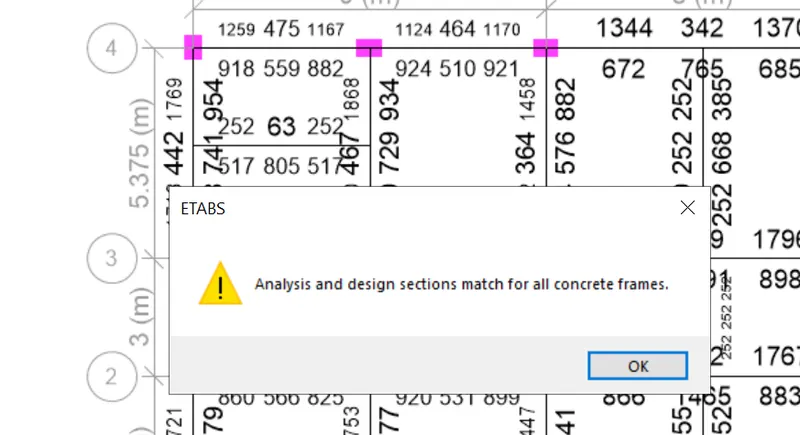

Analysis and design info matches for all members

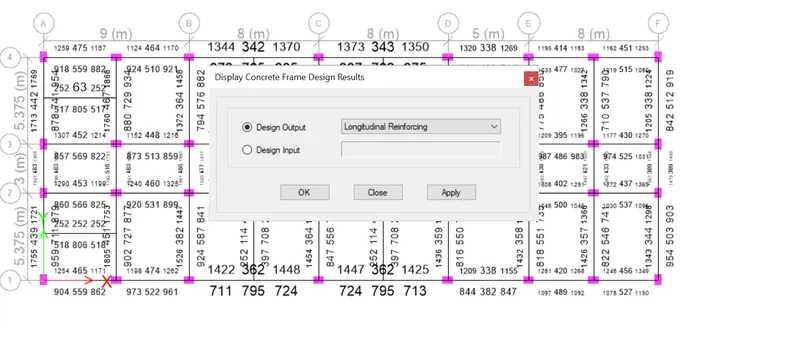

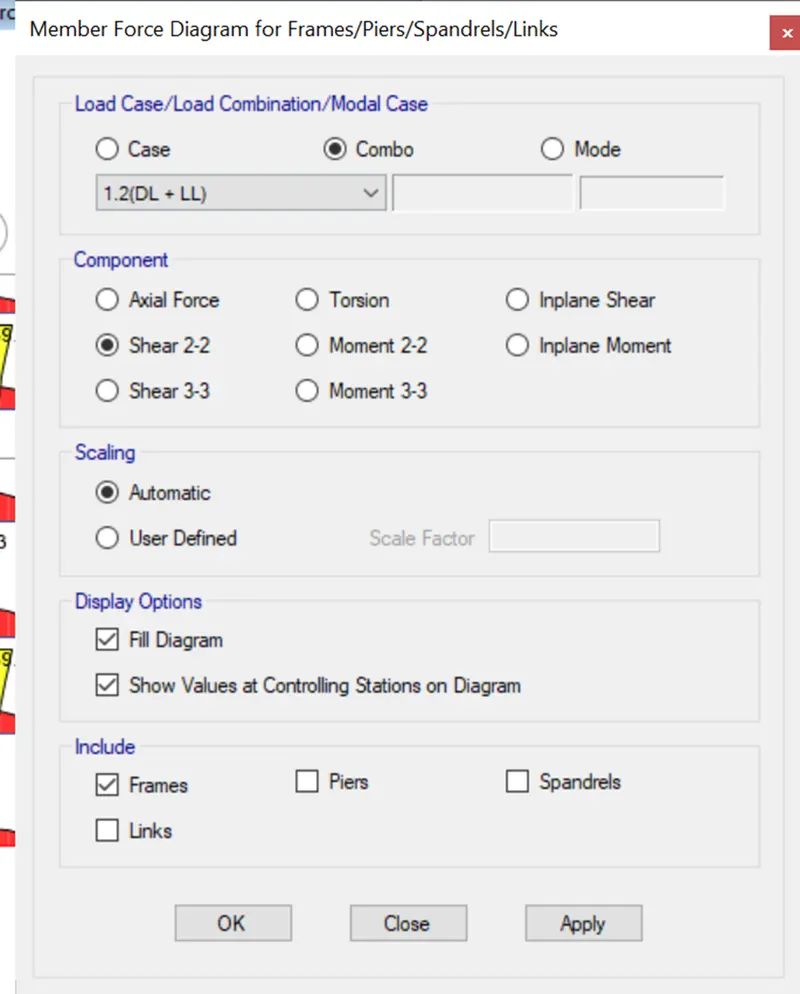

Display design info :

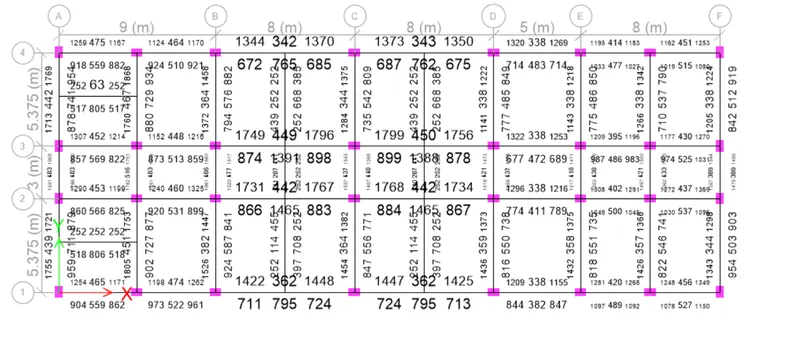

Longitudinal reinforcement :

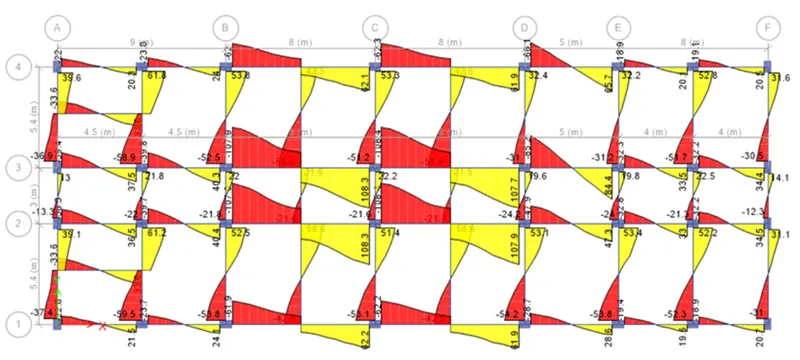

Display of design of shear reinforcement :

Reinforcement details along grid 3 :

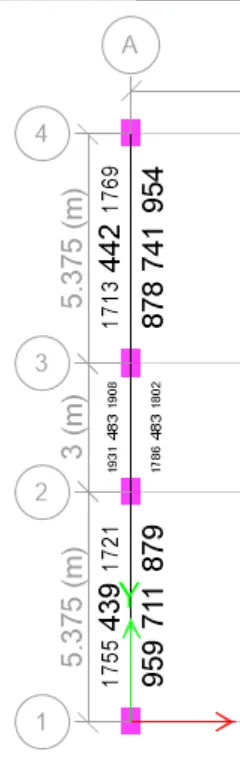

Longitudinal reinforcement:

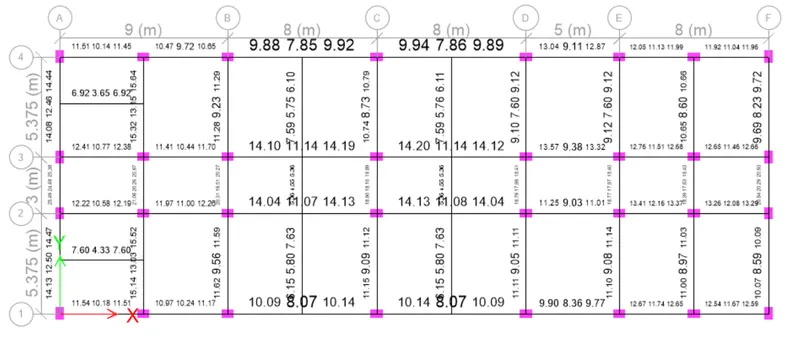

Shear reinforcement :

Reinforceme

nt details along grid A:Longitudinal reinforcement :

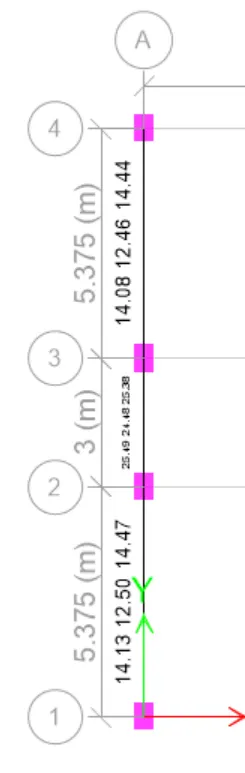

shear reinforcement:

Calculation of shear force on continous beam :

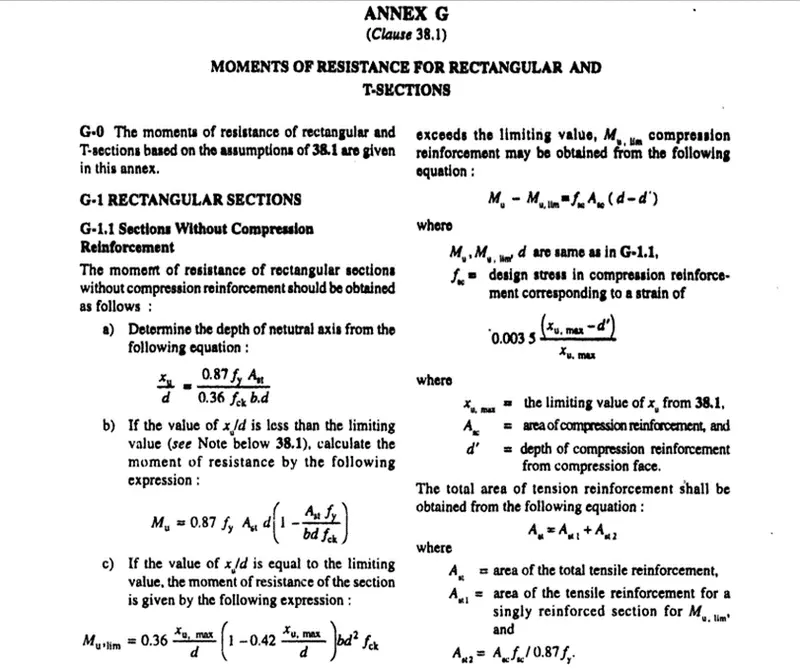

Moment capacity of RC beam for the provided reinforcement = 283kNm

Shear force :

Sway shear force at right `Vu,a` = 36.775 kN

`Vu,b`= 154kN

Sway shear force at left Vu,a = 114kN

Vu,b = 32.35kN

Provided shear reinforcement = 2262 `mm^2`

Required shear reinforcement = 1320 `mm^2`

Provided > Required

Hence the design is satisfied.
