Reinforcement Detailing of Beams from ETABS output

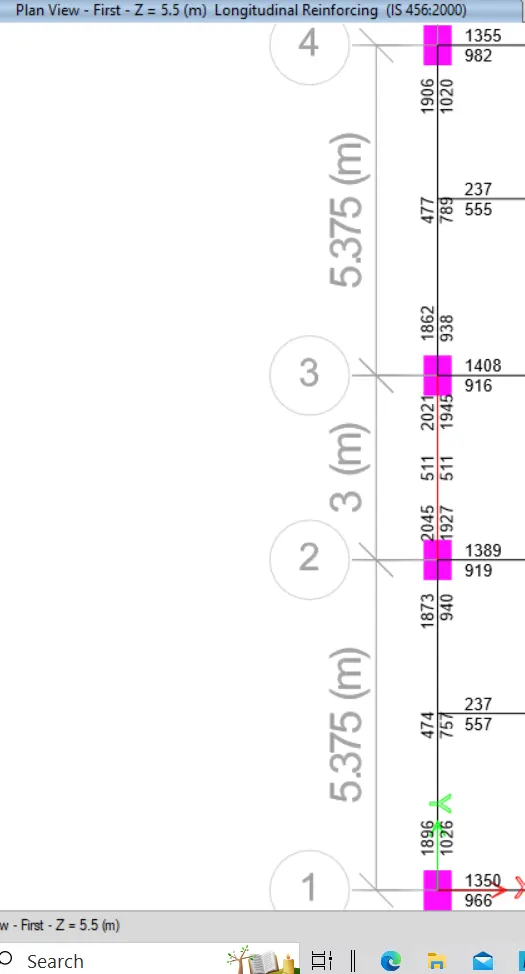

LONGITUDINAL REINFORCEMENT OF 3SPAN CONTINOUS BEAM ALONG GRID(A) IN mm^2

LONGITUDINAL REINFORCEMENT OF BEAM ALONG 7 SPAN OF GRID(3) IN mm^2

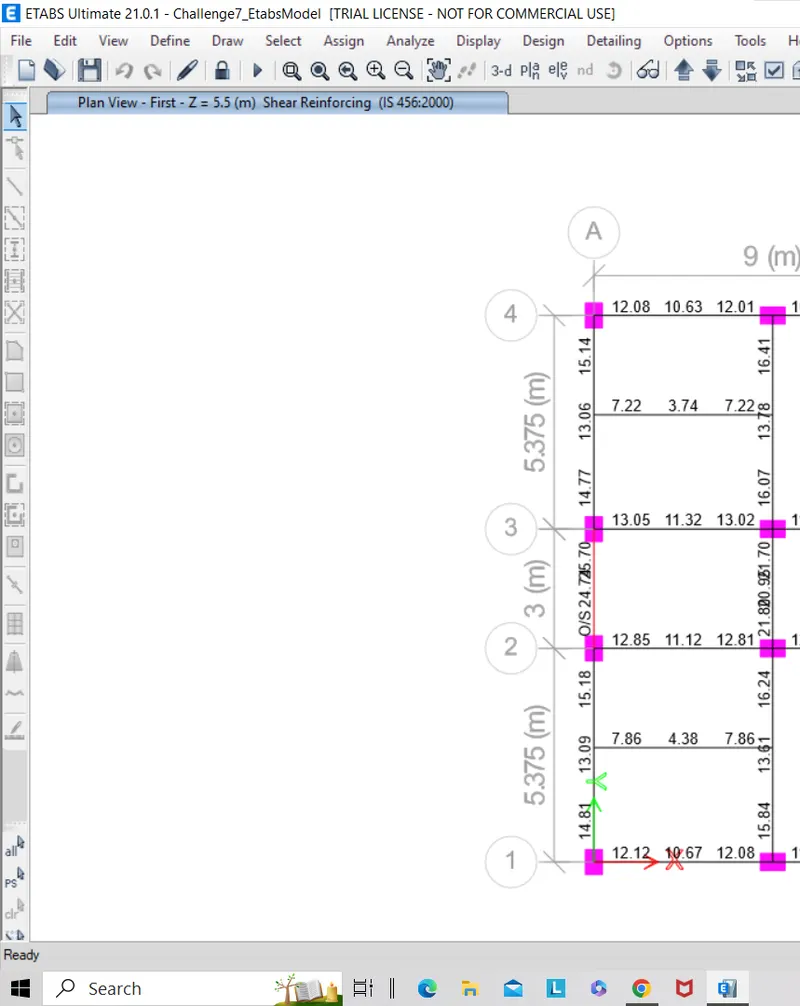

SHEAR REINFORCEMENT OF 3SPAN CONTINOUS BEAM ALONG GRID(A)

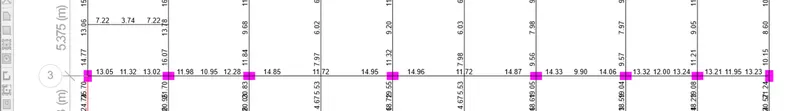

SHEAR REINFORCEMENT OF 7SPAN CONTINOUS BEAM ALONG GRID 3

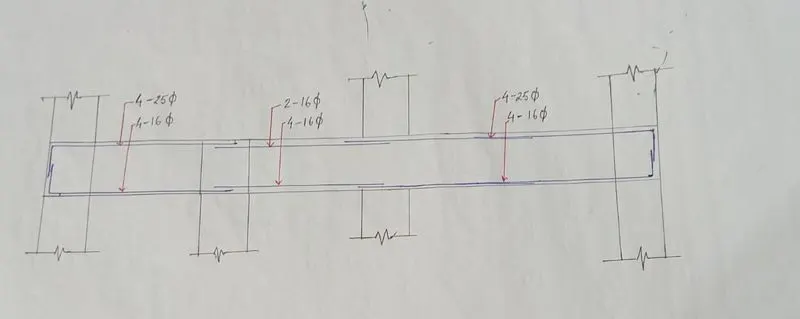

Reinforcement Detail Of Beams

CALCULATIONS
