Project 2 Thermal modeling of battery pack

REPORT OF PROJECT WORK :2DOWNLOAD The connectors from website and download BACK DOOR ASSEMBLY Which will be in solidworks cat part.WE should place connectors at particular position We should create Channel like Sheet Metal and create bundle point Enrty and EXIT pointWe should move to HARNESS ASSEMBLY FOR CREATING…

REPORT OF PROJECT WORK :2 DOWNLOAD The connectors from website and download BACK DOOR ASSEMBLY Which will be in solidworks cat part. WE should place connectors at particular position  We should create Channel like Sheet Metal and create bundle point Enrty and EXIT point We should move to HARNESS ASSEMBLY FOR CREATING Multibranchable…

REPORT OF PROJECT WORK :1 DOWNLOAD The Engine flies and cad flies WE should place connectors at particular position  We should create Channel like Sheet Metal and create bundle point Enrty and EXIT point We should move to HARNESS ASSEMBLY FOR CREATING Multibranchable Main bundle should be=15mm Sub Branch=10mm and then…

REPORT OF PROJECT WORK :1 DOWNLOAD The Engine flies and cad flies WE should place connectors at particular position  We should create Channel like Sheet Metal and create bundle point Enrty and EXIT point We should move to HARNESS ASSEMBLY FOR CREATING Multibranchable Main bundle should be=15mm Sub Branch=10mm and then…

REPORT OF PROJECT WORK :2 DOWNLOAD The connectors from website and download BACK DOOR ASSEMBLY Which will be in solidworks cat part. WE should place connectors at particular position  We should create Channel like Sheet Metal and create bundle point Enrty and EXIT point We should move to HARNESS ASSEMBLY FOR CREATING Multibranchable…

CHALLENGE 7:WIRING HARNESS Relating to FLATTENING OF AN ASSEMBLY Aim: To create a flattened view of the previously prepared Electrical harness assembly in Catia V5. Objective:  Flatten the harness assembly prepared in the week 4 challenge. Place the flattened view on the drawing sheet. To add the protective covering…

  WEEK 5& 6 CHALLENGE HARNESS A&B TOGETHER   Aim: Route two electrical harnesses per the given layout and interconnect them as a single harness assembly check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly. Objective: The objective of this project…

Aim:  1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors:  DT06-4S DT06-6S DT06-2S DT06-08SA Connectors Layout Design: Steps to be followed: 1. Download connector 3D data…

attched below

attached

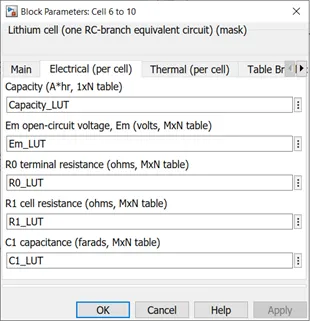

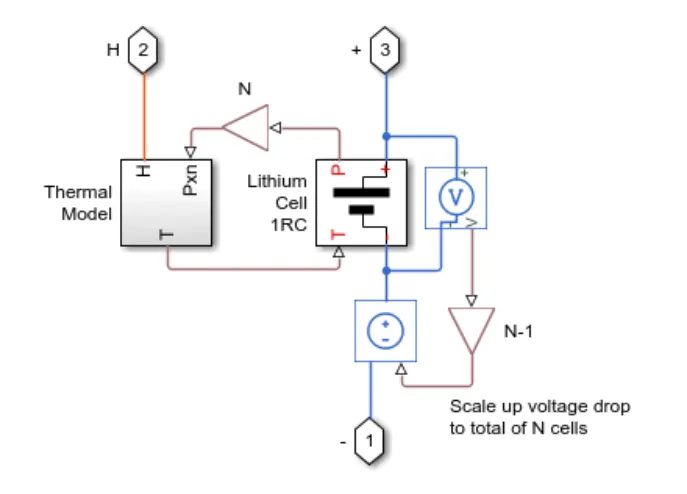

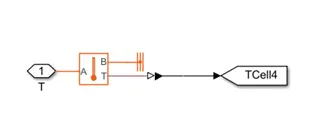

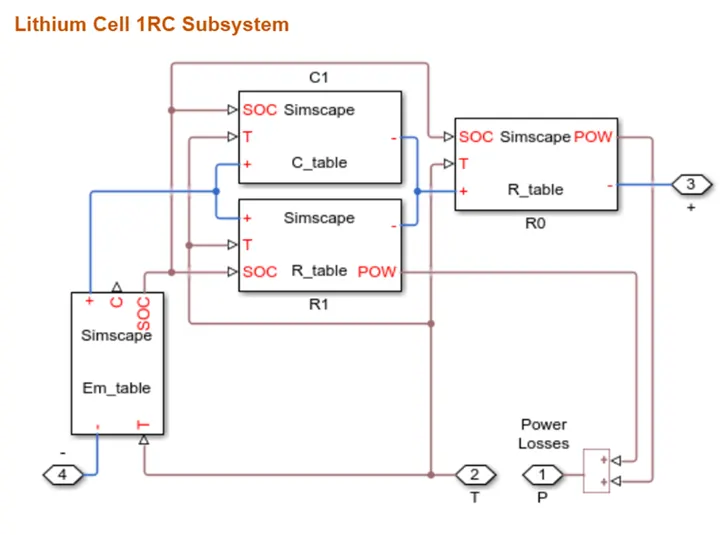

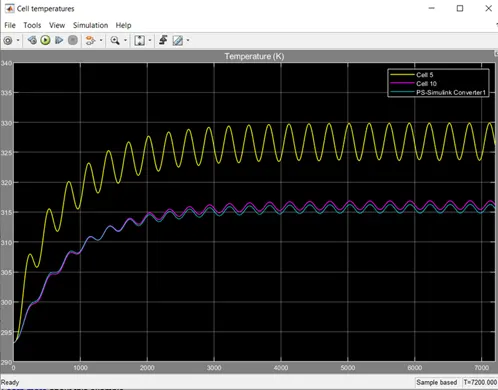

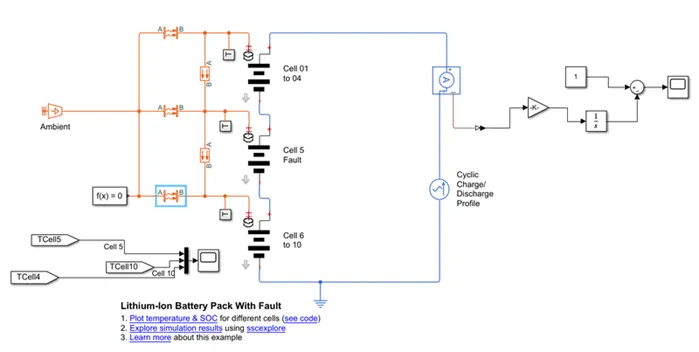

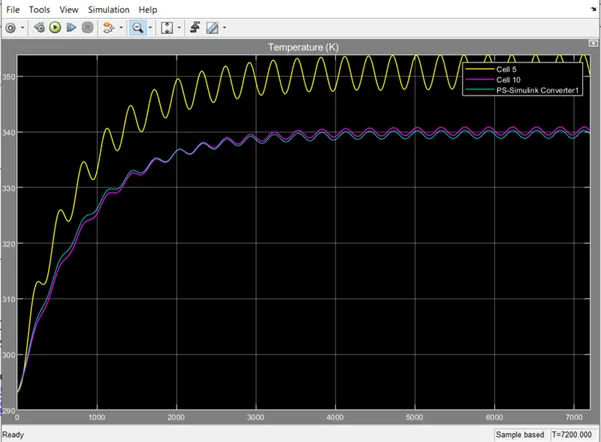

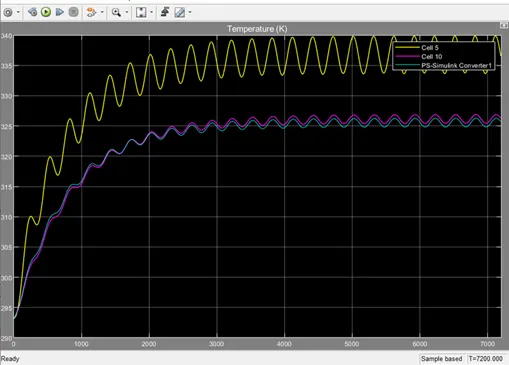

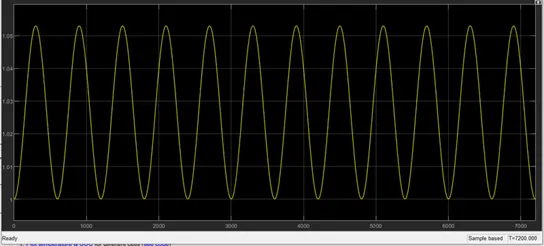

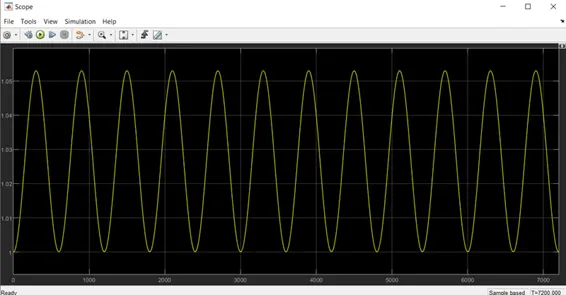

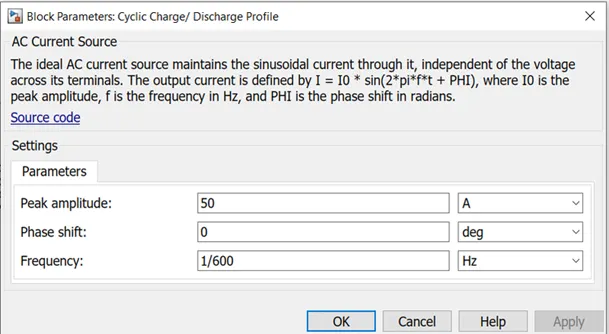

Lithium-Ion batteries use 3 cells to provide an 11.1 volt battery, 4 cells to provide a 14.8 volts battery or 10 cells to provide 37 volts battery. OBJECTIVE - For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates…

Mechanical design of battery pack Battery packs are made of multiple, smaller sections called battery modules (or sub packs). These modules include a smaller number of cells connected in series and parallel. an wiil have the lower Voltage. Componets used in battery pack Cooling system, battery packaging, a battery management…

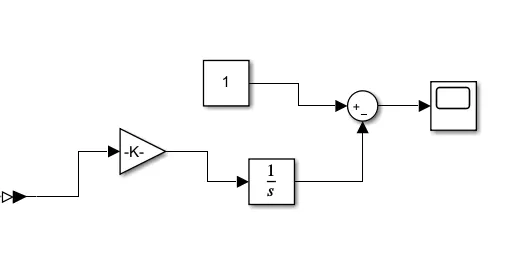

 Coulomb counting Definition Measures the discharging current of a battery and integrates the discharging current over time in order to estimate SOC. A Building Management System is a computer-based system installed in buildings to manage and monitor equipment such as air-conditioning, heating, ventilation,…

ATTACHED BELOW

An actuator requires a control device (controlled by control signal) and a source of energy. The control signal is relatively low energy and may be Electric or current, pneumatic, or hydraulic fluid pressure, or even human power. Its main energy source may be pressure, orPneumatic pressure.The…

word document attched below and results are attached in same.

both the drive cycles results are attached below

Explanation; zeta=0.5 for underdamped system zeta=1 poles are calculated and equal in magnitude and real for zeta=1 matlab function getting error and not able to get results. A DC has a rotor (rotating part)with a armature winding providing the electric circuit. vi=load voltage vf=field function vb=km dteta/dt Km and kt…

attached below

1. GENERATOR,BREAKER.STARTER,BATTERY,DISTRIBUTOR,fuse,Light switch 3. 20A Fuse. because the fuse current should be minimum two times the full current load. 4. considering , 1.2(for safety) 500*1.2=600 considering 72v Therefore,600/72 =8.33AH Voltage can taken be taken any value according to requirement. ANSWER:-VOLTAGE=72V,…
