1.first of all display – Rankine cycle simulator, using disp command.
2.Now write rankine cycle’s all process using fprintf command.
3.Assign the values of given parameters ,Turbine inlet pressure(p_1) = 30 bar, Turbine inlet temperature(t_1) = 400 deg celsius ,Turbine outlet pressure(p_2) = 0.05 bar.
4.Put XSteam. m file in same directory and call the XSteam function with suitable arguments to find the values of enthalpy, entropy for state 1.
5.Use fprintf command to print values of variables we found. Repeat the procedure for all other states to find unknows.
6.Now apply a for loop to find values of enthalpy and entropy at saturated temperature and store them into variables.
7.Find net work output and back work ratio with suitable formulas.

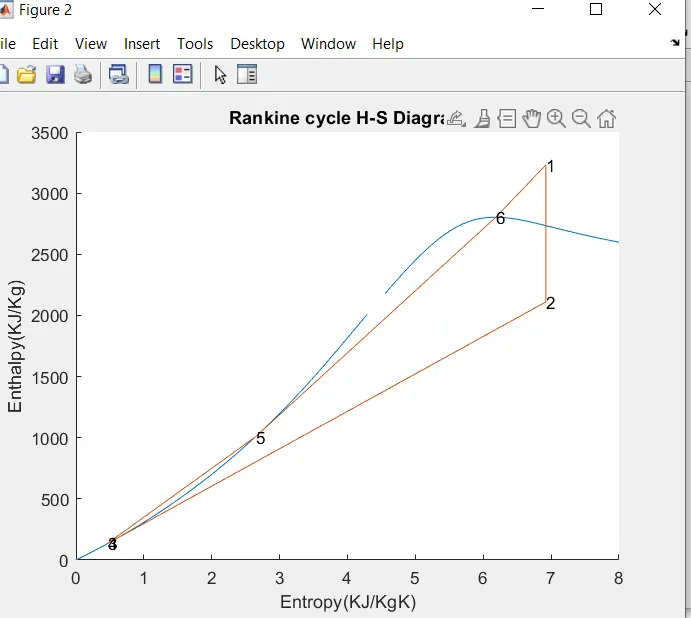

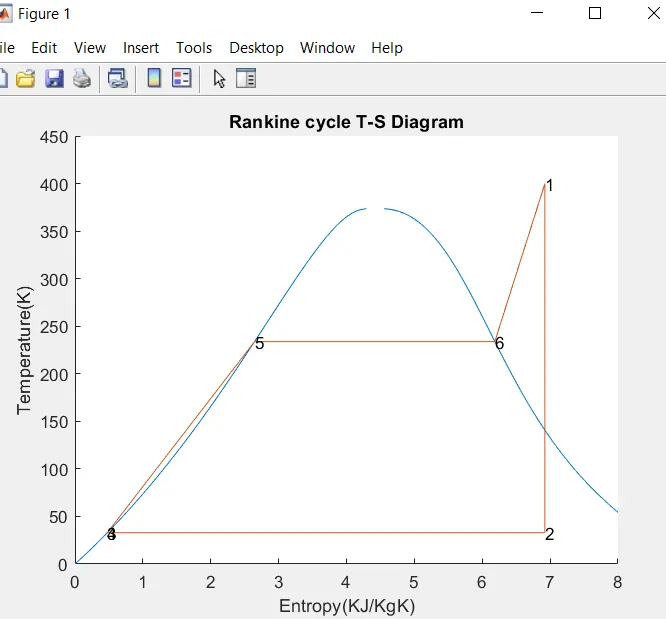

8.Plot the T-s and h-s diagram using all the value we have found in different states and give proper x and y label and add state number by text command.
9.Plot saturation line using the values we have found by for loop
Rankine cycle simulator
1-2 is the isentropic expansion process
2-3 is the constant pressure heat rejection process
3-4 is the isentropic compression process
4-1 is the constant pressure heat addition process
Results
At state point 1
P1 is:30.000000 bar
T1 is:400.000000 deg celcius
H1 is:3231.571027 KJ/Kg
S1 is:6.923260 KJ/KgK
At state point 2
P2 is:0.050000 bar
T2 is:32.875490 deg celcius
H2 is:2110.708472 KJ/Kg
S2 is:6.923260 KJ/KgK
At state point 3
P3 is:0.050000 bar
T3 is:32.875490 deg celcius
H3 is:137.763073 KJ/Kg
S3 is:0.476254 KJ/KgK
At state point 4
P4 is:30.000000 bar
T4 is:32.963066 deg celcius
H4 is:140.762226 KJ/Kg
S4 is:0.476254 KJ/KgK
At state point 5
P5 is:30.000000 bar
T5 is:233.858445 deg celcius
H5 is:1008.371370 KJ/Kg
S5 is:2.645621 KJ/KgK
At state point 6
P6 is:30.000000 bar
T6 is:233.858445 deg celcius
H6 is:2803.264739 KJ/Kg
S6 is:6.185788 KJ/KgK>>
