Project-2-Meshing of Door Inner Panel Challenge
Target Element Length = 4 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 6 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |

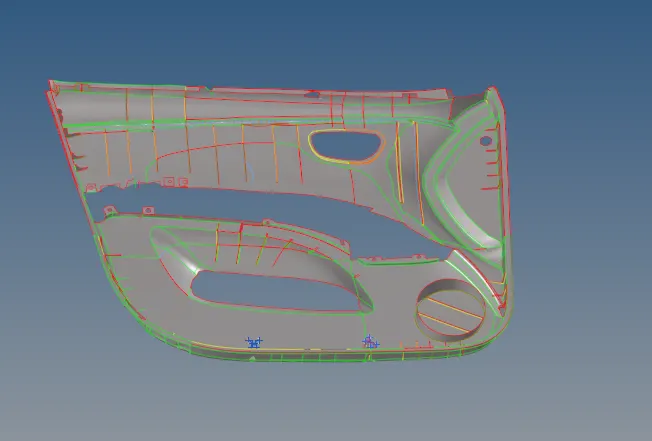

As a first step, We import the model & then visualize it. So, as can be seen in the image (in topo view) there are some free edges at the boundaries & at center. But we are not correcting them because as the complexity of the model is high, it will not become a hurdle while creating a mid-surface via manual method.
- MID-SURFACE GENERATION & TOPO CLEANUP:
After this we need to generate a mid-surface, so for that we have to choose a suitable method to generate mid-surface. So, as per the measurement the base has 2.8 unit, at boundary 2 unit and where ribs are 2, 5, 10, 27 & some dog-houses are there. So, in conclusion it looks like a plastic component. It is a very complex model where the auto-mid surface generation will not work.

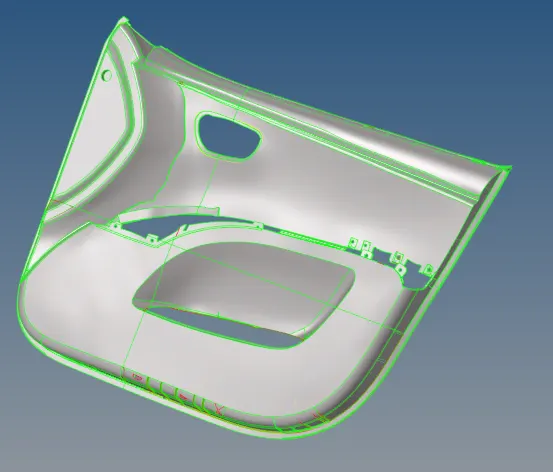

So, In manual method first we create a mid-surface of 'base surface' then we create a its ribs & dog-houses. And using some commands like, extend, trim we will attach it to the base surface. We can see the generated mid-surface in the image below. Also some cons are suppressed to avoid element failures.

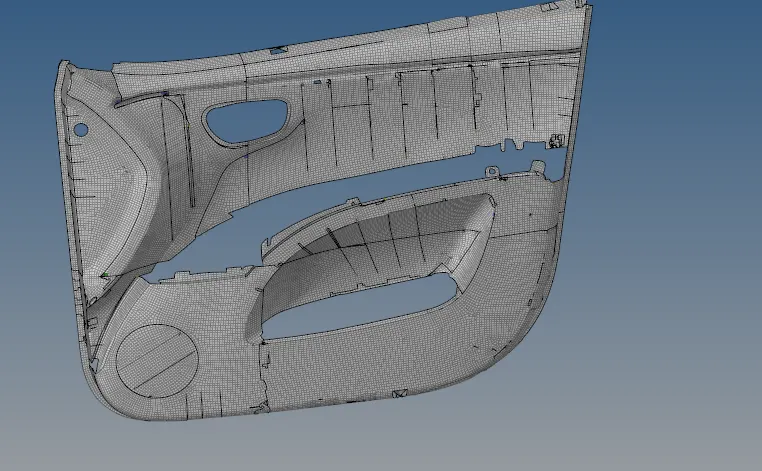

- MESH GENERATION:

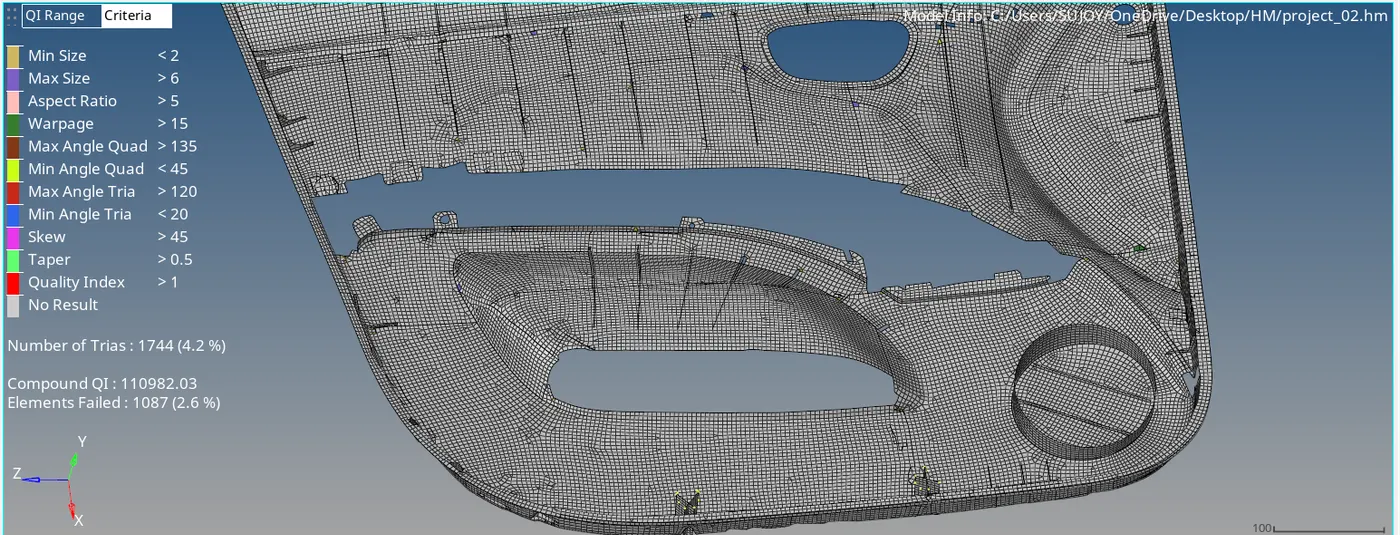

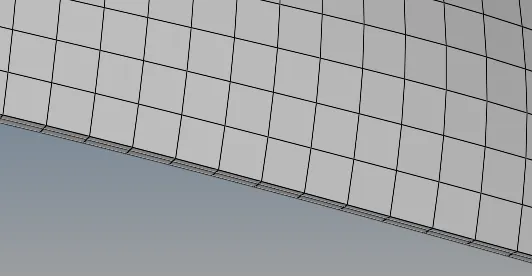

After geometry cleanup, it's time to generate the mesh. Before creating a mesh don't forget to set the quality criteria in the model as per given. For this model, I am not sure from which portion I have to start the mesh. So, I meshed all surfaces in one hit and then cleared the failed elements one by one.

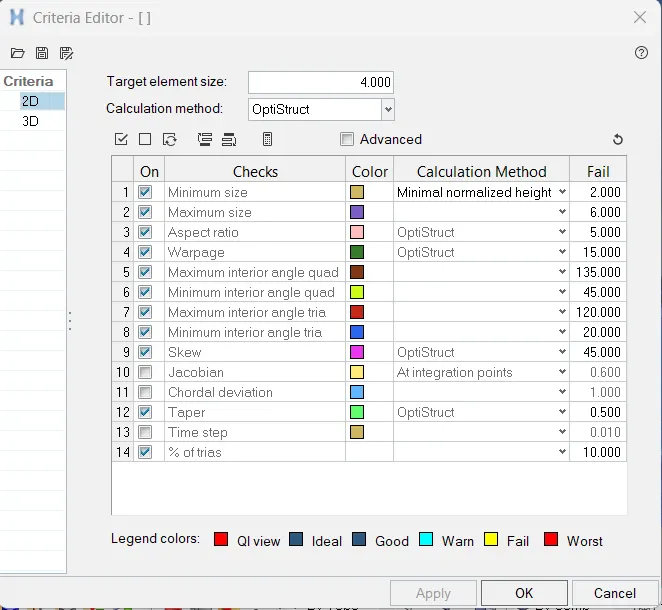

Criteria file.

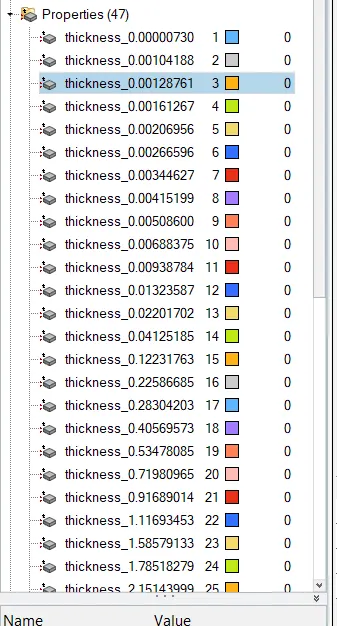

- ASSIGNING A THICKNESS:
Here to assign a thickness an auto option (Mesh > assign > Midmesh thickness) is used to create midmesh thickness.
4. CONCLUSION:
The Challenge is completed for the plastic model And As per me this part has a difficult feature where I have completely lied on manual methods. So overall it's a good practice for the use of manual tools.
Problems faced.
Facing crash of Hypermesh interface when the trias are reduced or nodes are replaced in the open gaps and faces.
https://drive.google.com/file/d/1iE-ezygRYq2Kf9RIg34N8O1kCHjhyXRW/view?usp=sharing
